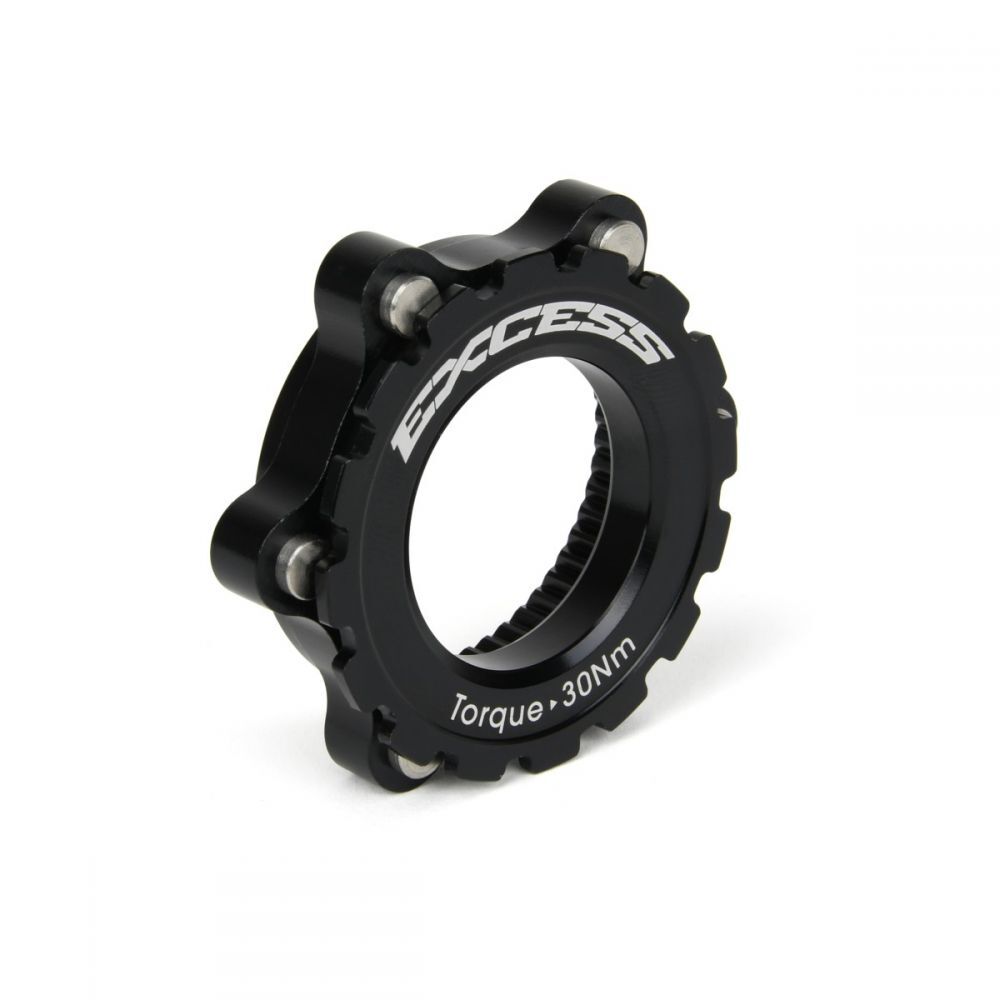

Close-up of a black bicycle sprocket lockring displaying the word "EXCESS" and "Torque - 30Nm" beneath. Adjacent to it, the Excess Centerlock ISO Adapter Kit is snugly fitted.
Excess Centerlock ISO Adapter Kit includes a black sprocket and ring labeled "Torque 30Nm," complemented by a bolted support ring, thin metal washer, and a 6-bolt disc brake rotor for secure braking performance.

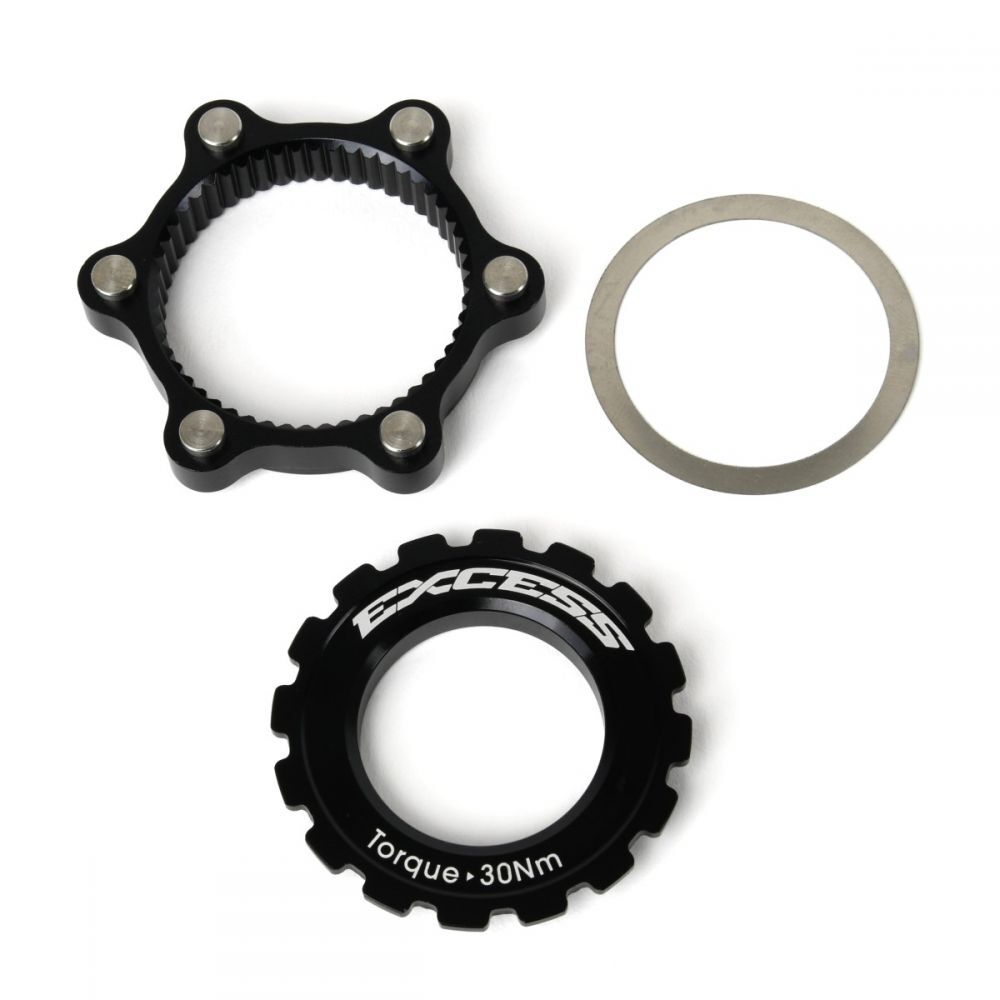

Three cyclocross bike components: a black sprocket marked “EXCESS” and “Torque 30Nm”, a toothed black ring, and a thin gray washer, arranged against a white background. Perfect for customizing your ride with the Excess Centerlock ISO Adapter Kit or upgrading to a 6-bolt disc brake rotor system.

Description

The Excess centerlock adapter lets you run an ISO 6 bolt disc rotor on a centerlock hub. It is the part you need to convert a centerlock rear hub, like the ones used on the Excess XLC complete wheel range, so the hub can be set up with a disc rotor and disc brake.

The body is aluminium alloy, roughly 52 x 52 x 9mm, and weighs about 27 grams. It is better suited to centerlock hubs with axle hardware larger than 20mm, and the lock nut needs a 16 notch Shimano Hollowtech type II tool with an outer diameter of around 44mm.

Features
  • Runs 6 bolt rotors. Fits a centerlock hub and gives you an ISO 6 bolt rotor mount, so you can use the rotor you already own.
  • Made for Excess XLC wheels. This is the part that converts a centerlock rear hub, like the ones on the Excess XLC wheel range, to a disc setup.
  • Alloy body, 27 grams. Aluminium alloy at about 52 x 52 x 9mm and 27 grams, so it adds next to nothing to the wheel.
  • Check your axle hardware. It is better suited to centerlock hubs with axle hardware larger than 20mm, so measure yours before ordering.
  • One tool fits the lock nut. The lock nut needs a 16 notch Shimano Hollowtech type II tool with an approximate outer diameter of 44mm.

Specifications
  • Fits: Centerlock hubs, including the Excess XLC complete wheel range
  • Length: About 52 x 52 x 9mm
  • Material: Aluminium alloy
  • Mount: Centerlock hub to ISO 6 bolt rotor
  • Weight: About 27g
  • Note: Better suited to centerlock hubs with axle hardware larger than 20mm. Lock nut requires a 16 notch Shimano Hollowtech type II tool of around 44mm outer diameter.

Excess Centerlock ISO Adapter Kit

Brand: Excess SKU:

$47.99 AUD

Or 4 payments of $11.99 AUD with

Colour - Black

$47.99 AUD

Price match request

Excess Centerlock ISO Adapter Kit - Black

$12.99 flat-rate shipping Australia-wide
