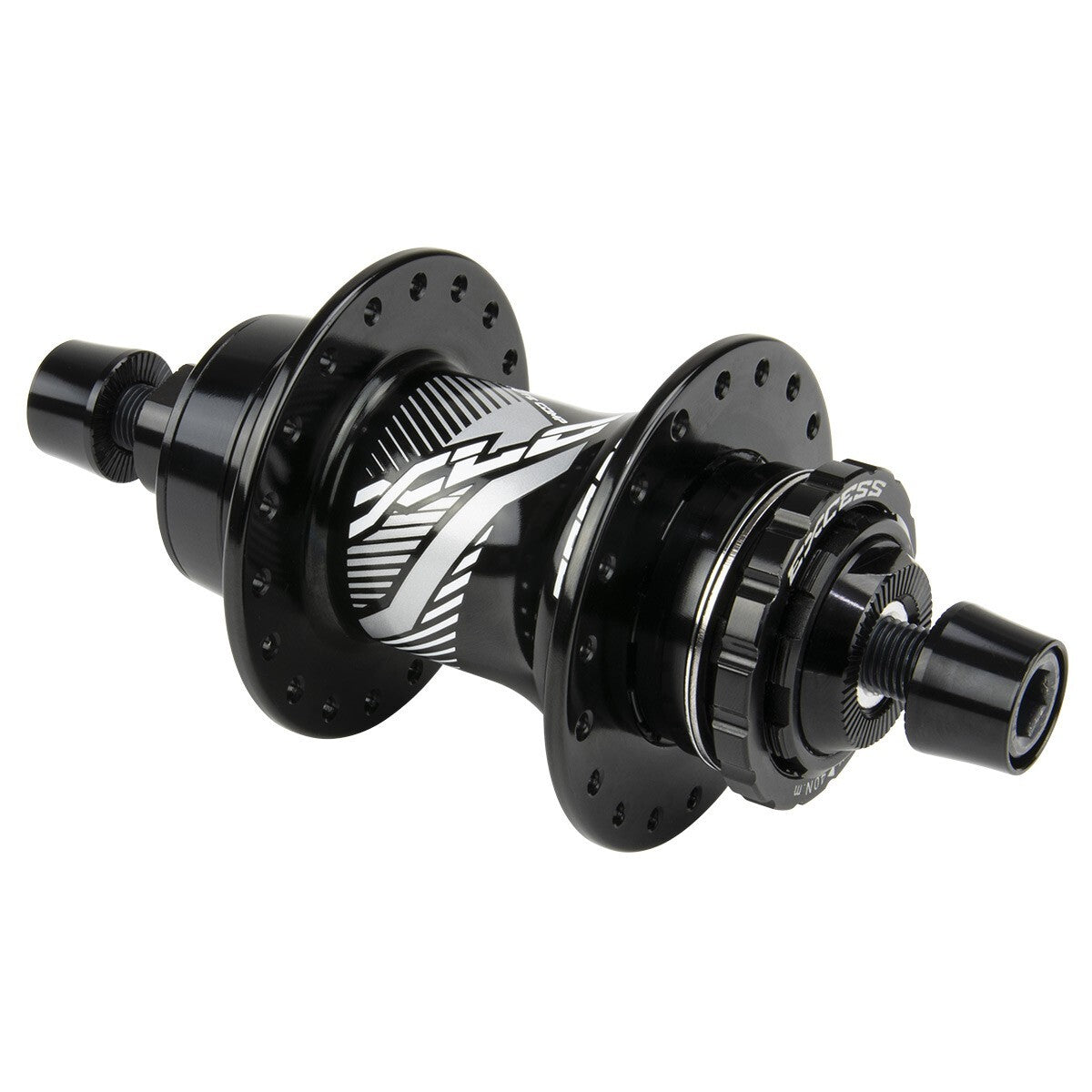

A black bike hub with a 36 hole configuration for spokes, featuring a pattern and the text "XTR" in white on the central cylinder. This disc brake hub, known as the Excess Pro Rear Hub 120R, ensures optimal performance and reliability.

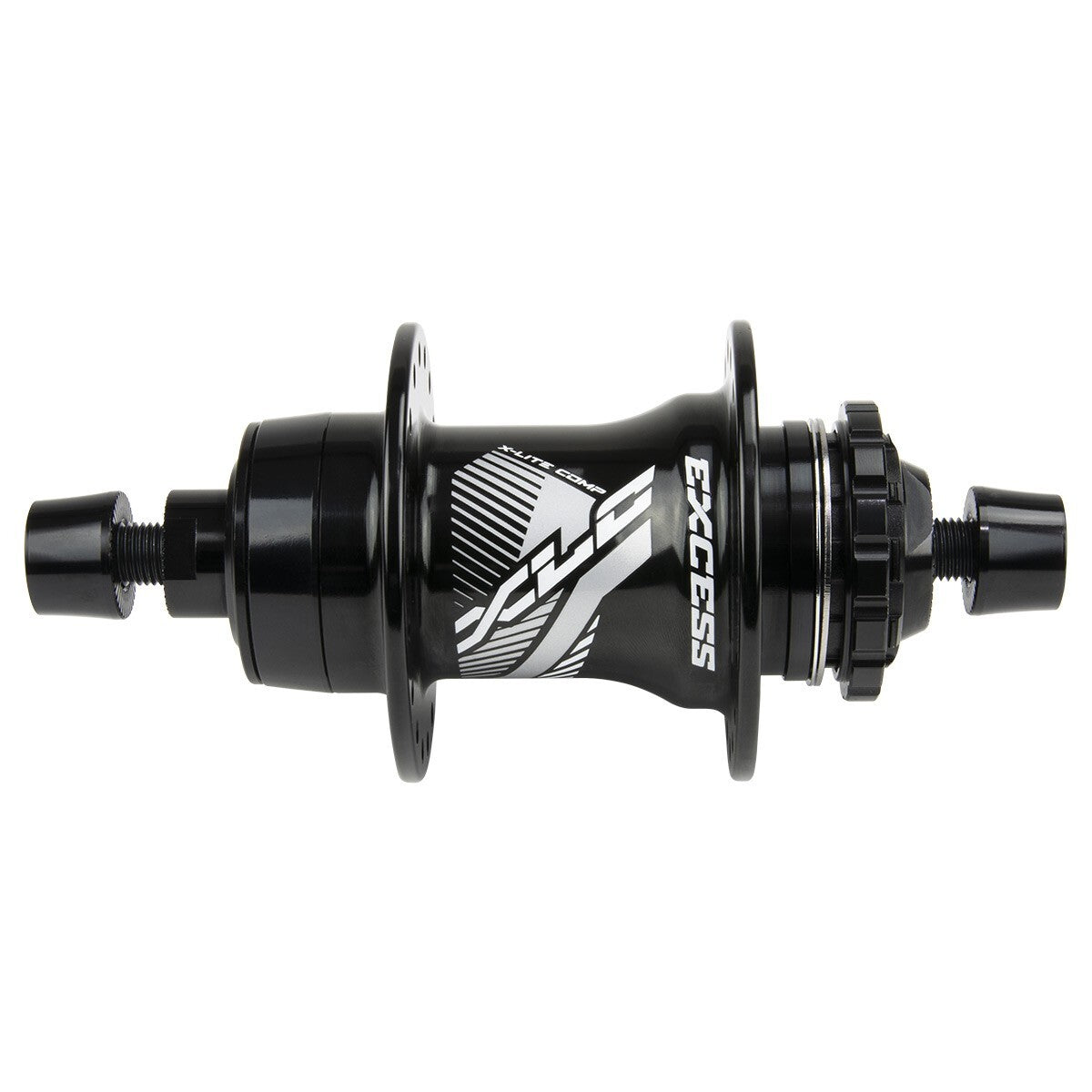

The Excess Pro Rear Hub 120R, designed for a high-end wheelset, boasts white graphics with the word "EXCESS" prominently displayed. It features flanges on both ends and comes with axle bolts for easy attachment.

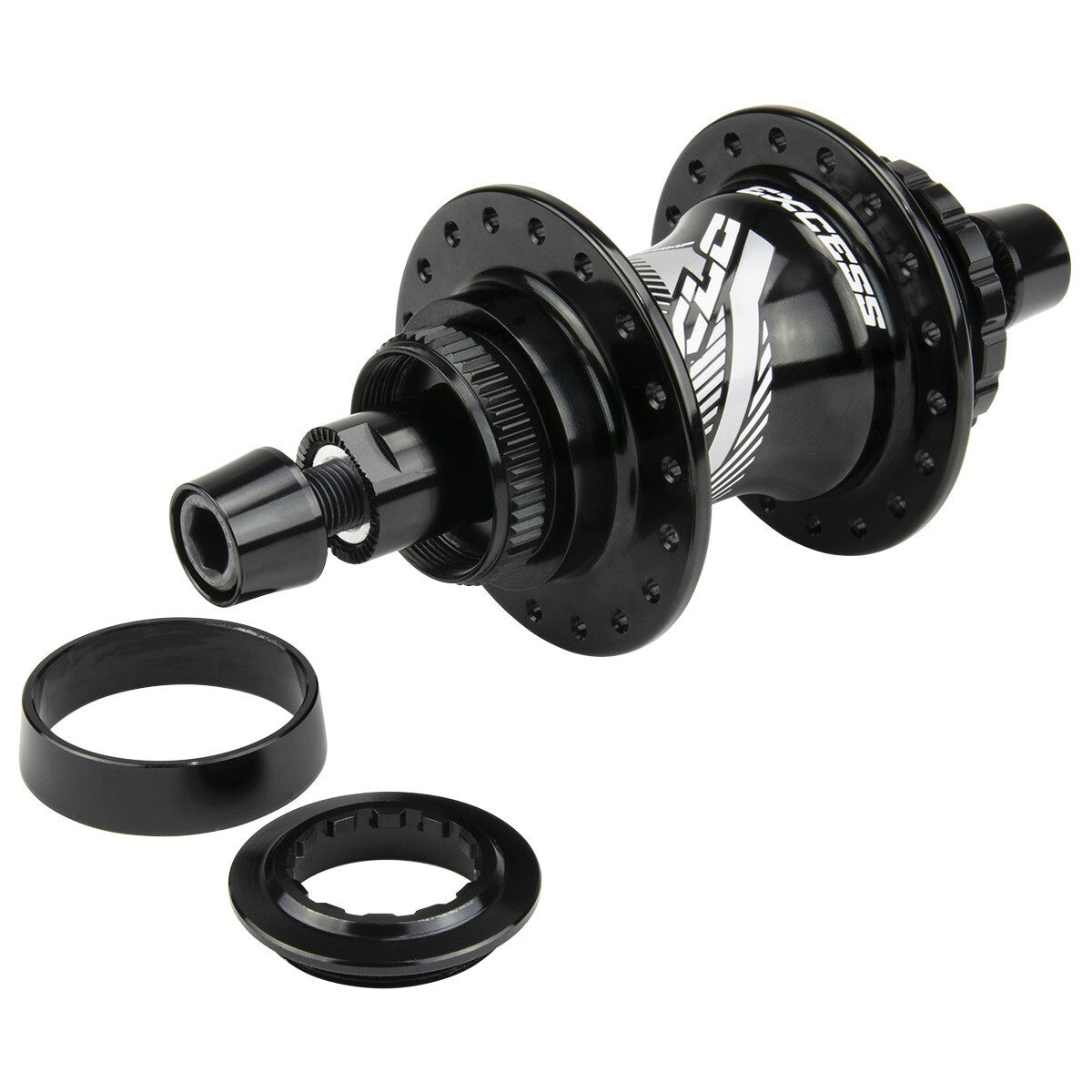

The Excess Pro Rear Hub 120R, emblazoned with the 'AXCESS' logo on its central cylindrical section, features two round flanges with multiple mounting holes. A separate ring is included, making it an ideal component for any high-end wheelset.

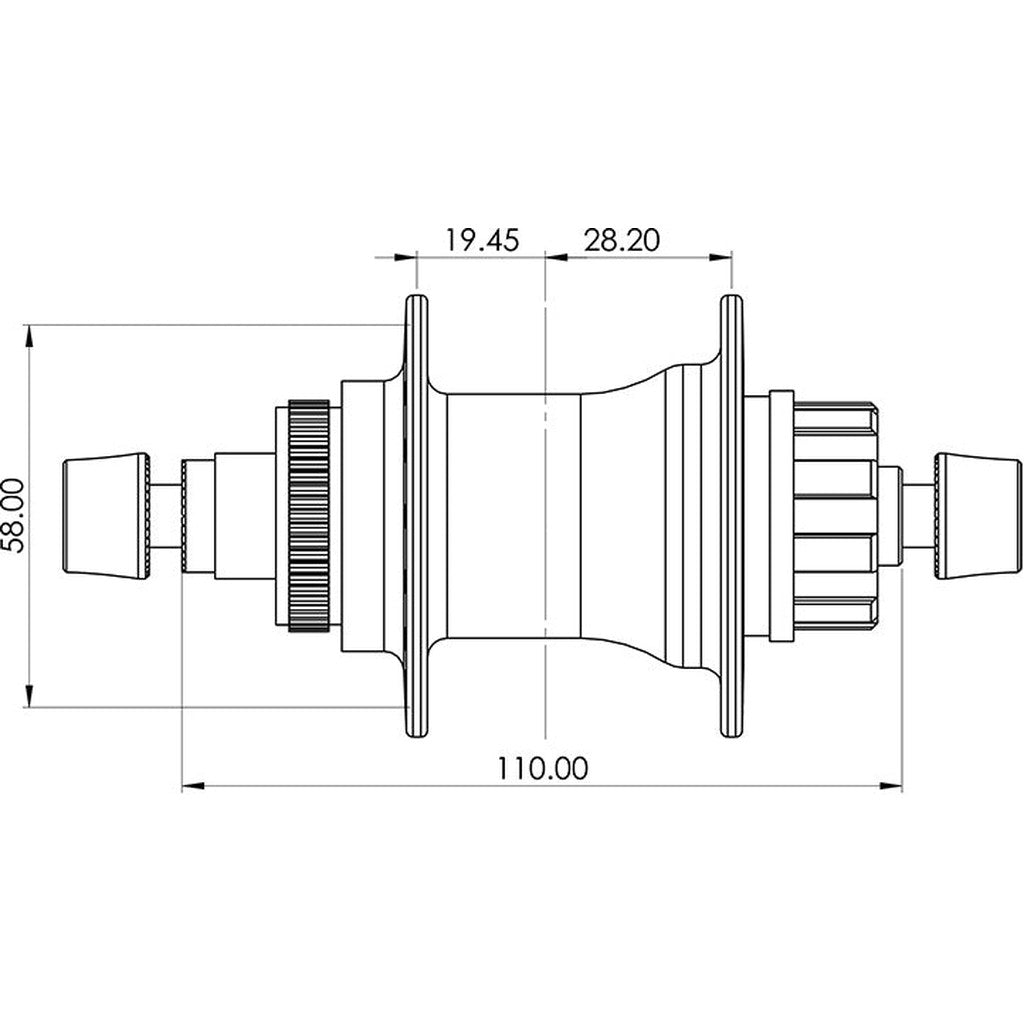

Technical drawing of the Excess Pro Rear Hub 120R showing detailed dimensions: 110.00 mm length, 58.00 mm diameter, and sections labeled 19.45 mm and 28.20 mm. Designed for a high-end wheelset with disc brake compatibility.

Excess Pro Rear Hub 120R

Sale price$368.99 AUD

Or 4 payments of $92.24 AUD with

Pay in 4 interest-free payments

Colour

Spoke Holes

Drive Side

Select Option

View All

Excess Pro Rear Hub 120R / Black / 36 Hole / Right Hand Drive

Sale price$368.99 AUD

Price match

68HUB0236120BLK

Sold Out

Description

Here's the performance Pro hub offering from Excess that has a couple of surprises up its sleeve. The Excess Pro Rear Hub 120R has a 36 hole configuration which is perfectly suited for Pro sized race bikes. This is the hub to choose when building a high-end wheelset for your custom race bike, with the added advantage that it can be configured as a disc brake hub with the purchase of centre-lock disc adapter to future-proof your bike.

As it's becoming more and more common to see disc brake options being offered on after-market frames, even down to the junior sizes, if you choose this rear hub from Excess, you can rest easy knowing that if you upgrade the frame, you can choose a disc-brake only frame without having to build another set of wheels. You simply convert this hub, add the disc brake system and you'll be washing off your speed as you cross the line with ease with full control as you point to the fans in the stands celebrating the W with you.



An alloy driver means that this hub is a tad lighter than its little brother, the 24R, and with 120 ratchets outer ring, it also hooks up seemlessly when you lay on the power.



Specifications:

  • 36 Hole
  • Alloy driver (3 pawls with 5 fin engagement system, engage into a 120 ratchets outer ring), with cromo 1x 1mm, 1x 0.5mm driver spacer and alloy lock ring
  • 4 sealed bearing
  • Alloy axle
  • M6 bolts with alloy CNC bolts caps
  • Upgrade Option to replace the supplied alloy lock ring and install a Center Lock Disc Adapter, sold separately.

Weight:  372 Grams

Note: Rear cog sold separately
