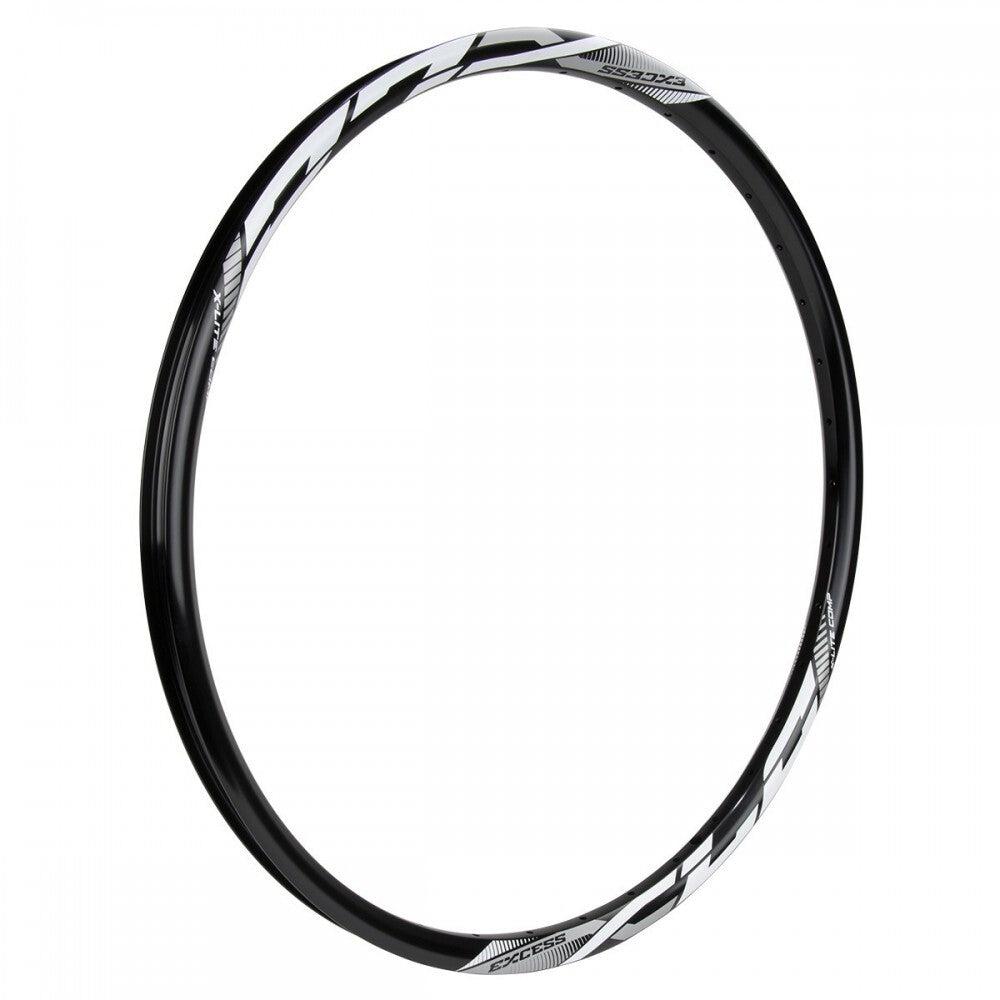

The Excess XLC Aluminium 451mm Rim boasts a sleek black and white design, expertly crafted with double-walled 6061 T6 alloy for enhanced durability. Its anodised finish adds a touch of sophistication when viewed from the side against the white background.
A black Excess XLC Aluminium 451mm rim, adorned with white graphics and viewed from the side, showcases its sleek aero rim profiles.

Highlights

  • Built for 451 mini and expert
  • Two aero profiles, front or rear
  • Double walled 6061 T6 alloy
  • Angled nipple holes

Description

Mini/Expert alloy rims 20” 451x19.5mm (20x1-1/8" / 20x1-3/8")Made in 6061 Aluminium with an anodised finish, Excess XLS rims are specially designed for BMX with 2 different aero rim profiles for the front or for the rear depending on the type of braking used.
In addition, they have angle nipples holes, for a more direct angle offering a more rigid shelving.

Features
  • Built for 451 mini and expert. The 451 x 19.5mm size takes 20 x 1-1/8" and 20 x 1-3/8" tyres, so it drops into a mini or expert race build.
  • Two aero profiles, front or rear. There is a brakeless surface profile and a braking surface profile, so you pick the rim that matches how you stop.
  • Double walled 6061 T6 alloy. The optimised internal geometry keeps weight down to 264g while holding onto strength.
  • Angled nipple holes. The holes are drilled at an angle so the spoke pulls in a more direct line, which builds a more rigid wheel.
  • 28 or 36 hole options. Choose the drilling to suit your hub, with a Presta valve hole and an ERD of 434 for working out spokes.

Specifications
  • Fits: 20 x 1-1/8" and 20 x 1-3/8" tyres, mini and expert
  • Wheel size: 20" 451mm
  • Width: 19.5mm
  • Material: Double walled 6061 T6 aluminium
  • Finish: Single process polished, black anodised
  • Hole count: 28 or 36
  • Brake surface: Brakeless and braking surface profiles available
  • Valve: Presta valve hole
  • Weight: 264g
  • Note: ERD 434. Angled nipple holes. Low profile aero section.

Spoke calculator
Display

Pick the part it is laced to and we will give you the lengths to buy.

This rim

Looking up its measurements.

Check or change its figures

Laced to which hub?

Or type its figures

Flange diameter/PCD (pitch circle diameter) spoke hole centre to the opposite hole centre. The drive side is the driver side, left or right hand drive alike, and is usually the bigger flange

Flange position

Spoke lengths to buy

Drive side —mm
Non-drive side —mm

Pick the hub and your lengths will appear here.

Open the full spoke calculator for offset rims, other cross patterns and measuring help.

Excess XLC Aluminium 451mm Rim

Brand: Excess SKU:

$99.99 AUD
