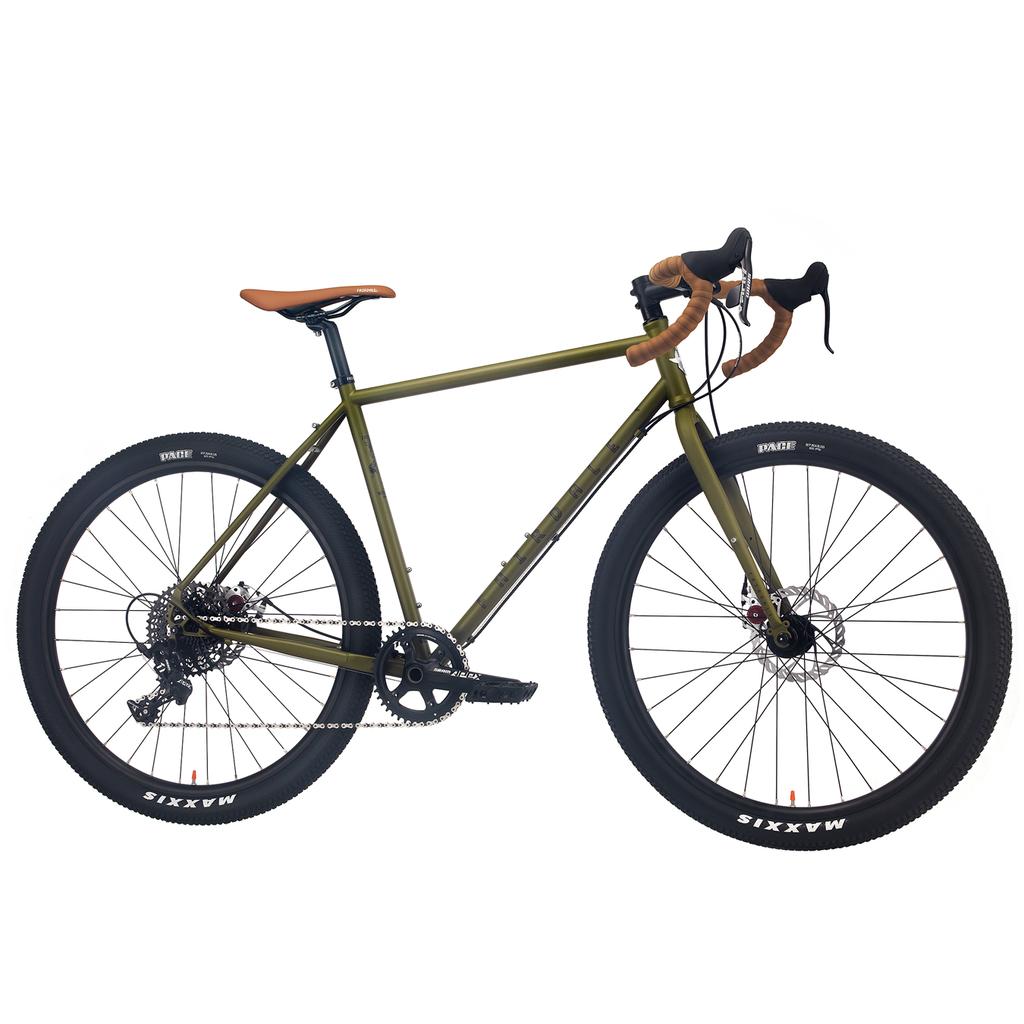

27.5" Weekender Nomad Bike
The Nomad version of the Weekender is made to travel. While it can easily handle being a weekday commuter on rough city roads, it really shines when you take it for a long haul.
The Weekender Nomad’s 100% 4130 chromoly frame and fork will welcome virtually anything that you can throw at it. This is Fairdale's top of the line Weekender, and it comes equipped with an amazing parts build, like a SRAM Apex 1x derailleur and shifter, Avid disc brakes, SRAM Apex 1 cranks and Maxxis semi-knobby tyres.
The MX features the Weekender’s redesigned geometry that is built around 27.5 x 2.1" tyres, and also leaves plenty of space for compatibility with 700c wheels if you ever feel like changing it up.
Sizing
Large - 5'9" - 6'1" height
X-Large - 6'1"+ height
Specifications
Sizes: L, XL
Frame: 100% chromoly steel, with rack and fender mounts (L 700c compatible)
Fork: 100% chromoly. One-piece machined steerer tube
Handlebar: FSA 'NS Adventure' (L= 420mm & XL=440mm)
Stem: 6061-T6 forged aluminum (80mm L and XL)
Headset: FSA, sealed integrated, 45º/45º
Brake lever: SRAM 'Apex 1'
Brake: Avid 'BB7 Road'
Grips: Fairdale 'Cork' handlebar tape
Seat: Fairdale 'Race'
Seat post: Micro adjust, 27.2mm
Seat clamp: Fairdale, 30mm
Cranks: SRAM 'Apex 1' (L=172.5mm, XL=175mm)
Front drive: 42T narrow-wide
BB: Neco BB-501
Pedals: Odyssey 'Twisted PC'
Rims: 650b, 32-hole, aluminum, double wall, tubeless compatible
Front hub: Sealed bearings, 32-H, alum. shell, disc brake mount, w/allen skewer axle
Rear hub: Sealed bearings, 32-H, alum. shell, disc brake mount, w/allen skewer axle
Tyres: Maxxis 'Pace' 27.5" x 2.1"
Chain: KMC X11
Cassette - SRAM 'PG-1130', 11-42T, 11-speed
Rear shift levers: SRAM 'Apex 1', 11-speed (Rear)
Rear derailleur: SRAM 'Apex 1', long cage, 11-speed
Shift cable: Fairdale with jagwire inline adjuster
Geometry
Size - L (58cm) - XL (58cm)
Top Tube (Effective) - 579mm - 602mm
Top Tube (Actual) - 559mm - 585mm
Seat Tube (BB Centre To TT Top) - 533mm - 576mm
Seat Tube(BB Centre To TT Centre) - 493mm - 536mm
Seat Tube Angle - 73° - 73°
Head Tube Length - 146mm - 167mm
Head Tube Angle - 71.5° - 71.5°
Chain Stay Length - 440mm - 440mm
Wheelbase - 1058mm - 1081mm
Standover - 800mm - 830mm
Stack - 589mm - 609mm
Reach - 398mm - 414mm
Fork Length - 416mm - 416mm
Fork Offset - 50mm - 50mm
BB Drop - 72mm - 72mm
Dropout Spacing - 135mm - 135mm
BB Type - English 68 - English 68
Seat Post - 27.2mm - 27.2mm
Seat Clamp - 30mm - 30mm
Approx. Max Tyre Width 27.5"/650b - 54mm - 54mm
Approx. Max Tyre Width 29"/700c - 53mm - 53mm
Wheel Size - 27.5" - 27.5"
