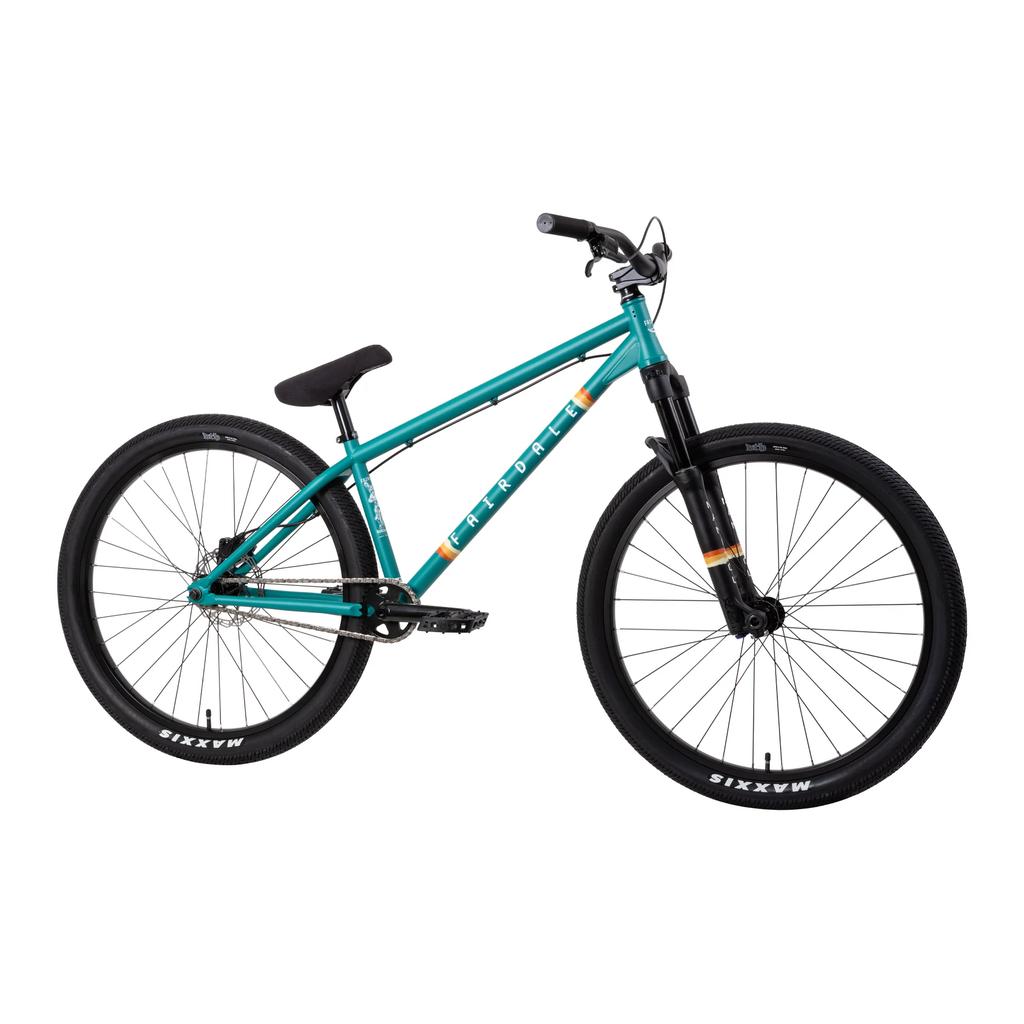

The Fairdale Hareraiser FX 26 Inch Bike, a teal BMX dirt jump model with a 26" DJ frame, single speed, front suspension, flat handlebars, black saddle, and Maxxis tires, is displayed against a white background.

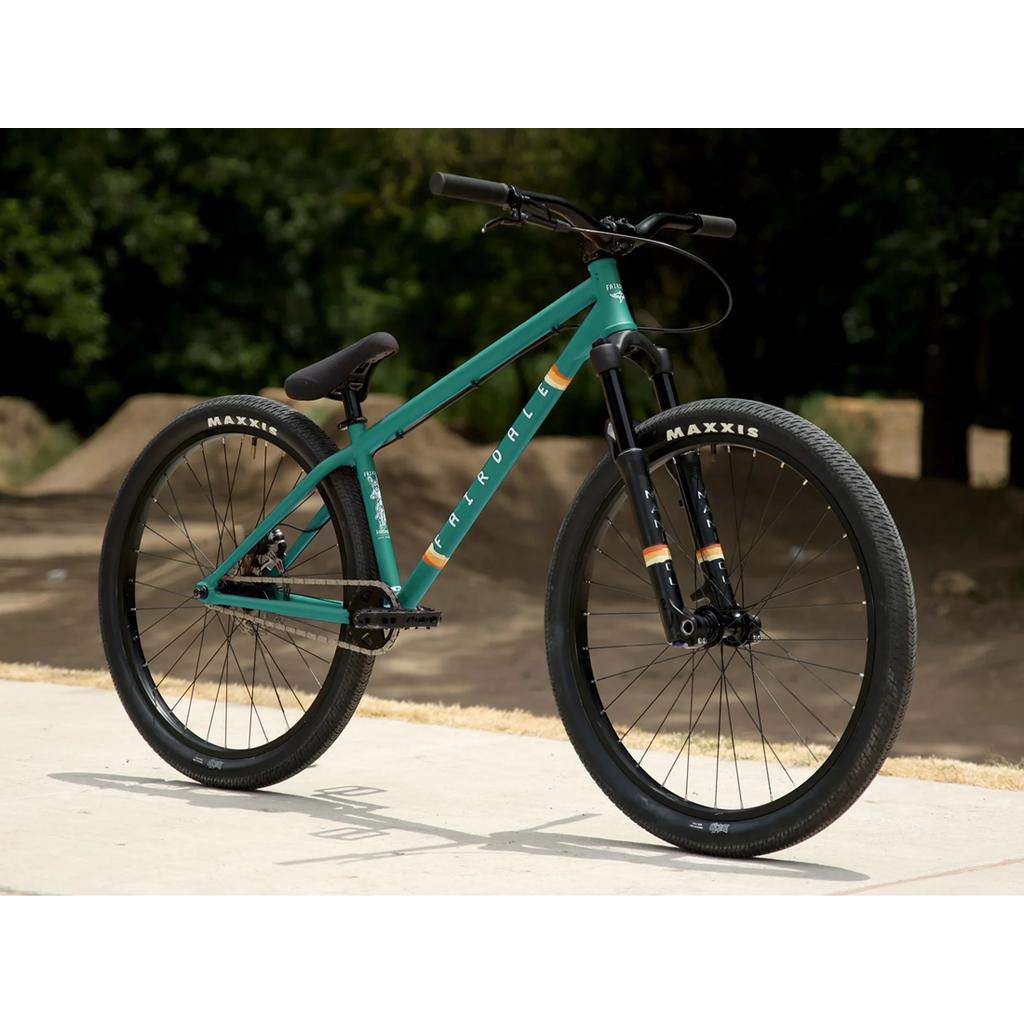

A Fairdale Hareraiser FX 26 Inch Bike in teal, featuring a hardtail DJ frame, black tires, and handlebars, is parked on concrete near a dirt trail and trees.

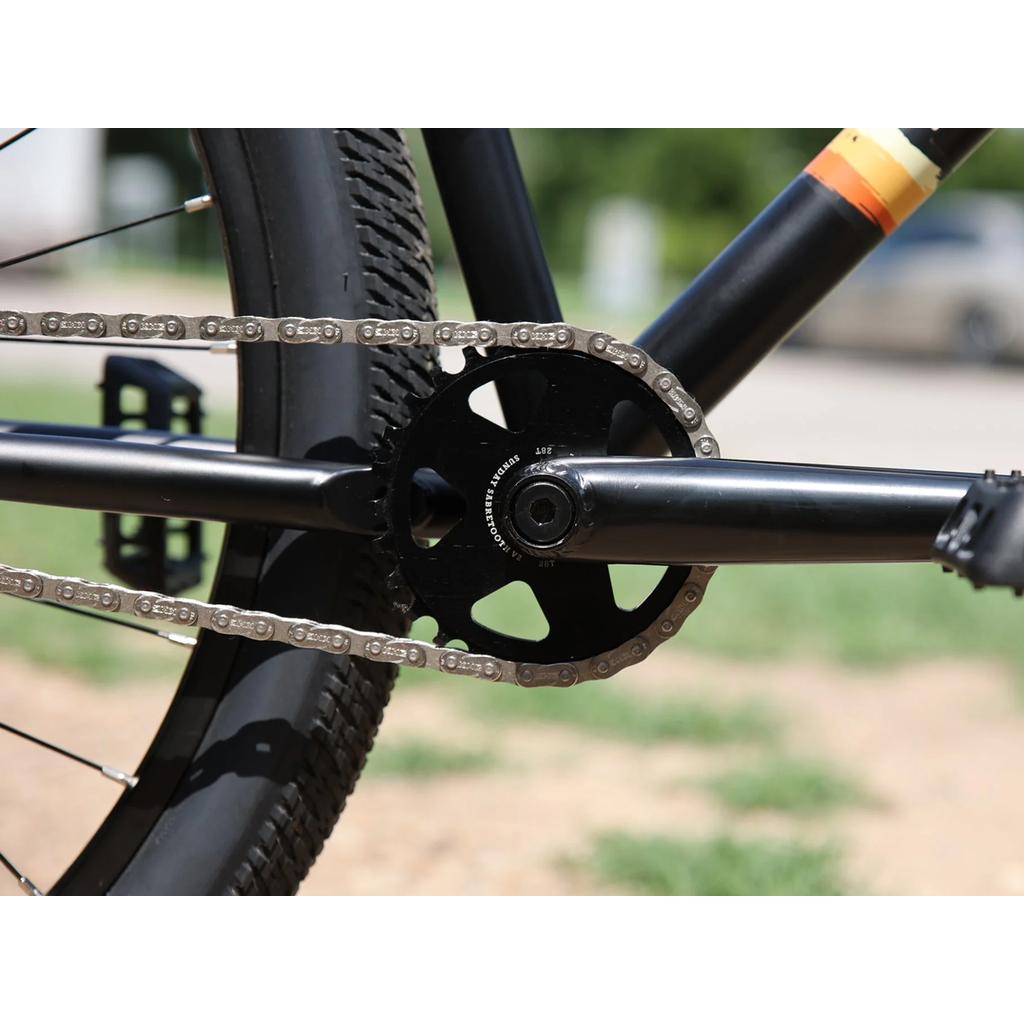

Close-up of the Fairdale Hareraiser FX 26 Inch Bike's crankset, chainring, and chain, showcasing its 4130 chromoly frame with glimpses of the rear wheel and pedal in an outdoor setting.

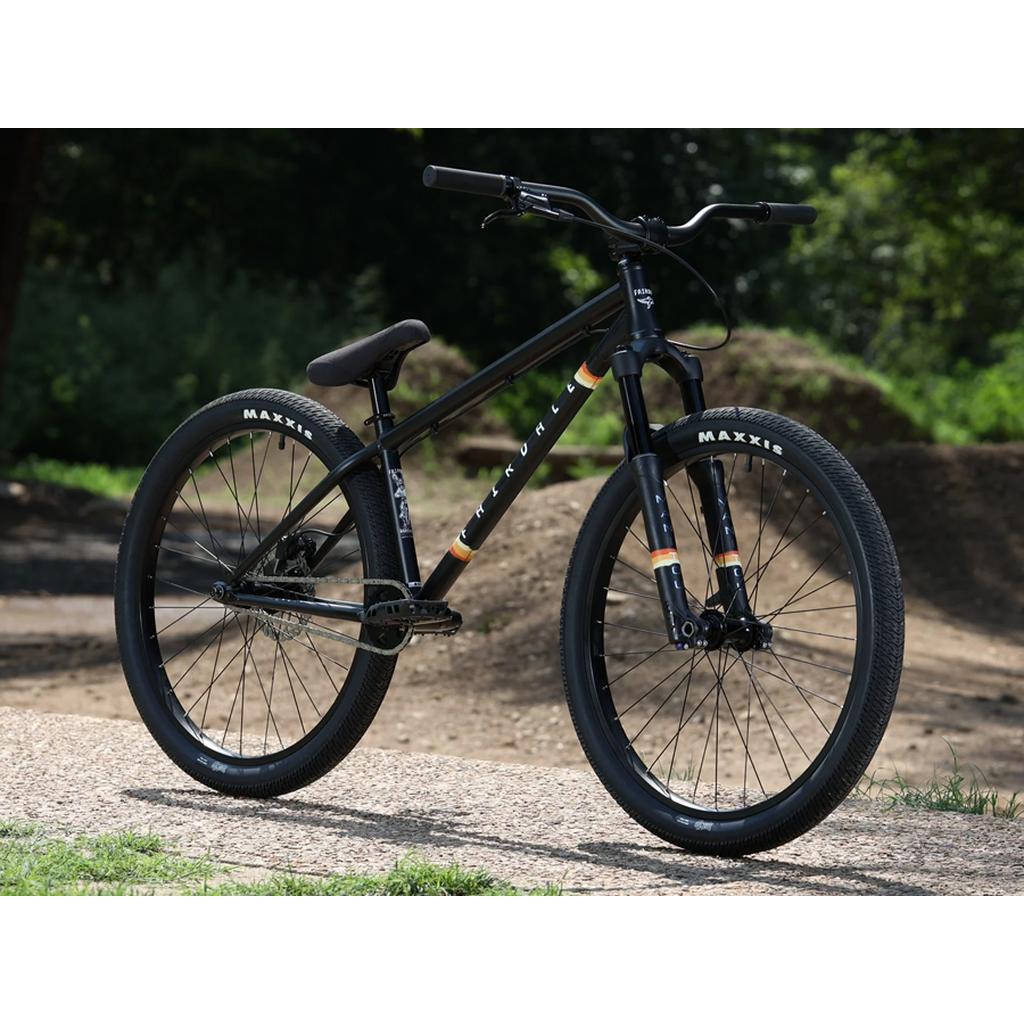

A Fairdale Hareraiser FX 26 Inch Bike with a black DJ frame and Maxxis tires is parked on a concrete path in front of a dirt track and greenery.

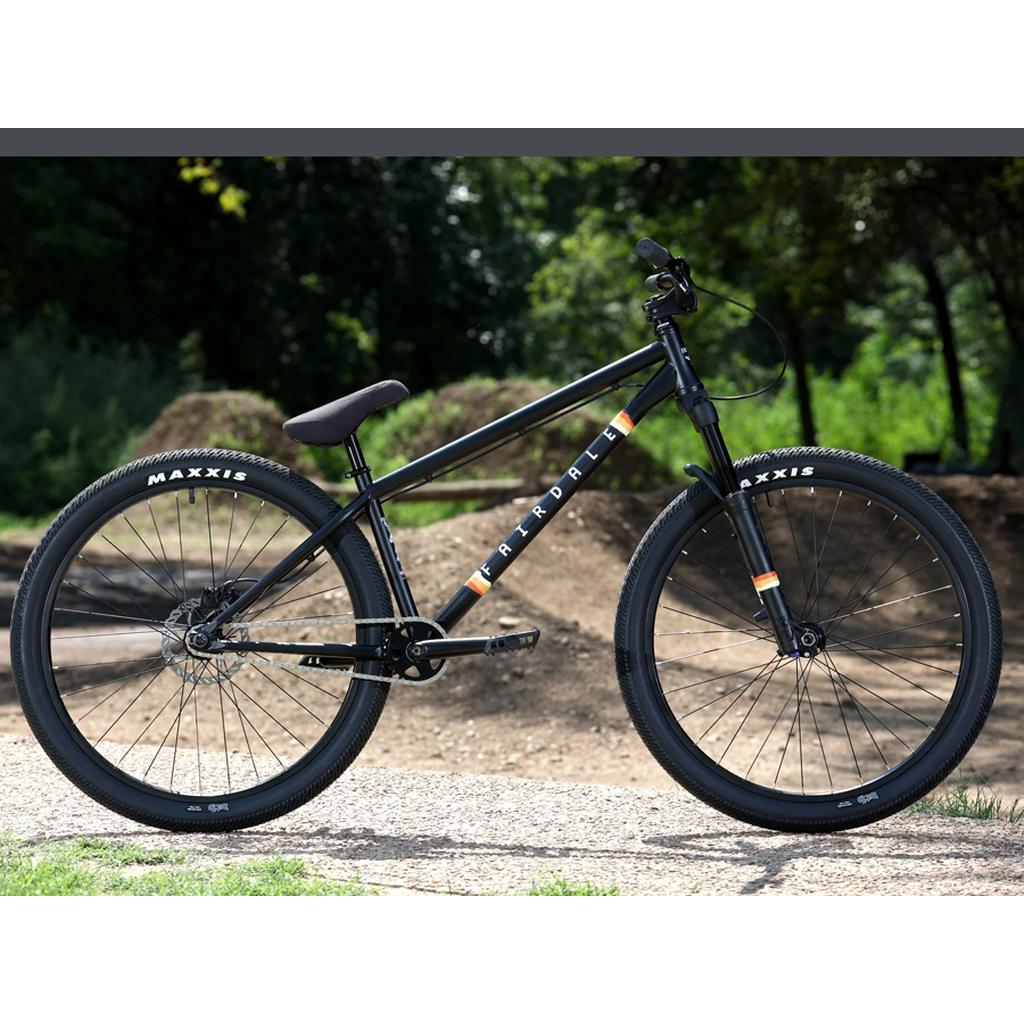

A Fairdale Hareraiser FX 26 Inch Bike with a black frame and Maxxis tires is parked on a gravel path, surrounded by greenery and dirt mounds.

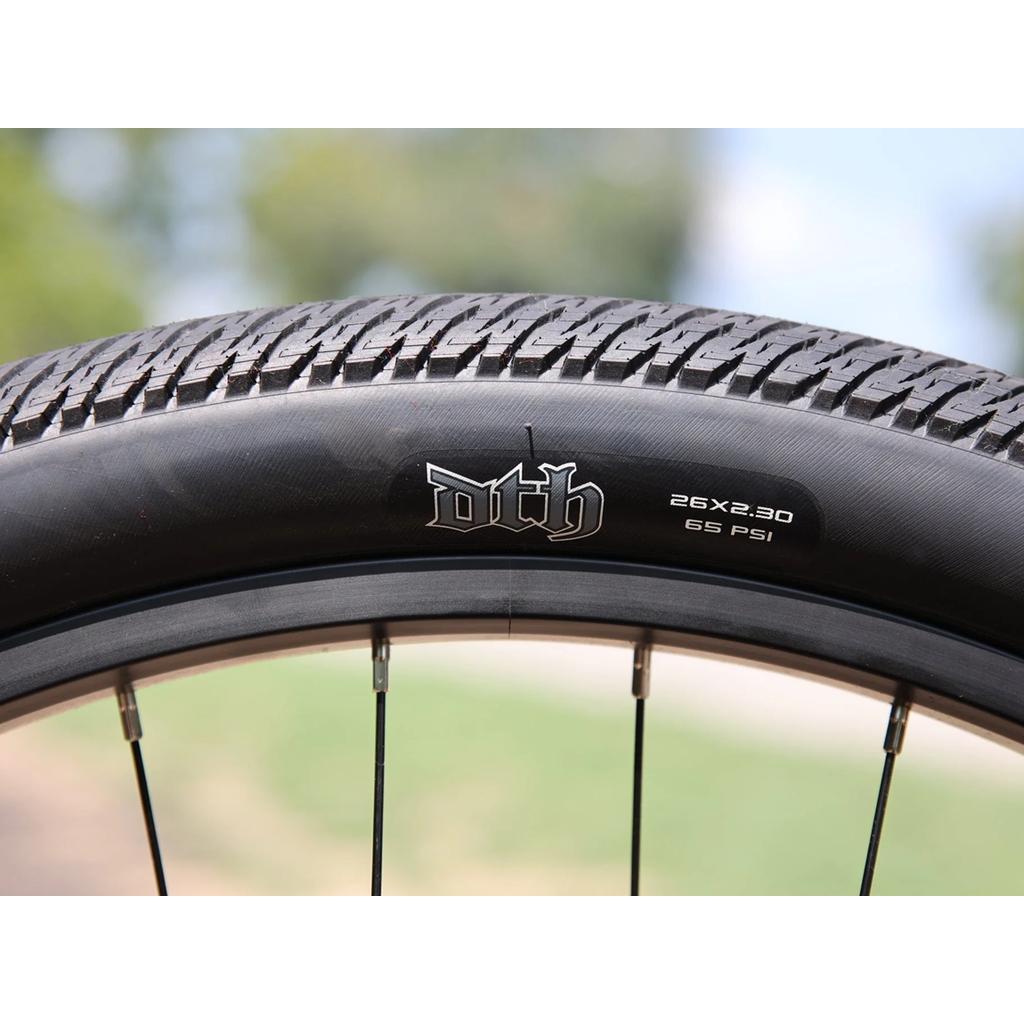

Close-up of a Fairdale Hareraiser FX 26 Inch Bike tire on its DJ frame, highlighting the tread and sidewall markings: "DTH," "26x2.30," and "65 PSI.

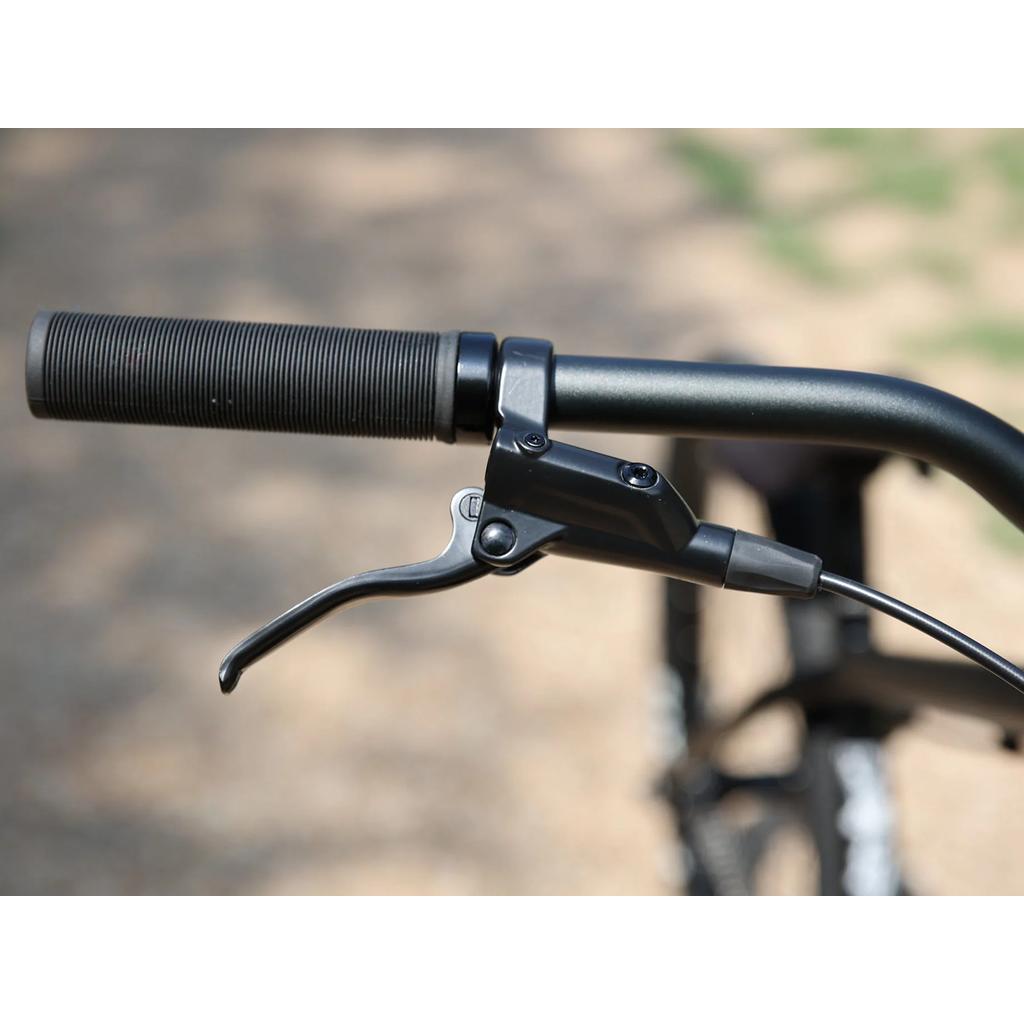

Close-up of the Fairdale Hareraiser FX 26 Inch Bike's handlebar featuring a black rubber grip and brake lever on a 4130 chromoly frame, photographed outdoors against a blurred background.

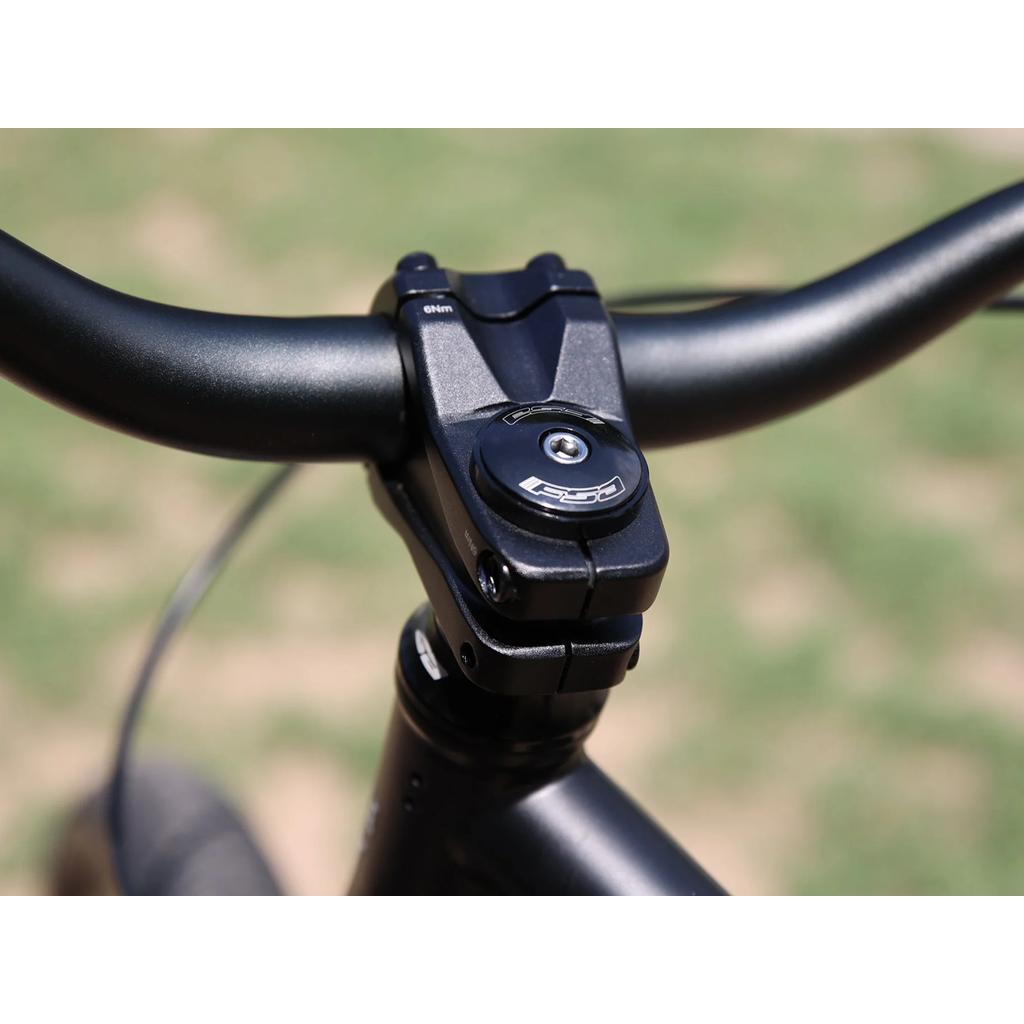

Close-up view of the Fairdale Hareraiser FX 26 Inch Bike's handlebar and stem assembly, showcasing a visible FSA top cap and 4130 chromoly construction, photographed outdoors.

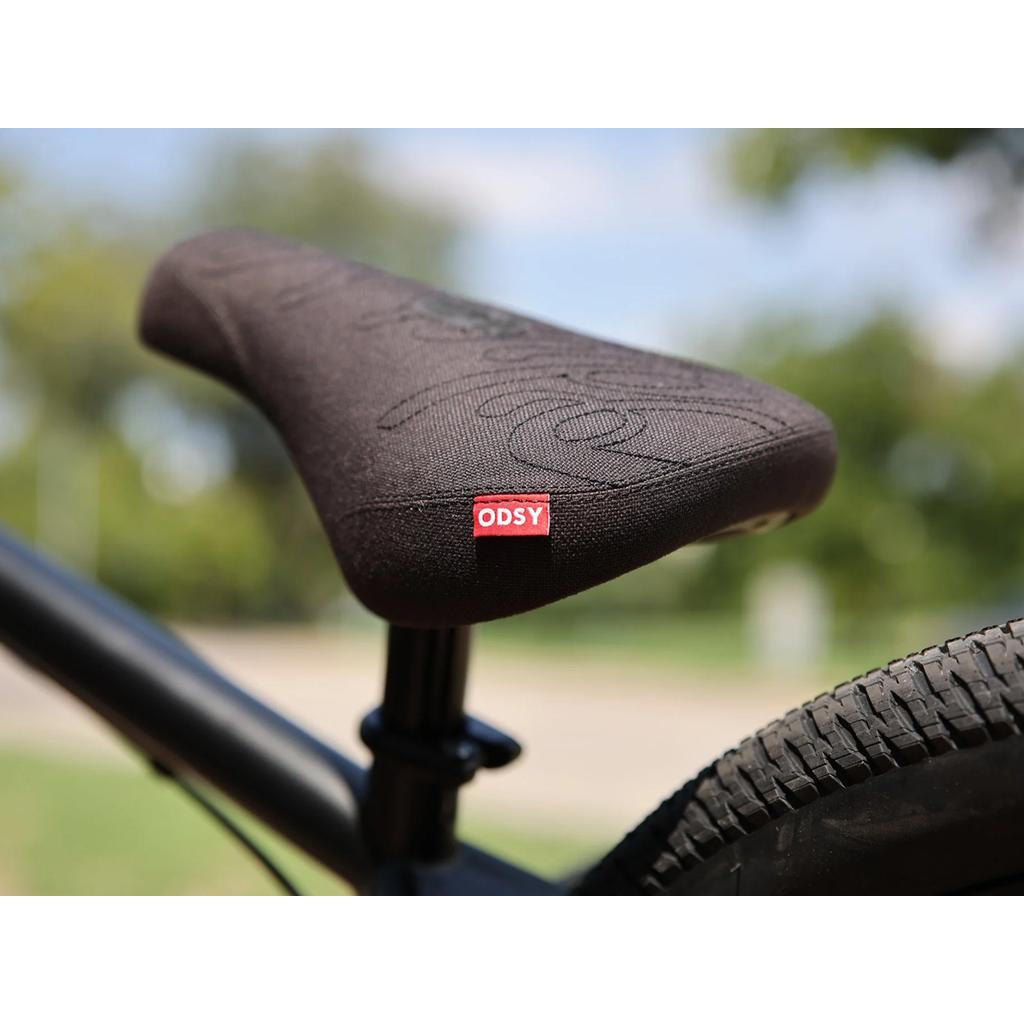

Close-up of a bicycle seat with a red ODYSY tag on the Fairdale Hareraiser FX 26 Inch Bike, showing part of the rear tire and a blurred outdoor background.

Description

The Hareraiser FX is a fully capable 26" dirt jump bike built around a 100% 4130 chromoly frame: 3/8" axle slots, integrated chain tensioners, a BSA 73mm threaded bottom bracket and ultra short chainstays. The tapered 1-1/8" to 1-1/2" head tube has removable tabs, so a traditional BMX style gyro is still an option.

Fairdale designed it from the ground up to make the transition between a mountain bike, a dirt jumper and a BMX as seamless as possible. That means a 100mm Manitou Circus Expert fork on a 20mm thru axle, hydraulic disc brakes, 170mm cranks with a 28T chainwheel and Maxxis DTH 2.3" tyres, in S/M and M/L sizes.

Features

100% 4130 chromoly DJ frame. Ultra short chainstays and integrated chain tensioners keep the back end tight and the wheel where you set it.

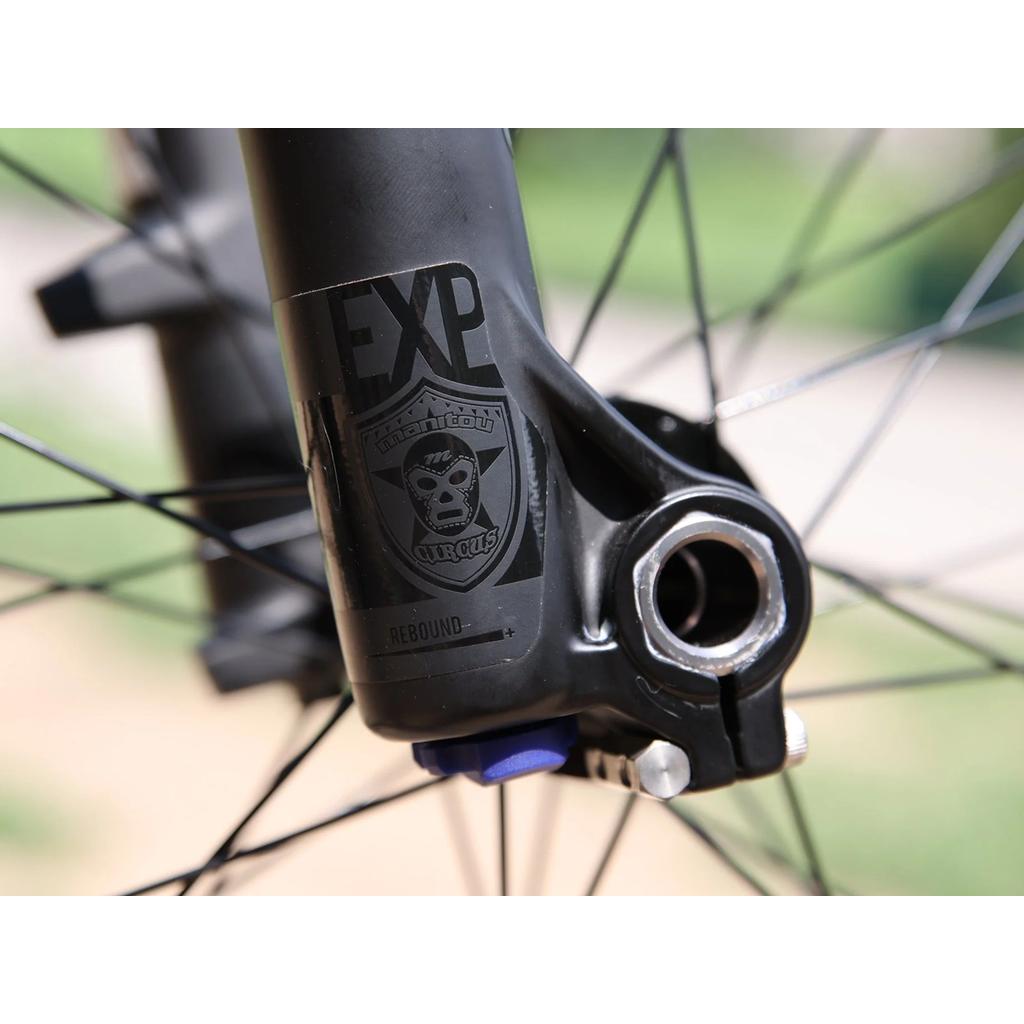

Manitou Circus Expert fork. 100mm of travel on a 20mm thru axle, held by a tapered 1-1/8" to 1-1/2" head tube for a steady front end.
Hydraulic disc brakes. Disc mounts front and rear with a hydraulic lever, so stopping stays consistent when the trails get dusty.
Two sizes, S/M and M/L. 600mm or 625mm effective top tube with 415mm or 440mm reach, on a 69.5° head angle and 690mm standover.
Set up to ride. 170mm 48 spline cranks, a 28T chainwheel, Odyssey Twisted Pro pedals, an Odyssey Big Stitch Pivotal seat and Maxxis DTH 2.3" tyres.

Specifications

Size: 26" wheels, S/M or M/L
Frame: 100% 4130 chromoly DJ, 3/8" dropout, 73mm threaded BB, disc mount
Top tube: S/M 600mm, M/L 625mm effective
Chainstay: 379 to 389mm
Head tube angle: 69.5°
Seat tube angle: 72°
Standover: 690mm
Fork: Manitou Circus Expert, 100mm travel, 20mm thru axle, 40mm offset, 482mm axle to crown
Headset: FSA Orbit sealed, 1-1/8" to 1-1/2" tapered
Stem: 50mm
Bars: Aluminium, 30" wide, 2" rise, 31.8mm bore
Grips: Lock-on
Brakes: Hydraulic disc
Brake lever: Hydraulic
Cranks: 19mm 48 spline, 170mm
Bottom bracket: Euro parts, 73mm threaded
Chainring: 28T chainwheel
Chain: KMC Z1eHX
Pedals: Odyssey Twisted Pro PC
Front hub: Sealed, 20mm thru axle
Rear hub: Sealed cassette, 3/8" axle, disc, 10 x 135mm spacing
Rear cog: 12T driver
Rims: 26", 32H
Tyres: Maxxis DTH 2.3"
Seat: Odyssey Big Stitch, Pivotal
Seat post: Pivotal, 27.2mm
Seat clamp: Fairdale 30mm
Note: Head tube 120mm, seat tube 340mm from BB centre to top tube centre, stack 570mm, BB drop 20mm, rear tyre clearance 2.3". Removable head tube tabs for a traditional BMX style gyro.

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

Fit the handlebars and line them up with the front wheel
Fit the front wheel, pedals and seat post
Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Fairdale Hareraiser FX 26 Inch Bike

Name: Fairdale Hareraiser FX 26 Inch Bike
Brand: Fairdale
SKU: FABK070-25-GRN
Price: 2799.99 AUD
Availability: OutOfStock

Brand: Fairdale SKU: Click to copy the SKU and show the pick location

$2,799.99 AUD

Or 4 payments of $699.99 AUD with

Colour - Matt Billiard Green

Top Tube Length - 600mm

A 26 inch is the largest BMX wheel, for riders about 160cm and up, on a 22 to 23 inch top tube. It is a ride feel rather than a size step: more roll and stability, still BMX geometry.

Rider height	Wheel size	Top tube
60 to 91cm	12"	12 to 12.5"
81 to 106cm	14"	14 to 14.5"
96 to 122cm	16"	16 to 16.5"
122 to 147cm	18"	18 to 18.5"
147 to 157cm	20"	19.75 to 20.25"
157 to 168cm	20"	20 to 20.5"
168 to 175cm	20"	20.25 to 20.75"
175 to 183cm	20"	20.5 to 21"
183 to 190cm and up	20"	20.75 to 21.5"
160cm and up	22"	21 to 22.25"
160cm and up	24"	21.75 to 22"
160cm and up	26"	22 to 23"

Sizes overlap on purpose, so personal preference comes into it. A big wheel rides longer than its top tube number suggests, so do not compare it straight against a 20 inch.

How to measure

Stand against a wall in the shoes you ride in, heels flat, and mark the top of your head. Measure from the floor to the mark.

Choose a big wheel for the ride feel, not because you are tall. Plenty of tall riders stay on 20 inch.
Coming off a 20 inch? Expect it to feel longer and more stable, and slower to spin.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.
