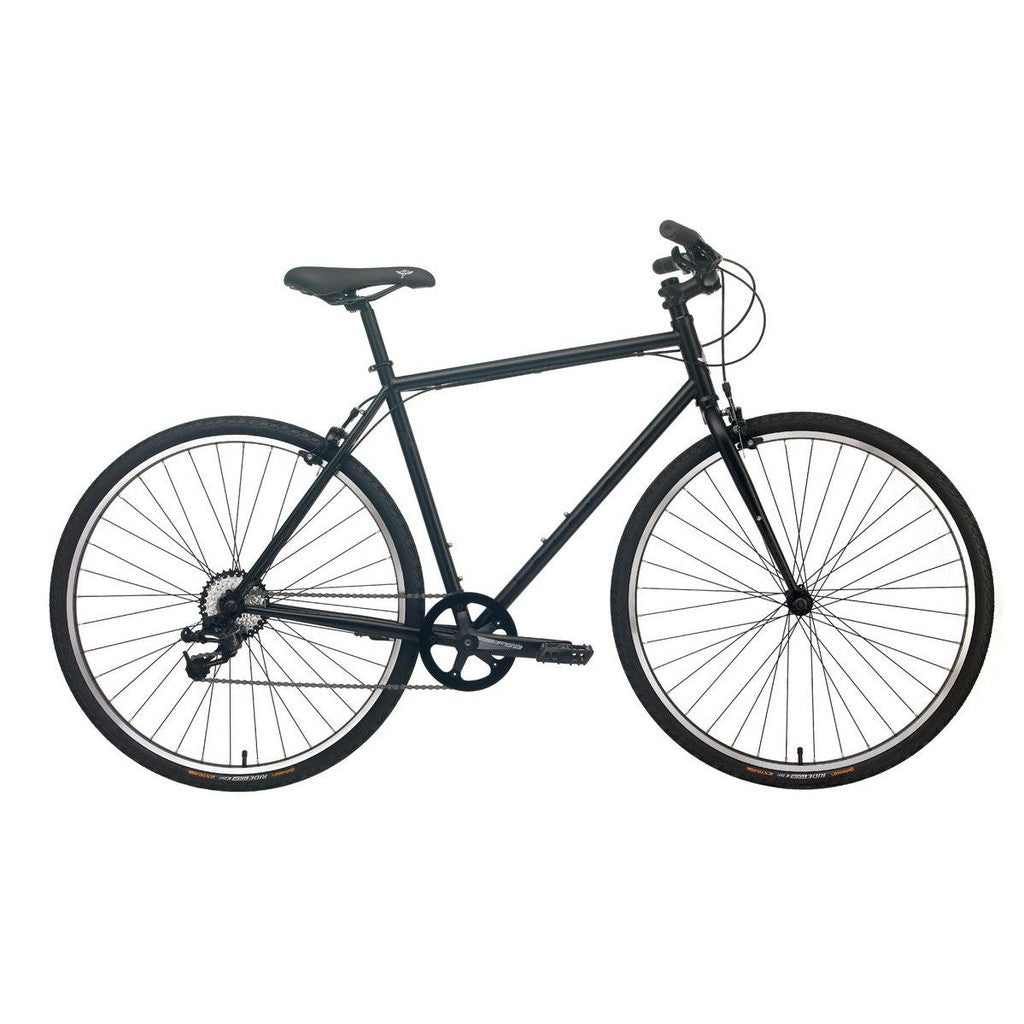

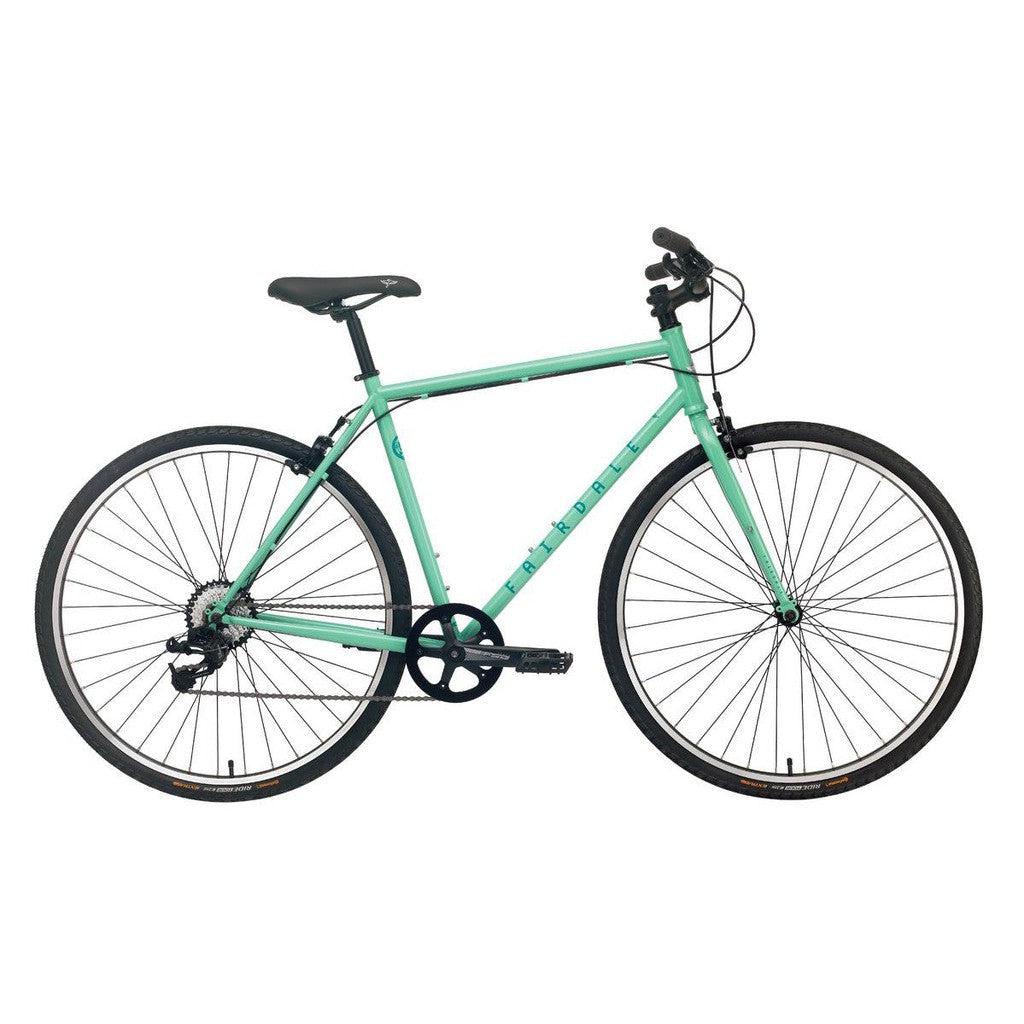

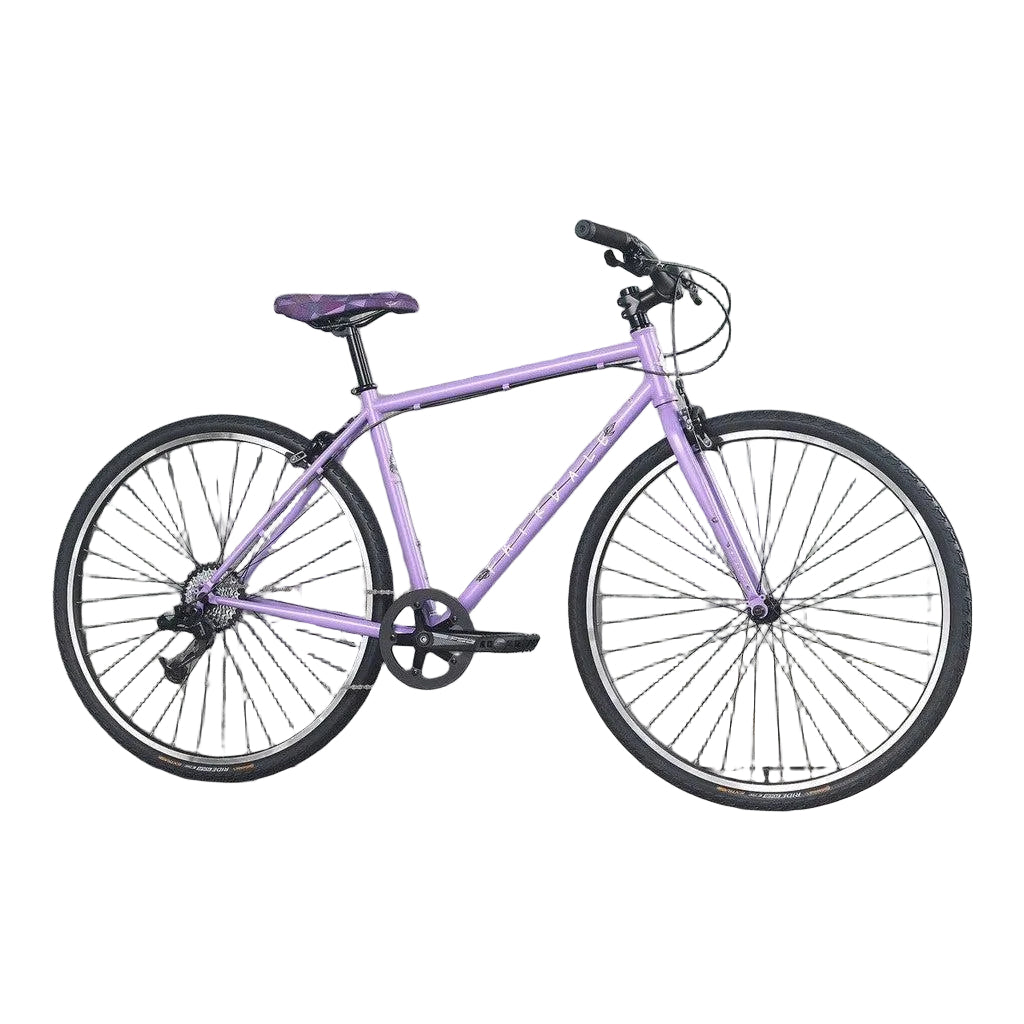

Get stoked with 700 corns worth of epic parts and clean styling to create a bike that'll have you looking far into the distance! The Lookfar will happily get you where you need to go. And, it'll make you want to ride even when you don't have to go anywhere. That's the thing about a good bike; mundane commutes are fun, and riding for pure joy of riding a bike is a new pastime. The Lookfar has 8 easy-to-use gears operated by one thumb shifter. Wide reliable tires are fast on the road and big enough to handle rough terrain. The Lookfar's durable steel frame shares geometry with our Weekender model, known for its all-day comfort. Make the "getting there" part of a journey the best part onboard a Lookfar.
Sizing
X-Small - 4'11" - 5'4" height
Small - 5'2" - 5'7" height
Medium - 5'7" - 5'10" height
Large - 5'9" - 6'1" height
*Sizing is approximate. Please consult with your local bike shop to assist with fit.
Specifications
Frame - 1020 Steel, with Rack and Fender mounts
Fork - 1020 Steel, 1 1/8”
Handlebar - Fairdale Archer v3, Aluminum
Stem - 70mm, Forged Aluminum
Headset - FSA, Sealed Integrated, 45º/45º
Brake Lever - Aluminum, Short Pull
Brake -Aluminum, Dual Pivot, 55-75mm reach w/Quick Rels.
Grips - Fairdale Swan
Saddle - Fairdale
Seat Post - Micro adjust, 27.2mm
Seat Clamp - Fairdale, 30mm
Cranks - FSA Tempo 1X (S=165mm, M=170mm, L/XL=175mm)
Chainwheel - 42t
BB Parts - FSA
Pedals - Odyssey Twisted PC
Rims - 700c, 36-Hole, Schrader Valve, Aluminum
Front Hub - 36H, 3/8” Axle, Aluminum Shell, Looseball
Rear Hub - 36H, 3/8” Axle, 7-Speed, Aluminum Shell, Looseball
Tyres - Continental Tour Ride, 700c x 42mm
Chain - KMC Z8.1, 8-Speed
Driver - 8-Speed, 13-34t
R. Shift Lever - SRAM X4 Trigger, 8-Speed
*R. Shift Lever Alternate - Microshift TS39-8R, 8-Speed
R. Derailleur - SRAM X4, Mid-cage, 8-Speed
*R. Derailleur Alternate - Microshift RD-M26CS, 8-Speed
Shift Cable - Fairdale
Geometry
Top Tube Effective - 508mm - 578mm
Top Tube Actual - 495mm - 559mm
Seat Tube (BB Center to TT Top) - 385mm - 538mm
Head Tube Length - 317mm - 496mm
Head Tube Angle - 69.6° - 72.5°
Chain Stay Length - 440mm
Wheel Base - 1021mm - 1050mm
Standover - 698mm - 815mm
Fork Length - 401mm
Stack - 521mm - 589mm
Reach - 363mm - 398mm
Fork Offset - 50mm
BB Drop - 68mm
Dropout Spacing - 135mm
BB Type - English 68
Seat Post - 27.2mm
Seat Clamp - 30mm
Approx. Max Tyre Width - 42mm
Wheel Size - 700c
