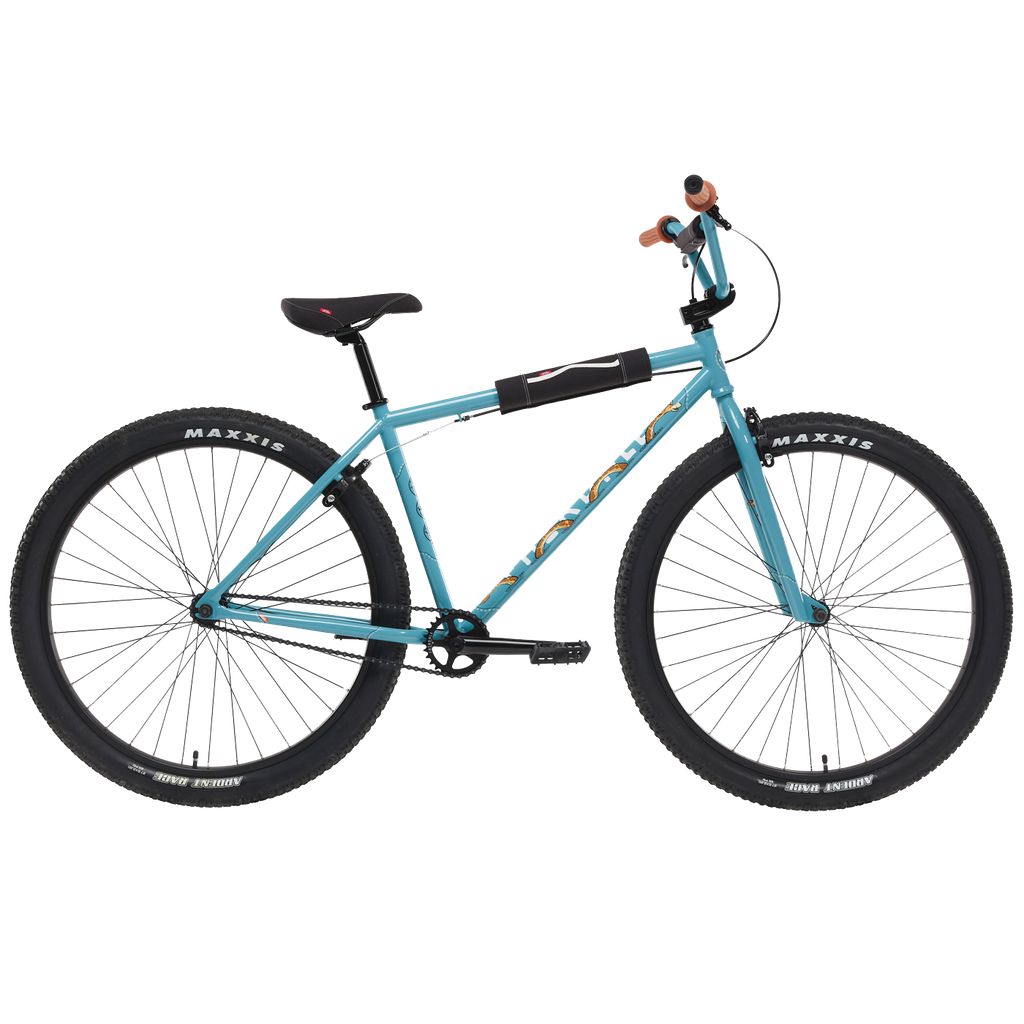

A blue Fairdale Taj X Vans 27.5 Inch Bike is shown against a white background.
The seat of a Fairdale Taj X Vans 27.5 Inch Bike is sitting on a rock.
A Fairdale Taj X Vans 27.5 Inch Bike is parked on the sand.
The Fairdale Taj X Vans 27.5 Inch Bike is blue.

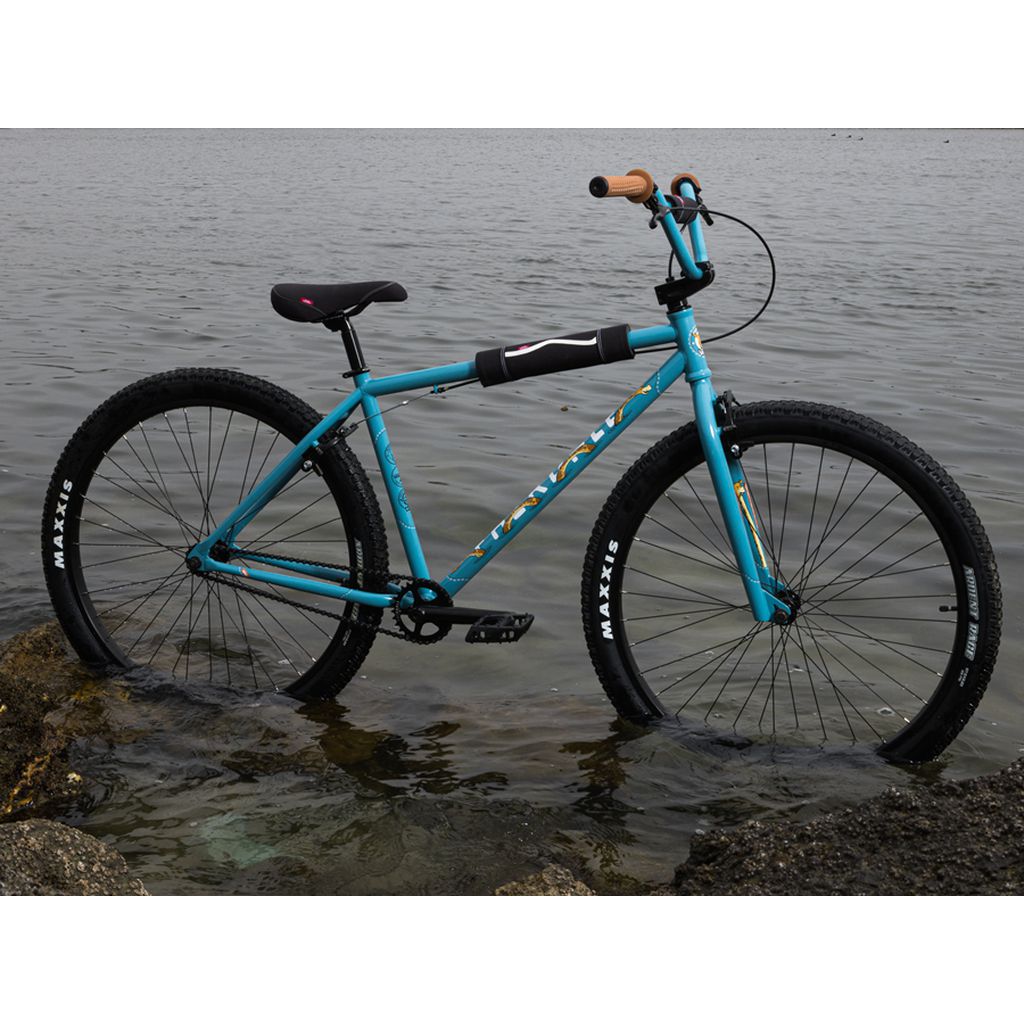

A Fairdale Taj X Vans 27.5 Inch Bike leaning against a rock in the water.

Description

Feel those fresh vibes when you are rolling high and dry on one of these sweet 27.5 Inch dream machines from the legends at Fairdale!

Features
  • Limited Vans collaboration, 300 made. The colour is drawn from the navy blue Vans Authentic, with art by Taj Mihelich, waffle grips and a matching pad set and seat.
  • Full chromoly frame and fork. Track Certified chromoly frame with a 100% chromoly fork and a one piece machined steerer tube.
  • 27.5" wheels on Maxxis Ardent Race. 2.2" tyres on double wall 36 hole aluminium rims roll over rough ground and hold speed between spots.
  • Brakes front and rear. Odyssey Springfield callipers with Monolever levers on both sides, so you have proper control at cruiser speed.
  • Sealed hubs and bottom bracket. Aluminium shell hubs on 3/8" axles and a sealed press fit mid bottom bracket keep the maintenance down.

Specifications
  • Size: 27.5" wheels, suits riders 5'4" and up (approximate)
  • Frame: 100% Track Certified chromoly
  • Fork: 100% chromoly, one piece machined steerer tube
  • Headset: FSA sealed integrated, 45°/45°
  • Stem: Sunday Freeze, top load, 48mm reach
  • Bars: Fairdale MX-6, 100% chromoly steel
  • Grips: Vans Waffle
  • Brakes: Odyssey Springfield, front and rear
  • Brake lever: Odyssey Monolever, left and right
  • Cranks: Chromoly 3 piece, 175mm
  • Bottom bracket: Mid, 19mm, press fit, sealed
  • Chainring: Fairdale, 28T
  • Chain: KMC S1
  • Pedals: Odyssey Twisted PC
  • Front hub: 36 hole, 3/8" axle, aluminium shell, sealed bearing
  • Rear hub: 36 hole, 3/8" axle, aluminium shell, sealed bearing cassette
  • Rims: Double wall, 36 hole, aluminium
  • Tyres: Maxxis Ardent Race, 27.5 x 2.2"
  • Seat: Vans x Fairdale, railed
  • Seat post: 27.2mm
  • Seat clamp: Fairdale, 30mm
  • Colour: Authentic Blue
  • Note: Limited production run of 300 bikes, supplied with a custom pad set and official Vans hangtags.

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Fairdale Taj X Vans 27.5 Inch Bike

Brand: Fairdale SKU:

$1,399.99 AUD

Or 4 payments of $349.99 AUD with

Recommended Rider Height:

175cm+

Colour - Authentic Blue

Top Tube Length - 24.25

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
