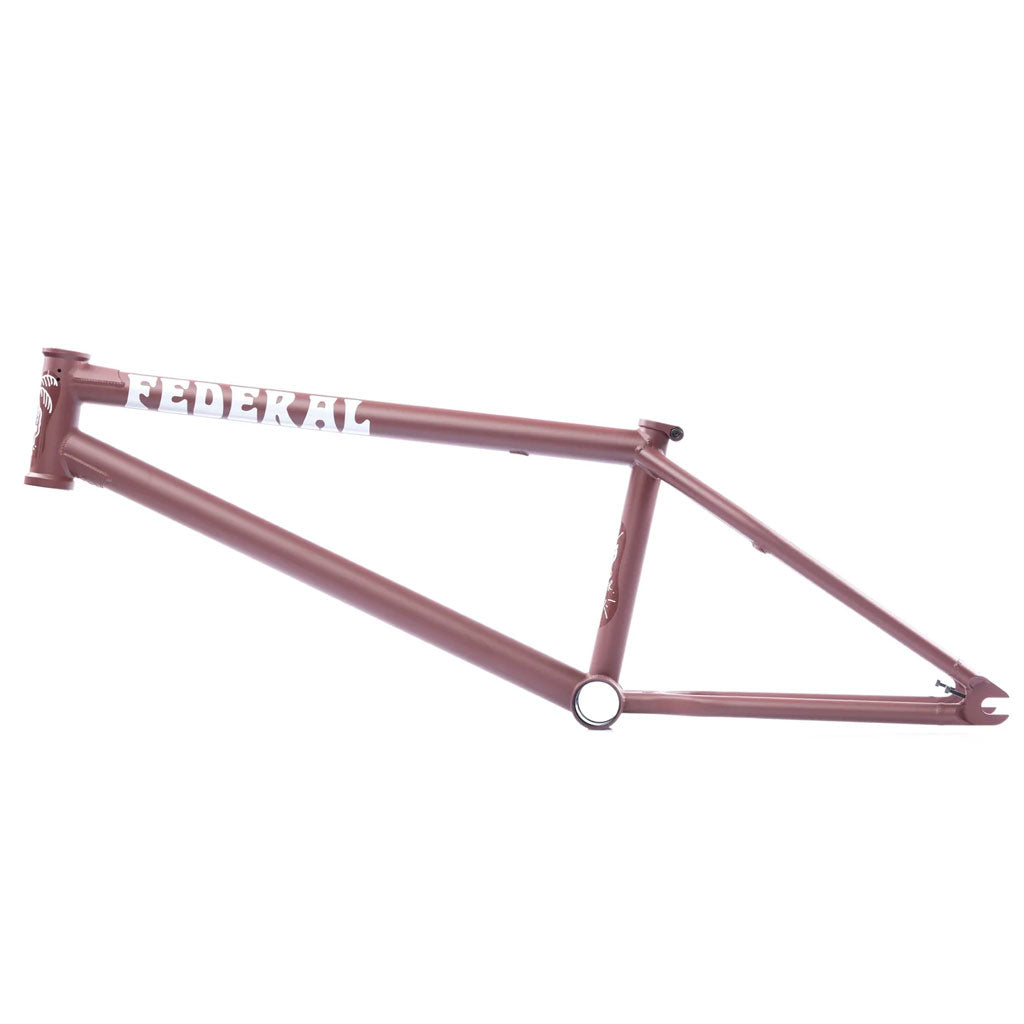

A brown Federal Boyd Hilder Signature ICS2 frame on a white background, designed by Federal Bikes.

A Federal Boyd Hilder Signature ICS2 Frame with the word 'pearl' on it.

A Federal Boyd Hilder Signature ICS2 Frame with the word federal on it from Federal Bikes.

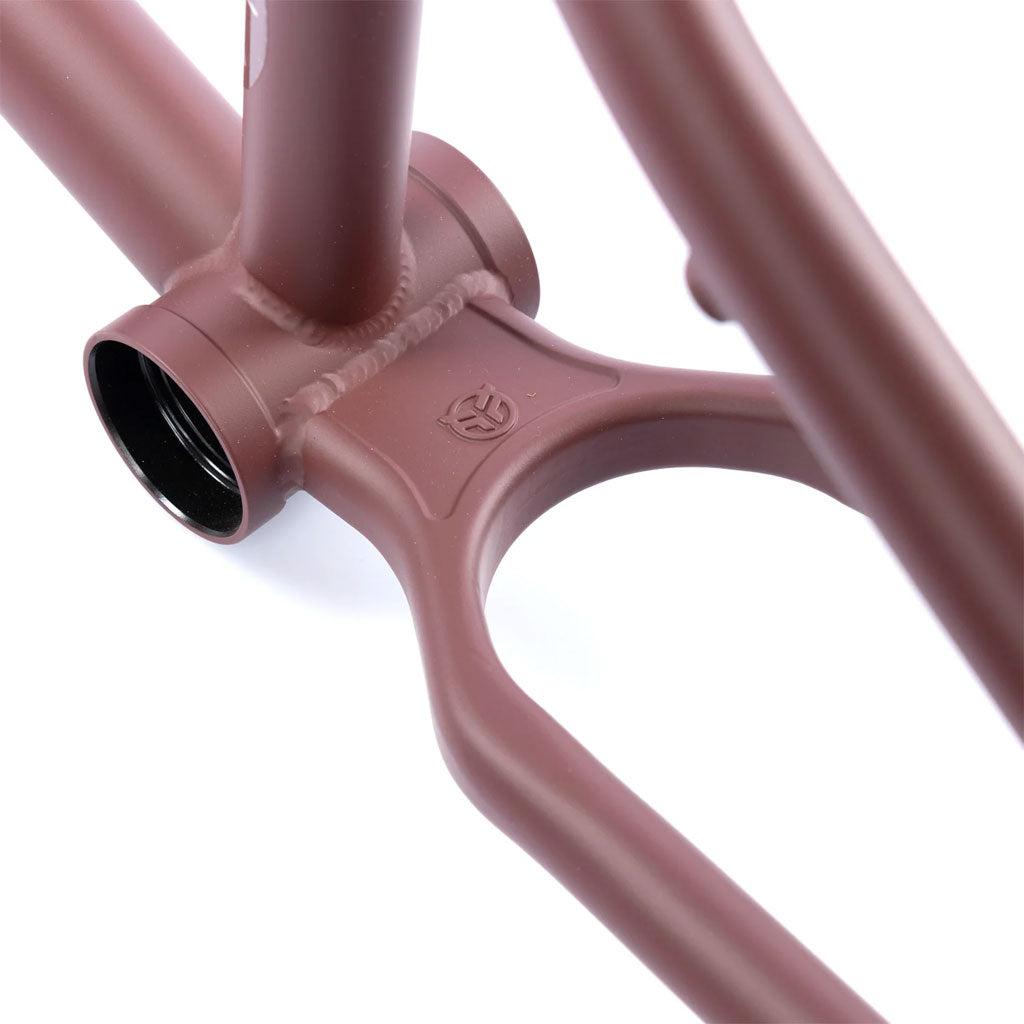

A close up of a pink Federal Boyd Hilder Signature ICS2 bicycle frame.

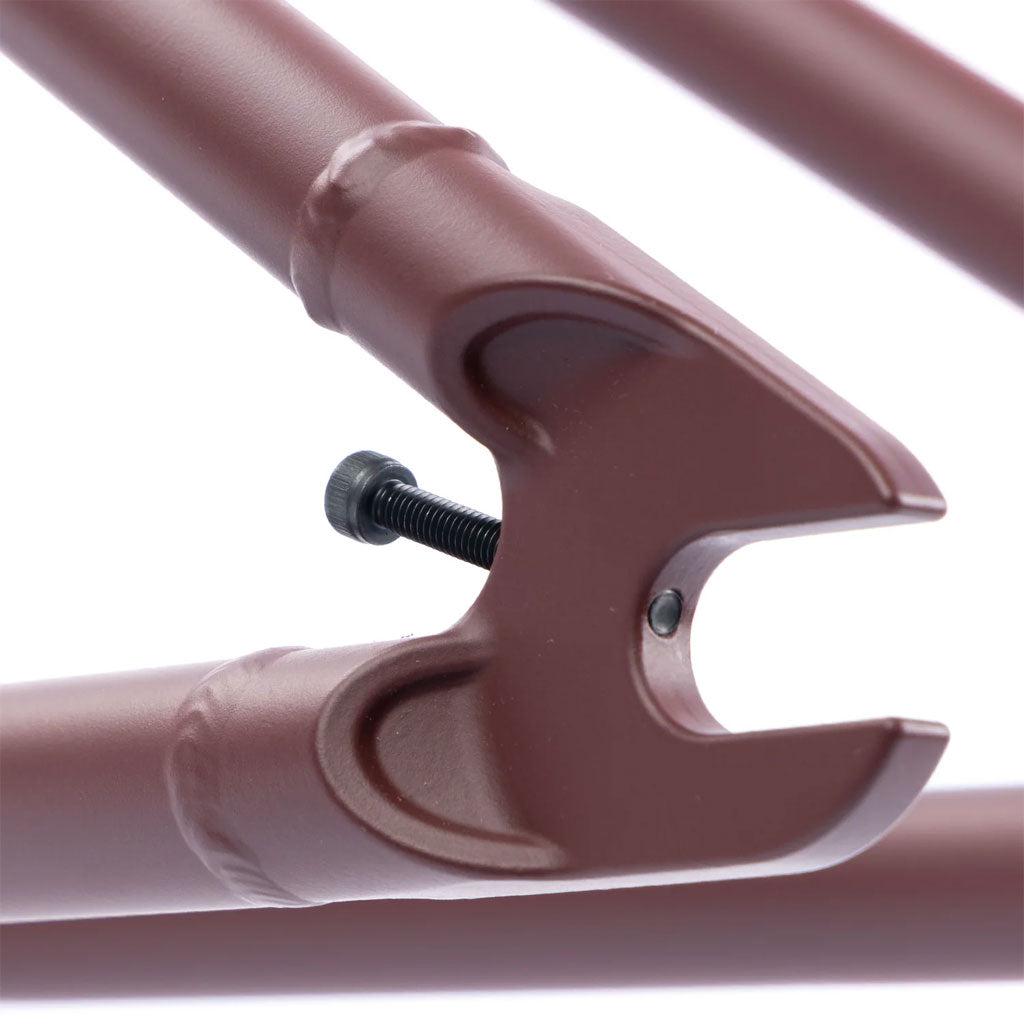

A close up of a Federal Boyd Hilder Signature ICS2 frame by Federal Bikes.

Description

Before we had even met Boyd we knew we wanted him to be apart of the LUXBMX family and we couldn't be more proud of everything he has achieved on and off his bike over the years. The Nora cup winner has been lucky enough to get his own frame with Federal Bikes!

In 2022 Boyd has a variety of parts with his name on them and that's something we are stoked about! Boyds Federal ICS2 frame comes in 3 sizes to suit all riders, and in Matte Black, Dark Blue and matte cream!

You can catch Boyd ripping his around Pizzey park most afternoons!

Features

Boyd Hilder's signature ICS2 frame. The Nora Cup winner's own Federal frame, in matte black, dark blue or matte cream, with graphics by Rich Forne.
Three sizes to suit all riders. Pick a 21", 21.2" or 21.5" top tube to match your height and the way you like a bike to sit.
Steep 75.2° head tube angle. Quick steering up front, backed by a 71° seat tube angle, 9" standover and 11.7" bottom bracket height.
13.4" chainstays slammed. Run the rear wheel all the way forward for a short back end that comes up easily.
Tapered seat stays, stamped gusset. A stamped gusset backs up the down tube where it takes the hits, and removable brake mounts are sold separately.

Specifications

Top tube: 21", 21.2" or 21.5"
Chainstay: 13.4" slammed
Head tube angle: 75.2°
Seat tube angle: 71°
Standover: 9"
Bottom bracket height: 11.7"
Brake mounts: Removable, not included, sold separately
Colour: Matte Black, Dark Blue, matte cream
Note: Tapered seat stays, stamped down tube gusset. Graphics by Rich Forne.

Federal Boyd Hilder Signature ICS2 Frame

Name: Federal Boyd Hilder Signature ICS2 Frame
Brand: Federal
SKU: FRFE027-BK2-2070
Price: 699.99 AUD
Availability: OutOfStock
Rating: 4.0 (1 reviews)

Brand: Federal SKU: Click to copy the SKU and show the pick location

$699.99 AUD

Or 4 payments of $174.99 AUD with

Colour - Black

Top Tube Length - 20.7

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide
