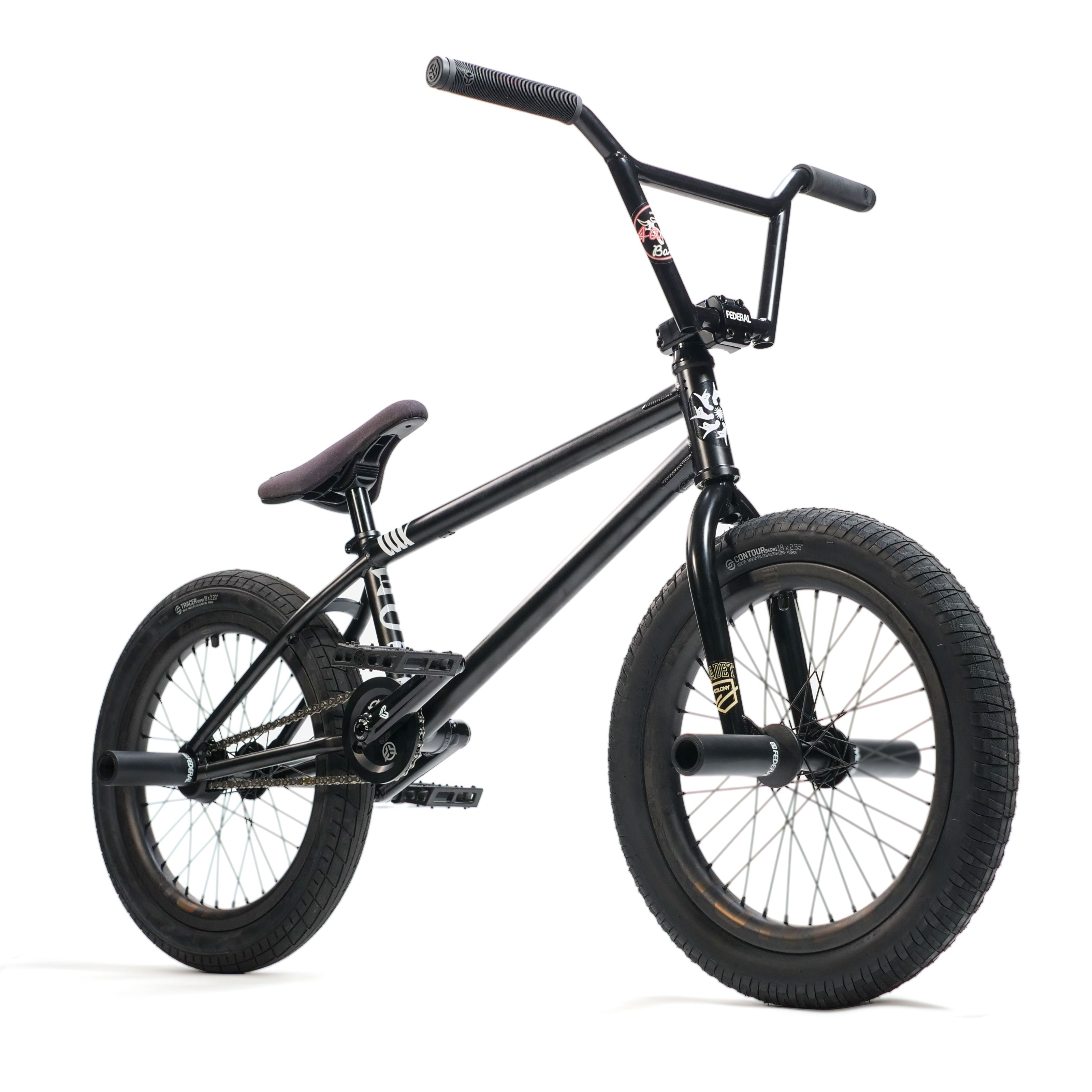

The Federal Boyd x ION Custom 18 Inch Bike is a black BMX with thick tires, padded seat, and sturdy handlebars—built for stunt riding and freestyle action.

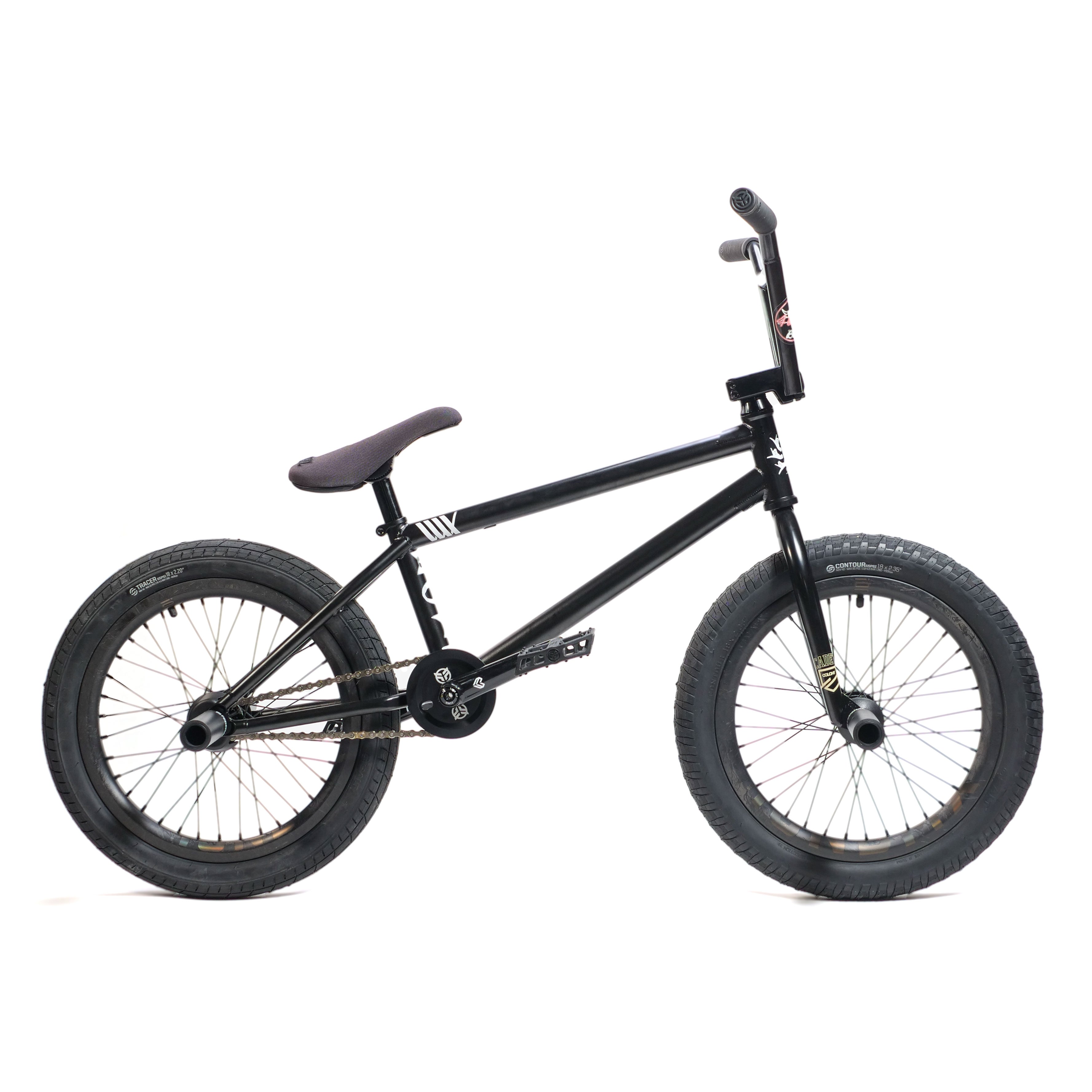

The Federal Boyd x ION Custom 18 Inch Bike is a black BMX with thick tires, a padded seat, and straight handlebars—perfectly sized at 18 inches and shown against a white background.

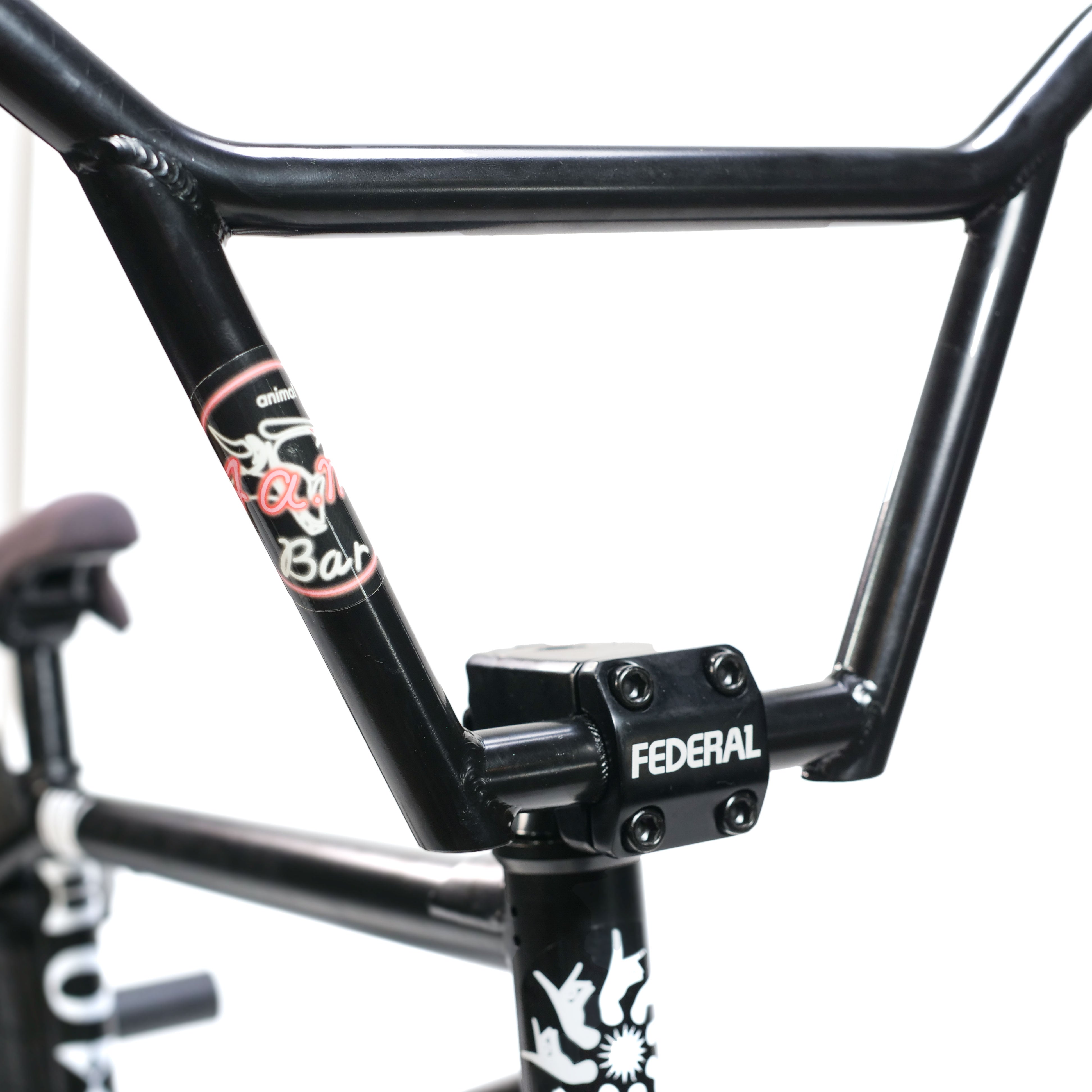

Close-up of a black handlebar with "Federal" stem and decals on the Federal Boyd x ION Custom 18 Inch Bike against a plain white background.

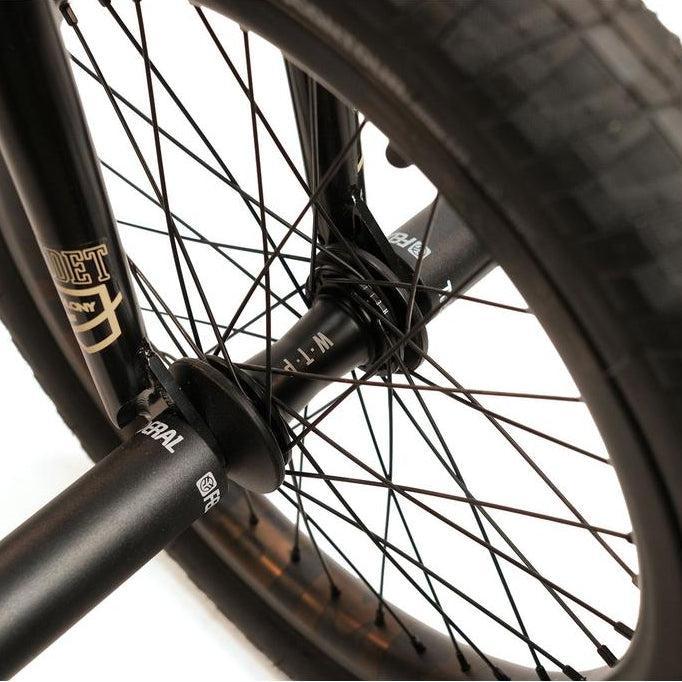

Close-up of the Federal Boyd x ION Custom 18 Inch Bike's BMX rear wheel, highlighting black spokes, treaded tire, and a metal peg on the axle—ideal features for any freestyle rider.

Description

The Ultimate 18" Masterpiece: The Titanium & Carbon "Boyd" Custom

This absolutely epic 18-inch custom bike from the masterminds in the LUXLAB and never look back... unless you are clicking a lookback, that is! We wanted to build up an 18-inch freestyle machine that would be able to shred whatever is in front of it, just like team rider Boyd Hilder.

This isn't just a bike; it’s a high-tech, scaled-down Pro-level bike. We’ve taken the legendary Federal Boyd 18" frame and pushed the limits of what’s possible for the younger shredder. This beast is decked out with an array of aftermarket Federal, WeThePeople, Eclat, and IONBMX Parts.

Features

ION C18 carbon fibre 18 inch rims. A carbon braking rim and a carbon brakeless rim are the big weight saving on this build, laced with Pillar triple butted spokes.
Federal Boyd V2 18 inch frame. Team rider Boyd Hilder's signature frame, built up here as a scaled down pro bike for a younger shredder.
10kg all up. Aftermarket Federal, Wethepeople, Eclat and ION parts throughout keep the weight down without dropping to kids' bike components.
Built in the LUXLAB. A one off custom put together in house, aimed at an 18 inch freestyle bike that can shred whatever is in front of it.
Pegs and a full parts kit. Federal 4.5in plastic and alloy pegs, Eclat Tibia XLT cranks, an Odyssey mid bottom bracket, Animal 8.25" bars and Federal Contact pedals.

Specifications

Size: 18" wheels
Frame: Federal Boyd 18 Inch V2
Fork: Colony Cadet 18 inch
Headset: Federal
Stem: Federal Element front load
Bars: Animal 4 AM, 8.25"
Grips: Federal Rewind flangeless
Cranks: Eclat Tibia XLT
Bottom bracket: Odyssey mid
Sprocket: Federal Code guard
Chain: Odyssey Blue Bird
Pedals: Federal Contact
Front hub: Wethepeople Helix
Rear hub: Wethepeople Hybrid
Spokes: Pillar PSR triple butted, black, with Spectre 7075 alloy nipples
Rims: ION BMX C18 carbon fibre 18 inch, braking and brakeless
Tyres: Salt Contour and Salt Tracer 18in
Seat post: Pivotal, 25.4 x 150mm
Pegs: Federal 4.5in plastic and alloy
Weight: 10kg

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

Fit the handlebars and line them up with the front wheel
Fit the front wheel, pedals and seat post
Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Federal Boyd x ION Custom 18 Inch Bike

Name: Federal Boyd x ION Custom 18 Inch Bike
Brand: federal
SKU: 51934117789997
Price: 2999.99 AUD
Availability: OutOfStock

Brand: federal SKU: Click to copy the SKU and show the pick location

$2,999.99 AUD

Or 4 payments of $749.99 AUD with

An 18 inch bike suits a rider of about 122 to 147cm, usually 7 to 11 years old, on an 18 to 18.5 inch top tube. It is the last step before a full size 20 inch.

Rider height	Wheel size	Top tube
60 to 91cm	12"	12 to 12.5"
81 to 106cm	14"	14 to 14.5"
96 to 122cm	16"	16 to 16.5"
122 to 147cm	18"	18 to 18.5"
147 to 157cm	20"	19.75 to 20.25"
157 to 168cm	20"	20 to 20.5"
168 to 175cm	20"	20.25 to 20.75"
175 to 183cm	20"	20.5 to 21"
183 to 190cm and up	20"	20.75 to 21.5"
160cm and up	22"	21 to 22.25"
160cm and up	24"	21.75 to 22"
160cm and up	26"	22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If your rider is near 147cm and still growing, look at a 20 inch instead: it is the size they will keep riding.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Between an 18 and a 20? Take the 20. It is the size they will keep riding, and an 18 gets outgrown quickly.
They should be able to stand over the top tube with both feet flat on the ground.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
