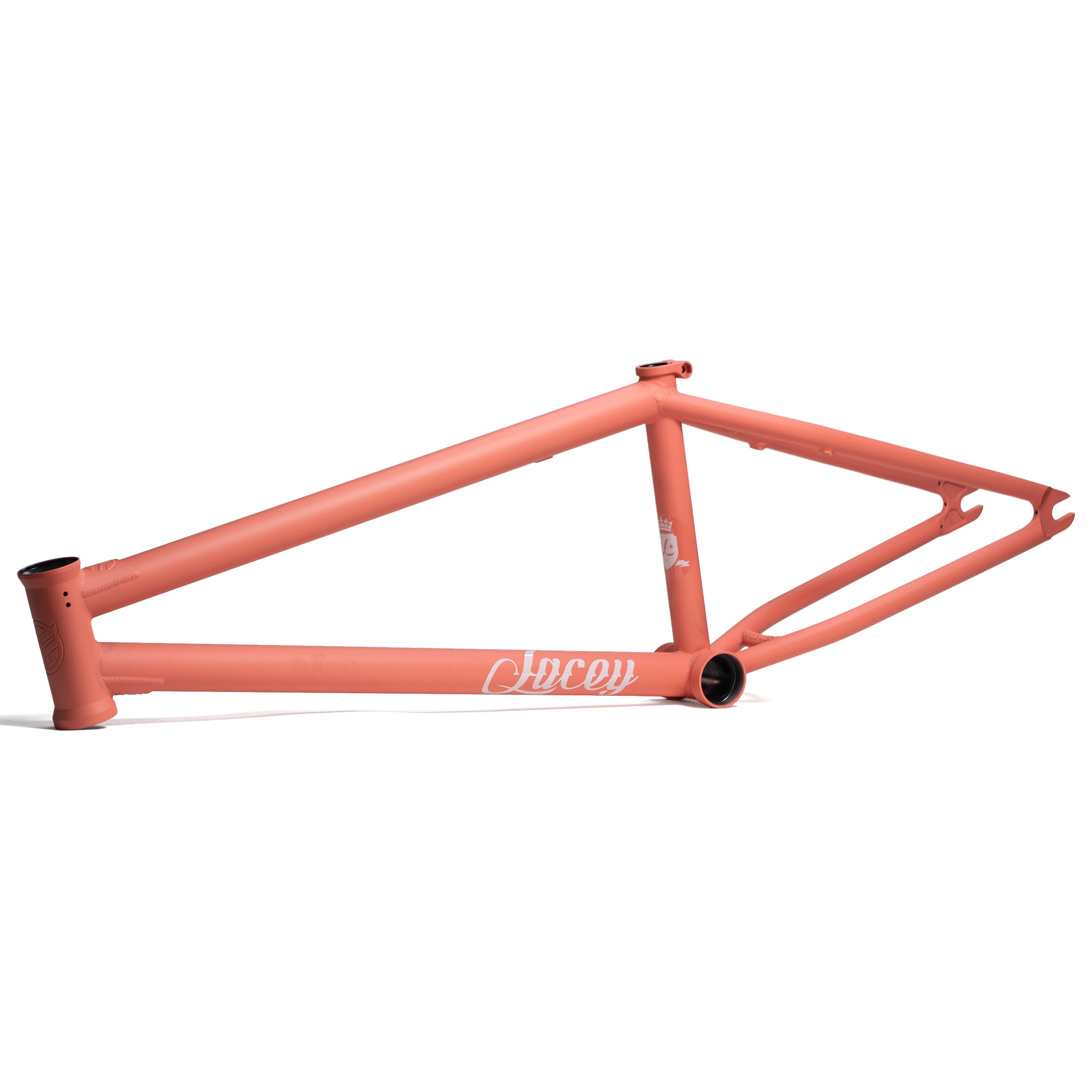

The Federal Lacey 3 Frame is a matte coral BMX frame made from 4130 Chromoly, featuring "Lacey" in white on the lower tube, shown against a white background.
A Federal Lacey 3 Frame on a white background.

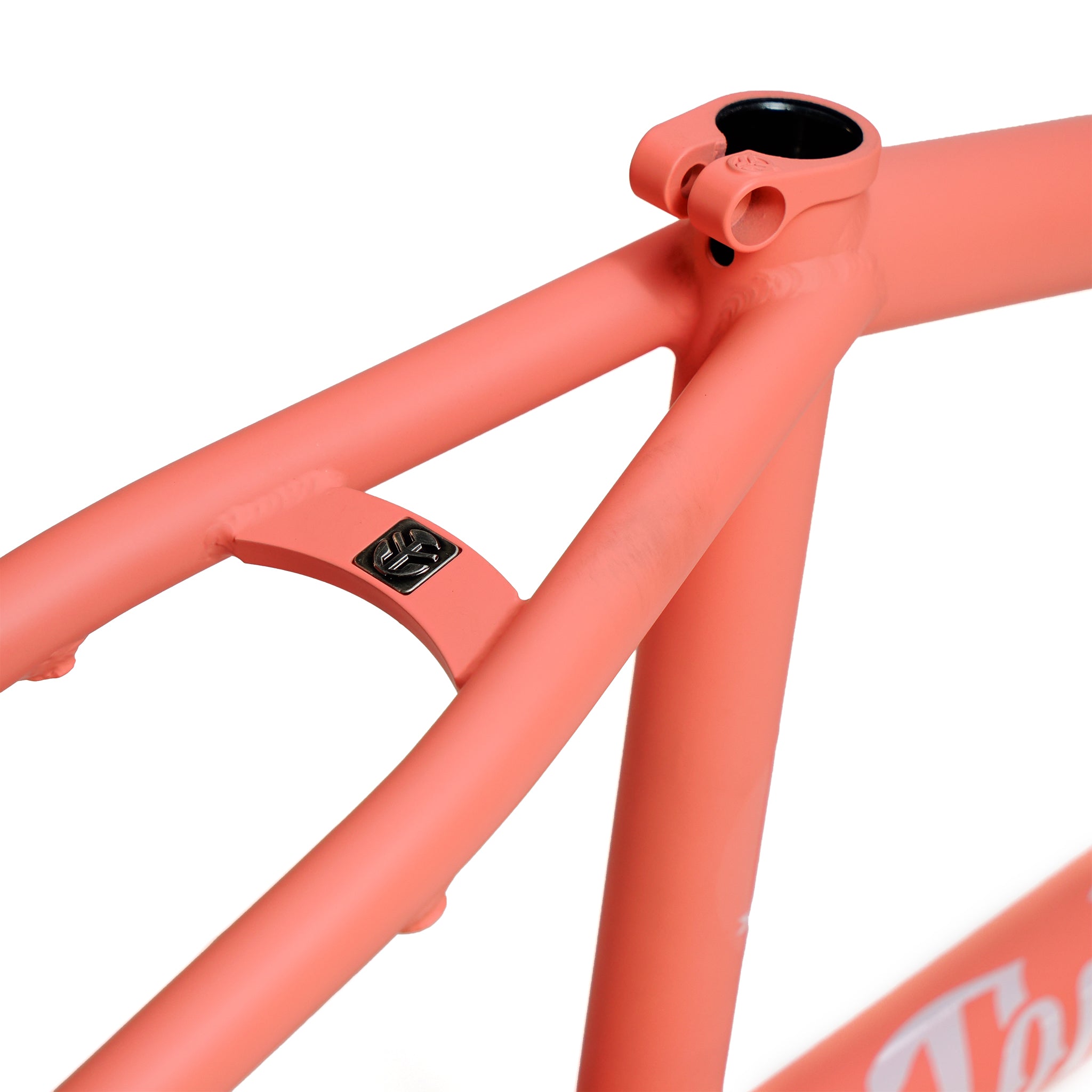

Close-up of the Federal Lacey 3 Frame in coral, showcasing the seat stay, top tube, and seat post clamp area—precision-crafted from durable 4130 Chromoly tubing.

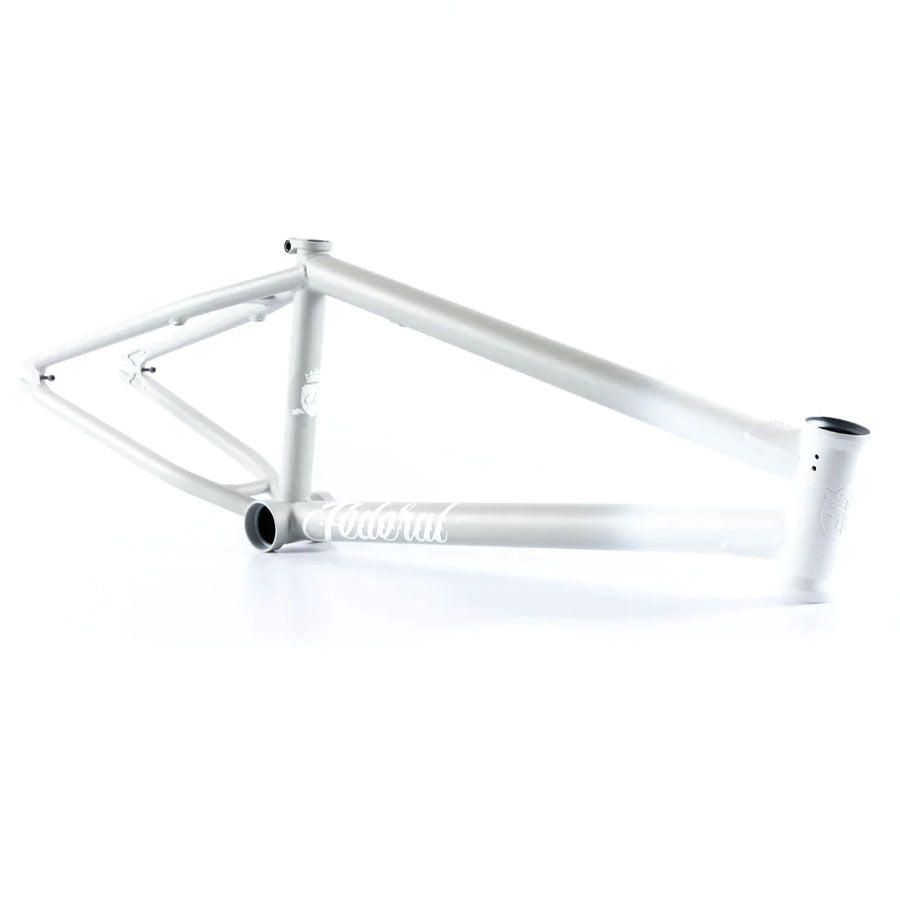

A Federal Lacey 3 Frame bicycle frame on a white background.

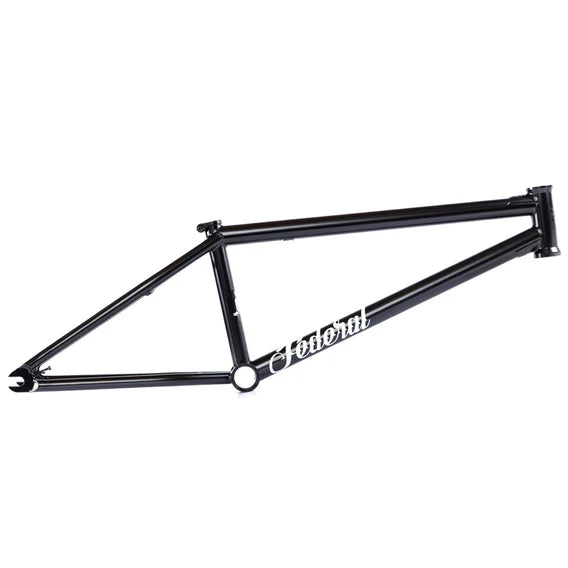

Black Federal Lacey 3 BMX frame featuring a white "Federal" logo and investment cast dropouts, displayed on a white background and viewed from the side.
A close up of a white bicycle frame featuring the Federal Lacey 3 Frame.

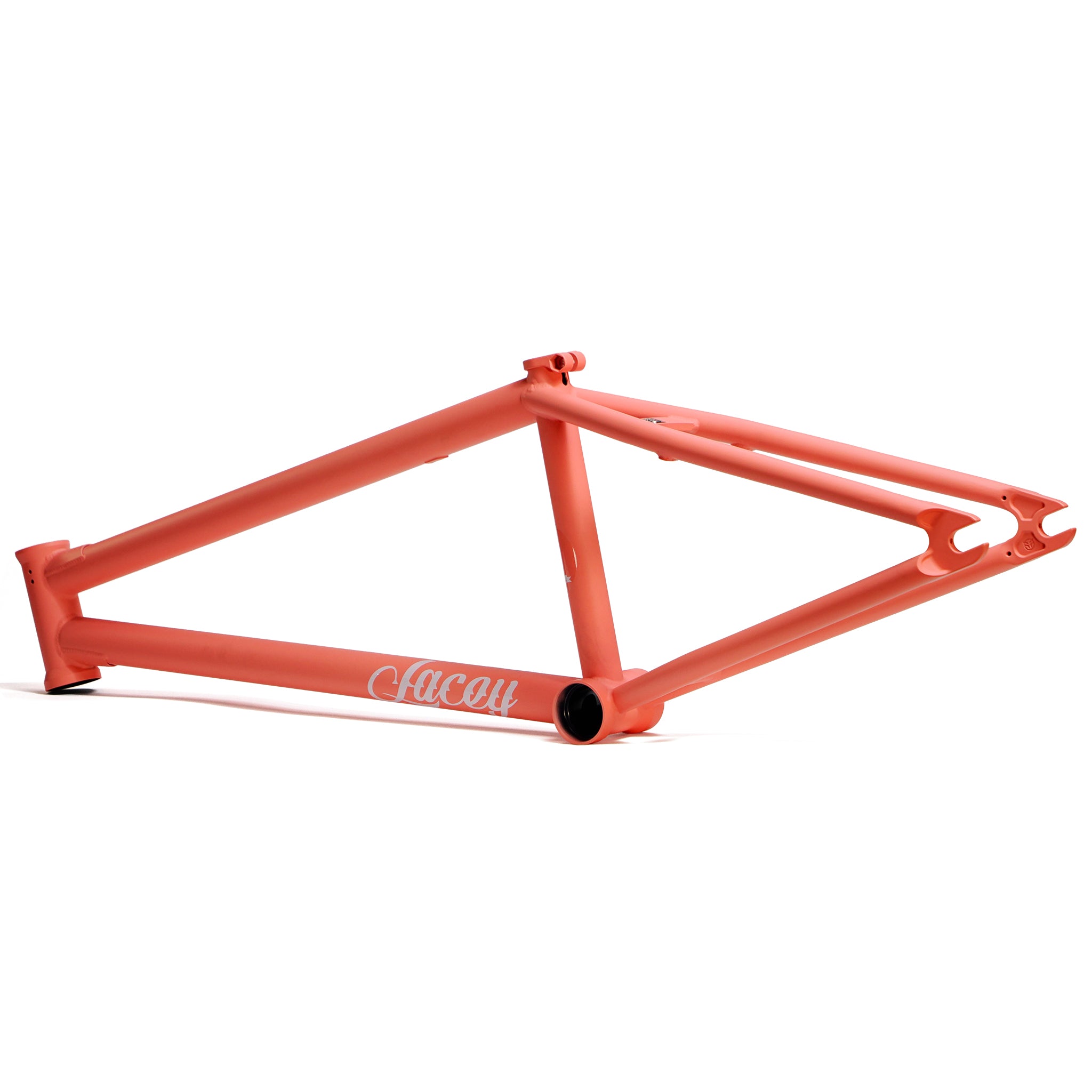

The Federal Lacey 3 Frame is a matte orange BMX frame made from 4130 Chromoly tubing, featuring "LACOU" in white on the lower tube and displayed on a white background.

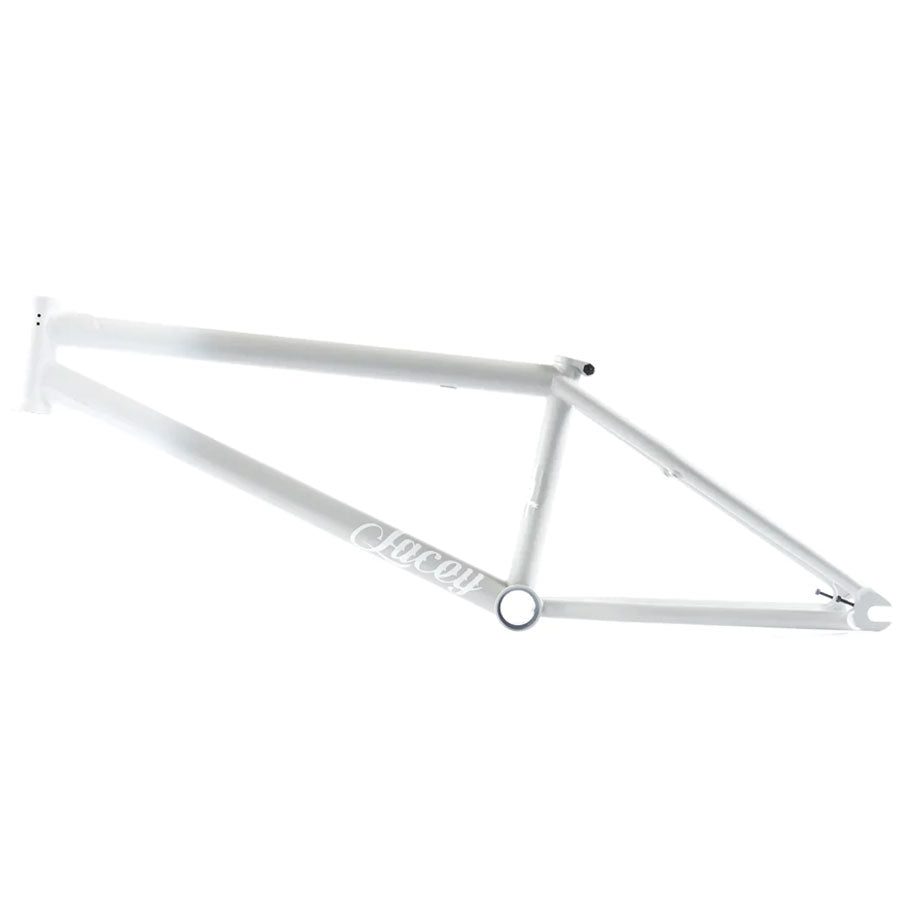

A white bicycle frame on a white background featuring the Federal Lacey 3 Frame.
A close up of a white bicycle with a black handlebar featuring the Federal Lacey 3 Frame.

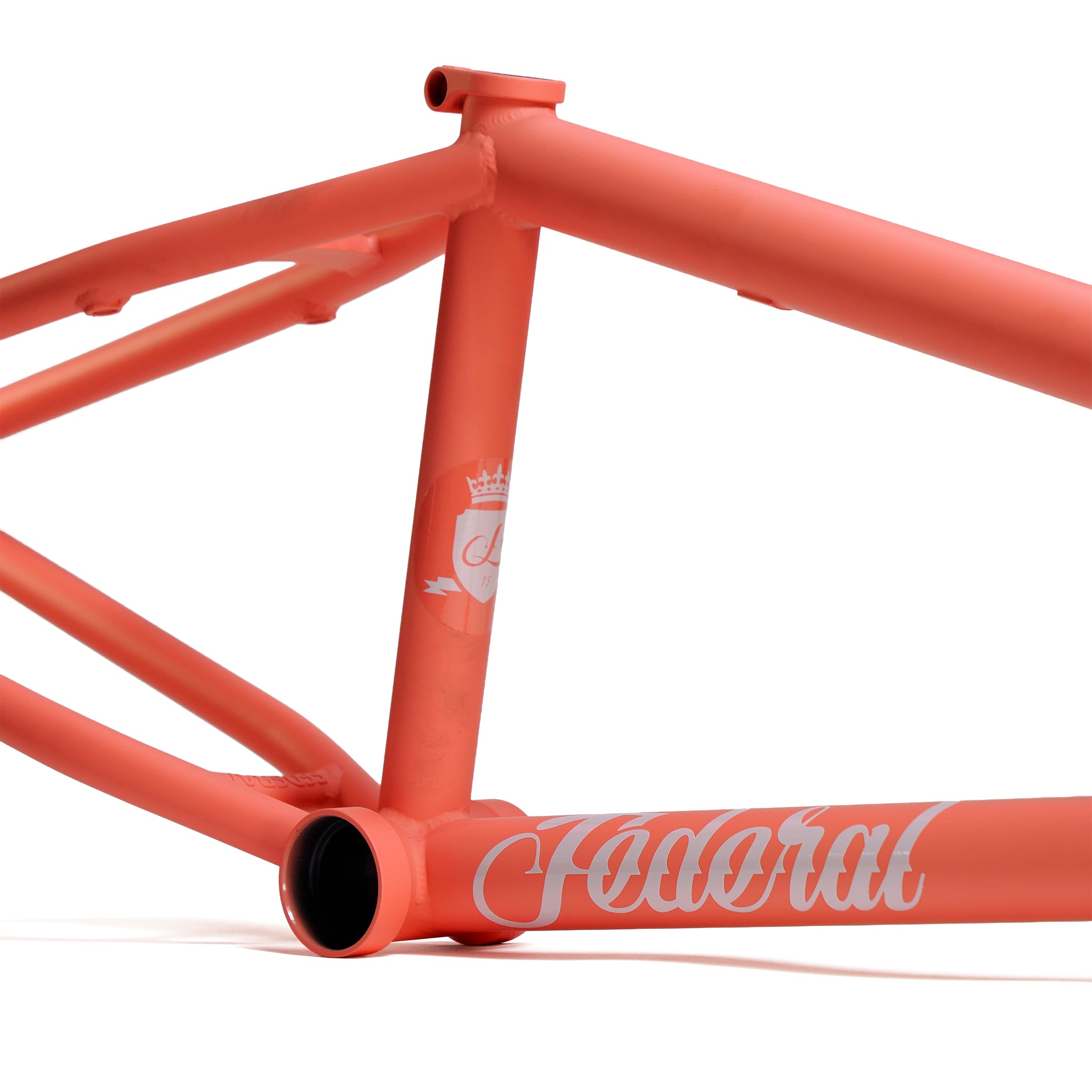

Close-up of a coral-colored Federal Lacey 3 Frame made from 4130 Chromoly tubing, with white "COLONIAL" branding and a crown logo on the seat tube.

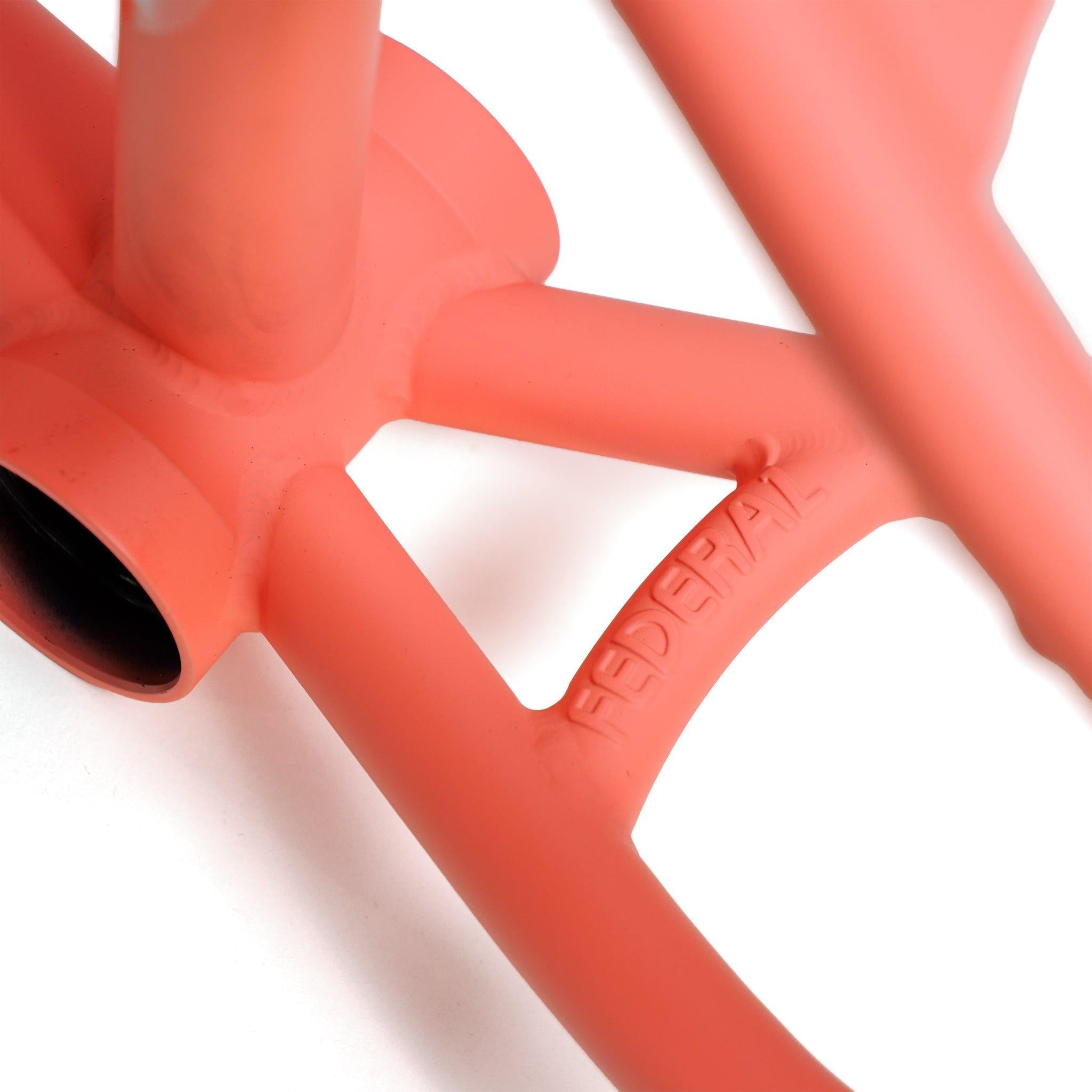

Close-up of the matte coral Federal Lacey 3 Frame, made from 4130 Chromoly tubing, featuring "FEDERAL" embossed on the rear triangle near the bottom bracket.

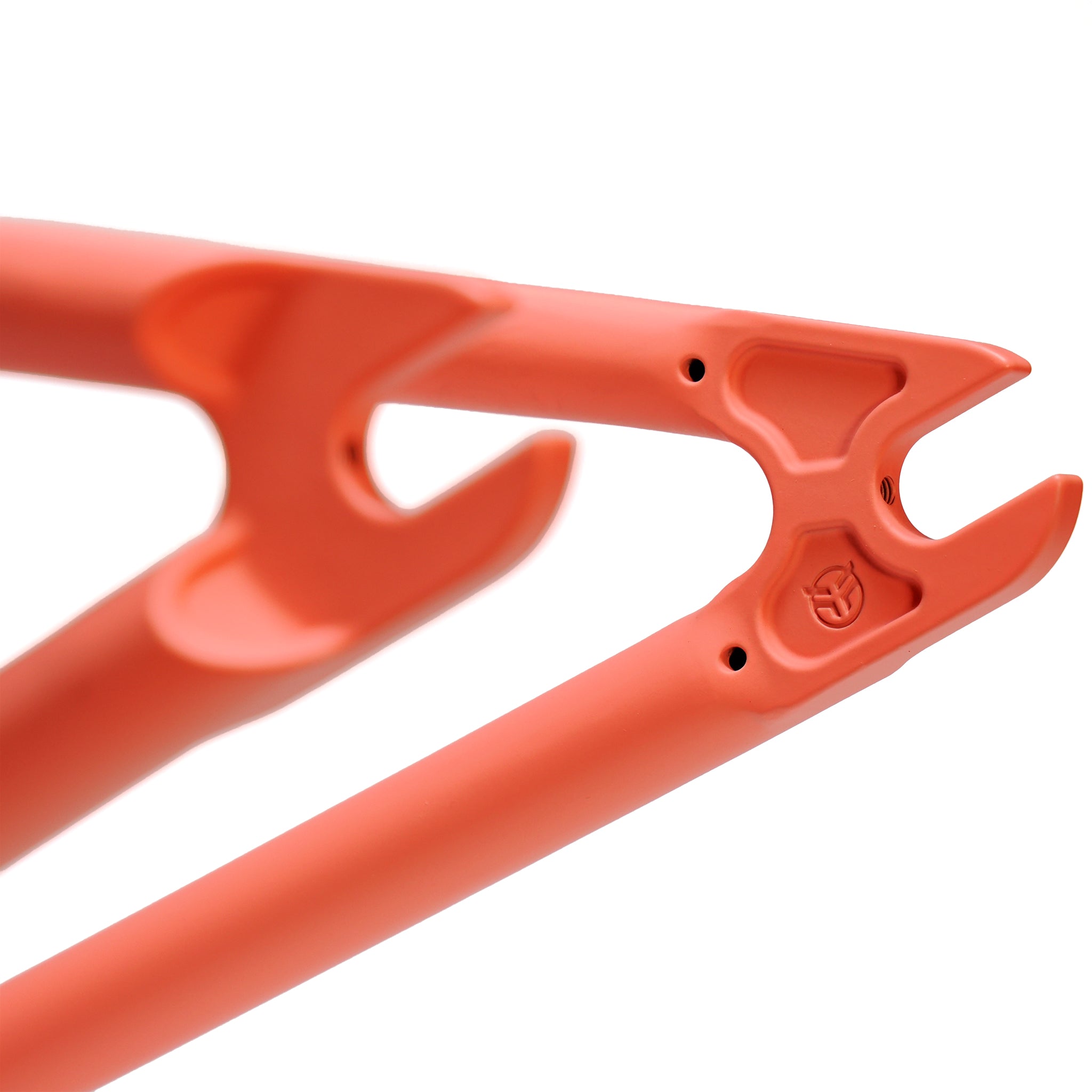

Close-up of the Federal Lacey 3 Frame’s orange dropout, crafted from 4130 Chromoly tubing with a minimalist, angular design and visible mounting holes.

Highlights

  • Smaller IC dropouts
  • Integrated chain tensioners
  • Three top tube lengths
  • Investment cast seat clamp

Description

The Lacey frame features an engraved Federal logo on the headtube, an inverted Federal logo on the seat stay bridge and top tube gusset. This frame also features the brand new IC dropouts which are smaller to prevent catching when grinding. Graphics designed by Rich Forne.

Features
  • Smaller IC dropouts. The brand new investment cast dropouts are smaller so they are less likely to catch when you are grinding.
  • Integrated chain tensioners. The redesigned dropouts hold the rear wheel where you set it, so your chain tension stays put.
  • Three top tube lengths. Choose 20.5", 20.75" or 21" with a 75.5° head tube angle, 13.75" slammed chain stay and 9" standover.

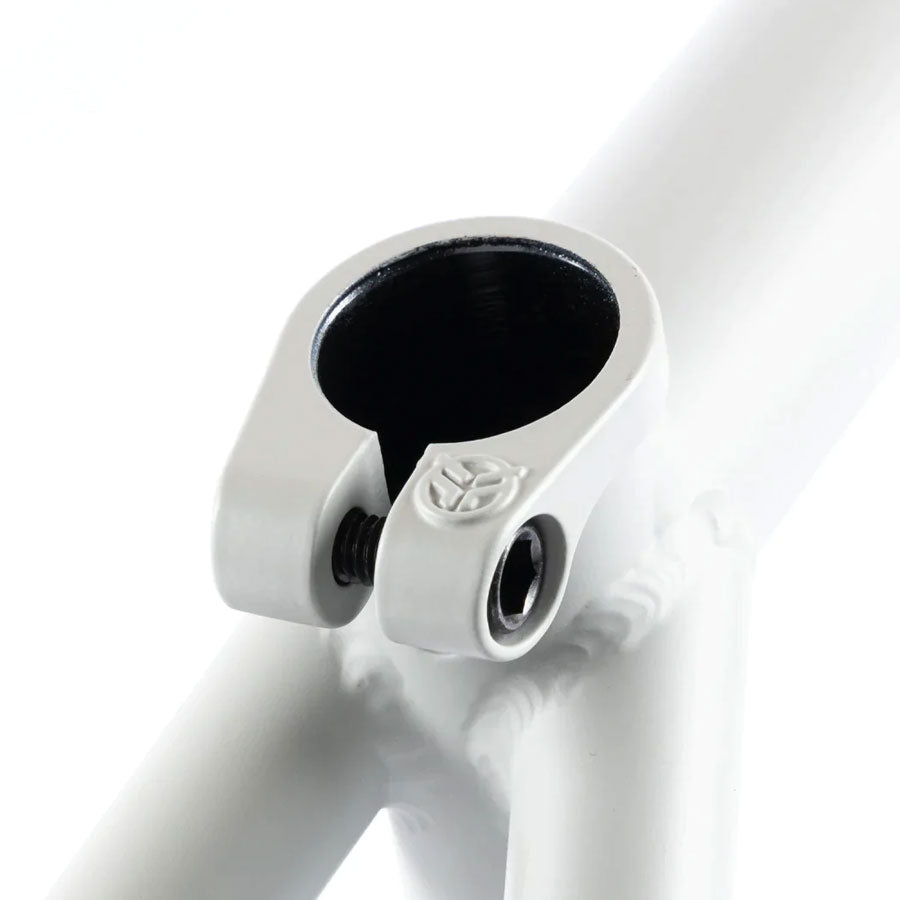

  • Investment cast seat clamp. The clamp is cast into the frame, so there is no separate clamp to lose or replace.
  • Rich Forne graphics. An engraved Federal logo on the head tube, inverted F logos on the seat stay bridge and top tube gusset.

Specifications
  • Sizes: 20.5", 20.75" or 21" top tube
  • Chainstay: 13.75" slammed
  • Head tube angle: 75.5°
  • Seat tube angle: 71°
  • Standover: 9"
  • Bottom bracket height: 11.8"
  • Bottom bracket: Mid
  • Material: 4130 chromoly
  • Tubing: Tapered chainstays, investment cast seat stay and chain stay bridges, embossed down tube gusset
  • Dropouts: Redesigned investment cast, with integrated chain tensioners
  • Brake mounts: Removable, sold separately
  • Seat clamp: Integrated investment cast
  • Weight: 2.5 kg

Federal Lacey 3 Frame

Brand: Federal SKU:

From

$749.99 AUD

 $779.99 AUD

Or 4 payments of $187.49 AUD with

Colour - Matte Pastel

Top Tube Length - 21

20 inch BMX frame sizing

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider heightTop tube
147 to 157cm19.75 to 20.25"
157 to 168cm20 to 20.5"
168 to 175cm20.25 to 20.75"
175 to 183cm20.5 to 21"
183 to 190cm and up20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

  • Size up for stability through trails and transitions.
  • Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

20 inch BMX frame sizing

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider heightTop tube
147 to 157cm19.75 to 20.25"
157 to 168cm20 to 20.5"
168 to 175cm20.25 to 20.75"
175 to 183cm20.5 to 21"
183 to 190cm and up20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

  • Size up for stability through trails and transitions.
  • Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide
