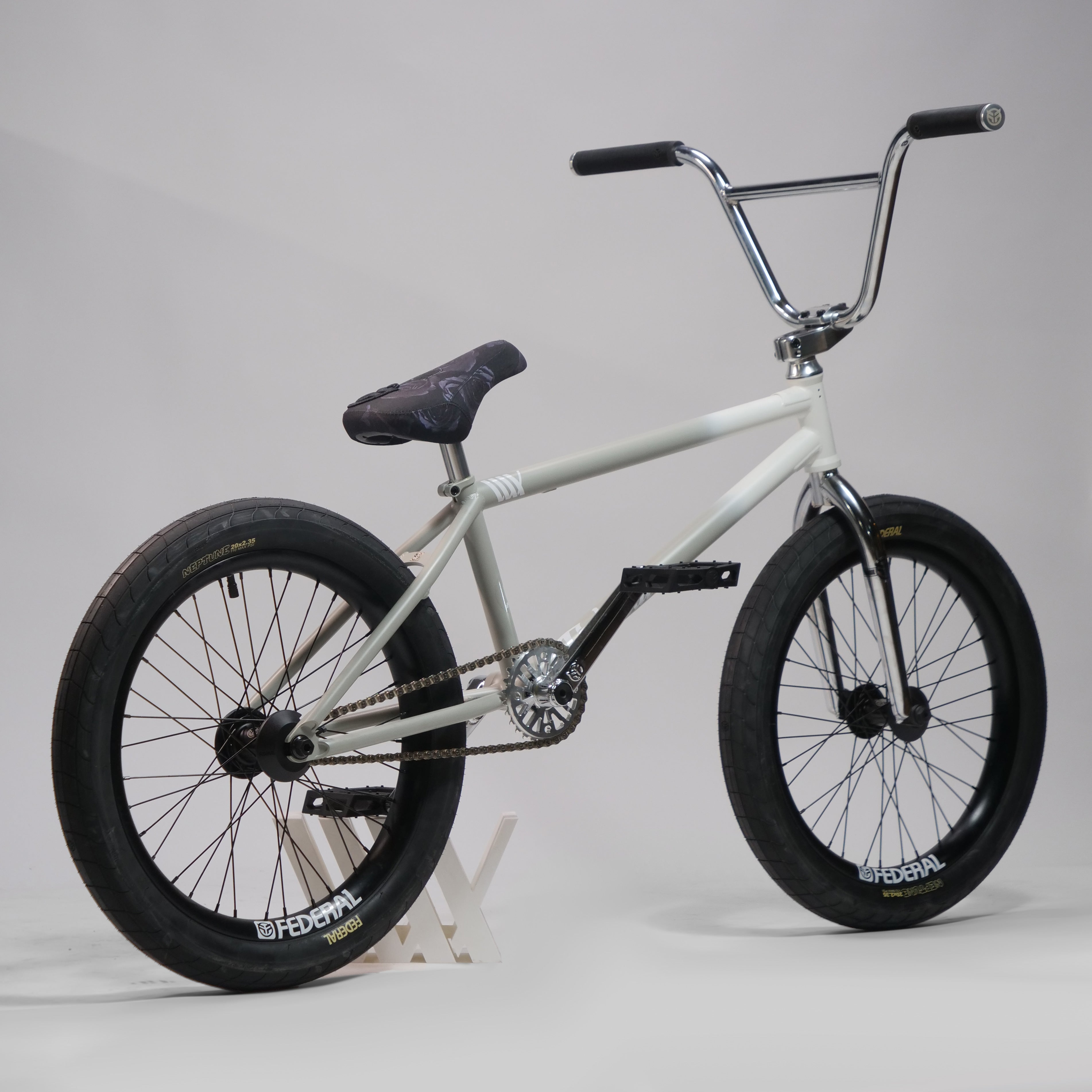

Federal Lacey Chrome Custom 20 Inch Bike with a light gray frame, black wheels, chrome handlebars, and black pedals.
Light gray Federal Lacey Chrome Custom 20 Inch Bike with a black fork, seat, and tires.
Federal Lacey Chrome Custom 20 Inch Bike with an off-white frame, chrome handlebars, a patterned black seat, and black wheels.

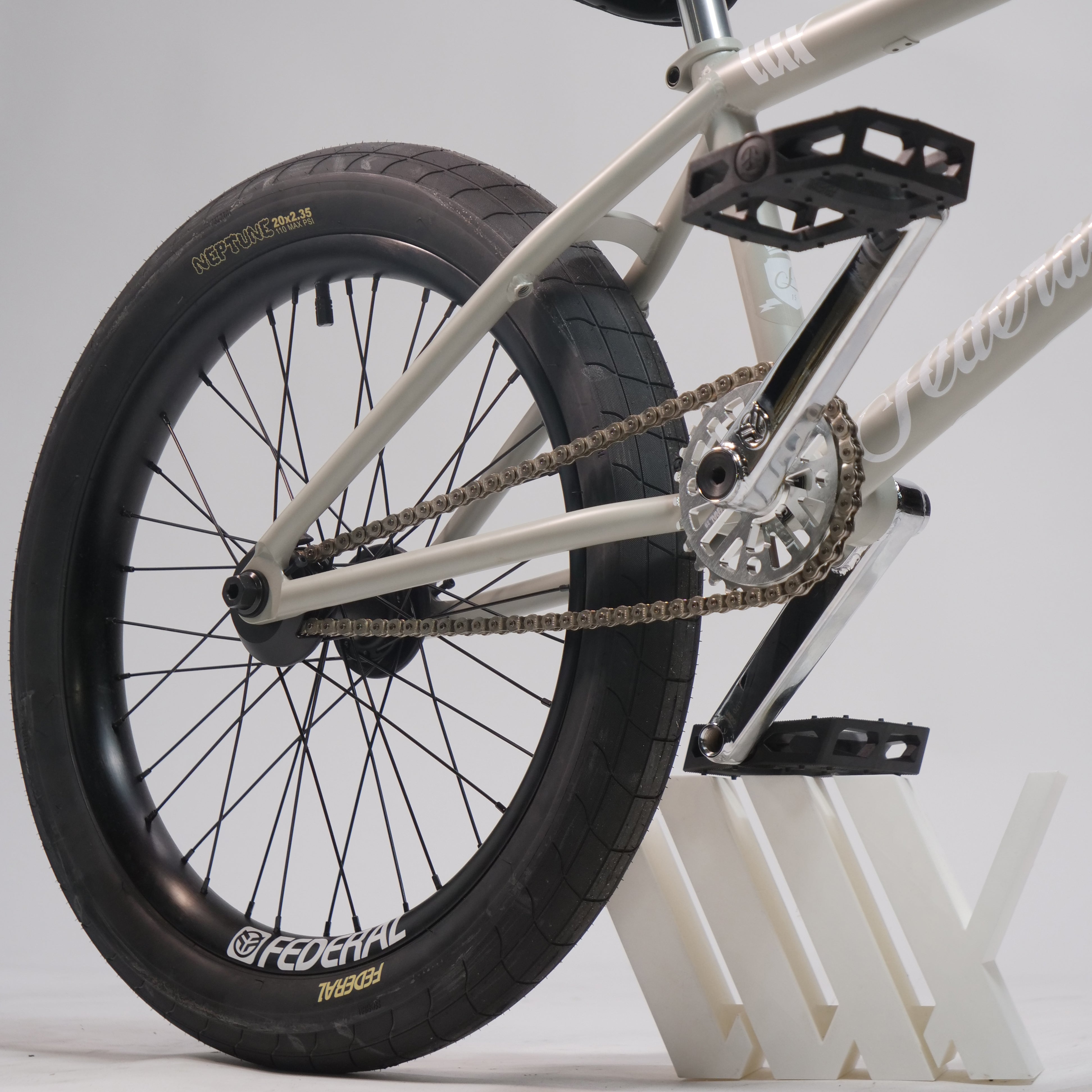

Close-up of the rear section of a Federal Lacey Chrome Custom 20 Inch Bike, showing the chrome crank, chain, and black tire on a white stand.

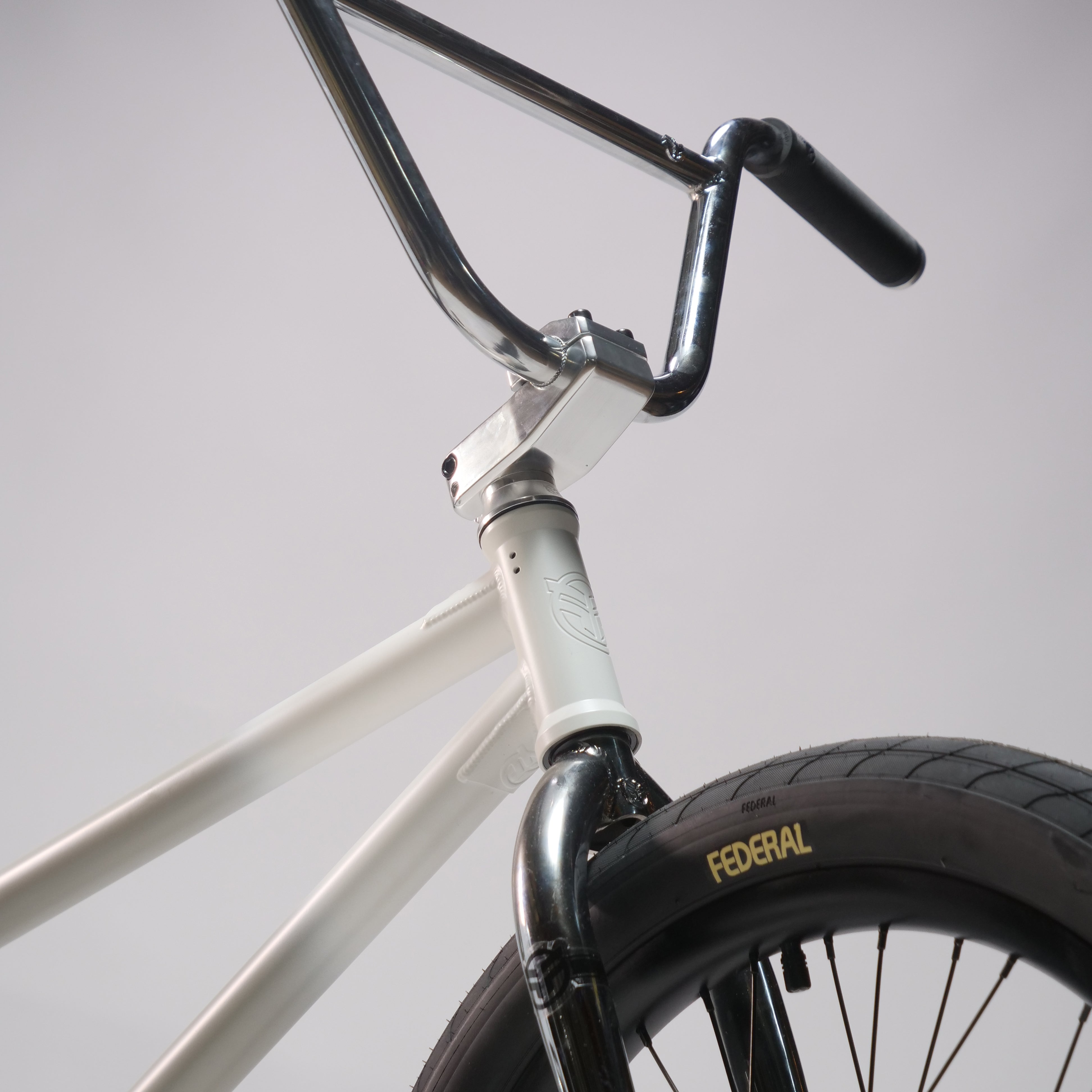

Close-up of a Federal Lacey Chrome Custom 20 Inch Bike featuring a white frame with chrome handlebars, stem, and front fork.

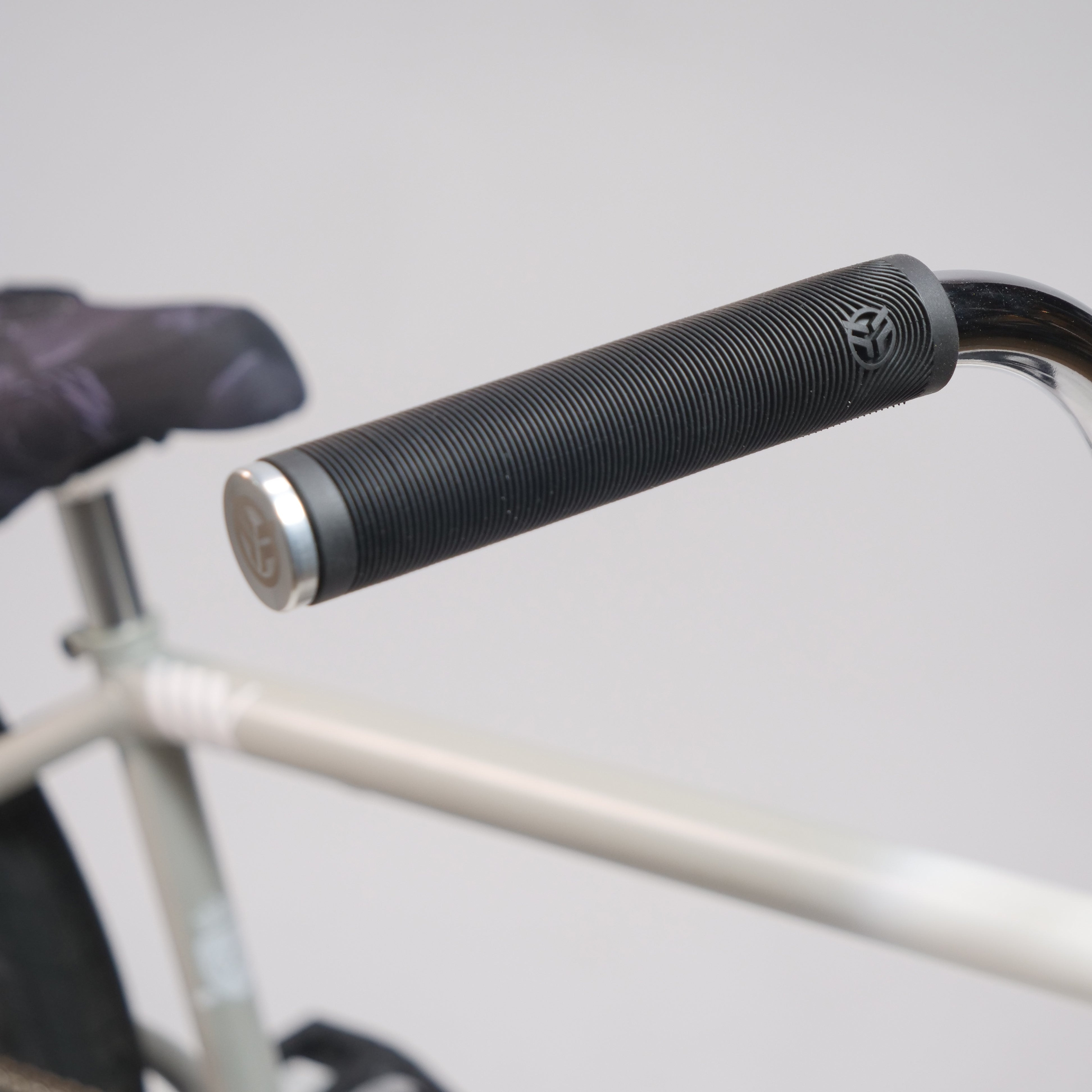

Black ribbed handlebar grip with a branded end cap from a Federal Lacey Chrome Custom 20 Inch Bike, ideal for a custom BMX build.

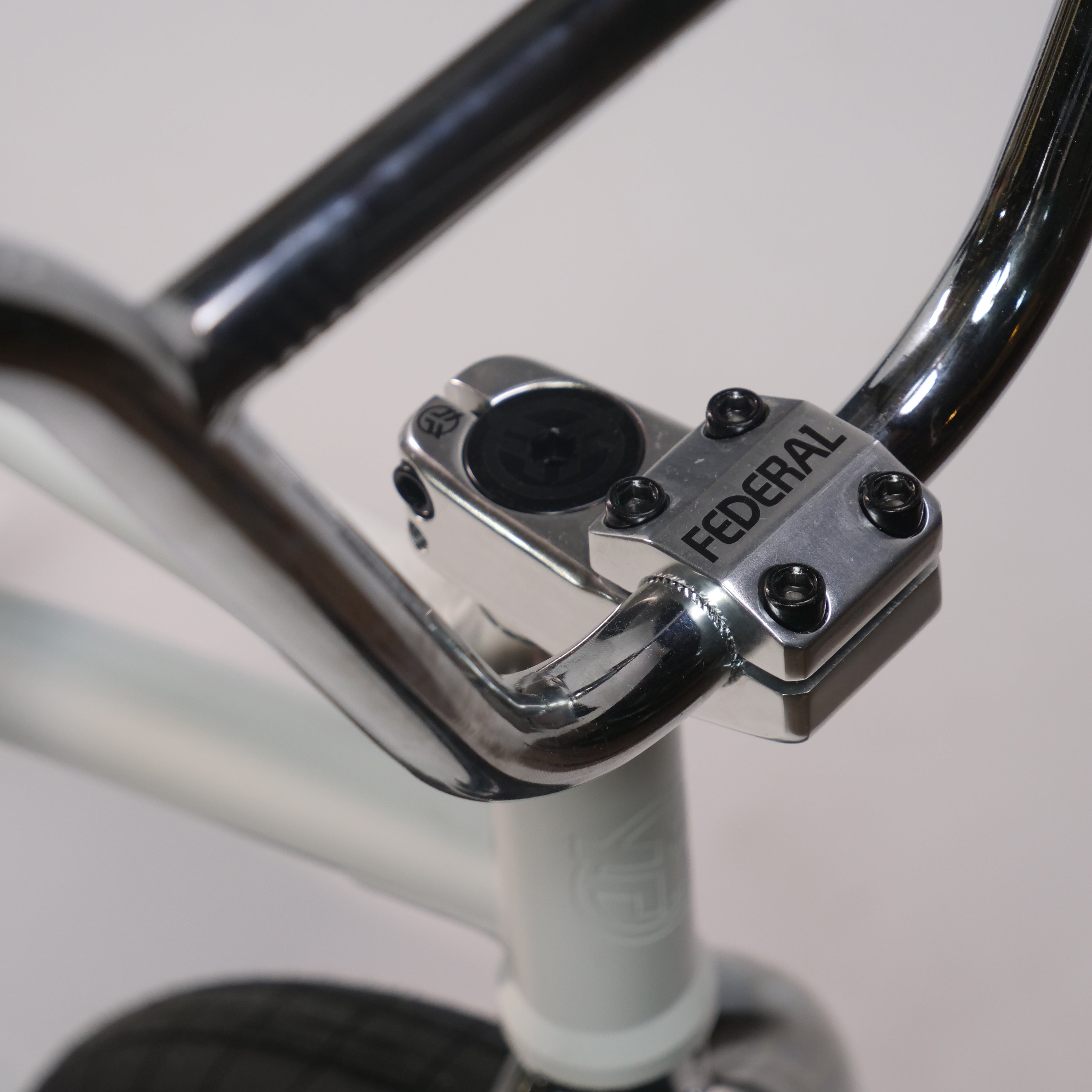

Chrome BMX handlebars and stem on a Federal Lacey Chrome Custom 20 Inch Bike, featuring the word FEDERAL printed on the top clamp.

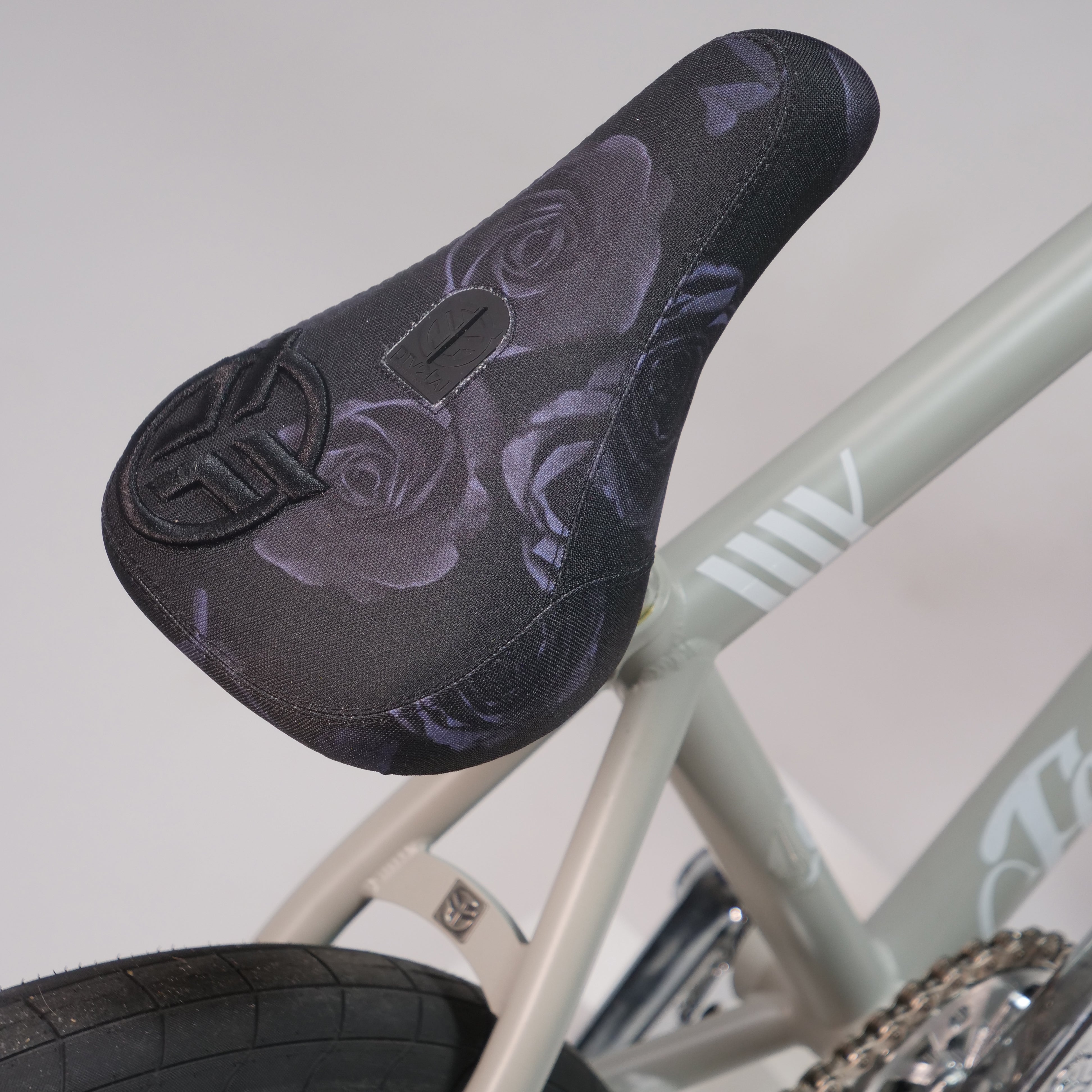

Close-up of a dark rose-patterned bicycle seat with a logo patch, mounted on a Federal Lacey Chrome Custom 20 Inch Bike frame.

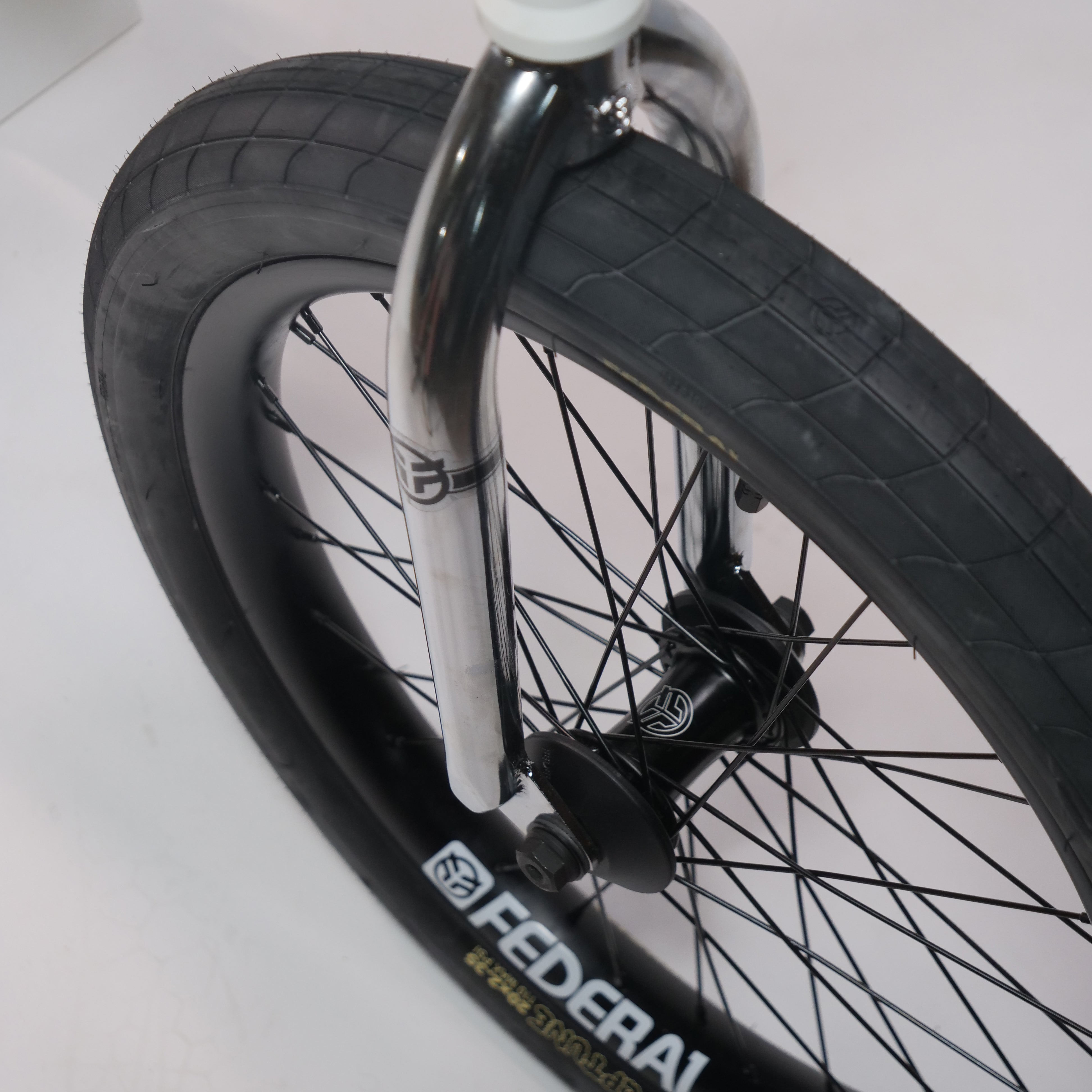

Close-up of a chrome BMX fork, black spoked wheel, and tire on a Federal Lacey Chrome Custom 20 Inch Bike.

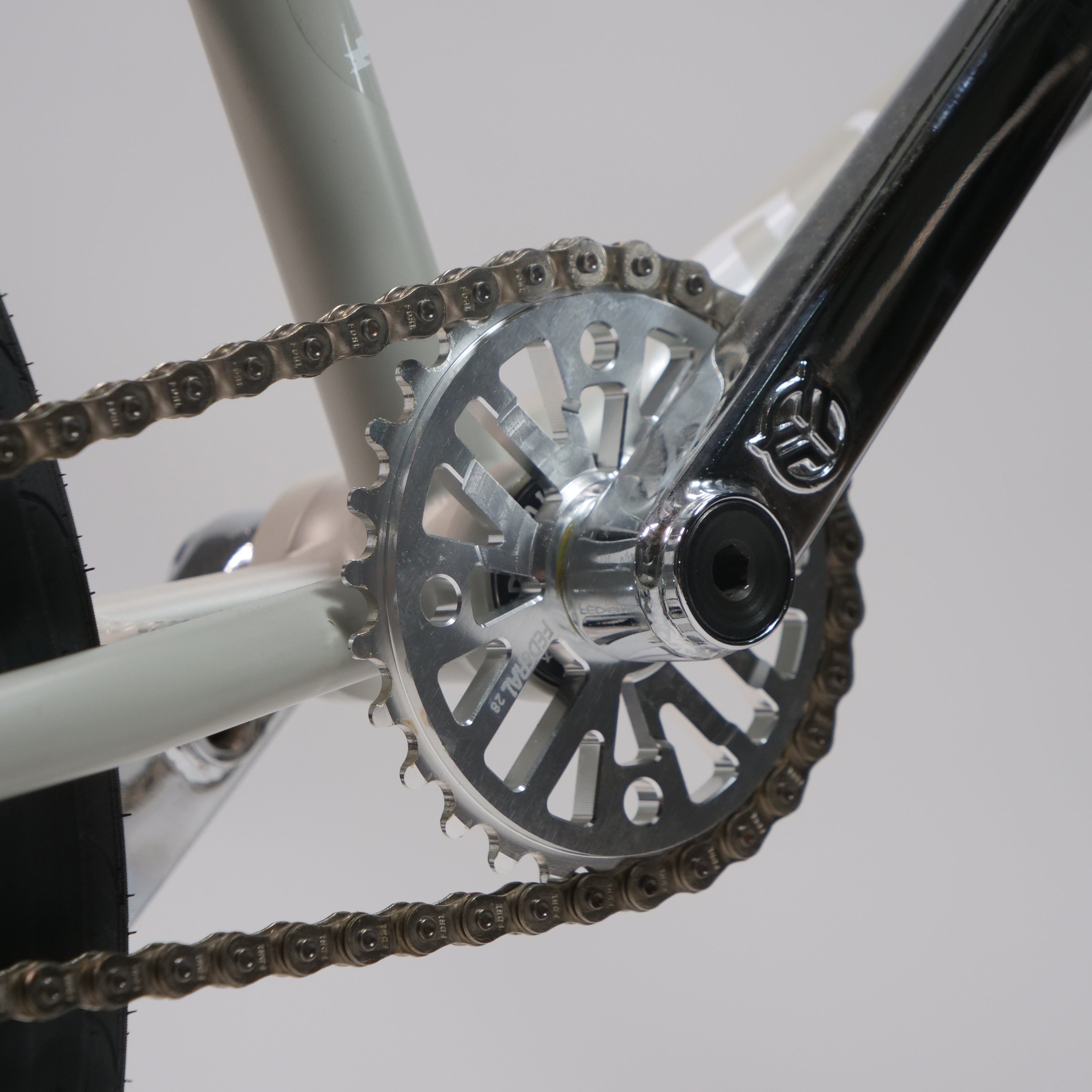

Close-up of a chrome drivetrain on a Federal Lacey Chrome Custom 20 Inch Bike, featuring a silver sprocket, metal chain, and chrome crank arm.

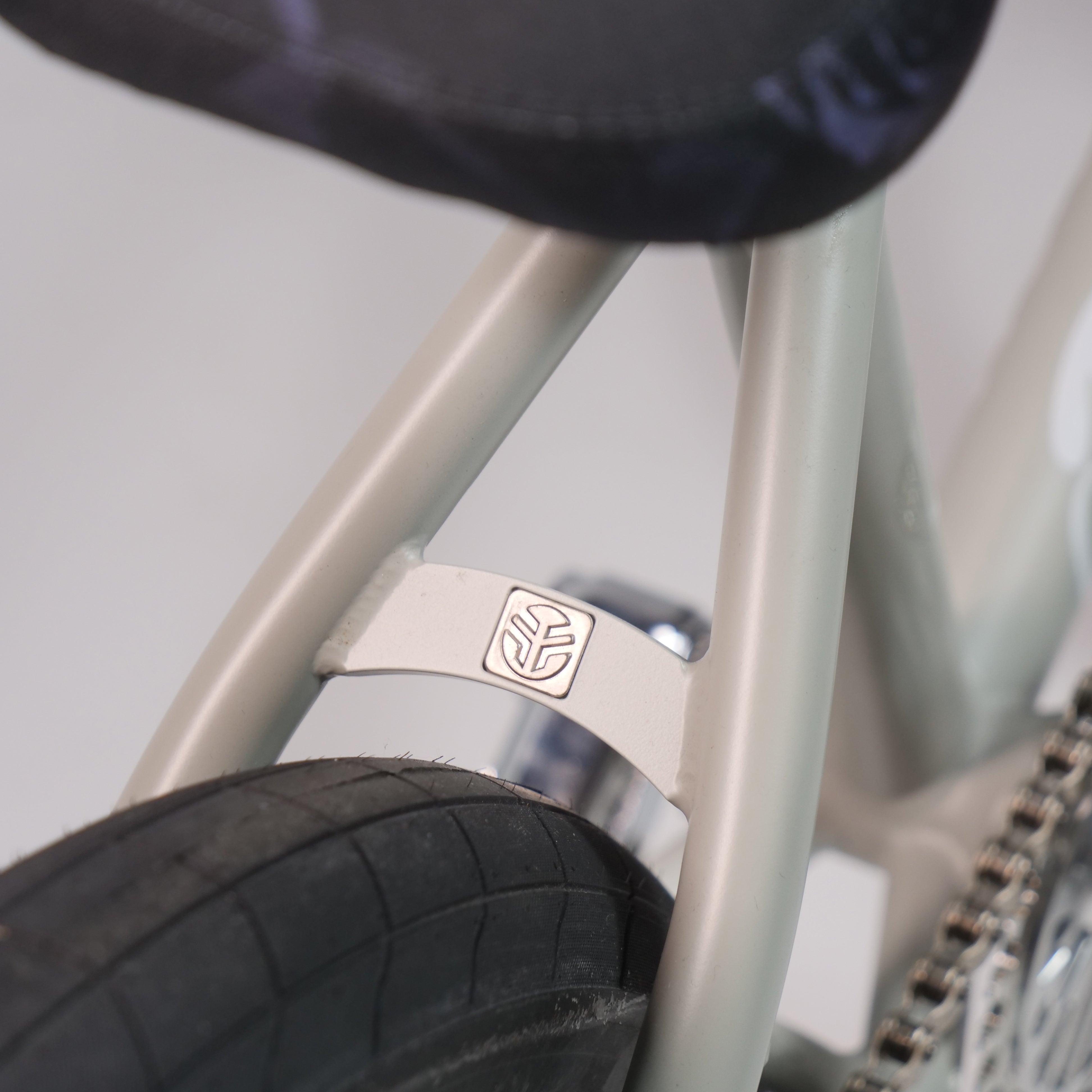

Close-up of a Federal Lacey Chrome Custom 20 Inch Bike frame showing the rear tire, seat post, and a metal bridge plate featuring a logo on this custom BMX build.

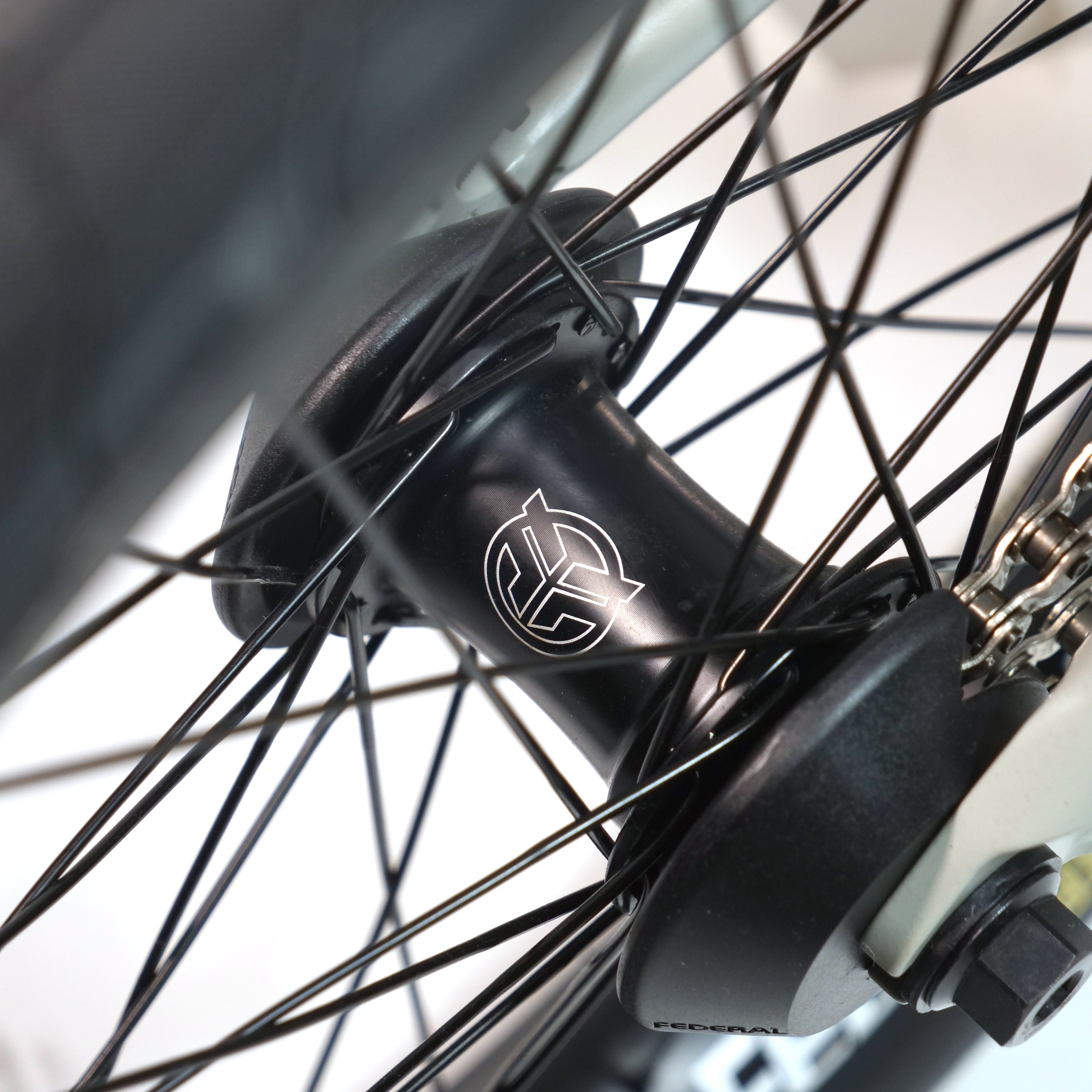

Close-up of a chrome bicycle wheel hub on a Federal Lacey Chrome Custom 20 Inch Bike, featuring black spokes and a logo on the center casing.

Highlights

  • Federal Lacey 3 frame, 21 inch
  • Chrome and silver finishing kit
  • Federal Vice 2 cranks, 24mm
  • Wheels built to grind

Description

A custom build from LUXBMX based on the Federal Lacey 3 frame in a matte grey to white fade with a 21 inch top tube, wearing chrome Federal Lacey bars and Assault 22 forks. The chrome runs through the Vice 2 cranks and half link chain, with a silver Element V2 top load stem and Command sprocket to match.

The wheels are Federal Aero XL rims on Stance Pro hubs, with hub guards and butted spokes up front and a right hand drive female cassette out the back. Federal Neptune 2.35 inch tyres, a Mid Pivotal Roses seat, Command XL pedals and a pair of 4.15 inch Salt AM steel pegs finish it off.

Features
  • Federal Lacey 3 frame, 21 inch. A long 21 inch top tube in a matte grey to white fade, so taller riders get room to move on the bike.
  • Chrome and silver finishing kit. Chrome Lacey bars, Assault 22 forks and half link chain, set off by a silver Element V2 top load stem and Command sprocket.
  • Federal Vice 2 cranks, 24mm. Chrome 170mm cranks on a 24mm spindle, the strongest option Federal make for the part of the bike that copes with every landing.
  • Wheels built to grind. Aero XL rims on Stance Pro hubs, with butted spokes and hub guards up front and a right hand drive female cassette in the rear.
  • Pegs and grind kit fitted. A pair of 4.15" Salt AM steel pegs, polished Federal alloy bar ends, Rewind flangeless grips and 2.35" Neptune tyres come on the bike.

Specifications
  • Size: 20"
  • Frame: Federal Lacey 3, matte grey to white fade
  • Top tube: 21"
  • Fork: Federal Assault 22, chrome, 22mm
  • Headset: Federal, raw
  • Stem: Federal Element V2 top load, silver, 50mm
  • Bars: Federal Lacey, chrome, 8.75"
  • Grips: Federal Rewind flangeless, black
  • Bar ends: Federal alloy, polished
  • Cranks: Federal Vice 2, chrome, 170mm, 24mm spindle
  • Sprocket: Federal Command, silver, 28T
  • Chain: Federal half link, silver, 1/2 x 1/8
  • Pedals: Federal Command XL plastic, black, 9/16"
  • Front hub: Federal Stance Pro with hub guards, black
  • Rear hub: Federal Stance Pro female cassette, right hand drive, black
  • Spokes: Butted
  • Rims: Federal Aero XL, black
  • Tyres: Federal Neptune, black, 2.35"
  • Tubes: Federal, 2.125 to 2.4"
  • Seat: Federal Mid Pivotal Roses, black/grey
  • Seat post: Pivotal, 25.4 x 150mm, silver
  • Pegs: Salt AM steel, chrome, 4.15", pair

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Federal Lacey Chrome Custom 20 Inch Bike

Brand: Federal SKU:

From

$2,499.99 AUD

 $3,087.80 AUD

Or 4 payments of $624.99 AUD with

Recommended Rider Height: 175 cm and taller

Colour - Chrome

Top Tube Length - 21

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
