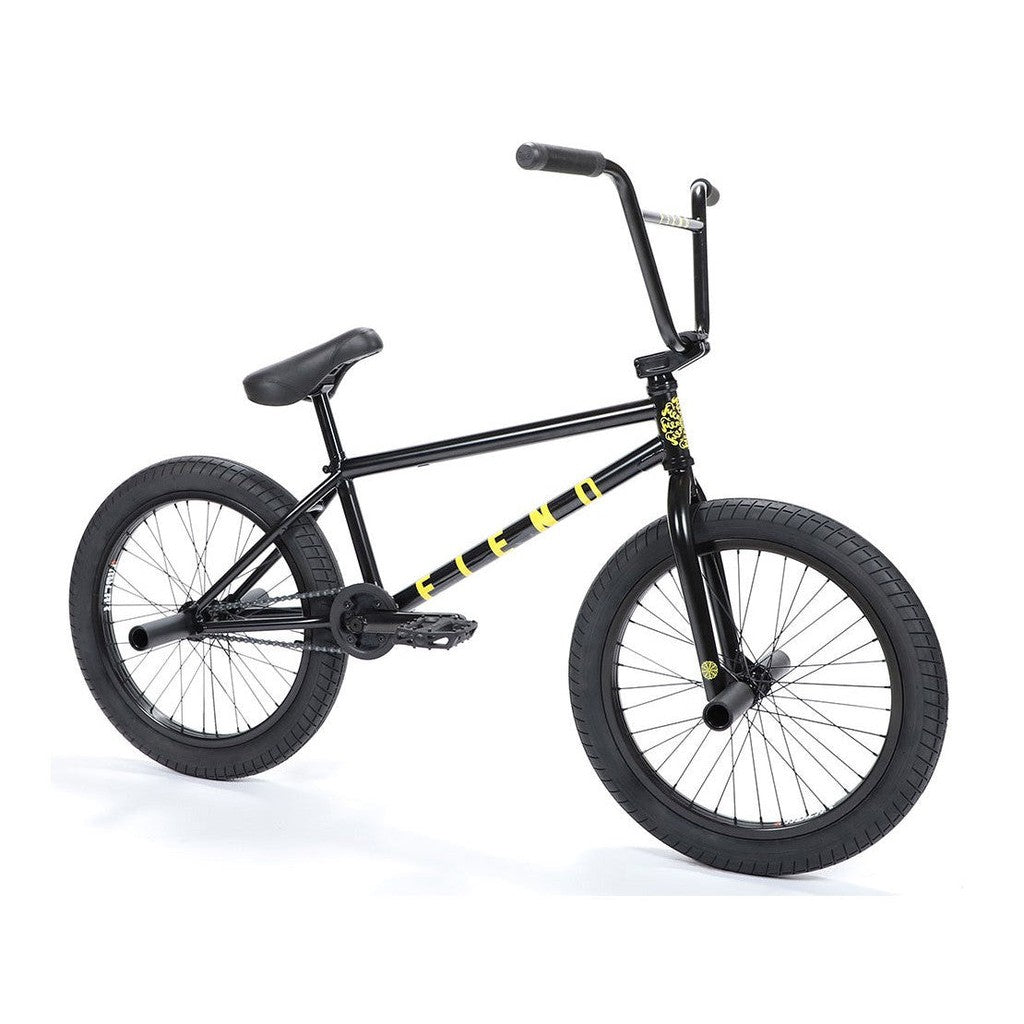

Fiend Type CV 20 Inch Bike / ED Black / 20.75TT

Description

What a beast! The Fiend Type CV 20 I is one rad looking complete that is jam packed full of epic parts! The Type CV takes it inspiration from the technical stylings of team rider Colin Varanyak's personal ride. The CV has a full chromoly replica Varanyak frame with removable brake mounts, a full chromoly 9” rise handlebar, full chromoly Type A fork with CNCed steerer tube and tapered legs, 3-piece chromoly cranks with a sealed Mid bottom bracket, Fiend Reynolds PC pedals, alloy 25t Varanyak after-market sprocket with nylon Havoc guard, a fully sealed 14mm rear freecoaster hub, a sealed female axle front hub, Mission Mylar rims, a Fiend Varanyak Pivotal seat, 2.4” street style tires 4 steel pegs with nylon sleeves and Fiend flangeless Team grips.

Features
  • Built from Varanyak's own setup. The CV takes its inspiration from the technical stylings of team rider Colin Varanyak's personal ride.
  • Replica Varanyak chromoly frame. Full chromoly with removable brake mounts, a 20.75" top tube and 13" chainstays.
  • Sprocket guard comes standard. The Fiend Reynolds 25T alloy sprocket runs a nylon Havoc guard to keep the teeth covered on grinds.
  • Freecoaster and female axle front. A Mission Deploy sealed freecoaster with 9T driver and a Brigade female axle front hub on Mylar 36H rims.
  • Frontload stem, 9.25" bars. A Fiend Matrix frontload stem, tall chromoly bars and four nylon sleeved pegs, 11.5 kg without brakes or pegs.

Specifications
  • Size: 20" wheels
  • Frame: Fiend Type CV replica, full chromoly, removable brake mounts
  • Top tube: 20.75"
  • Chainstay: 13"
  • Fork: Fiend Embryo, full chromoly, 1-piece CNC machined steerer tube, tapered legs
  • Stem: Fiend Matrix frontload
  • Bars: Fiend Embryo chromoly, 9.25" rise
  • Grips: Fiend flangeless Team
  • Cranks: Chromoly 3-piece, 165mm
  • Bottom bracket: Sealed Mid
  • Sprocket: Fiend Reynolds 25T alloy with nylon Havoc guard
  • Pedals: Mission nylon
  • Front hub: Mission Brigade sealed with female axle
  • Rear hub: Mission Deploy sealed 14mm freecoaster with 9T driver (RHD)
  • Rims: Mission Mylar 36H
  • Tyres: Innova 2.40" street
  • Seat: Fiend Varanyak Pivotal, 1-piece seat and post combo
  • Pegs: 4 steel pegs with nylon sleeves
  • Weight: 11.5 kg without brakes or pegs

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Fiend Type CV 20 Inch Bike

Brand: Fiend SKU:

From

$999.99 AUD

 $1,249.99 AUD

Or 4 payments of $249.99 AUD with

Recommended Rider Height:

168cm+

Colour - ED Black

Top Tube Length - 20.75

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
