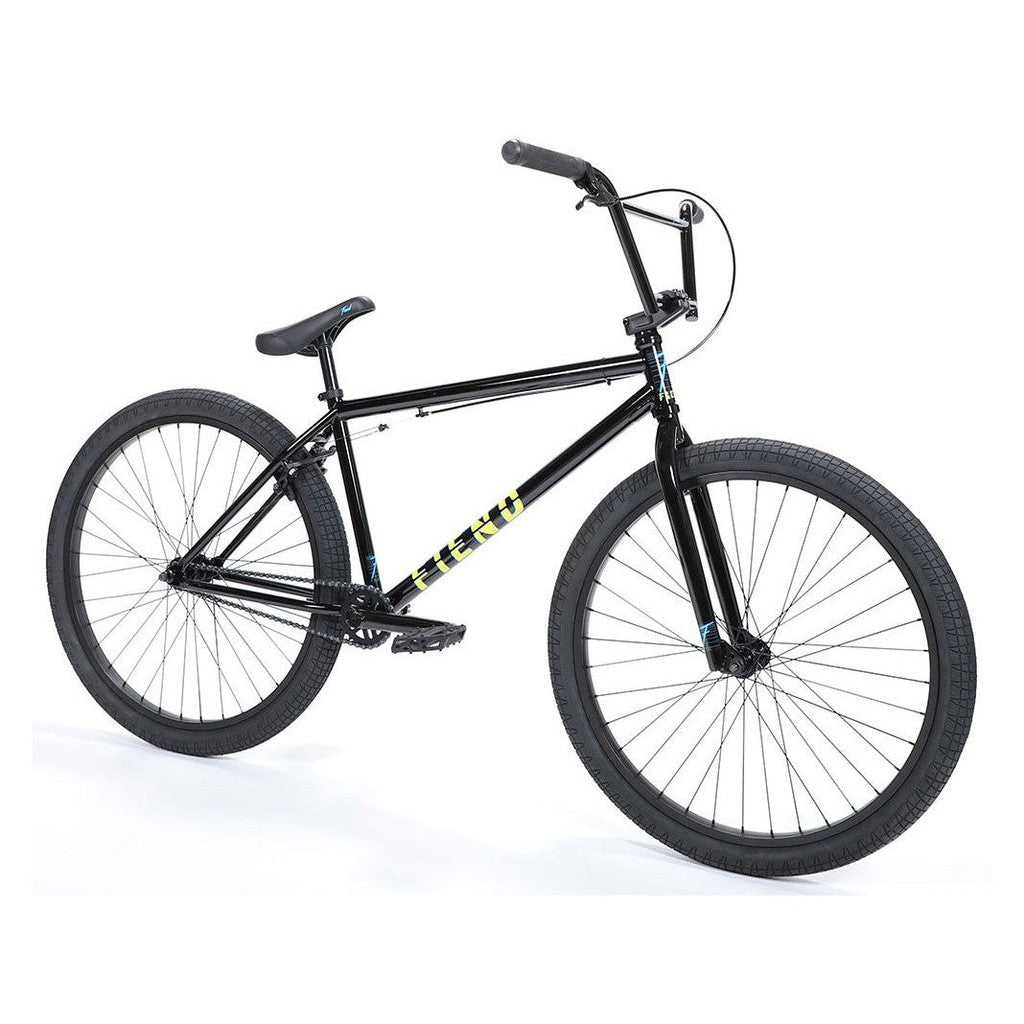

Fiend Type O 26 Inch Bike / Gloss Black / 22.75TT

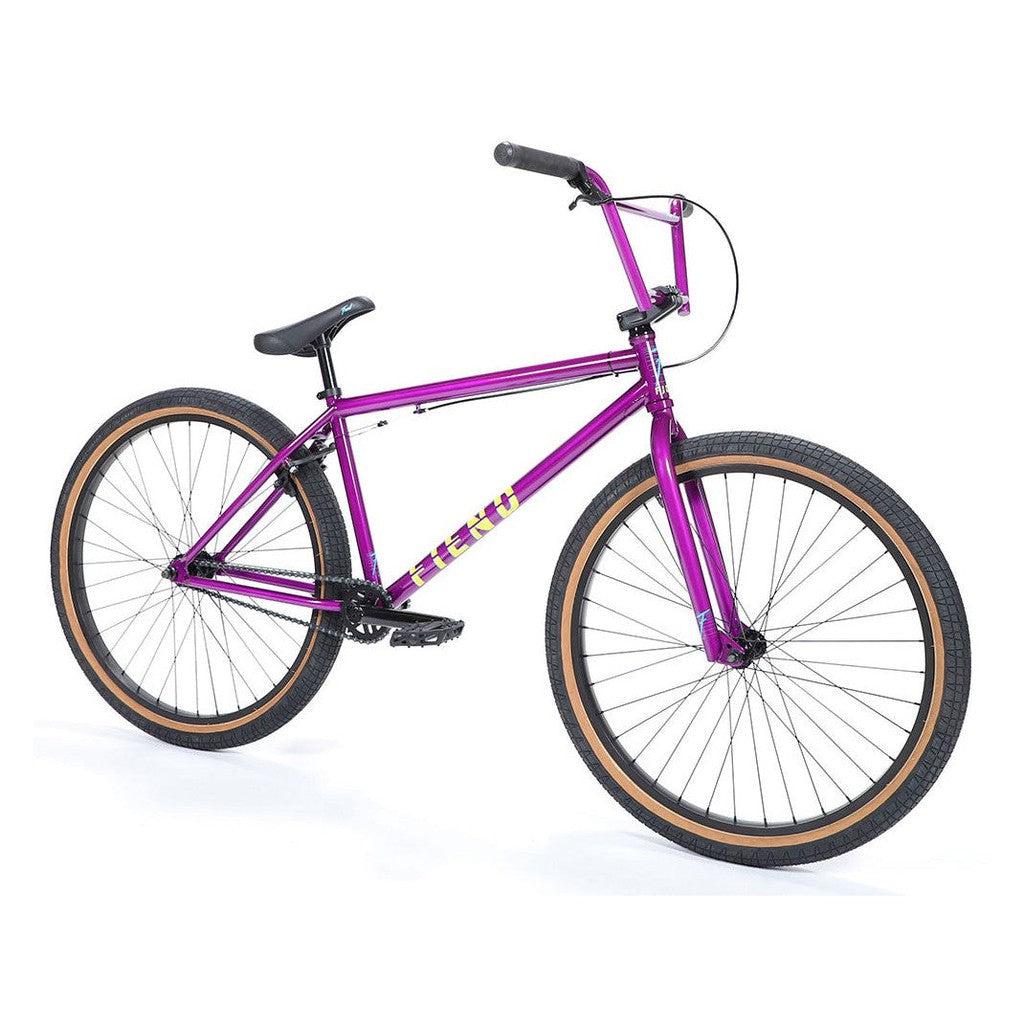

Fiend Type O 26 Inch Bike / Gloss Purple / 22.75TT

Highlights

  • Big wheels, same BMX feel
  • Chromoly frame tubes and fork
  • 175mm 3-piece chromoly cranks
  • 4-piece bars with 7" rise

Description

Get out there and have an absolute blast on this big rig from Fiend! The Fiend Type O 26 Inch Bike is all about comfort and fun whether it's a casual ride or ripping through the streets hopping curbs or riding on one wheel. The 26-inch frame has a chromoly top and down tube and features 4-piece 7 inch rise handlebar, Type 26 full chromoly fork with tapered legs, 3-piece chromoly cranks with a sealed Mid bottom bracket, Reynolds PC pedals, a 14mm rear cassette hub, Mission X7 rims, an embossed 1-piece Fiend seat/post combo, 2.2 inch tires and Fiend flangeless Team grips.

Features
  • Big wheels, same BMX feel. A 26" frame built to BMX proportions: casual cruising, curb hops and riding on one wheel all feel familiar.
  • Chromoly frame tubes and fork. Chromoly top and down tubes with a full chromoly tapered-leg fork keep the front end solid under a bigger rider.
  • 175mm 3-piece chromoly cranks. Longer arms and a sealed Mid bottom bracket give you leverage to get the big wheels moving.
  • 4-piece bars with 7" rise. A taller cockpit with flangeless Team grips and a Crown top load stem keeps longer rides comfortable.
  • Cassette hub and wide rims. Mission Combat 14mm cassette hub with a sealed 9T driver, Mission X7 rims and Innova 2.20" tyres, all up 14.5 kg.

Specifications
  • Size: 26" wheels
  • Frame: Fiend Type 26", chromoly top and down tubes
  • Top tube: 22.75"
  • Chainstay: 16.25"
  • Fork: Fiend Embryo 26", full chromoly, tapered legs
  • Stem: Fiend Crown top load
  • Bars: Fiend 4-piece, 7" rise
  • Grips: Fiend flangeless Team
  • Cranks: 175mm chromoly, 3-piece
  • Bottom bracket: Sealed Mid
  • Pedals: Mission nylon
  • Front hub: Mission Echo, unsealed
  • Rear hub: Mission Combat cassette, 14mm, sealed 9T driver (RHD)
  • Rims: Mission X7
  • Tyres: Innova 2.20"
  • Seat: Fiend 1-piece seat and post combo, embossed
  • Weight: 14.5 kg
  • Note: Specs subject to change without notice.

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Fiend Type O 26 Inch Bike

Brand: Fiend SKU:

From

$699.99 AUD

 $859.99 AUD

Or 4 payments of $174.99 AUD with

Recommended Rider Height:

175cm+

Colour - Gloss Black

Top Tube Length - 22.75

26 inch BMX sizing

A 26 inch is the largest BMX wheel, for riders about 160cm and up, on a 22 to 23 inch top tube. It is a ride feel rather than a size step: more roll and stability, still BMX geometry.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. A big wheel rides longer than its top tube number suggests, so do not compare it straight against a 20 inch.

How to measure

Stand against a wall in the shoes you ride in, heels flat, and mark the top of your head. Measure from the floor to the mark.

  • Choose a big wheel for the ride feel, not because you are tall. Plenty of tall riders stay on 20 inch.
  • Coming off a 20 inch? Expect it to feel longer and more stable, and slower to spin.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

26 inch BMX sizing

A 26 inch is the largest BMX wheel, for riders about 160cm and up, on a 22 to 23 inch top tube. It is a ride feel rather than a size step: more roll and stability, still BMX geometry.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. A big wheel rides longer than its top tube number suggests, so do not compare it straight against a 20 inch.

How to measure

Stand against a wall in the shoes you ride in, heels flat, and mark the top of your head. Measure from the floor to the mark.

  • Choose a big wheel for the ride feel, not because you are tall. Plenty of tall riders stay on 20 inch.
  • Coming off a 20 inch? Expect it to feel longer and more stable, and slower to spin.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide
