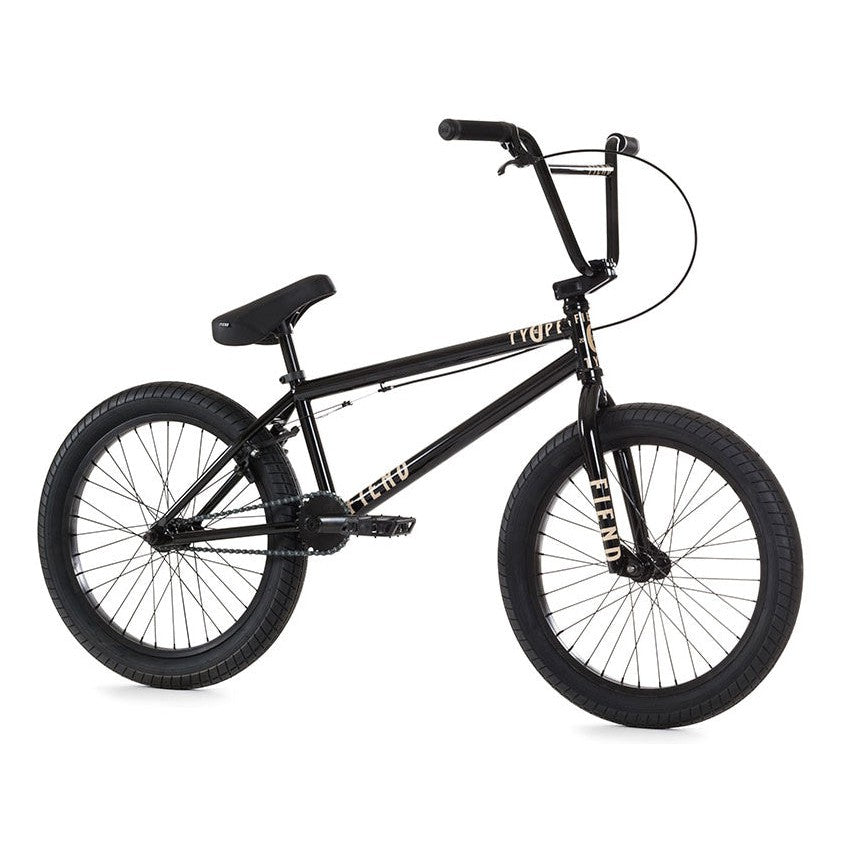

Fiend Type O XL Bike (2020) / Gloss Black

Description

The Type O XL features a 21" Top top for the taller rider and is packed full of great features that will help you to ride just like your favourite Fiend Pros! The bike is built from a mixture of Chromoly for strength and Hi-Tensile Steel to keep the weight down. The rear end of the bike is a very short and responsive at 12.75" so getting up into to manuals will be super easy. The 75 Degree Headtube paired with a 26mm offset fork is also incredibly responsive and getting into nose manuals will be a lot easier too! Three Piece cranks have been added for strength/durability and at 165mm in length, they are perfect for those wanting to run a heavily street orientated setup.

For the 2020 models Fiend has chosen to partner up with Mission Components to really deck out their bikes with the goods! Standout parts include the Mission Cease Braking System for improved braking, front and rear Mission X7 rims and Mission hubs for added performance.

Features

21" top tube for taller riders. Room to move for bigger riders, with chromoly where strength matters and hi-ten steel elsewhere to keep the weight down.
Short 12.75" rear end. A short, responsive back end that makes getting up into manuals easy.
75° head angle, 26mm offset fork. A responsive front end that makes finding nose manuals a lot easier.
165mm three-piece chromoly cranks. Built for strength and durability at a length that suits a heavily street orientated setup.
Decked out with Mission parts. Mission Cease brakes with a Token lever, Mission X7 rims front and rear and Mission hubs on a sealed 9T cassette.

Specifications

Size: 20" wheels
Frame: Fiend Type O, hi-ten steel with chromoly top and down tubes
Top tube: 21"
Chainstay: 12.75"
Head tube angle: 75°
Seat tube angle: 71°
Standover: 9"
Bottom bracket height: 11.625"
Fork: Fiend Type O, chromoly steerer, tapered hi-ten legs, 26mm offset
Headset: Sealed integrated
Stem: Fiend Crown top load, 50mm
Bars: Embryo Type O hi-ten steel, 9" rise
Grips: Fiend Team flangeless
Brakes: Mission Cease
Brake lever: Mission Token
Cranks: 165mm chromoly, 3-piece
Bottom bracket: Sealed Mid, 19mm
Chainring: Fiend steel 25T
Chain: Mission 410
Pedals: Nylon with chromoly spindles
Front hub: Mission Echo loose ball, 3/8" axle
Rear hub: Mission Siege sealed bearing cassette, 14mm axle, sealed 9T RHD driver
Rims: Mission X7 front and rear
Tyres: Innova Street 2.40"
Seat: Fiend 1-piece combo
Seat post: Steel, 25.4mm, 150mm
Seat clamp: Alloy single bolt
Pegs: Not included
Colour: Gloss Black

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

Fit the handlebars and line them up with the front wheel
Fit the front wheel, pedals and seat post
Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Fiend Type O XL Bike (2020)

Name: Fiend Type O XL Bike (2020)
Brand: Fiend
SKU: kabx2350
Price: 699.99 AUD
Availability: OutOfStock

Brand: Fiend SKU: Click to copy the SKU and show the pick location

$699.99 AUD

Or 4 payments of $174.99 AUD with

Recommended Rider Height:

175cm+

Colour - Gloss Black

Top Tube Length - 21

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider height	Wheel size	Top tube
60 to 91cm	12"	12 to 12.5"
81 to 106cm	14"	14 to 14.5"
96 to 122cm	16"	16 to 16.5"
122 to 147cm	18"	18 to 18.5"
147 to 157cm	20"	19.75 to 20.25"
157 to 168cm	20"	20 to 20.5"
168 to 175cm	20"	20.25 to 20.75"
175 to 183cm	20"	20.5 to 21"
183 to 190cm and up	20"	20.75 to 21.5"
160cm and up	22"	21 to 22.25"
160cm and up	24"	21.75 to 22"
160cm and up	26"	22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.
