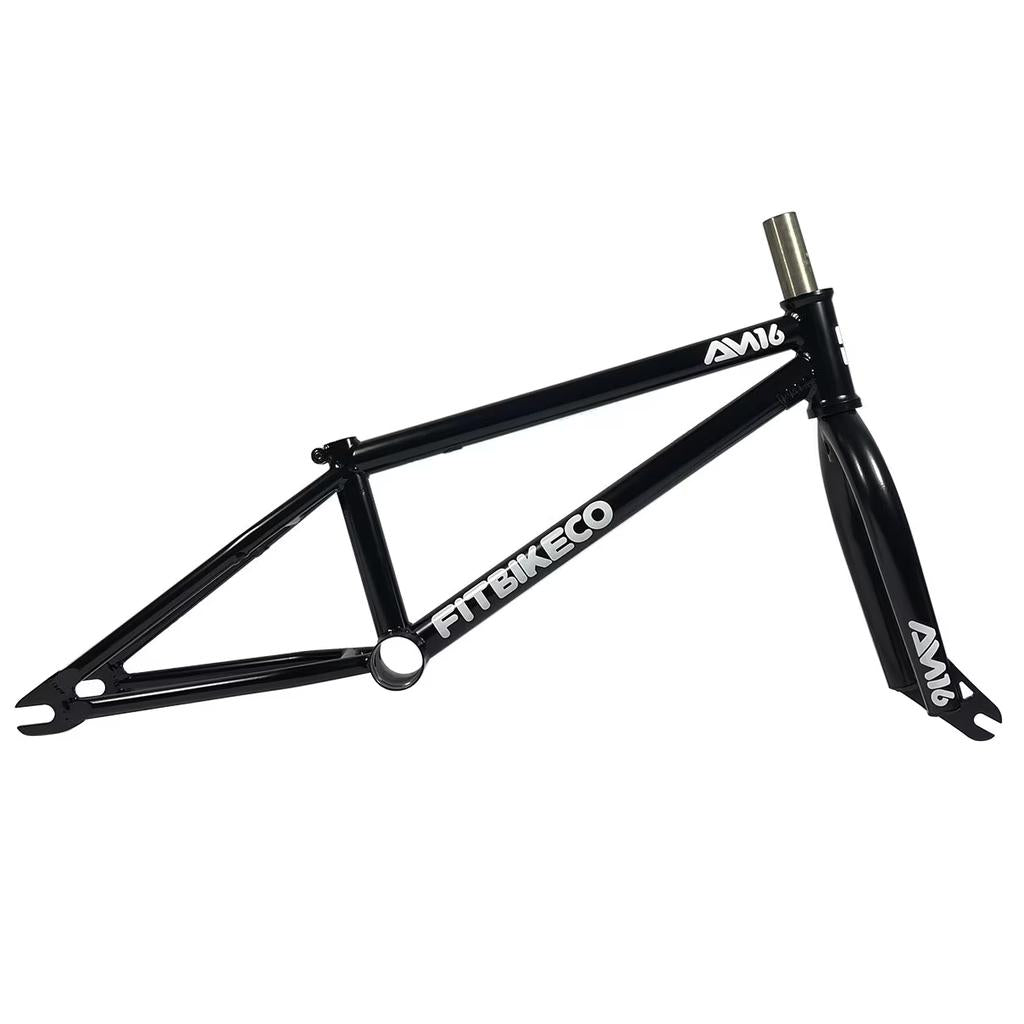

The Fit Bike Co AM 16 Frame & Fork Kit, emblazoned with "FITBIKECO" and "AW16," is designed in sleek black for young adventurers seeking high-end durability.

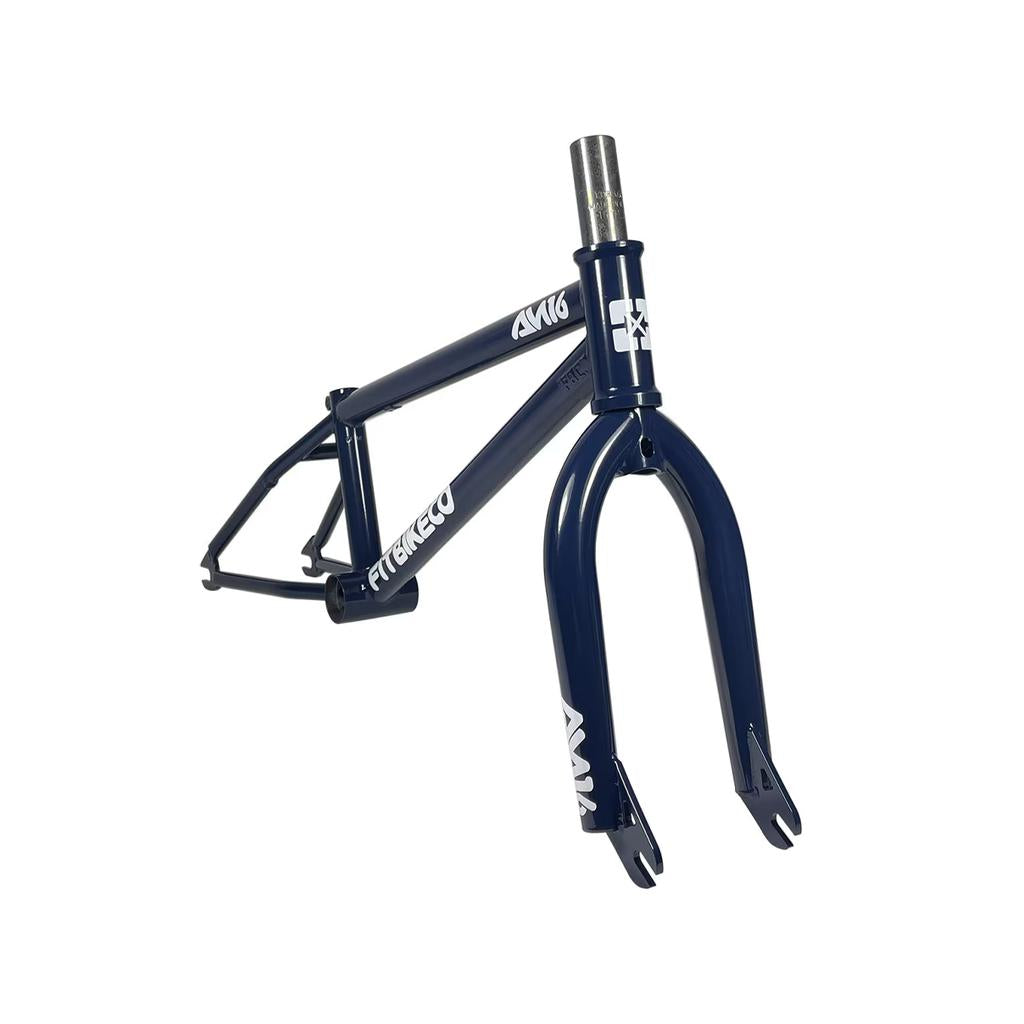

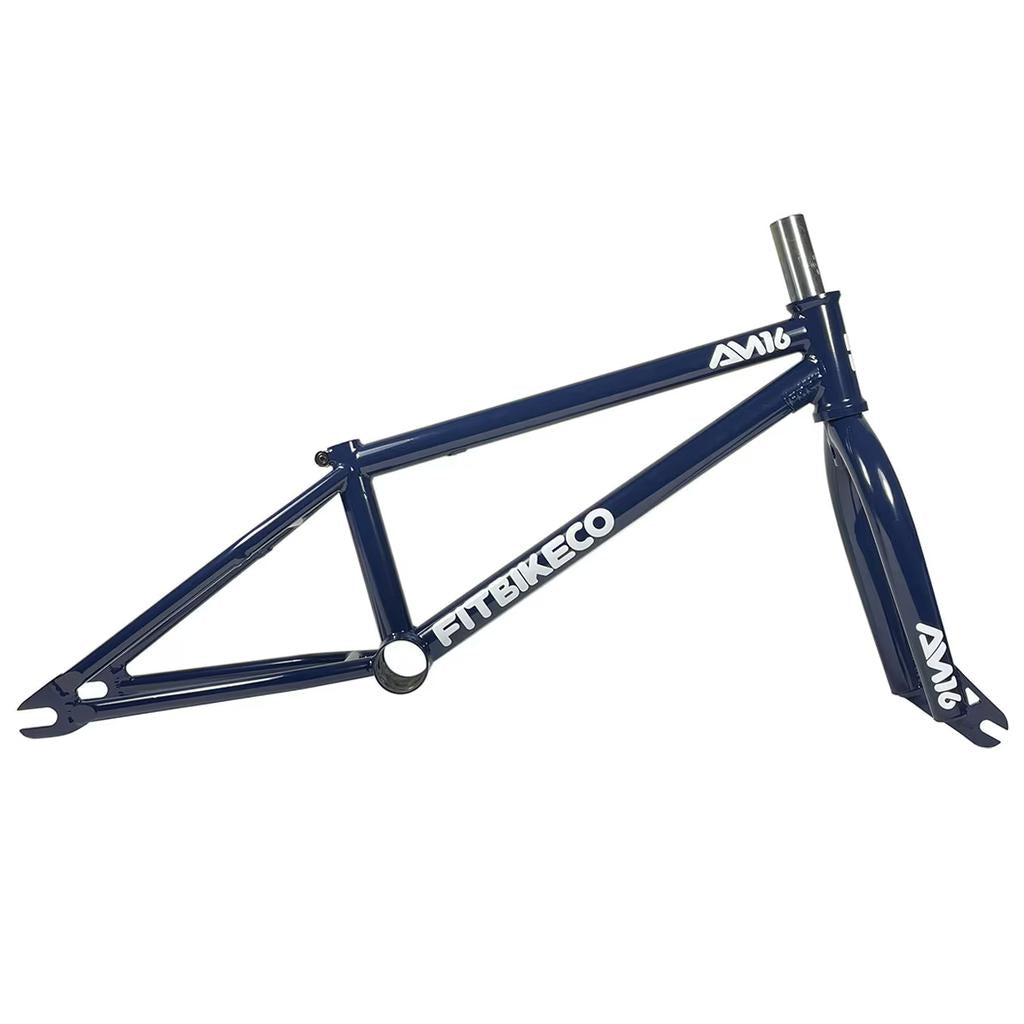

The Fit Bike Co AM 16 Frame & Fork Kit features a blue BMX frame with an integrated front fork and showcases "FIT BIKE CO" and "Fit AM 16" in white lettering, ideal for young riders eager to hit the streets.

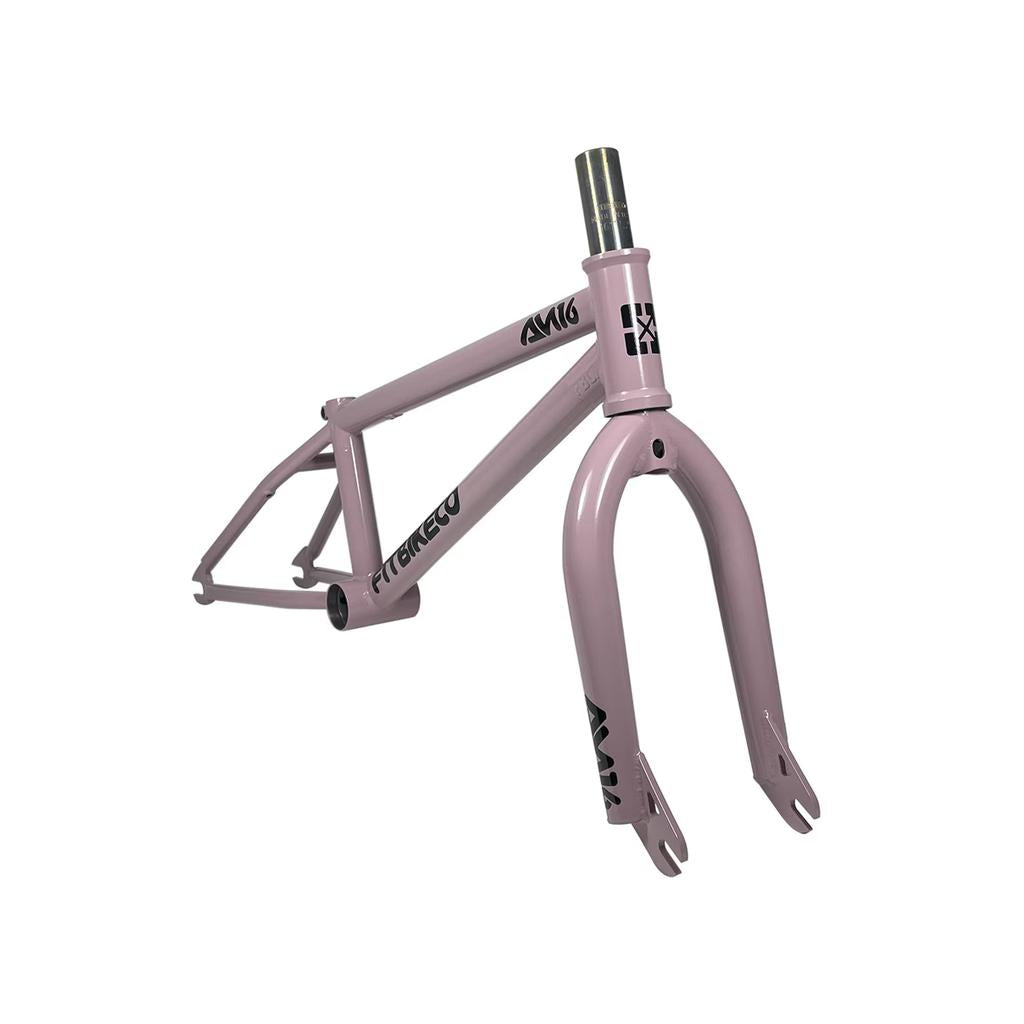

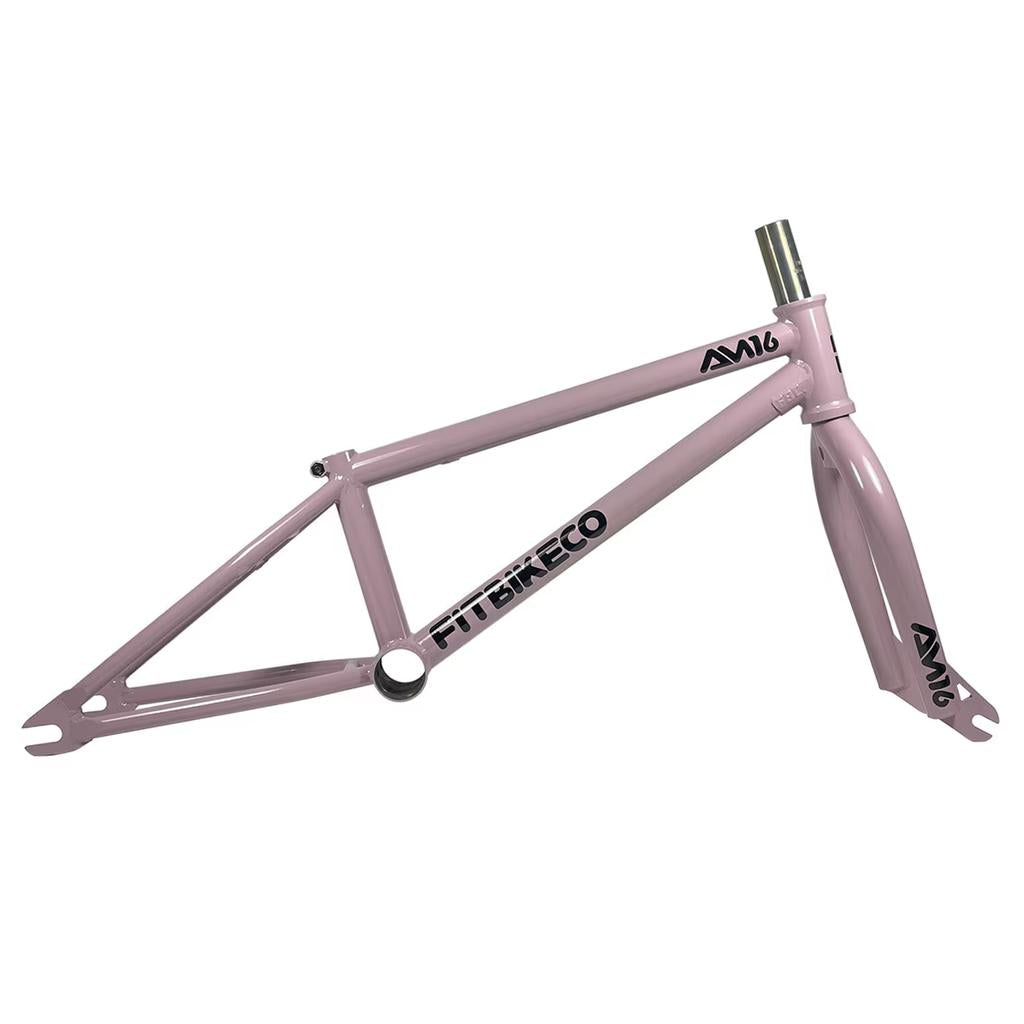

The Fit Bike Co AM 16 Frame & Fork Kit is a pink BMX setup for young riders, showcasing "FITBIKECO" and "A-V6" logos as part of the vibrant Fit AM 16 series.

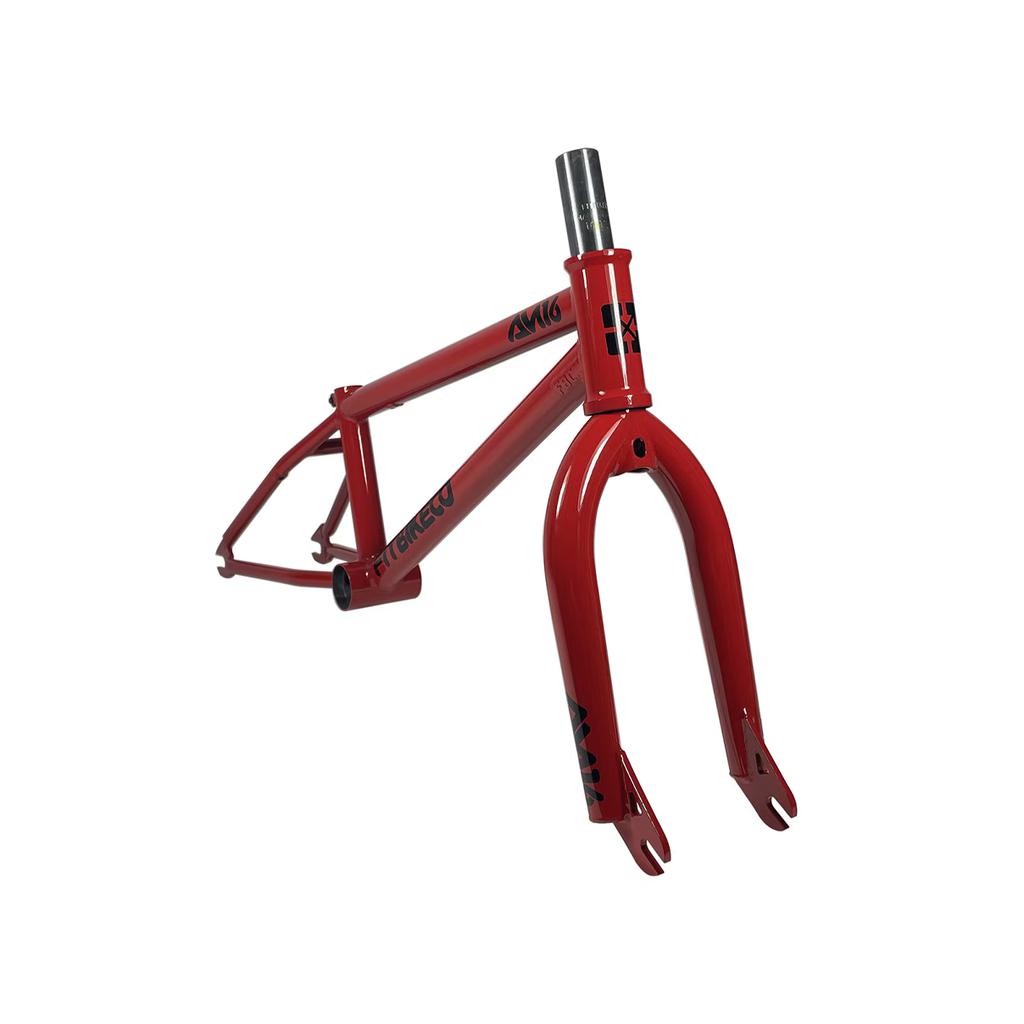

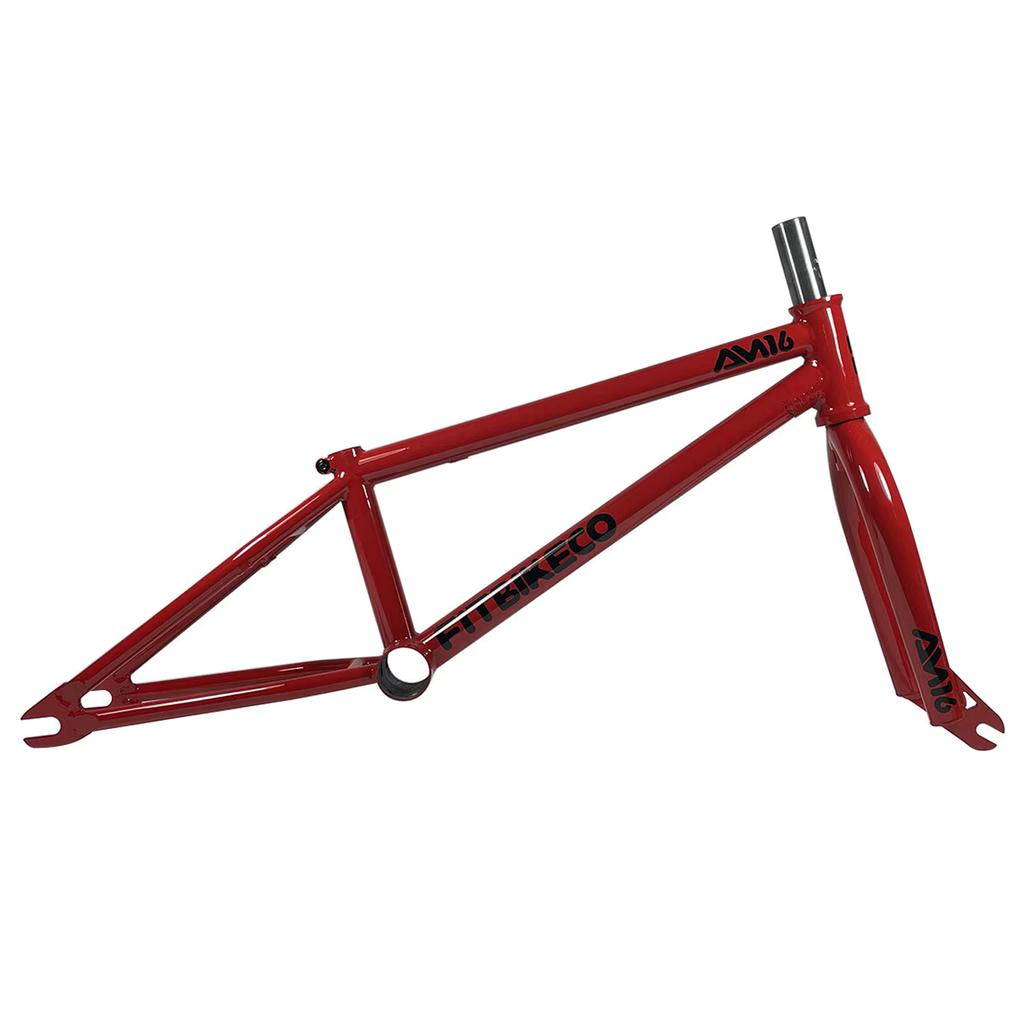

The Fit Bike Co AM 16 Frame & Fork Kit for young shredders comes with sleek black decals set on a striking red background.
The Fit Bike Co AM 16 Frame & Fork Kit in black, featuring white branding decals, is ideal for young shredders. Set against a white background, it's designed to elevate your skills.
The Fit Bike Co AM 16 Frame & Fork Kit features dark blue decals for young shredders seeking a high-end look.
Check out the Fit Bike Co AM 16 Frame & Fork Kit in vibrant pink, ideal for young shredders. It features sleek branding text on the frame, ready for hitting the ramps.
The Fit Bike Co AM 16 Frame & Fork Kit in red stands out against the white background, ideal for young riders eager to make their mark.

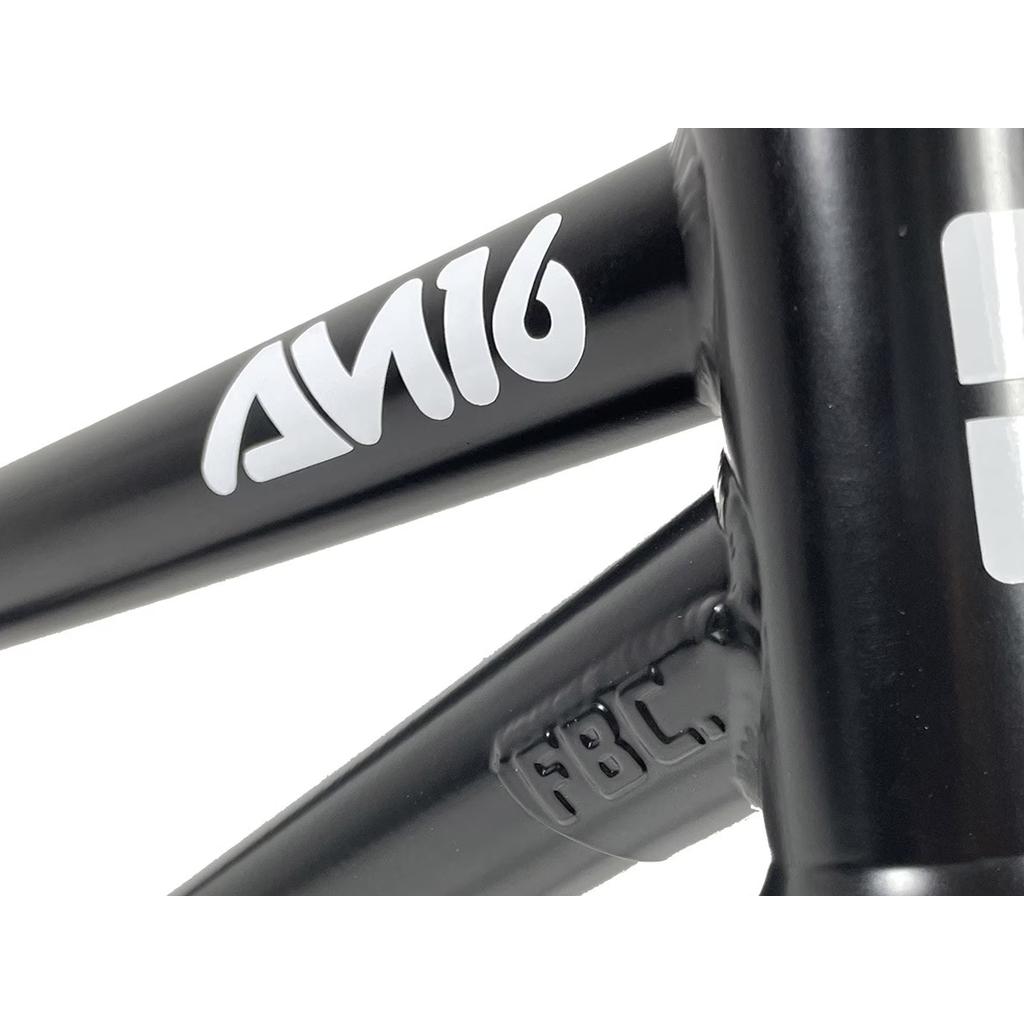

Close-up of the Fit Bike Co AM 16 Frame & Fork Kit with black frame/fork, featuring white "Fit AM 16" text and engraved "FBC" marking, ideal for young shredders.

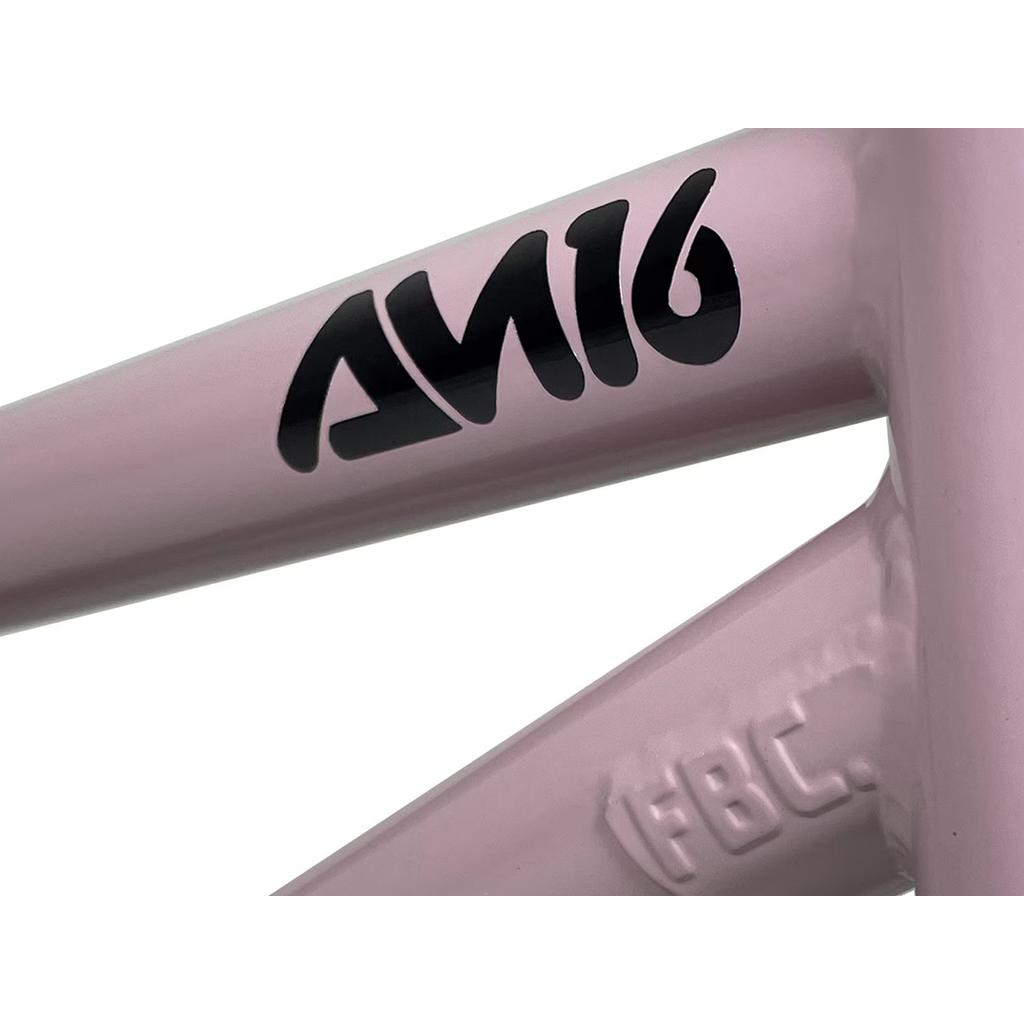

Close-up of a pink Fit Bike Co AM 16 Frame & Fork Kit with black "AN16" text and embossed "FBC" initials, ideal for young shredders.

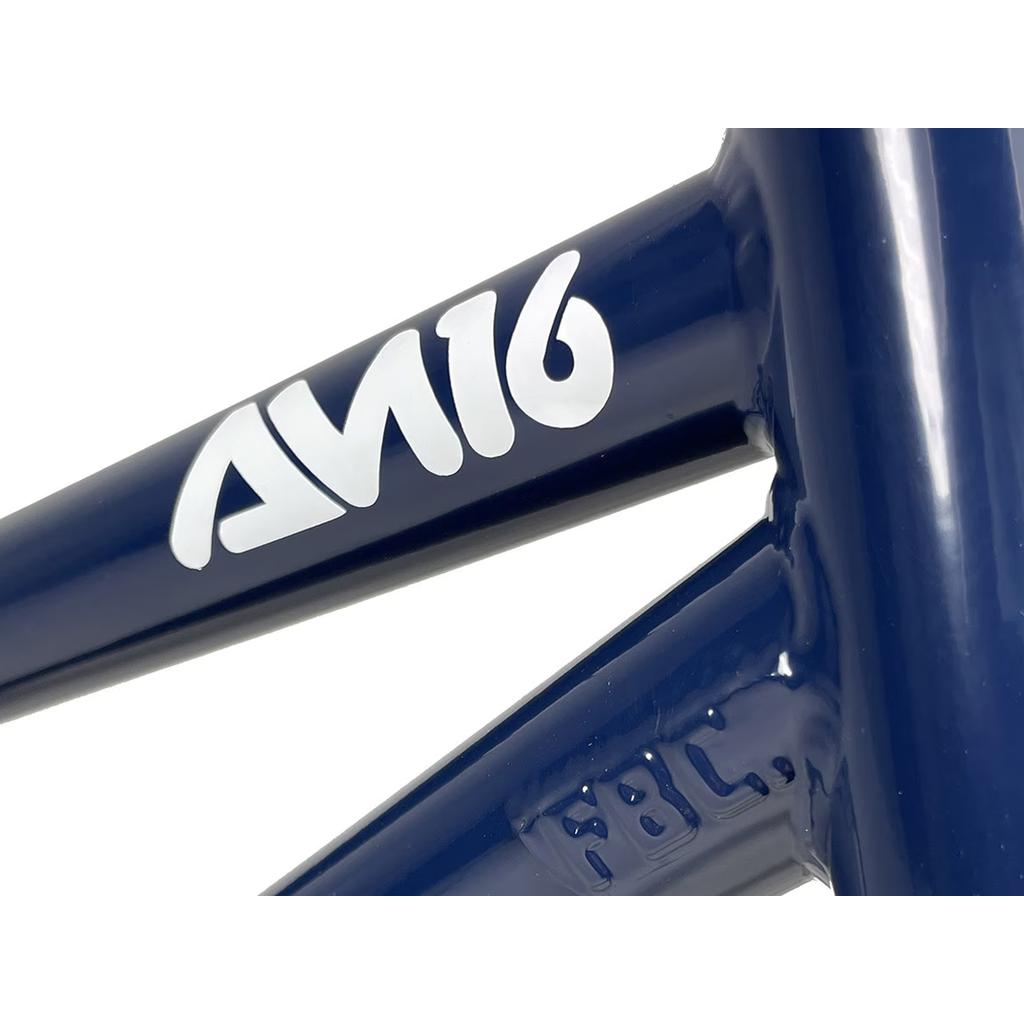

The Fit Bike Co AM 16 Frame & Fork Kit features a close-up of a blue metallic bicycle frame with a white "AW16" logo, ideal for young shredders.

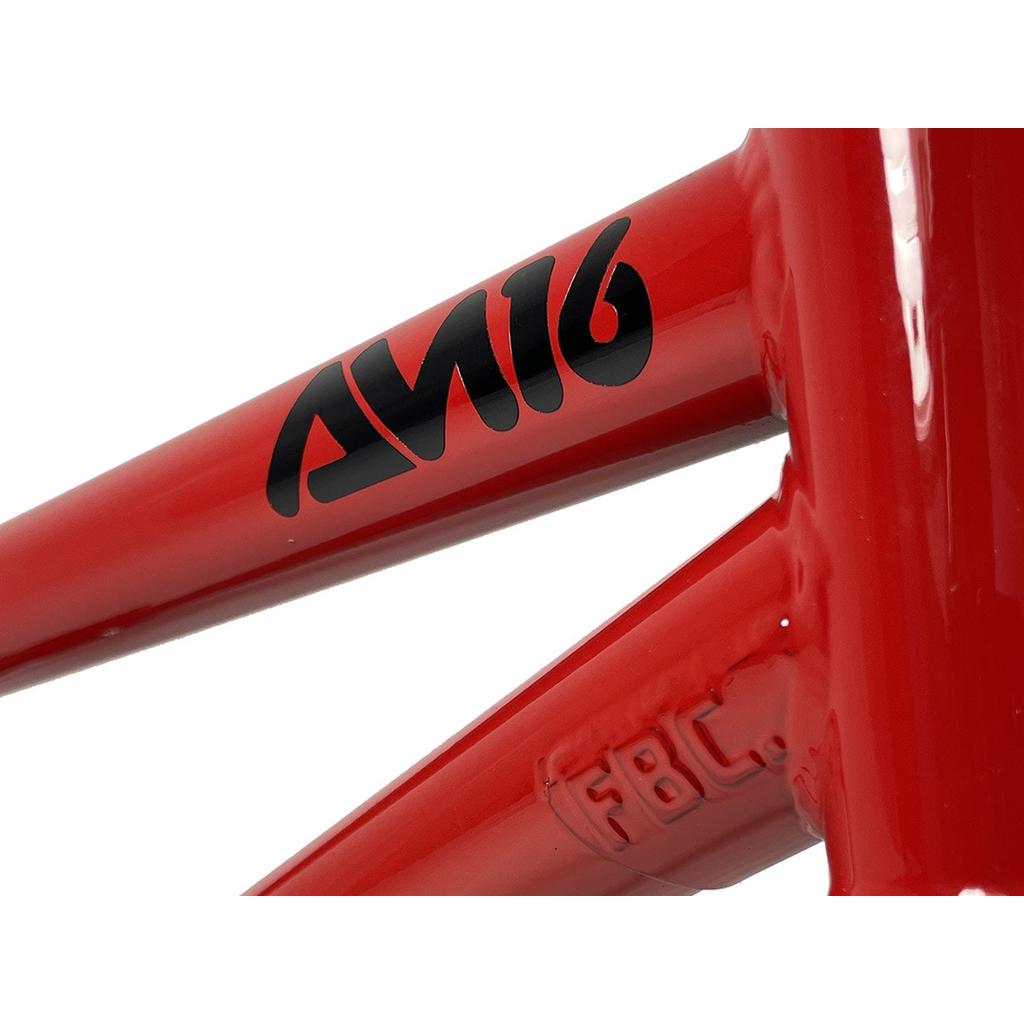

Close-up of a red Fit Bike Co AM 16 Frame & Fork Kit with sleek black "AM16" text and "FBC" near the joint, exuding a high-end feel. Ideal for young shredders seeking style and performance.

Description

The AM 16 is Fit's frame and fork kit for young shredders who want that high end feel and durability. A 16.25" top tube with a 10.65" rear end, 6.5" standover height and 10.75" bottom bracket height keeps everything within reach of a smaller rider.

Geometry is a 74.5° head tube angle and a 71° seat tube angle, with a 4" integrated head tube (45°/45°, 41.8mm), a mid bottom bracket and an integrated seat clamp taking a 25.4mm post. Dropouts are 14mm with no gyro tabs, brake mounts are thread-on and sold separately, and the tubeset is Vari Wall Thermal-X.

Features
  • Frame and fork kit. The AM 16 pairs a matched frame and fork, so a young rider gets a high end feel without piecing it together.
  • 16.25" top tube. A 10.65" rear end and 6.5" standover height keep the bike small enough for a younger rider to throw around.
  • Vari Wall Thermal-X tubeset. Fit's tubeset puts the material where it is needed, aimed at the durability of a high end frame rather than a stock kids one.
  • 14mm dropouts, no gyro tabs. A 14mm rear end with thread-on brake mounts sold separately, so it can be run clean and brakeless.
  • 4" integrated head tube. A 45°/45° 41.8mm integrated head tube, mid bottom bracket and integrated seat clamp for a 25.4mm post: all current standards.

Specifications
  • Sizes: 16.25" top tube
  • Chainstay: 10.65"
  • Head tube angle: 74.5°
  • Seat tube angle: 71°
  • Standover: 6.5"
  • Bottom bracket height: 10.75"
  • Bottom bracket: Mid
  • Tubing: Vari Wall Thermal-X
  • Dropouts: 14mm
  • Brake mounts: Thread-on, sold separately
  • Head tube: 4" integrated, 45°/45°, 41.8mm
  • Seat tube: 25.4mm seat post
  • Seat clamp: Integrated
  • Wheel size: 16"
  • Note: No gyro tabs. Weight TBA

Fit Bike Co AM 16 Frame & Fork Kit

Brand: Fit Bike Co SKU:

$1,499.99 AUD

Or 4 payments of $374.99 AUD with

Colour - Black

Top Tube Length - 16.25

20 inch BMX frame sizing

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider heightTop tube
147 to 157cm19.75 to 20.25"
157 to 168cm20 to 20.5"
168 to 175cm20.25 to 20.75"
175 to 183cm20.5 to 21"
183 to 190cm and up20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

  • Size up for stability through trails and transitions.
  • Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide

20 inch BMX frame sizing

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider heightTop tube
147 to 157cm19.75 to 20.25"
157 to 168cm20 to 20.5"
168 to 175cm20.25 to 20.75"
175 to 183cm20.5 to 21"
183 to 190cm and up20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

  • Size up for stability through trails and transitions.
  • Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide
