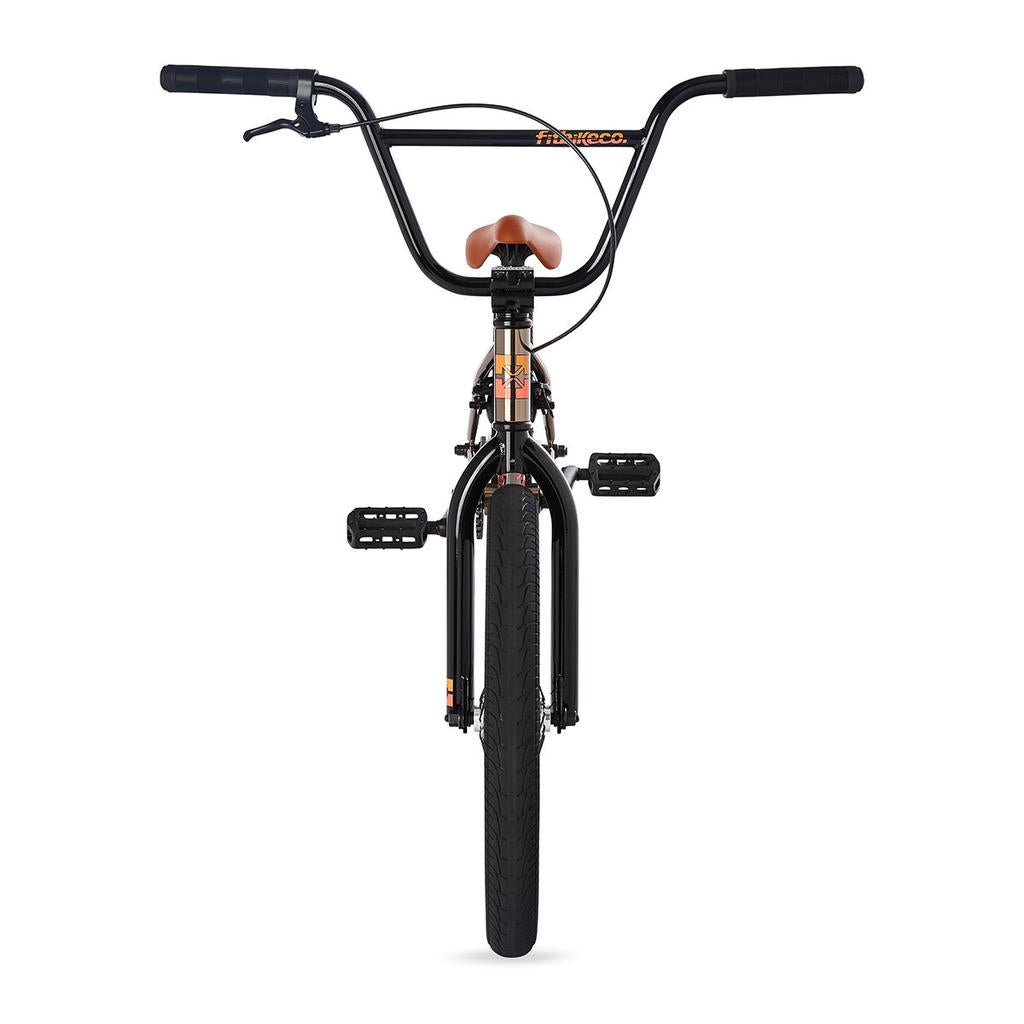

A front view of the Fit Series One 20 Inch Bike (2023), an entry-level black BMX with a brown seat, black handlebars, and black pedals, set against a white background.

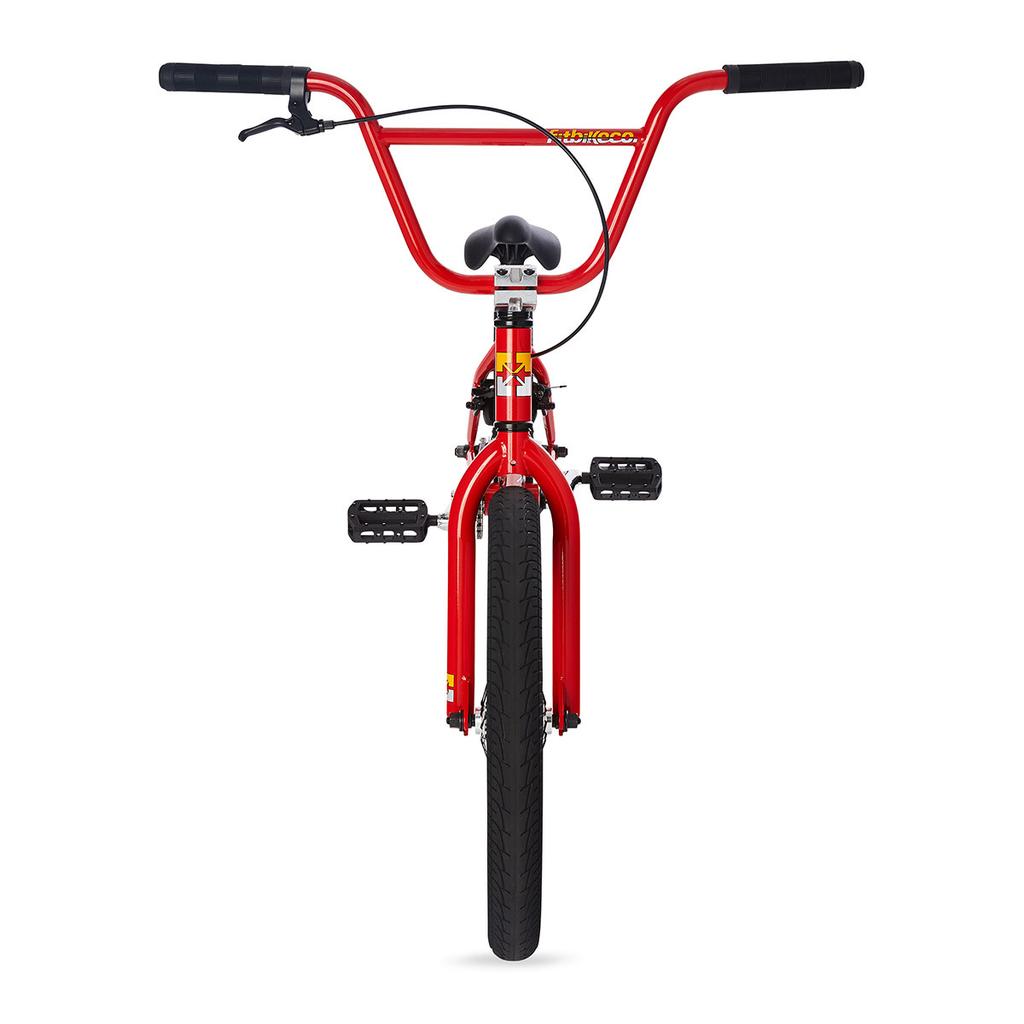

Front view of the Fit Series One 20 Inch Bike (2023) in red, showing handlebars, a black seat, pedals, and the front tire against a white background.

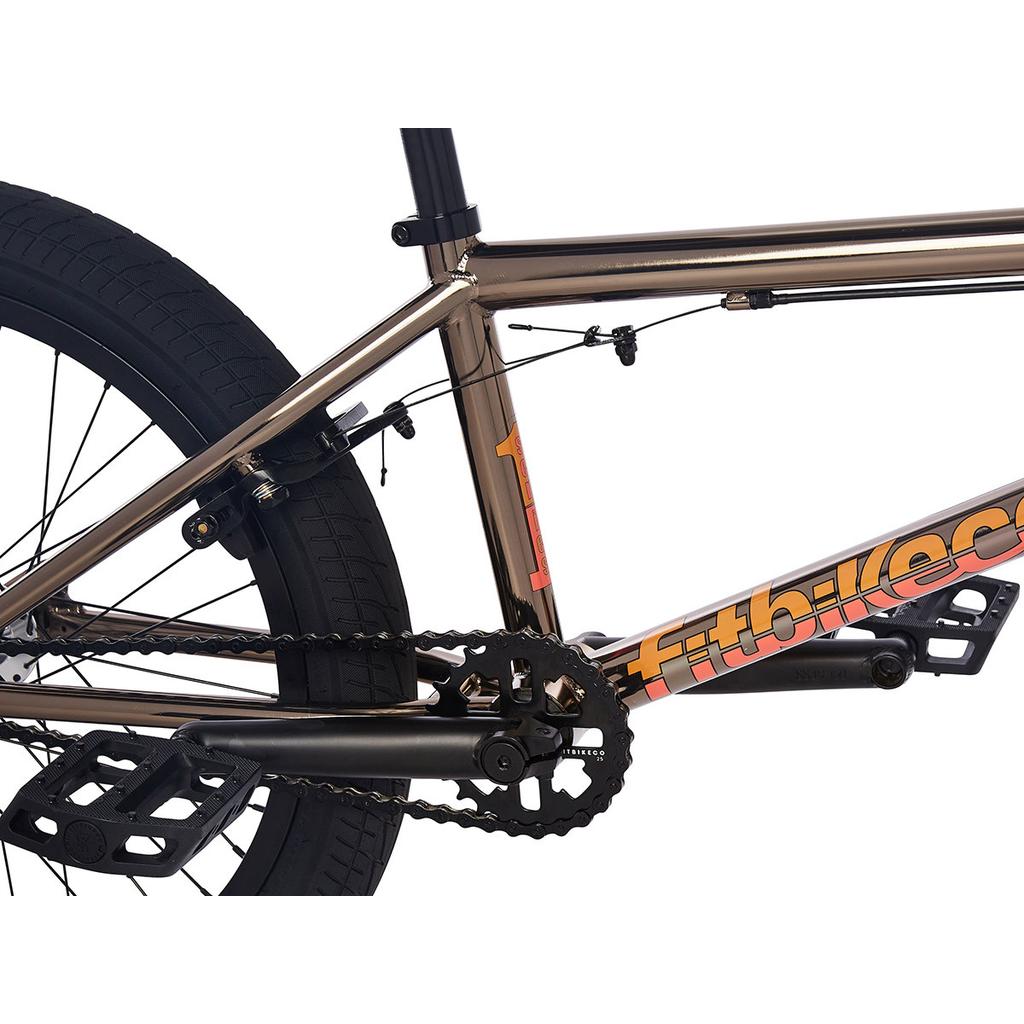

Close-up of a Fit Series One 20 Inch Bike (2023) frame highlighting the chain, crankset, pedals, rear tire, brake cable, and partial "Fitbikeco" logo.

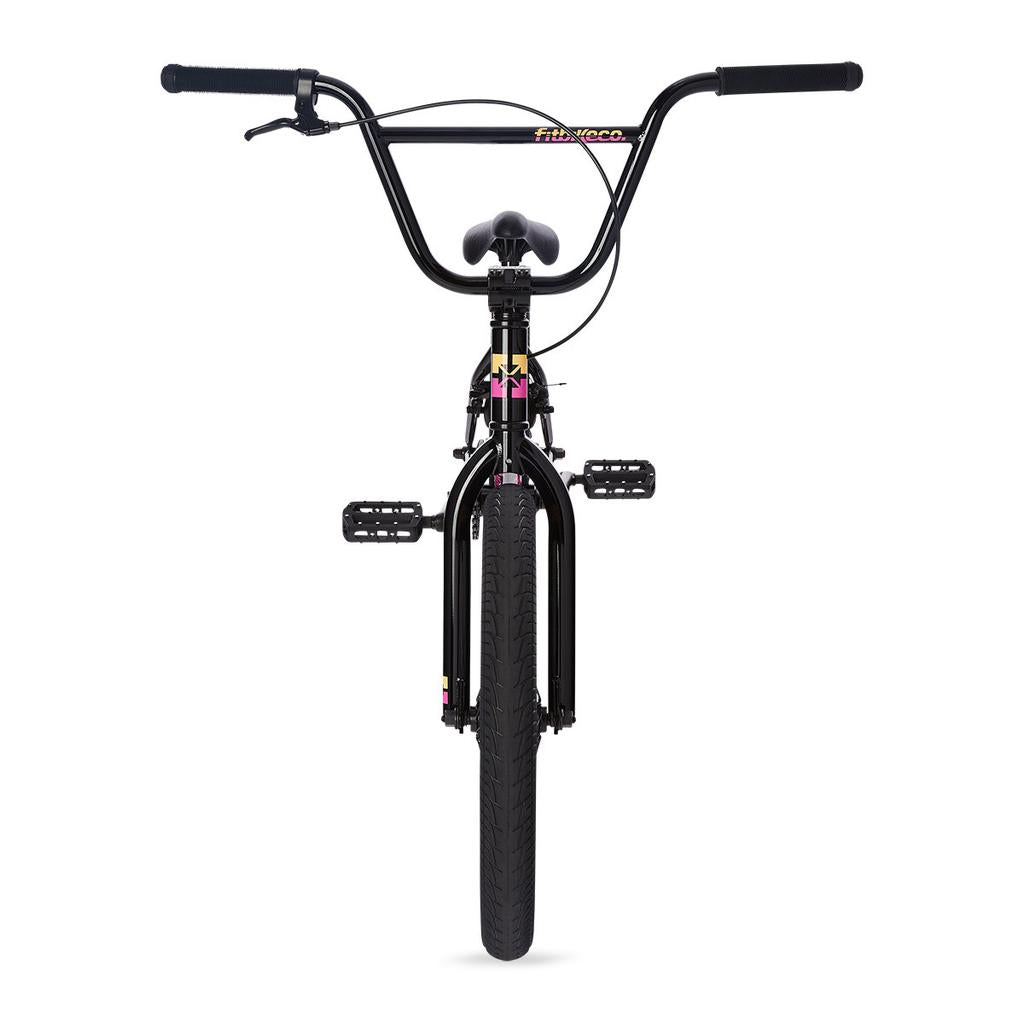

Front view of the Fit Series One 20 Inch Bike (2023), an entry-level BMX with wide handlebars, thick front tire, and flat pedals, displayed against a white background.

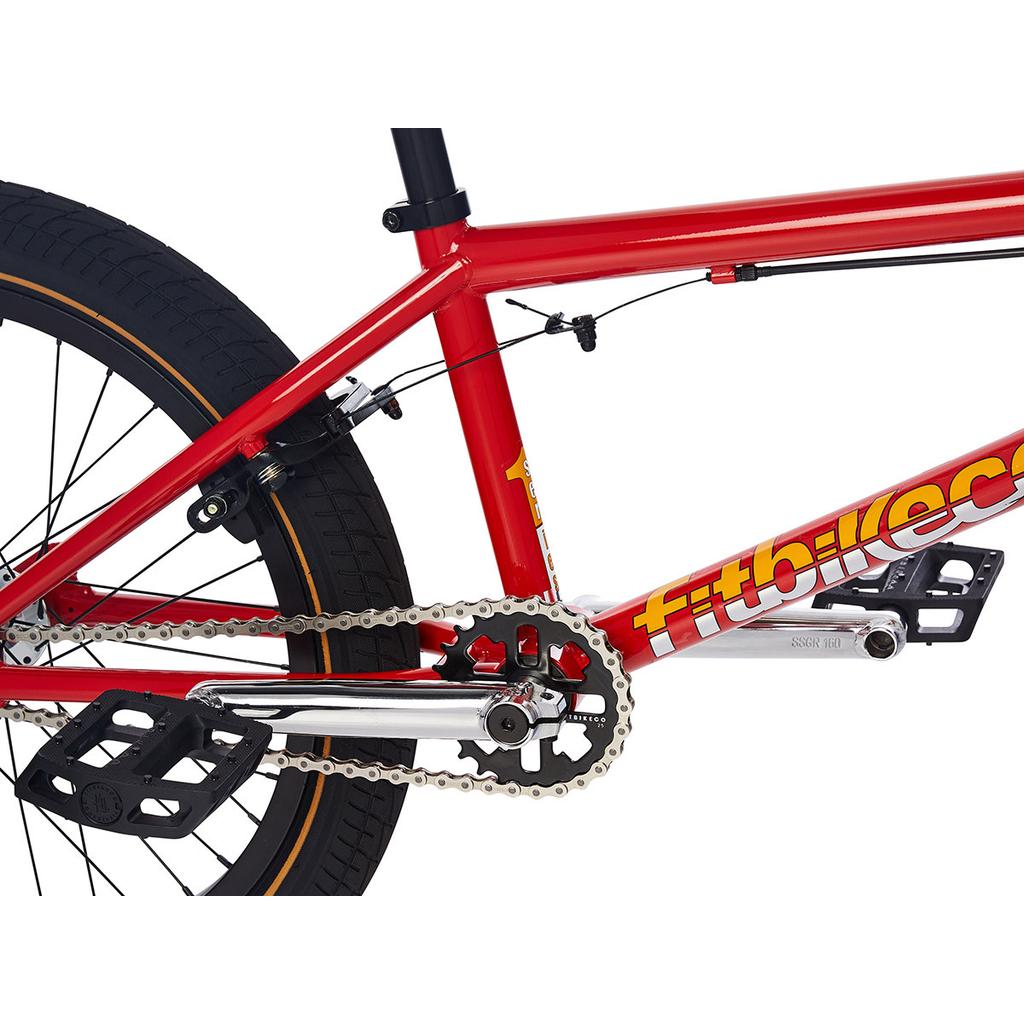

Close-up of the Fit Series One 20 Inch Bike (2023) in red, highlighting its entry-level BMX frame with chain, pedals, crankset, rear brake, and rear wheel featuring visible tire tread and branding.

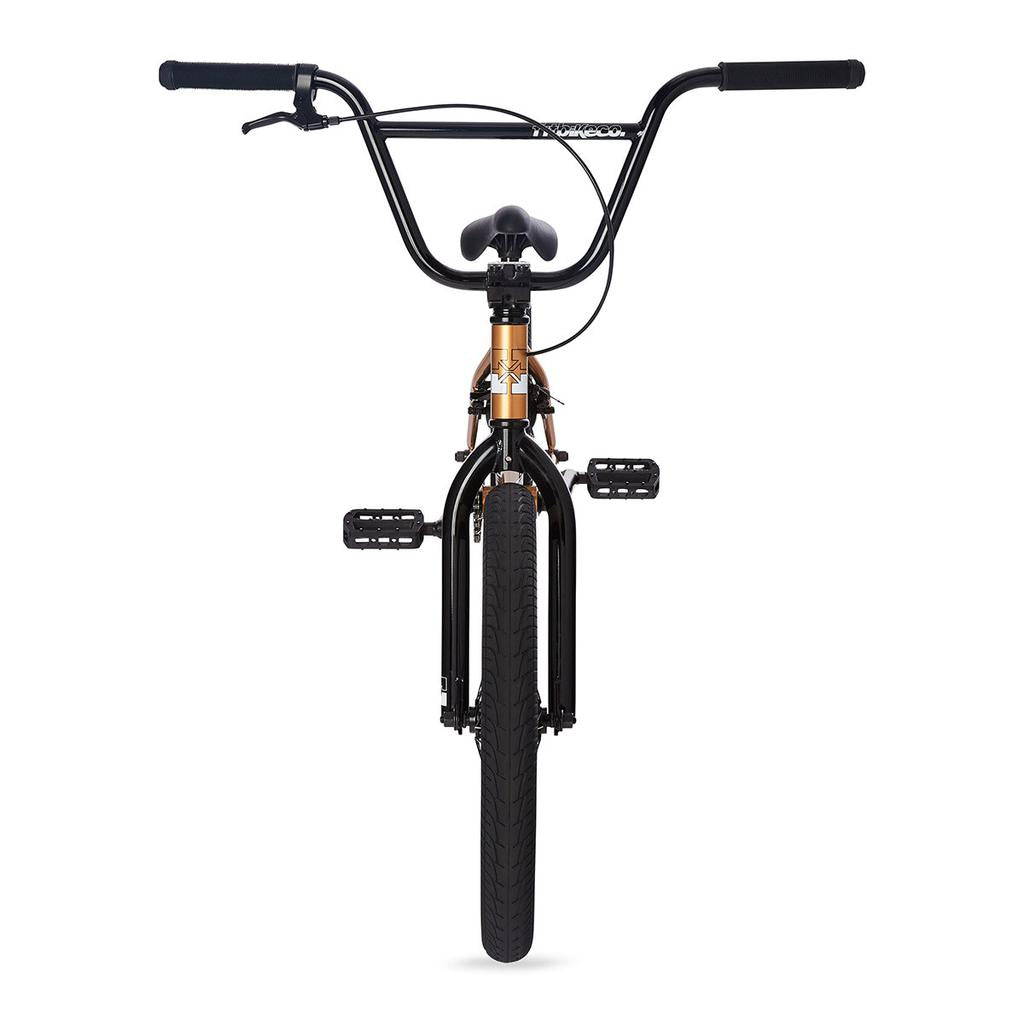

Front view of the Fit Series One 20 Inch Bike (2023), featuring black handlebars, black pedals, a brown frame, and a single front tire against a white background.

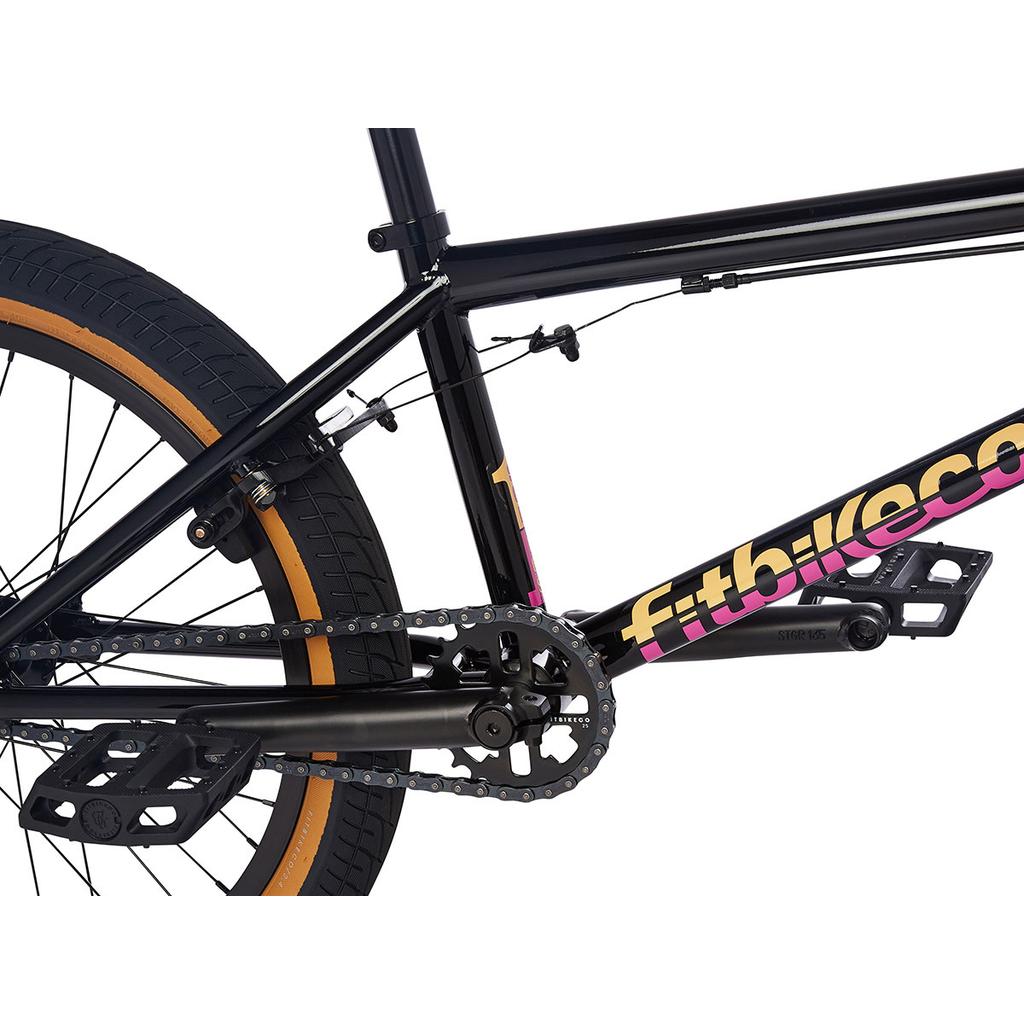

Close-up of the Fit Series One 20 Inch Bike (2023), entry-level BMX in black, featuring the chain, pedals, rear tire, and "fitbikeco." branding.

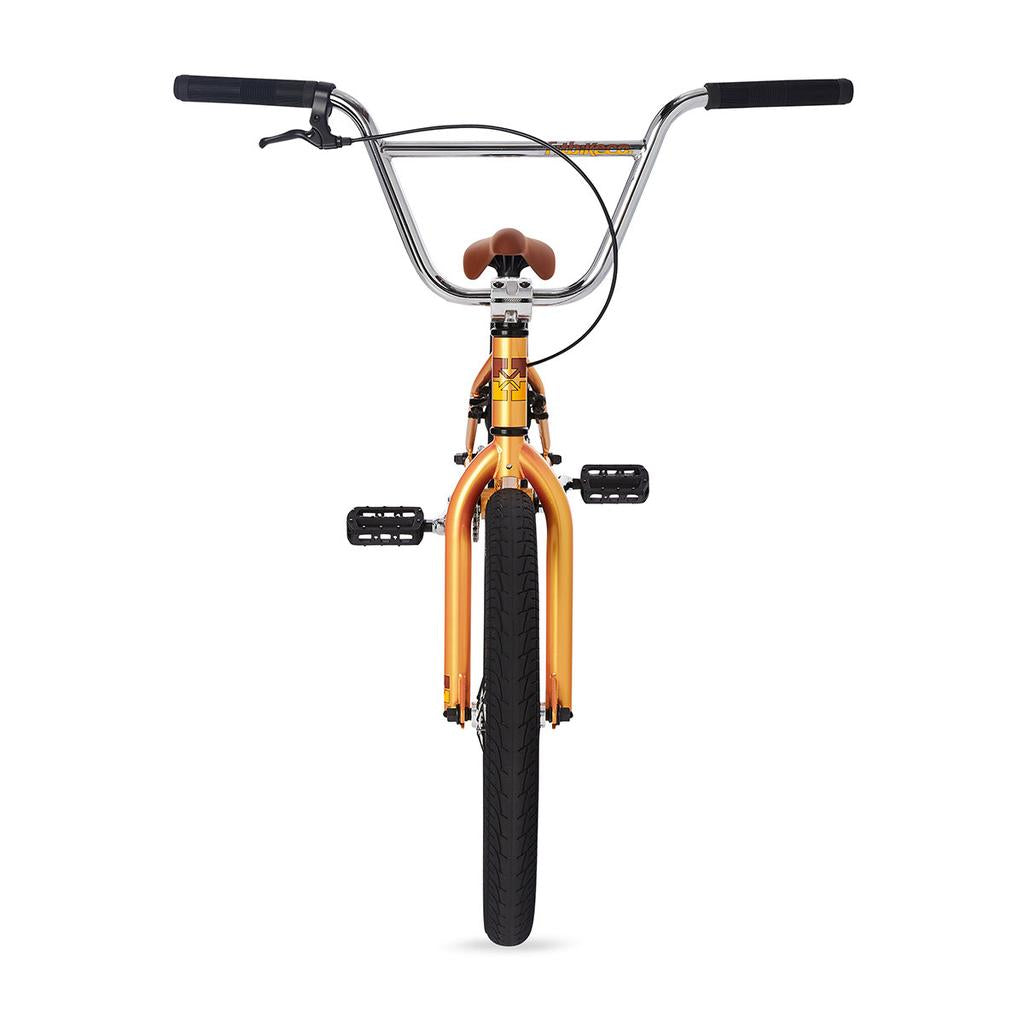

Front view of the Fit Series One 20 Inch Bike (2023) in orange, featuring black handlebars, pedals, and a brown seat against a white background—ideal as an entry-level BMX for new riders.
Close-up view of the 2023 Fit Series One 20 Inch Bike frame, highlighting the rear wheel, chain, pedals, crankset, brake cables, and a tan sidewall tire.

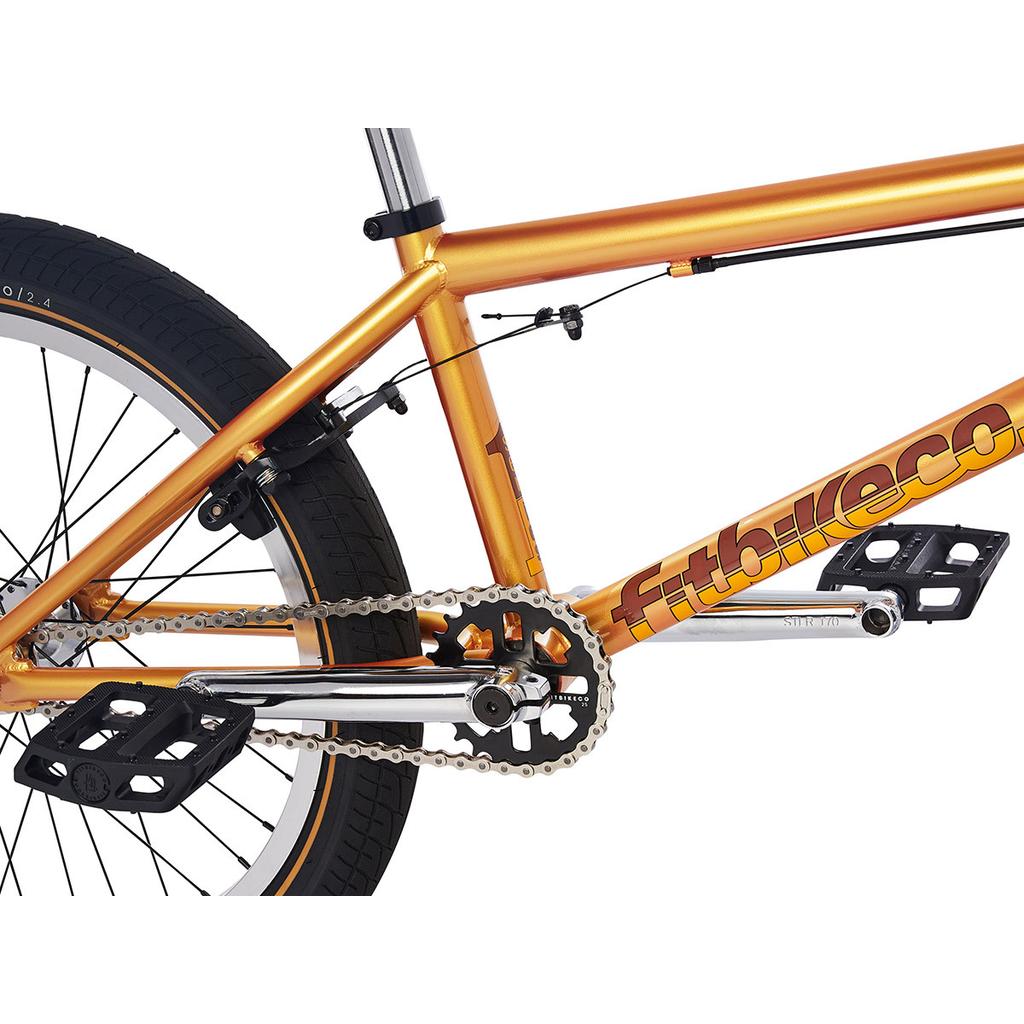

Close-up view of the crankset, pedals, chain, and rear wheel of a metallic orange Fit Series One 20 Inch Bike (2023) with "fitbikeco" branding on the frame.

Description

The Series One was Fitbikeco's first frame back in 2000! It was a straight-forward, clean BMX frame that helped re-define what was necessary and what wasn’t. Twenty-three years later, the Series One is a high-quality complete bike with everything entry level riders need and nothing they don’t. With three Top-Tube sizes and proportional components there’s an S1 for anyone looking for a 20in BMX bike. Responsive but stable geometry, traditional fork off-set, and comfortable 2-pc bars, these bikes work for any style of riding.

Features
  • Fit's first frame, still going. The Series One started as Fitbikeco's first frame in 2000 and is now a complete bike with everything an entry level rider needs.
  • Three top tube sizes. 20.25", 20.5" and 20.75" top tubes with proportional components, so there is an S1 that fits the rider properly.
  • Responsive but stable geometry. Traditional 33mm fork offset and comfortable 2-piece 8.7" x 29" bars mean the S1 handles any style of riding.
  • Frame size specific crank lengths. Tubular Cr-Mo cranks on a sealed mid bottom bracket, matched to the frame you ride rather than one length for all.
  • Sealed 9T cassette, 2.4" tyres. Fit S1W wheels with Fit OEM 2.4" rubber and a U-brake that has more tyre clearance and softer pull springs.

Specifications
  • Size: 20" wheels, small, medium and large
  • Frame: Cr-Mo top and down tubes, Series One geometry
  • Top tube: 20.25" (small), 20.5" (medium), 20.75" (large)
  • Fork: 33mm offset
  • Headset: A-headset
  • Stem: Fit top load
  • Bars: 2-piece, 8.7" x 29"
  • Grips: Fit Crossfit
  • Brakes: U-brake with more tyre clearance and softer pull springs
  • Cranks: Tubular Cr-Mo, 160mm, frame size specific lengths
  • Bottom bracket: Sealed mid
  • Sprocket: Fit Key, 25T
  • Pedals: Fit PC
  • Front hub: Fit S1W
  • Rear hub: Fit S1W with sealed 9T cassette
  • Tyres: Fit OEM, 2.4"
  • Seat: More padded integrated seat and post combo
  • Weight: 11.79 kg (small), 12.02 kg (medium), 12.24 kg (large)

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Fit Series One 20 Inch Bike (2023)

Brand: Fit Bike Co SKU:

From

$799.99 AUD

 $999.99 AUD

Or 4 payments of $199.99 AUD with

Recommended Rider Height:

157-183cm

Colour - Smoked Chrome

Top Tube Length - 20.25

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
