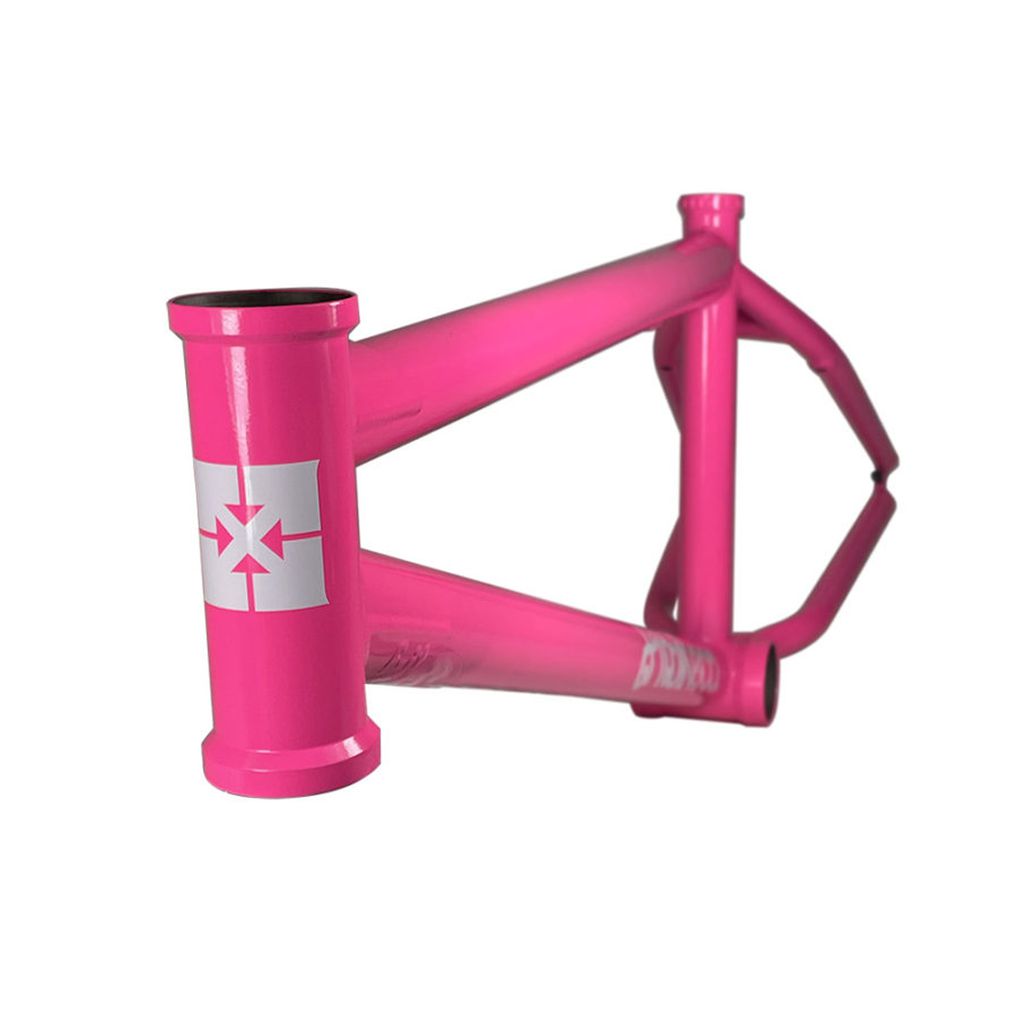

The Fit Bike Co Shortcut V2 Frame showcases a striking white cross pattern near the head tube, ideal for tech riders who want both style and performance.

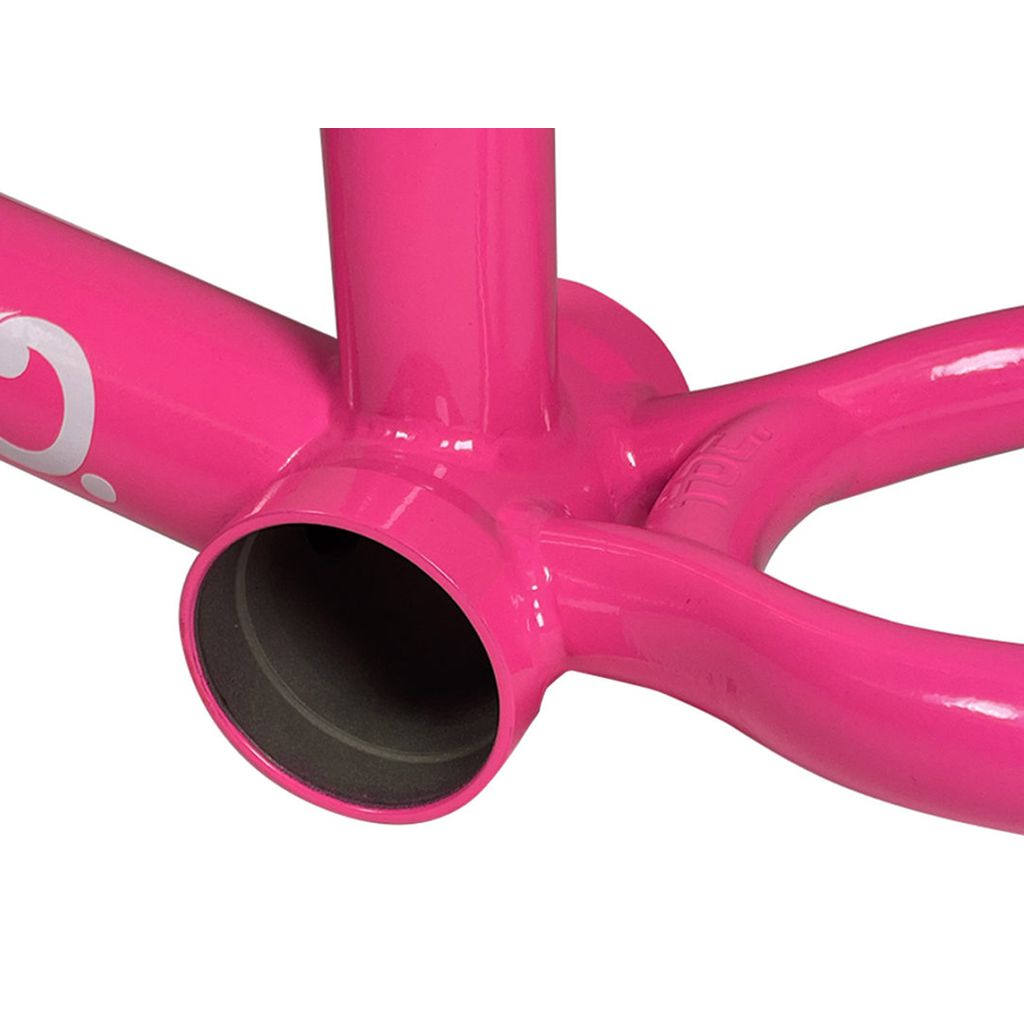

Close-up of a Fit Bike Co Shortcut V2 Frame in pink, highlighting the bottom bracket area. The glossy finish emphasizes the responsive structure admired by tech riders.

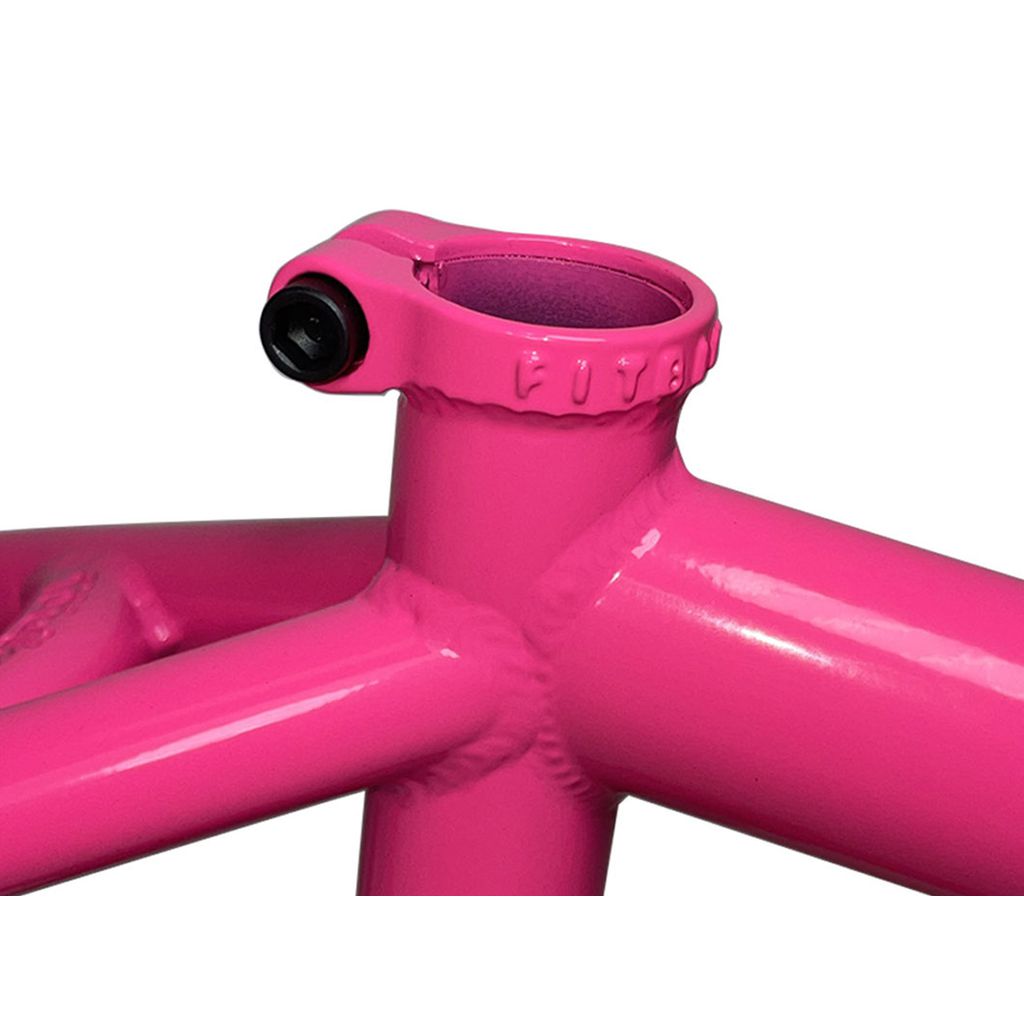

Close-up of a Fit Bike Co Shortcut V2 Frame in Barbie Pink, featuring detailed welding and a seat post clamp—ideal for tech riders seeking style and performance.

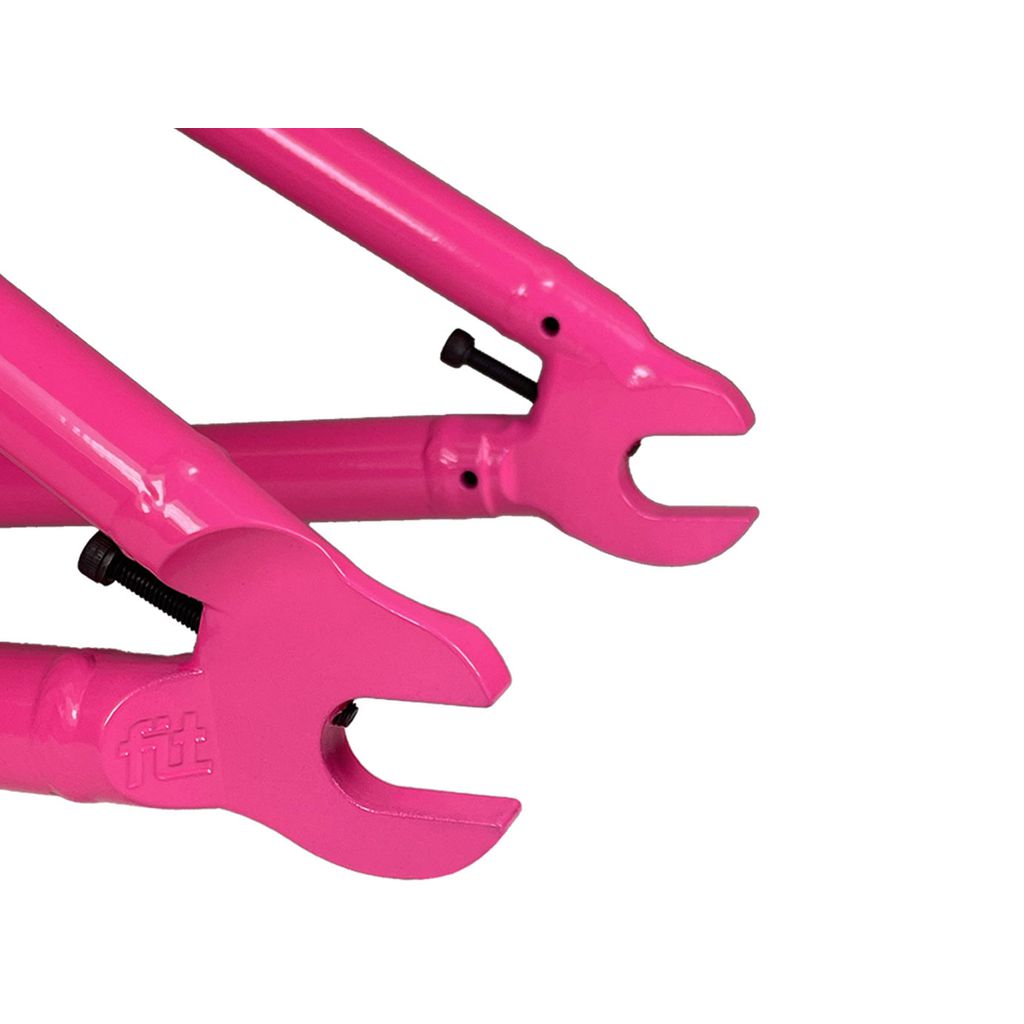

Close-up of two pink dropouts with bolts on the Fit Bike Co Shortcut V2 Frame, crafted for agile BMX riders.

Description

The Shortcut V2 runs the shortest chainstay in BMX at 12.4". An investment cast chainstay yoke is what let Fit pull the rear end in that far while keeping maximum tyre clearance, and this Barbie Pink colourway was designed with Fit team rider Rena Shirai.

It is one of the most responsive frames going, and one of the most reliable with it: the investment cast dropouts with integrated chain tensioners are built to take heavy peg use without weld failures or wheel movement. Shorter top tube lengths and a 9" standover suit tech riders, riders learning new tricks, and anyone after a smaller, nimbler frame.

Features

Shortest chainstay in BMX. A 12.4" rear end makes the frame quick to react, so the front end comes up and spins come around fast.
Investment cast chainstay yoke. The yoke shortens the rear end while keeping maximum tyre clearance, so you do not lose tyre width for it.
Dropouts built for pegs. 14mm 4Q-Baked investment cast dropouts with integrated chain tensioners take heavy peg use without weld failures or wheel movement.
Lower standover, shorter top tubes. A 9" standover with a 19.5", 20" or 20.25" top tube suits tech riders and anyone wanting a nimbler frame.
2.14 kg, responsive geometry. A 75.5° head tube angle, 71° seat tube angle and 11.7" bottom bracket height, with thread-on brake mounts.

Specifications

Sizes: 19.5", 20", 20.25" top tube
Chainstay: 12.4"
Head tube angle: 75.5°
Seat tube angle: 71°
Standover: 9"
Bottom bracket height: 11.7"
Bottom bracket: Mid
Dropouts: 14mm, 4Q-Baked, investment cast with integrated chain tensioners
Brake mounts: Thread-on, no gyro tabs
Head tube: Integrated, 45°/45°, 41.8mm
Seat tube: 25.4mm seat post
Seat clamp: Integrated
Weight: 2.14 kg (4.72 lb)
Colour: Barbie Pink

Fit Bike Co Shortcut V2 Frame

Name: Fit Bike Co Shortcut V2 Frame
Brand: Fit Bike Co
SKU: FTFR012-00-PNK
Price: 899.99 AUD
Availability: InStock

Brand: Fit Bike Co SKU: Click to copy the SKU and show the pick location

$899.99 AUD

Or 4 payments of $224.99 AUD with

Colour - Pink

Top Tube Length - 19.5

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.

Read the full buying guide
