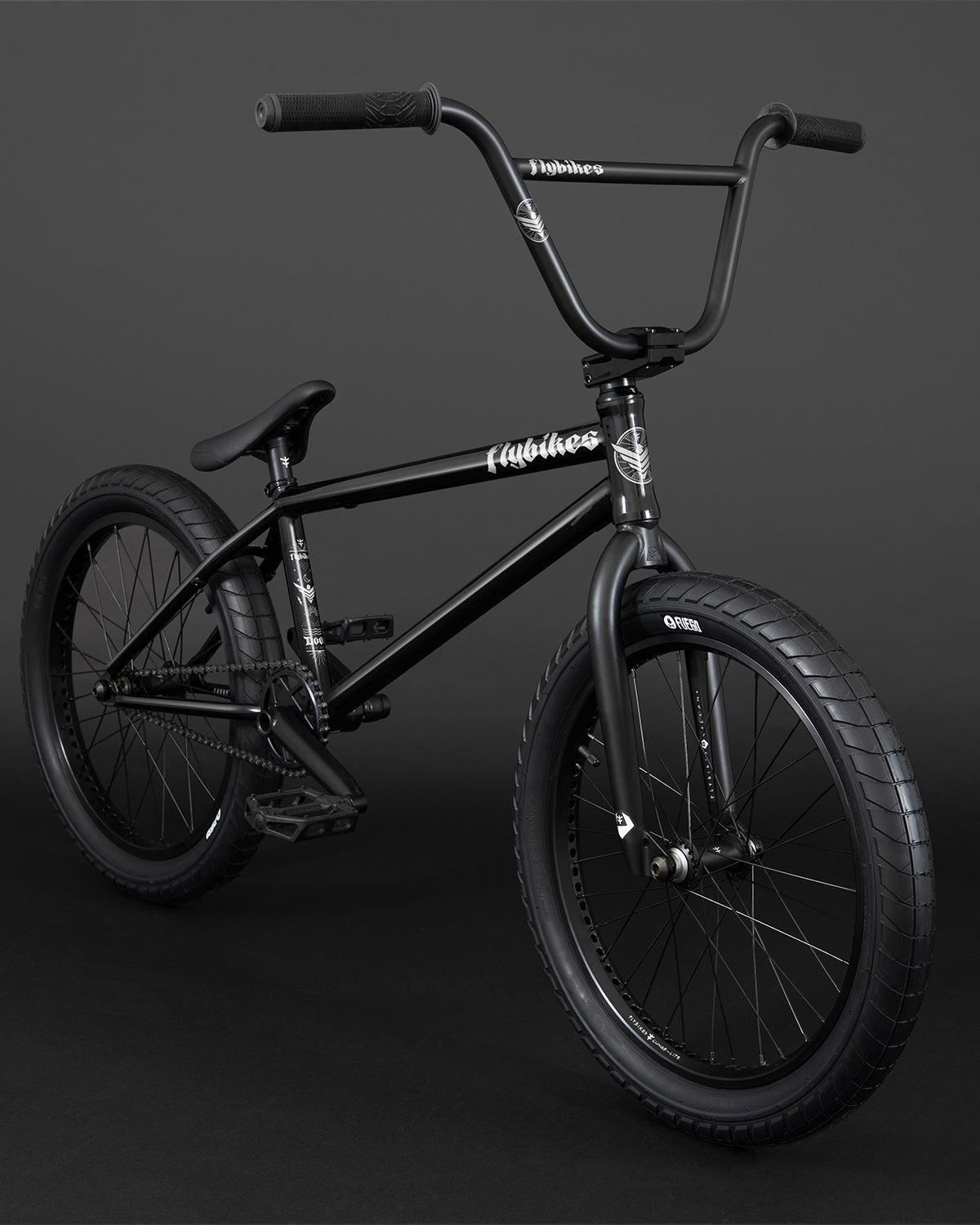

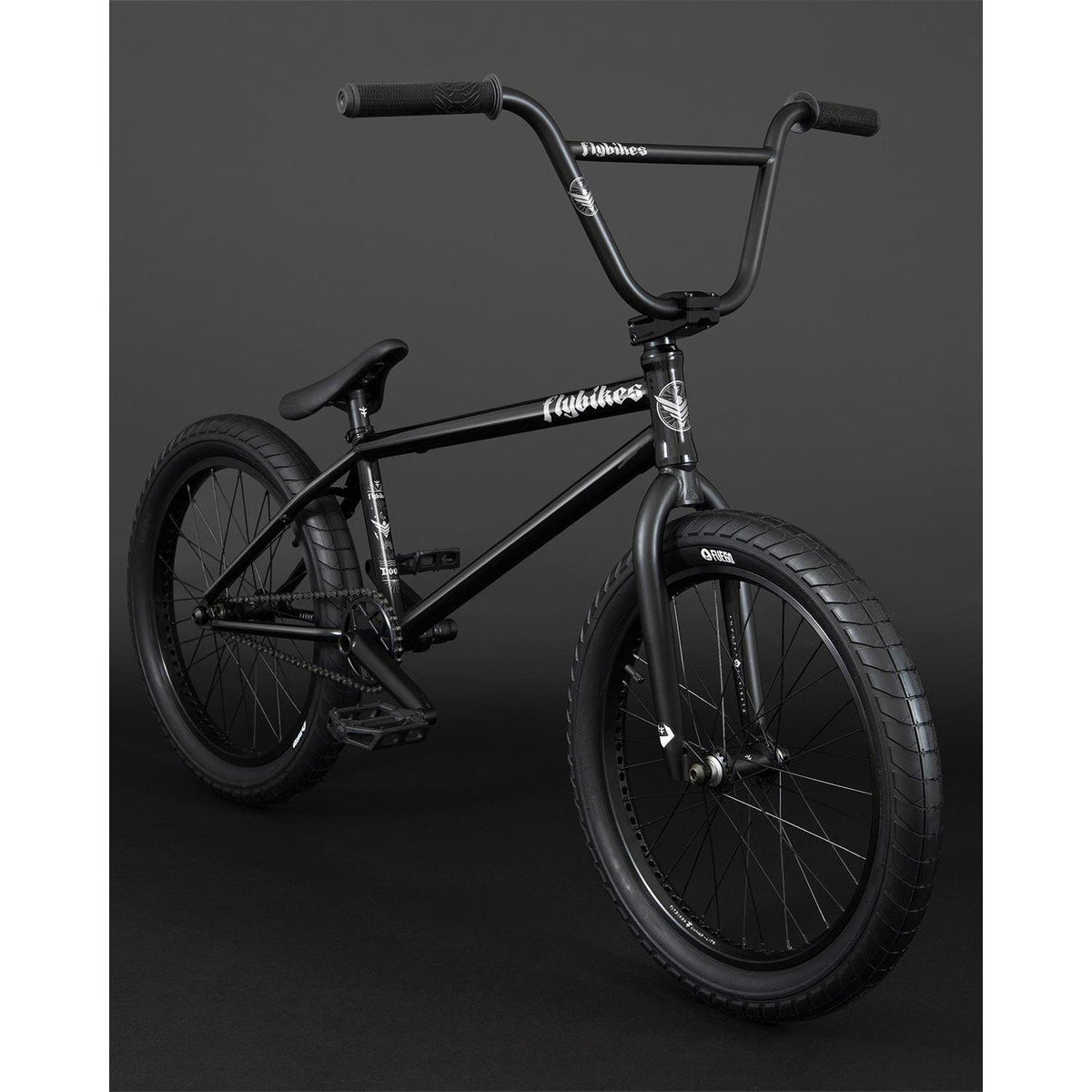

Fly Bikes Dove 20 Inch Bike (Long) / Gloss Black

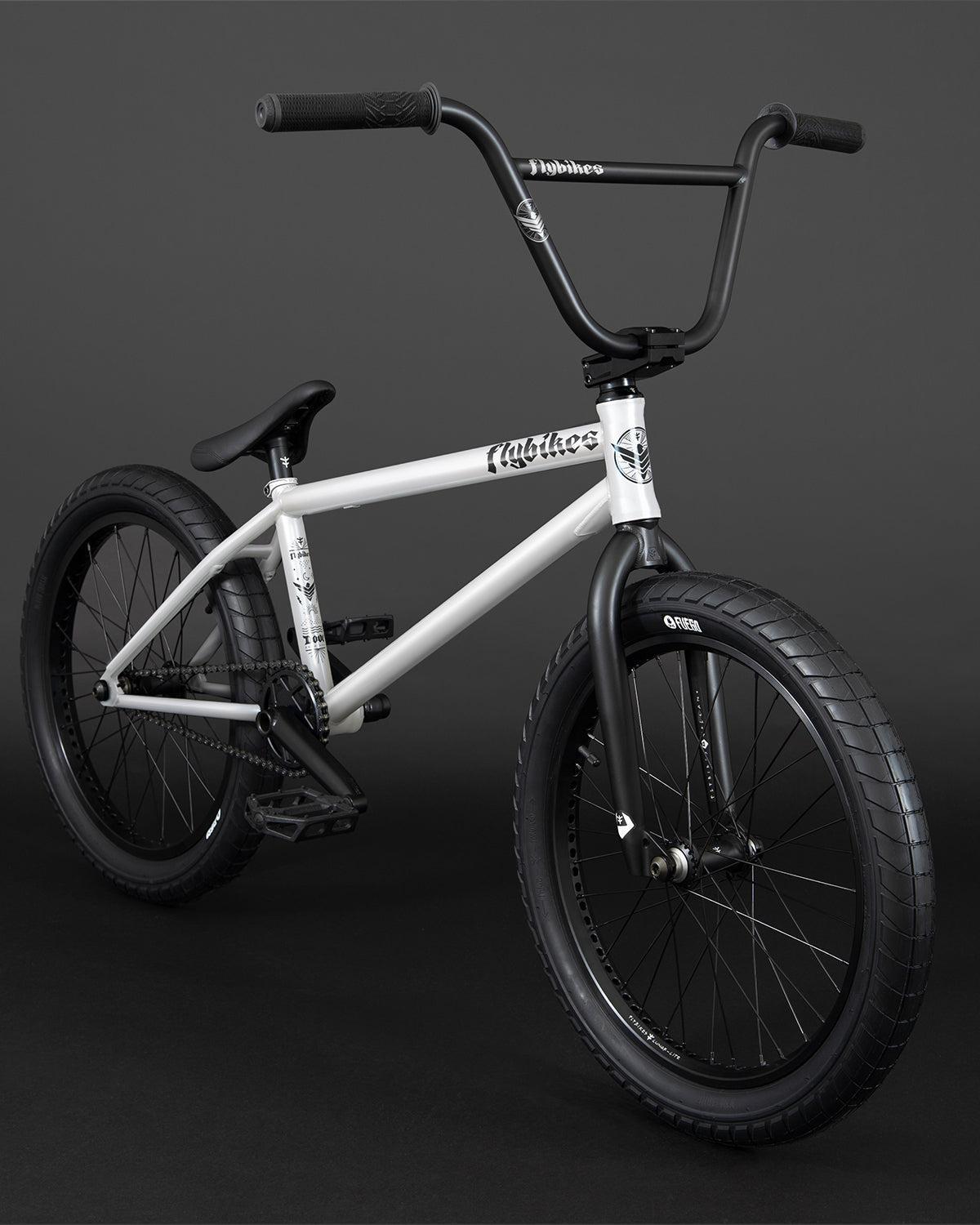

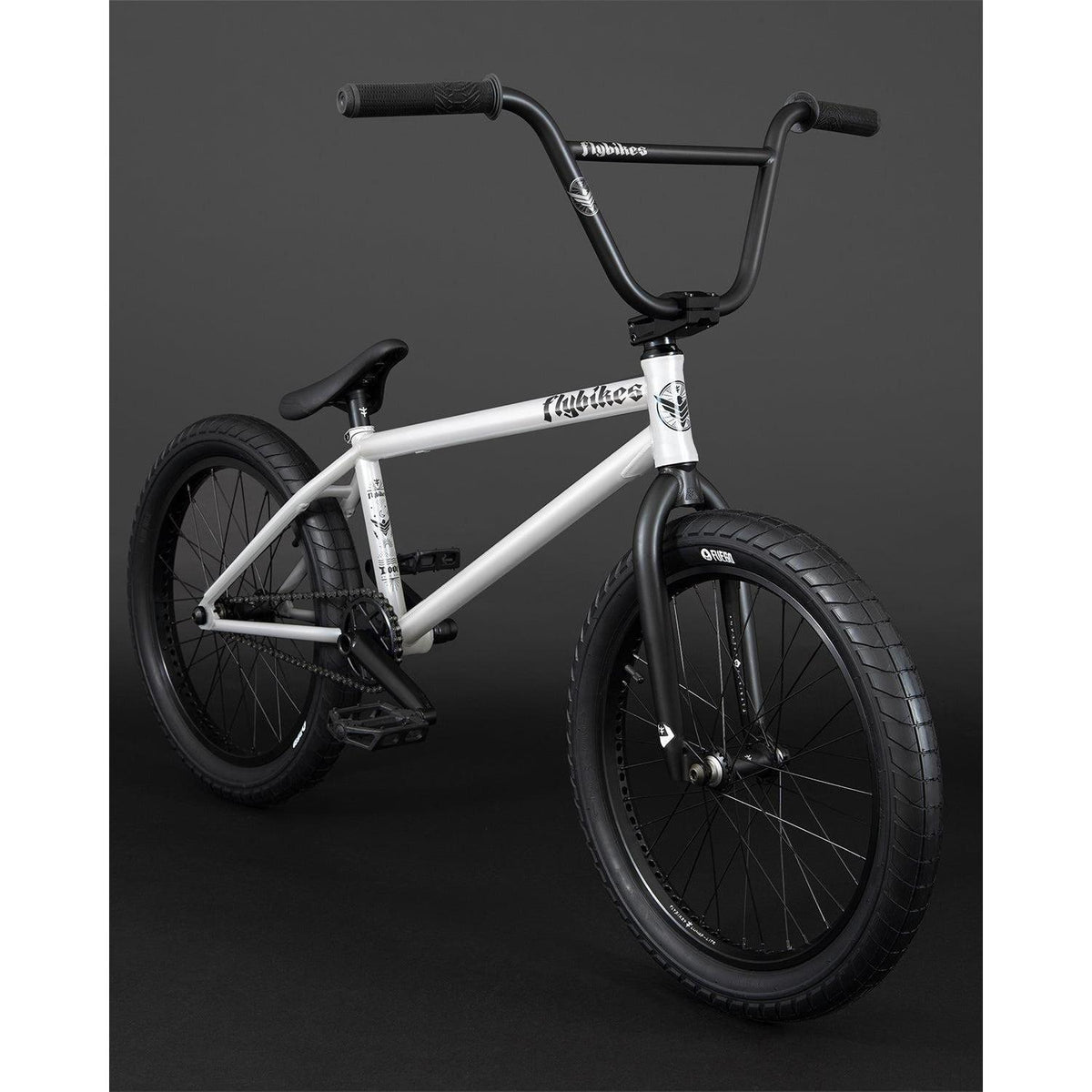

Fly Bikes Dove 20 Inch Bike (Long) / Gloss White

Description

The Dove is Fly's signature frame build: full 4130 chromoly with a heat treated head tube and bottom bracket, invest cast heat treated dropouts and the EBS brake system. It comes brakeless, with a matching Volcano 30 chromoly fork and Dove bars.

This is the long version, with a 13.6" chainstay, a 74.5° head tube angle and 8.75" standover, in 20.5", 21" or 21.5" top tube. It runs Dolmen 175mm cranks on a Rotar mid bottom bracket, a Tractor chain and 28T sprocket, and Fuego 2.30 tyres.

Features

Signature Dove frame, heat treated. Full 4130 CrMo with a heat treated head tube and bottom bracket and invest cast heat treated dropouts, built for the parts that crack first.
Long 13.6" rear end, 74.5° head angle. The long version sits at 8.75" standover and rides more settled, with 20.5", 21" and 21.5" top tube options to pick your fit.
Comes brakeless with EBS mounts. No brake or lever is fitted from the factory, and the frame carries Fly's EBS brake system if you decide to run one.
Dolmen 175mm cranks, 24mm spindle. Chromoly 2.5 piece construction with a 1 piece invest cast arm, turning on a sealed Rotar mid bottom bracket.
Tractor chain and 28T sprocket. Heat treated 4130 CrMo chain with chromium treated hollow pins, matched to a CNC machined 7075-T6 Tractor sprocket.

Specifications

Size: 20" wheels, 20.5" / 21" / 21.5" top tube
Frame: Dove / full 4130 CrMo / heat treated head tube and bottom bracket / invest cast heat treated dropouts / EBS brake system
Top tube: 20.5" / 21" / 21.5"
Chainstay: 13.6"
Head tube angle: 74.5°
Seat tube angle: 71°
Standover: 8.75"
Bottom bracket height: 11.5"
Fork: Volcano 30 / full 4130 CrMo / 1 piece CNC steerer tube / invest cast heat treated dropouts / 30mm offset
Headset: Volcano 15 / sealed bearing / CNC machined / 6061-T6 aluminium
Stem: Volcano 25 M / 50mm reach / CNC machined / 6061-T6 aluminium
Bars: Dove / full 4130 CrMo / 9" rise / 28" wide / 10° backsweep / 2° upsweep
Grips: Ruben 2 / 160mm long
Brakes: None
Brake lever: None
Cranks: Dolmen 175 / 24 / 4130 CrMo / 2.5 piece construction / 1 piece invest cast arm
Bottom bracket: Rotar Mid 24 / sealed bearing
Sprocket: Tractor / CNC machined / 7075-T6 aluminium / 28T
Chain: Tractor / 4130 CrMo heat treated / hollow pins with chromium treatment / 74 links
Pedals: Ruben Graphite / nylon and fibreglass compound
Front hub: Magneto / sealed bearing / 3/8" CrMo female axle / 36H (Magneto Lunar wheels option)
Rear hub: Magneto / sealed bearing / 14mm CrMo female axle (Magneto Lunar wheels option)
Rims: Lunar Lite front / double wall / 6061-T6 aluminium / flash welded (Magneto Lunar wheels option)
Tyres: Fuego 2.30 front / Fly Fuego 2.30 rear / 60 TPI / 120 PSI
Seat: Dove seat / 100% synthetic leather / 7mm thickness
Seat post: Tripod / CNC machined / 6061-T6 aluminium / 180mm long
Note: The Dove is offered in 13.6" and 13.2" chainstay versions. This is the 13.6" long version. Wheel specifications shown are for the Magneto Lunar wheels option.

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

Fit the handlebars and line them up with the front wheel
Fit the front wheel, pedals and seat post
Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Fly Bikes Dove 20 Inch Bike (Long)

Name: Fly Bikes Dove 20 Inch Bike (Long)
Brand: Fly Bikes
SKU: CBDB205136L01M
Price: 2209.99 AUD
Availability: OutOfStock

Brand: Fly Bikes SKU: Click to copy the SKU and show the pick location

$2,209.99 AUD

Or 4 payments of $552.49 AUD with

Colour - Gloss Black

Top Tube Length - 20.5

Drive Side - Left Hand Drive

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider height	Wheel size	Top tube
60 to 91cm	12"	12 to 12.5"
81 to 106cm	14"	14 to 14.5"
96 to 122cm	16"	16 to 16.5"
122 to 147cm	18"	18 to 18.5"
147 to 157cm	20"	19.75 to 20.25"
157 to 168cm	20"	20 to 20.5"
168 to 175cm	20"	20.25 to 20.75"
175 to 183cm	20"	20.5 to 21"
183 to 190cm and up	20"	20.75 to 21.5"
160cm and up	22"	21 to 22.25"
160cm and up	24"	21.75 to 22"
160cm and up	26"	22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
