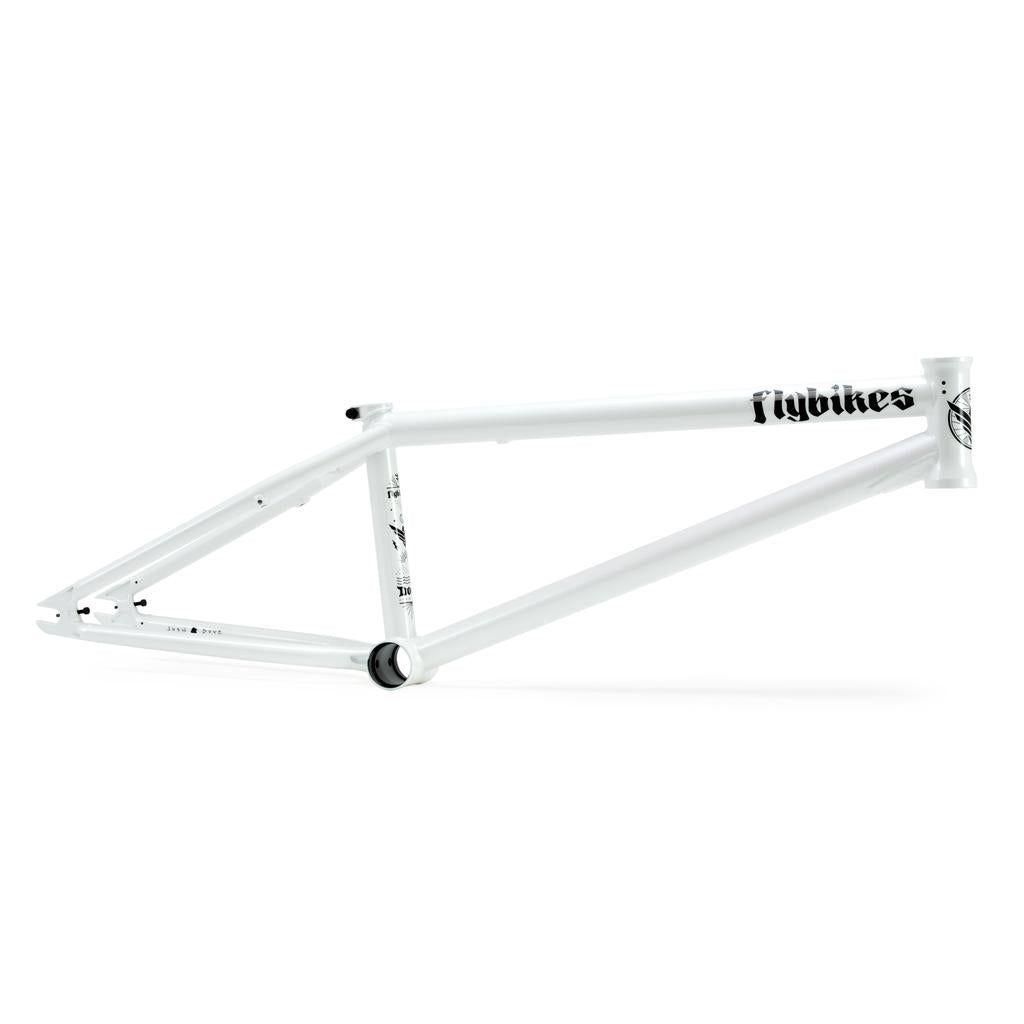

The Fly Bikes Dove 13.6 Frame (Josh Dove Signature) elegantly combines sleek geometry with smooth transition riding, all beautifully showcased against a plain white background.

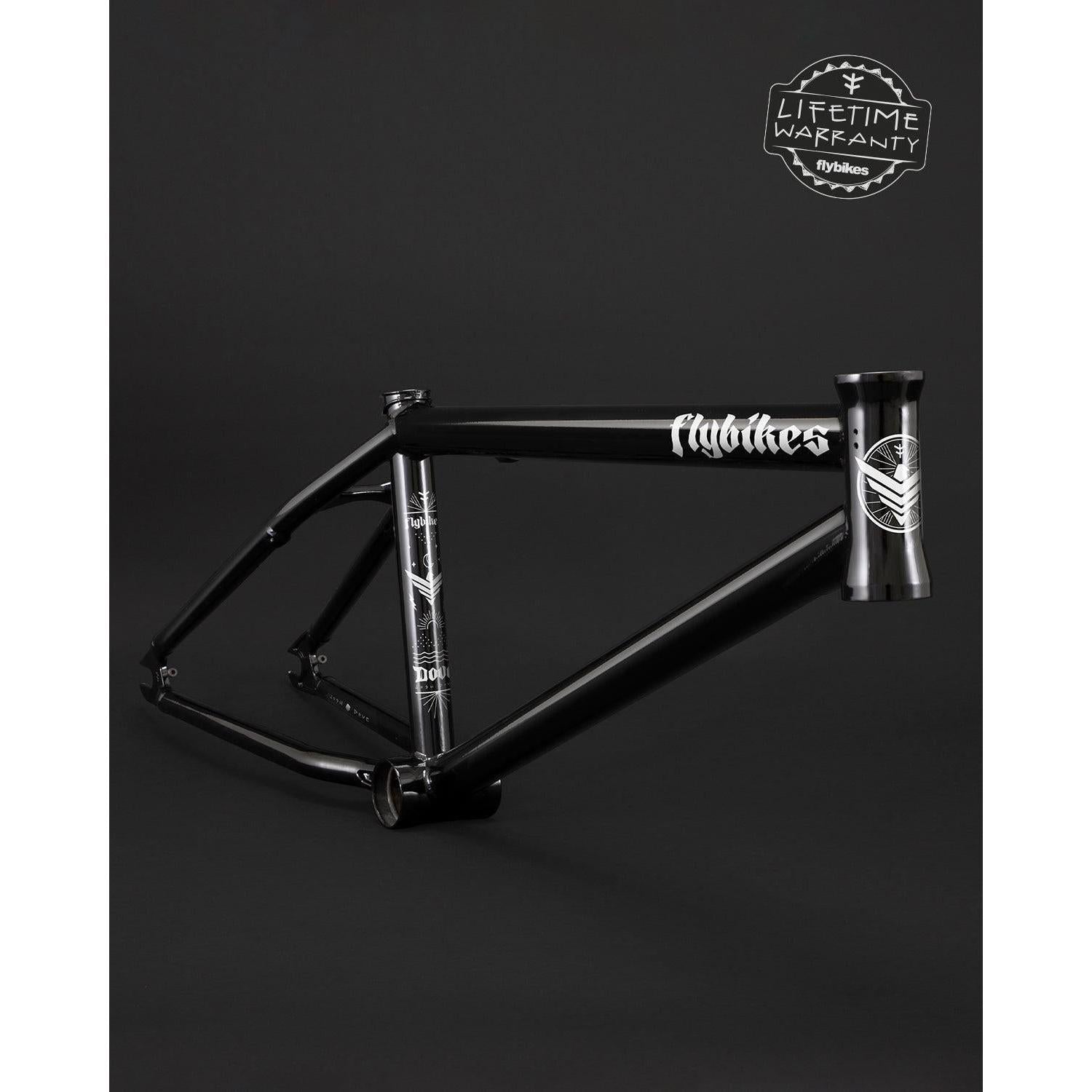

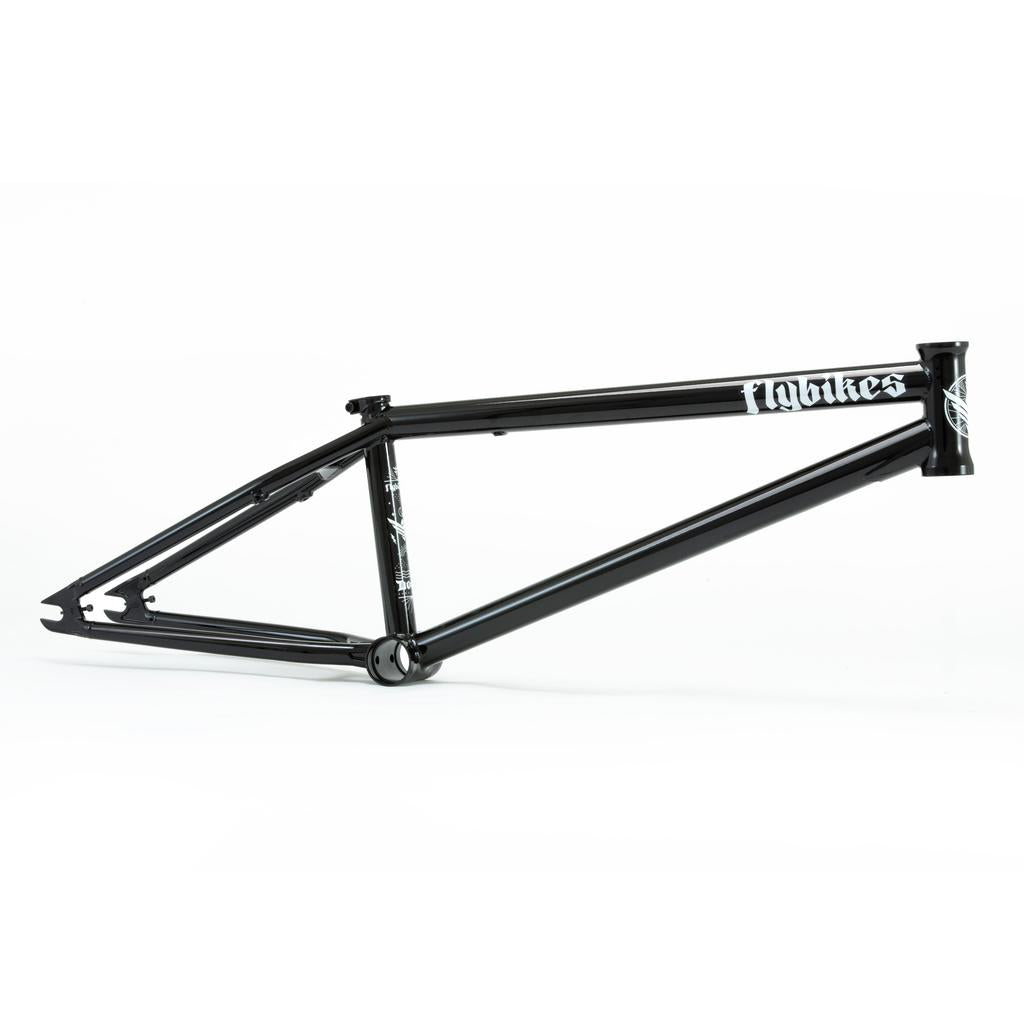

The Fly Bikes Dove 13.6 Frame (Josh Dove Signature) in black showcases silver decals on a dark base, optimized for seamless transition riding. "Lifetime Warranty" and "flybikes" branding emphasize its robust geometry.

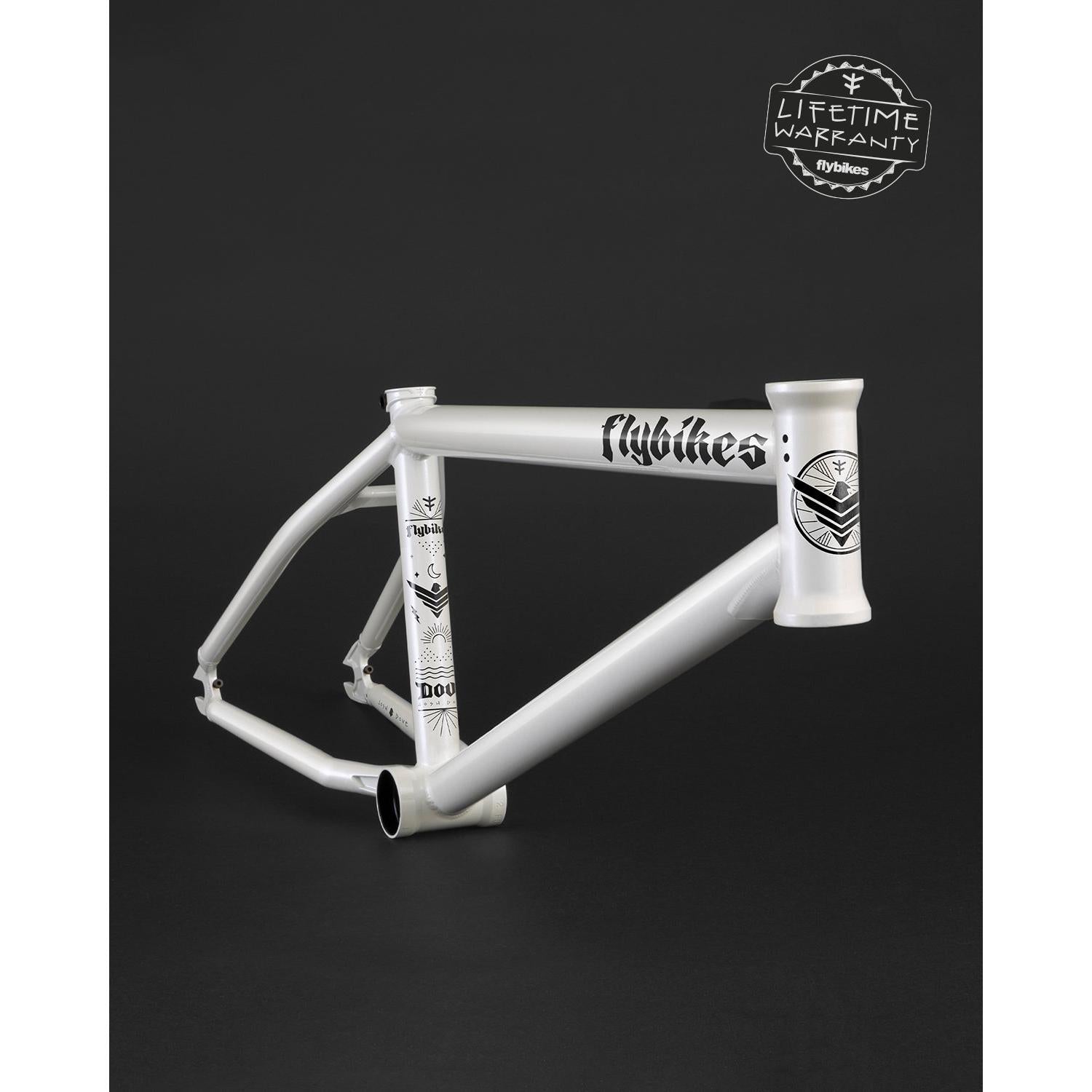

The Fly Bikes Dove 13.6 Frame (Josh Dove Signature) BMX, in white with striking graphics, is ideal for transition riding and features a "Lifetime Warranty" text on a dark background.

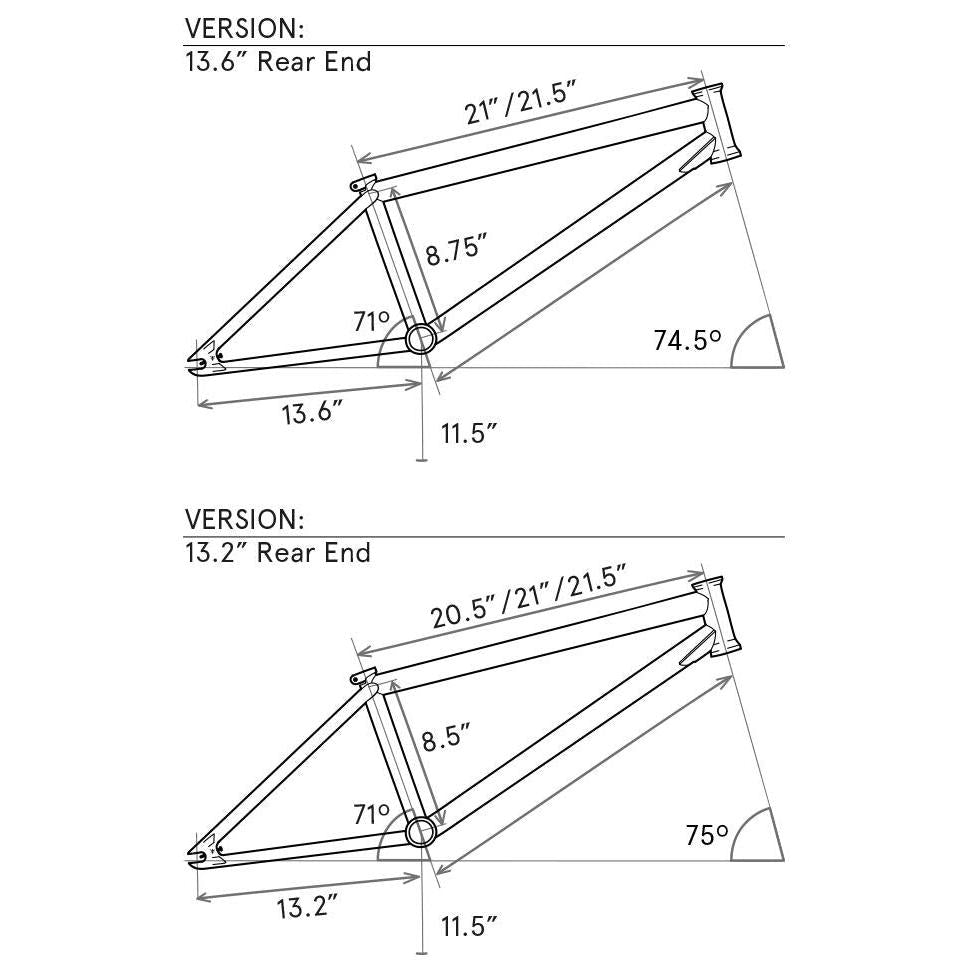

Diagram of two bicycle frame designs, showing geometry with labeled dimensions and angles; the top version is a Fly Bikes Dove 13.6 Frame (Josh Dove Signature) featuring a 13.6" rear end, while the lower design has a 13.2" rear end and steeper seat tube angle for transition riding.

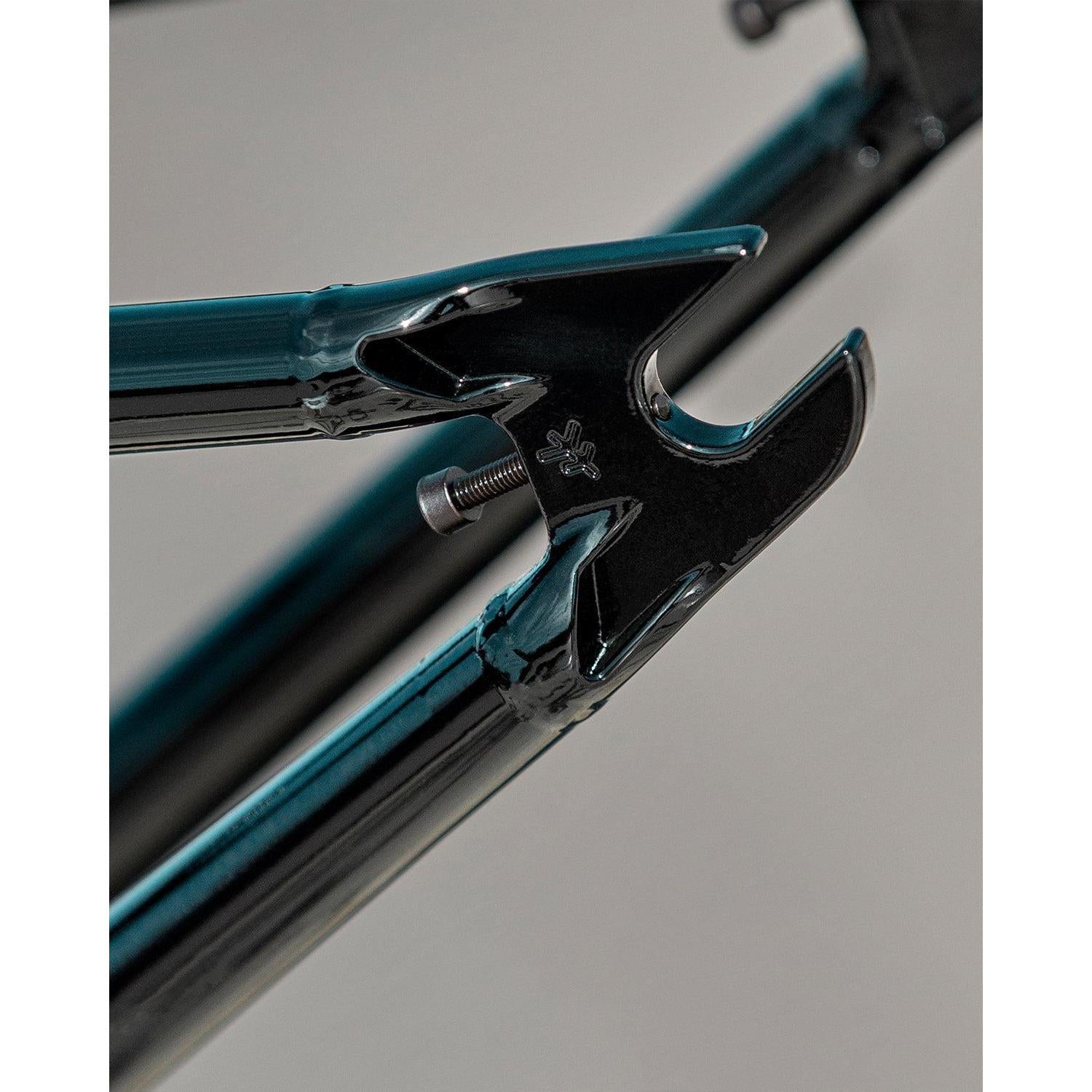

Close-up of the Fly Bikes Dove 13.6 Frame (Josh Dove Signature) in black and teal, featuring a bolt and distinct metalwork on a neutral background, highlighting its fine geometry.

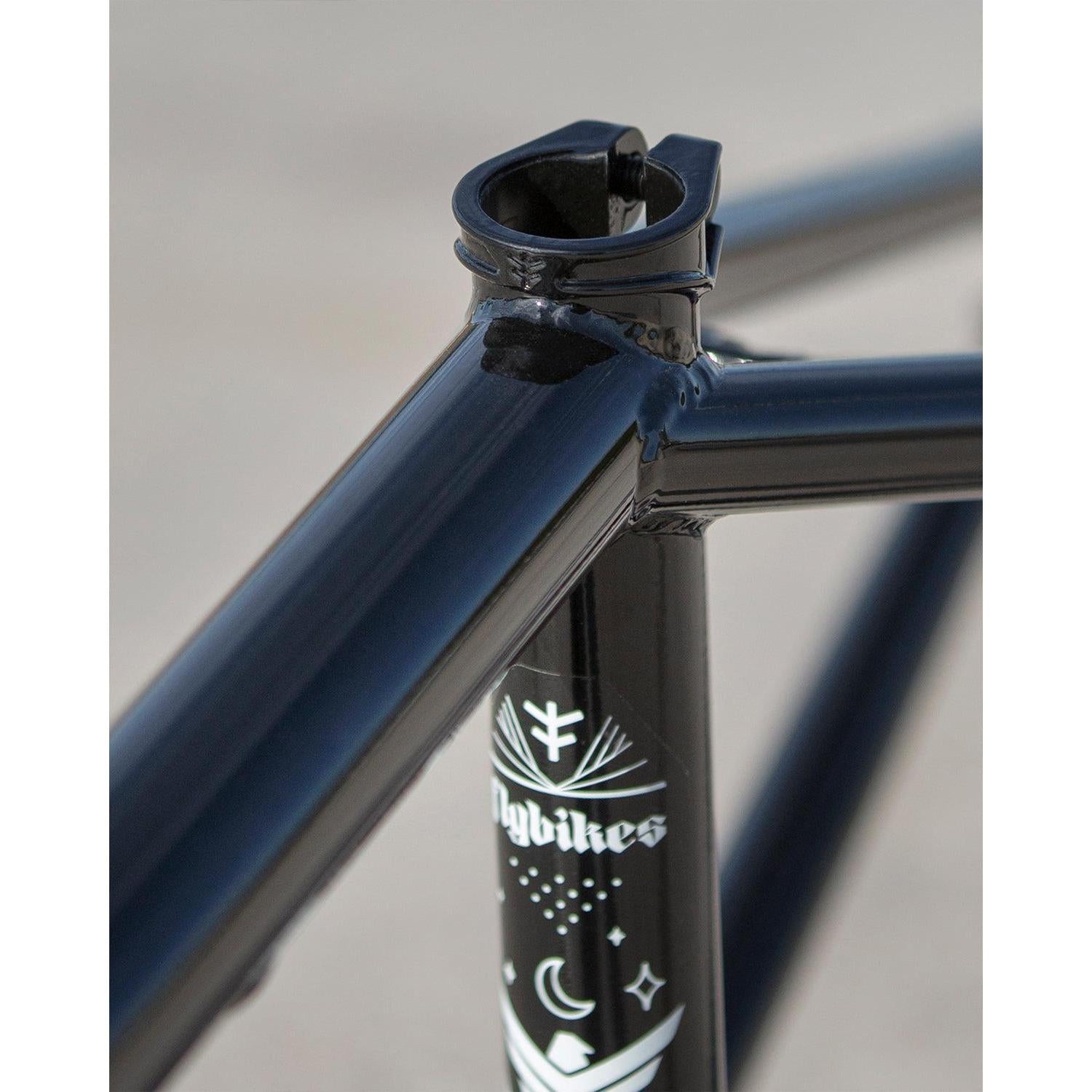

Close-up of a black Fly Bikes Dove 13.6 Frame (Josh Dove Signature) bicycle with a seat clamp, showcasing a white star and crescent moon design on the seat tube, perfect for transition riding.

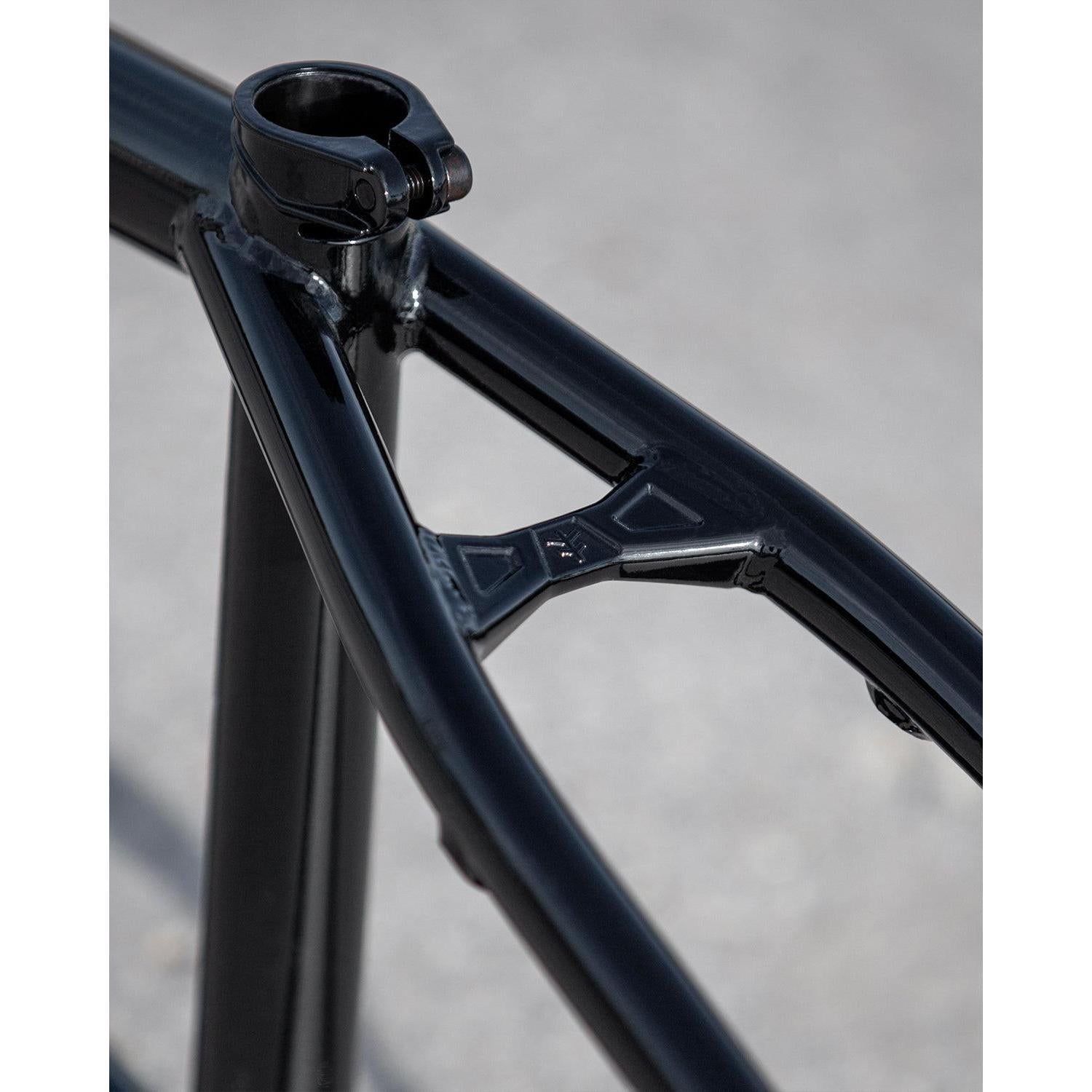

A close-up of the Fly Bikes Dove 13.6 Frame (Josh Dove Signature) features the seat clamp and rear triangle, showcasing a seamless transition for optimal riding geometry.

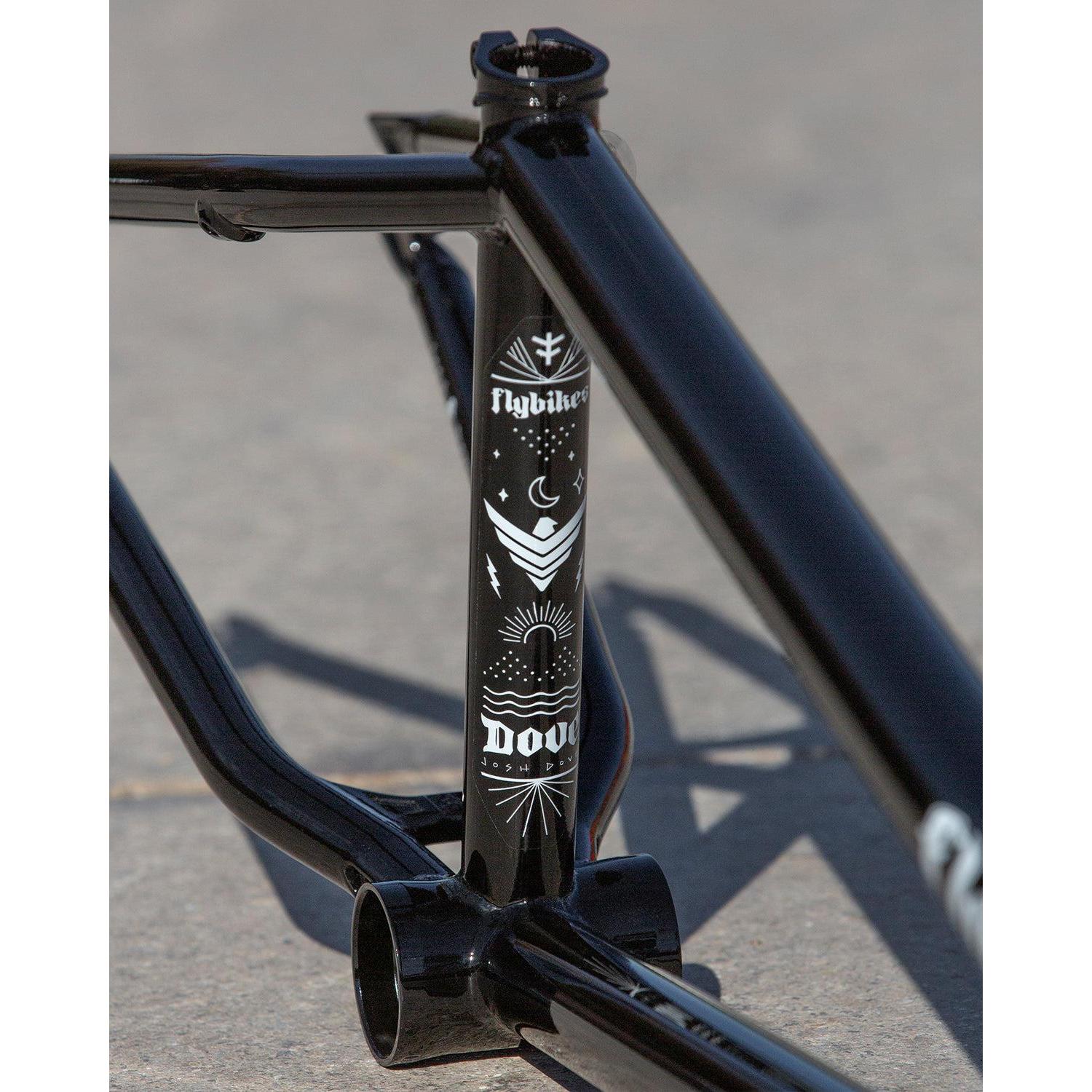

A close-up of the Fly Bikes Dove 13.6 Frame (Josh Dove Signature) on concrete, featuring white graphics of stars, a moon, and "Divide," designed for smooth transition riding.

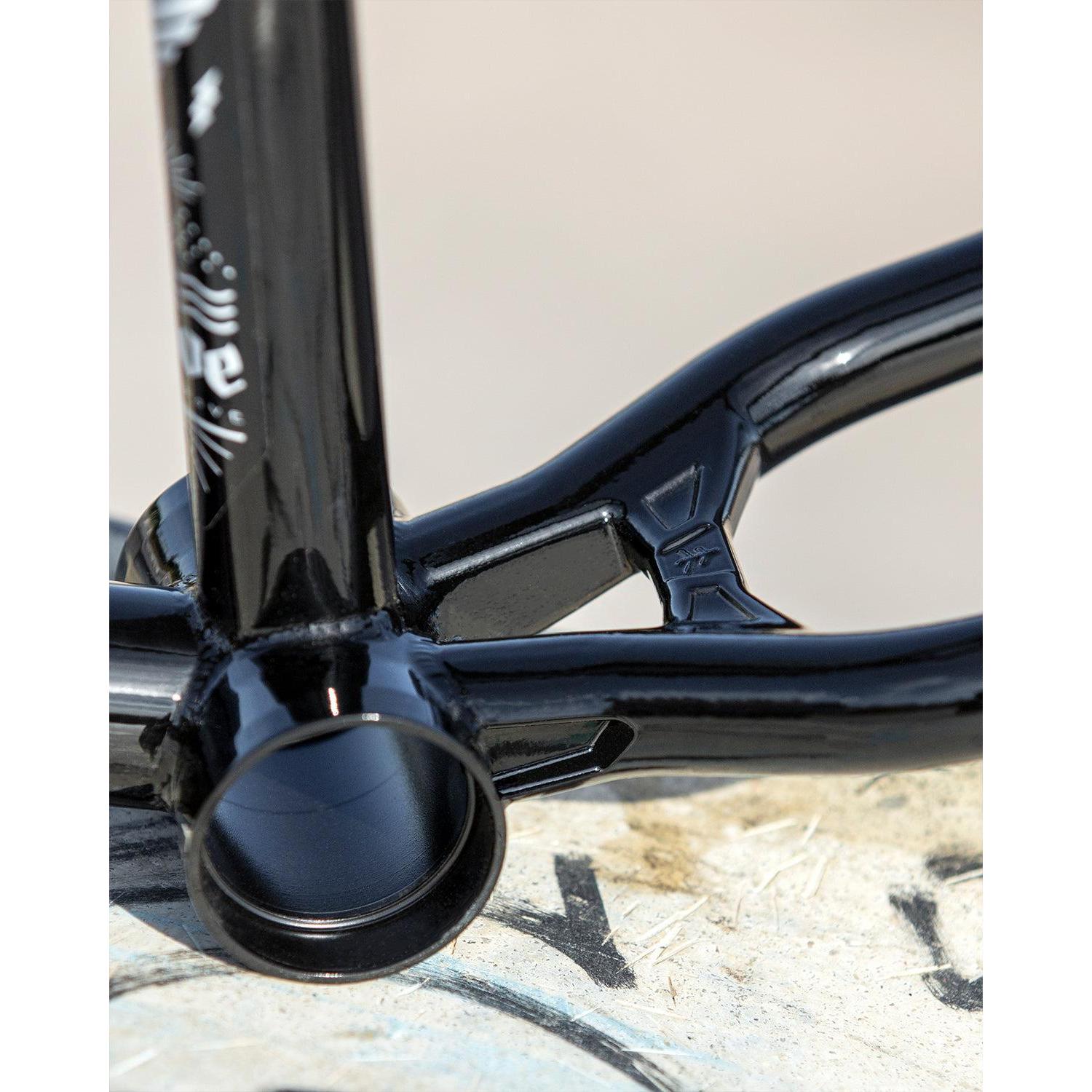

Close-up of a Fly Bikes Dove 13.6 BMX frame (Josh Dove Signature) in black, highlighting the bottom bracket and chainstay junction on a concrete surface, showcasing its sleek geometry.

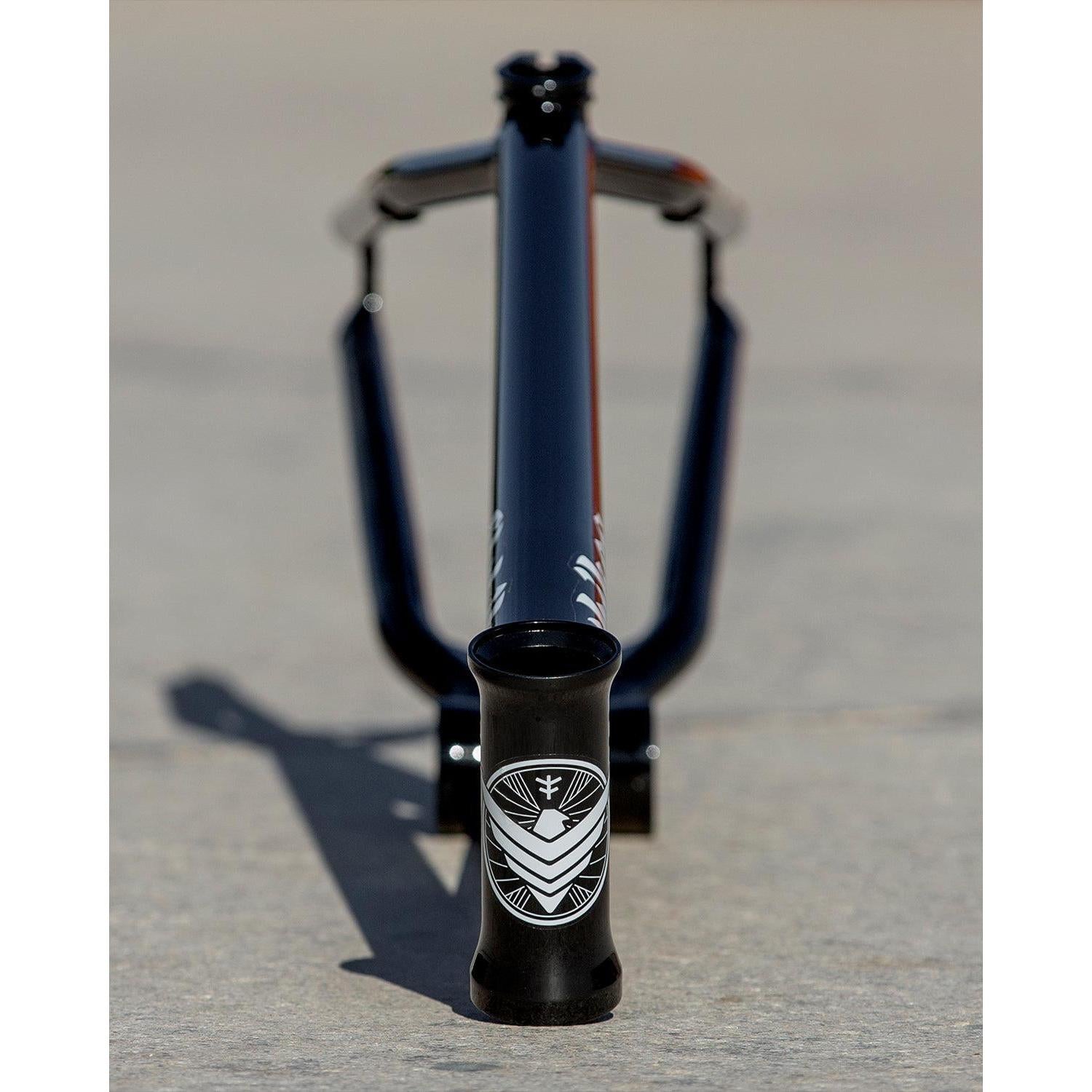

Close-up of the black Fly Bikes Dove 13.6 Frame (Josh Dove Signature) on concrete, featuring a head tube with a white emblem. Its sleek geometry is ideal for smooth transition riding.

Description

Josh Dove's signature frame in the long 13.6" rear end, built for deep bowls and trails. Investment cast seat stay bridge, dropouts and chain stay yoke pair with multi-butted, tapered Japanese Sanko tubing and internal gussets.

Behind it is Dovey's preferred geometry, taking in the Tierra frame that riders asked to see again, reintroduced with a few subtle adjustments for modern park riding. Bowls, trails or park, the Dove has your transitions covered.

Features

Long 13.6" rear end. Extra stability for deep bowls and trails, keeping the front end planted when you are carrying real speed.
74.5° head tube angle. A touch slacker than the 13.2" version, matched with a 71° seat tube and 11.5" bottom bracket height.
Japanese Sanko triple butted tubing. Multi-butted and tapered with internal gussets, so weight comes out of the frame without giving up strength.
Investment cast at the stress points. Heat treated chromoly dropouts, chain stay yoke and seat stay bridge take the impacts that crack lesser frames.
Integrated chain tensioners. Built into the dropouts, so your wheel stays put with nothing bolted on around the axle.

Specifications

Top tube: 20.5", 21", 21.5"
Chainstay: 13.6"
Head tube angle: 74.5°
Seat tube angle: 71°
Standover: 8.75"
Bottom bracket height: 11.5"
Bottom bracket: Mid, CNC machined 4130 chromoly, heat treated
Material: 4130 chromoly
Tubing: Japanese Sanko, tapered, with internal gussets
Butting: Triple butted
Dropouts: Investment cast 4130 chromoly, heat treated, integrated chain tensioners
Brake mounts: EBS, seat stays
Head tube: 113 mm / 4.45", CNC machined 4130 chromoly, heat treated
Seat clamp: Investment cast 4130 chromoly, heat treated
Weight: 2.53 kg (21")

Fly Bikes Dove 13.6 Frame (Josh Dove Signature)

Name: Fly Bikes Dove 13.6 Frame (Josh Dove Signature)
Brand: Fly Bikes
SKU: FRDOFR13620501
Price: 749.99 AUD
Availability: OutOfStock

Brand: Fly Bikes SKU: Click to copy the SKU and show the pick location

$749.99 AUD

Or 4 payments of $187.49 AUD with

Colour - Gloss Black

Top Tube Length - 20.5

Frames are sized by top tube length. Start with your height, then let riding style decide where in the range you land.

Rider height	Top tube
147 to 157cm	19.75 to 20.25"
157 to 168cm	20 to 20.5"
168 to 175cm	20.25 to 20.75"
175 to 183cm	20.5 to 21"
183 to 190cm and up	20.75 to 21.5"

The height bands overlap on purpose. If you land in two of them, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park. Plenty of riders, pros included, deliberately ride longer than a chart suggests.

How to measure

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the length of the tube you can see. Measure your current frame that way and compare.

Size up for stability through trails and transitions.
Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed once you buy, but chainstay length, stem length, fork offset and bar position all change how the built bike feels.

Not sure? Tell us your height and how you ride, and we will tell you what we would put you on.
