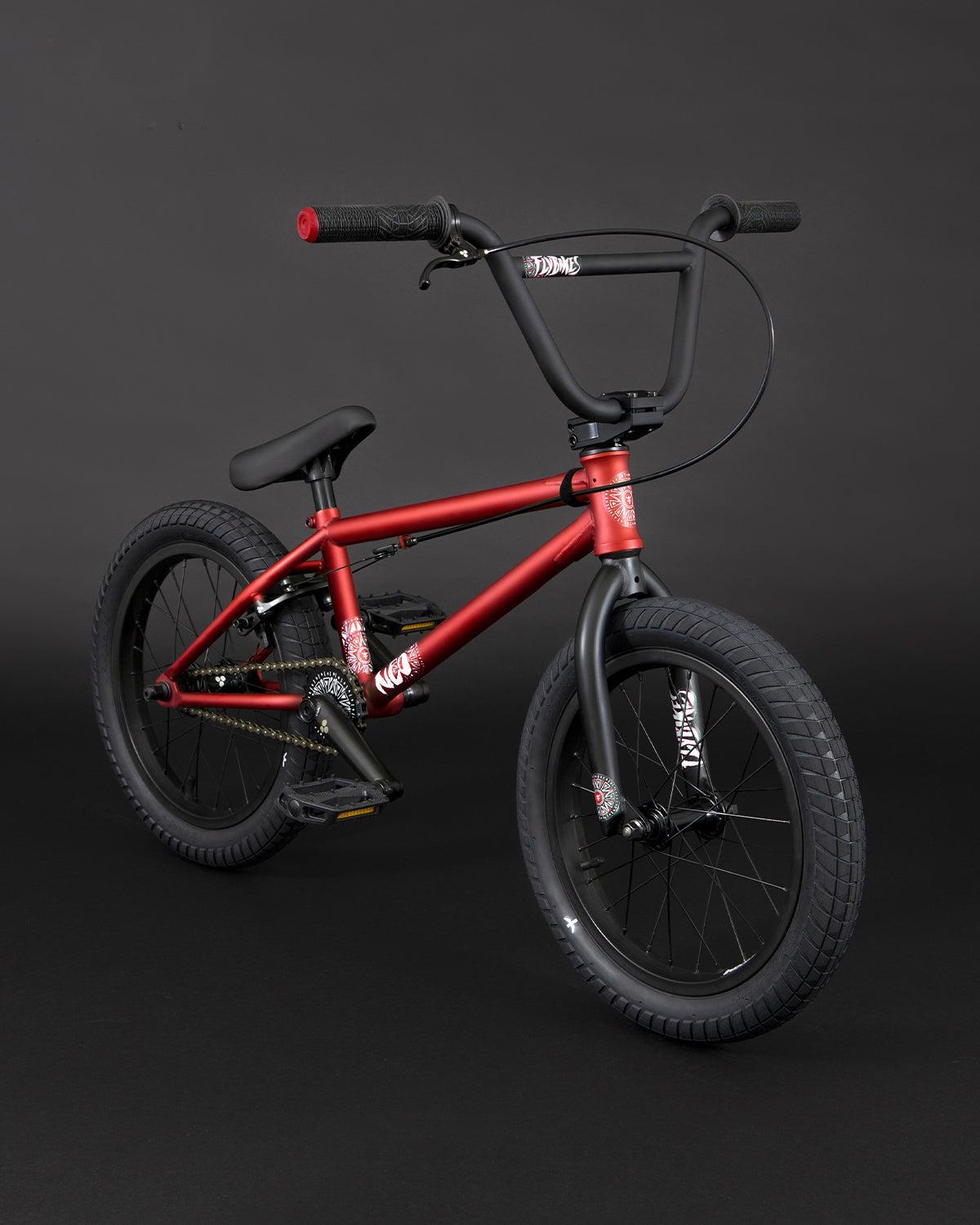

Fly Bikes Neo 16 Inch Bike / Metallic Red

Description

The Neo 16" lets the youngest shredders join the game on a bike that is safe, light and tough. It has been thought through from the first part to the last so that it rides as well as a 20" bike, just scaled down to suit a small rider.

That means a Fly Manual Mini lever, a 40mm Mini stem, Ruben Mini grips and 16" tyres, all chosen for the size of the person using them. It is the match between fun and secure riding that the fresh lids of the park need, and the whole bike weighs 9 kg.

Features

Scaled down, not cut down. Every part is picked so the Neo rides like a 20" bike: Fly Manual Mini lever, Mini stem, Ruben Mini grips and 16" tyres.
Light at 9 kg. A small rider can pick the bike up, wheel it around the park and get themselves back on it without help.
16" geometry that actually fits. A 16" top tube, 10.6" chainstays, 9.5" bottom bracket height and 7" standover keep the bike low and easy to get on.
Trebol 3-piece chromoly cranks, 140mm. Short chromoly arms on a sealed Spanish bottom bracket with a 23T CNC machined alloy sprocket, built to last.
Sealed rear hub with 9T driver. A Trebol sealed bearing rear hub on 28H semi-double walled rims, with Fly Ruben 2.0 tyres front and rear.

Specifications

Size: 16" wheels, 16" top tube
Frame: Full 1020 hi-tensile
Top tube: 16"
Chainstay: 10.6"
Head tube angle: 75°
Seat tube angle: 71°
Standover: 7"
Bottom bracket height: 9.5"
Fork: Integrated cone shape design, 4130 CrMo steerer, 1020 hi-tensile legs, 25mm offset
Headset: Trebol internal, sealed bearing
Stem: Trebol Mini top loader, 40mm reach, forged 6061 T-6 aluminium
Bars: 1020 hi-tensile, 7" rise, 24" wide, 10° backsweep, 2° upsweep
Grips: Fly Ruben II Mini, 130mm
Bar ends: Fly
Brakes: Trebol Springhanger, forged 6061 T-6 aluminium
Brake lever: Fly Manual Mini, right, die cast aluminium
Cranks: Trebol 3-piece, 4130 CrMo, 140mm arm length
Bottom bracket: Spanish, sealed bearing
Sprocket: CNC machined, 6061-T6 aluminium, 23T
Chain: 410 type, 60 links
Pedals: Mini, nylon and fibreglass compound
Front hub: Alloy shell, loose ball, 3/8" male axle, 28H
Rear hub: Trebol, sealed bearing, male axle, 28H, 9T
Rims: Trebol, semi-double walled, 6061-T6 aluminium, 28H
Tyres: Fly Ruben 2.0 front and rear, 60 TPI, 65 PSI
Seat: Neo combo
Seat post: 6061 T-6 aluminium, part of the combo seat
Weight: 9 kg

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

Fit the handlebars and line them up with the front wheel
Fit the front wheel, pedals and seat post
Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Fly Bikes Neo 16 Inch Bike

Name: Fly Bikes Neo 16 Inch Bike
Brand: Fly Bikes
SKU: CBNEOBWBR73
Price: 809.99 AUD
Availability: OutOfStock

Brand: Fly Bikes SKU: Click to copy the SKU and show the pick location

$809.99 AUD

Or 4 payments of $202.49 AUD with

Colour - Metallic Red

Top Tube Length - 16

A 16 inch bike suits a rider of about 96 to 122cm, usually 4 to 7 years old, on a 16 to 16.5 inch top tube. It is the size most kids learn to ride properly on.

Rider height	Wheel size	Top tube
60 to 91cm	12"	12 to 12.5"
81 to 106cm	14"	14 to 14.5"
96 to 122cm	16"	16 to 16.5"
122 to 147cm	18"	18 to 18.5"
147 to 157cm	20"	19.75 to 20.25"
157 to 168cm	20"	20 to 20.5"
168 to 175cm	20"	20.25 to 20.75"
175 to 183cm	20"	20.5 to 21"
183 to 190cm and up	20"	20.75 to 21.5"
160cm and up	22"	21 to 22.25"
160cm and up	24"	21.75 to 22"
160cm and up	26"	22 to 23"

Sizes overlap on purpose, so personal preference comes into it. At this wheel size the top tube barely changes the fit: go by height, and check they can stand over the bike flat footed.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Between two wheel sizes? Go up. Kids grow into a bike far faster than they grow out of the fun.
They should be able to stand over the top tube with both feet flat on the ground.

Not sure? Send us their height and we will tell you what we would put them on.
