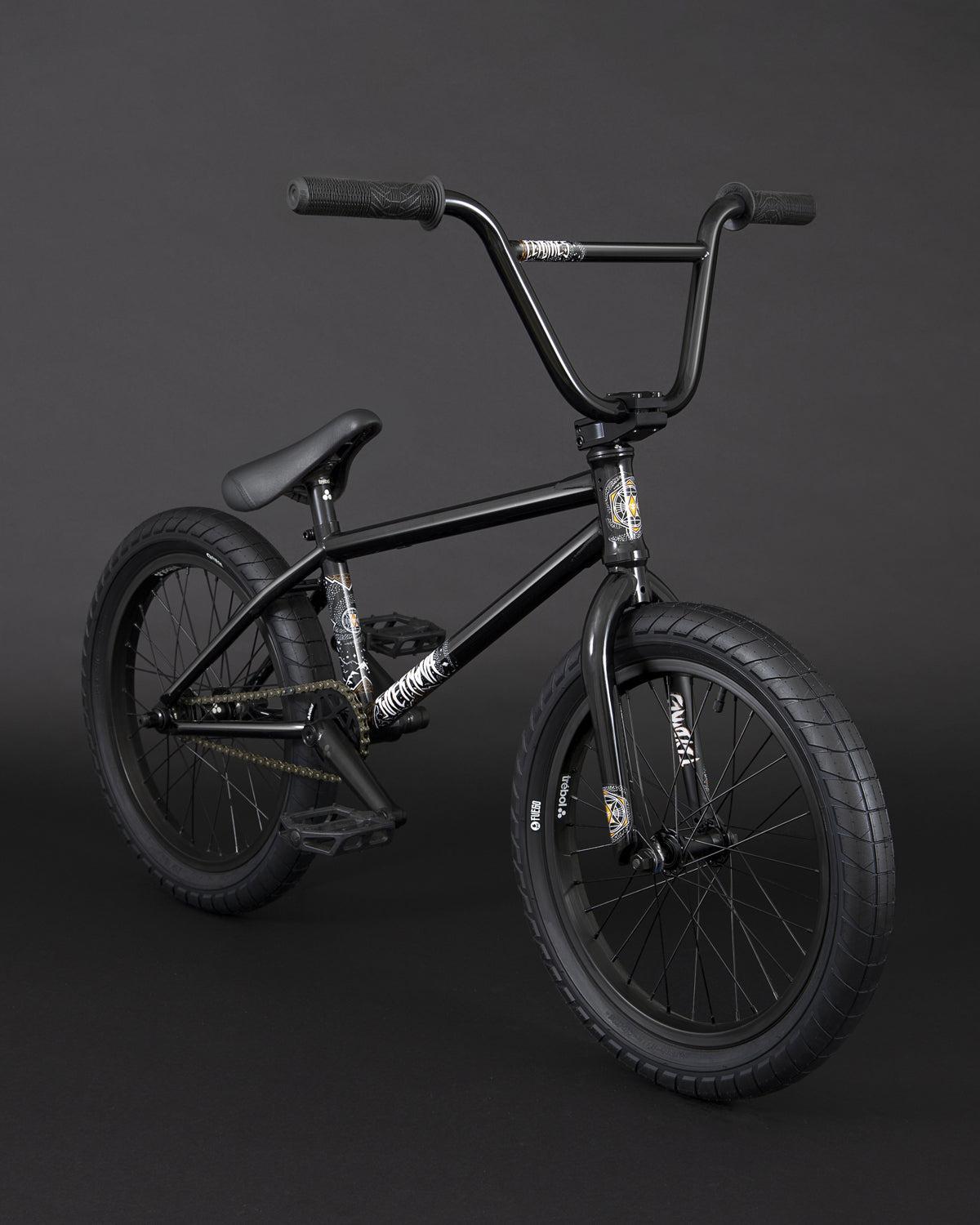

Fly Bikes Supernova 18 Inch Bike / Gloss Black

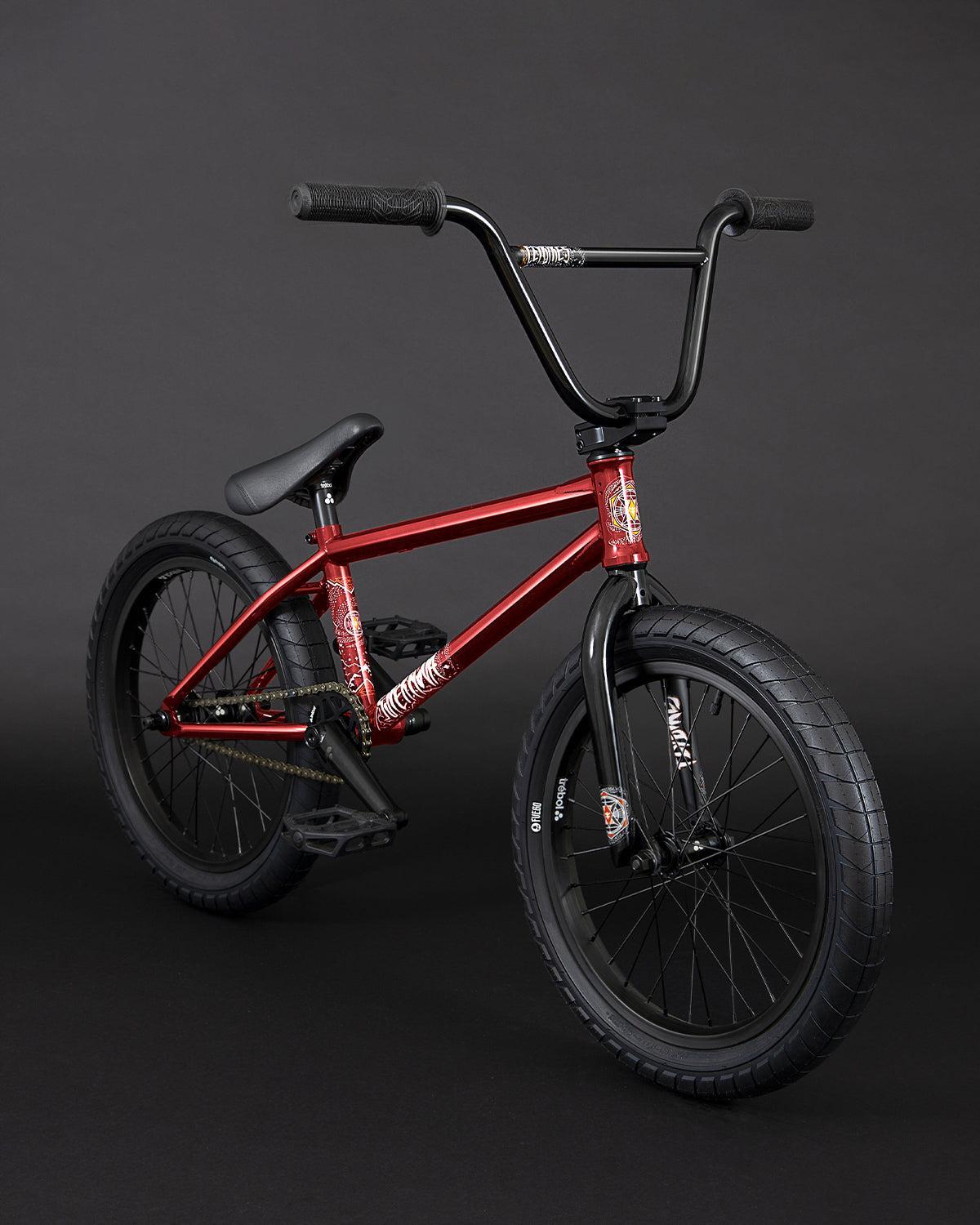

Fly Bikes Supernova 18 Inch Bike / Flat Red

Description

The Supernova 18" is one of the best Fly complete bikes for younger shredders from 7 to 12 years. It comes with 100% chromoly bars, frame and the new cone shaped forks, so the parts that take the hits are the strong ones.

On top of that the Supernova is fully equipped with the Fly aftermarket parts that suit an 18" bike: fully sealed hubs, Fuego 18" tyres, 3-piece Trebol cranks and removable brake mounts, plus 18" specific parts like the Fly Mini brake lever, Fly Ruben II Mini grips and the 40mm Mini stem. It all adds up to a bike made for the youngest riders at any level.

Features

100% chromoly frame, forks and bars. Full 4130 chromoly through the frame, the new cone shaped forks and the bars, with removable brake mounts for a clean look.
Sized for 7 to 12 year olds. A 17.5" top tube, 11.6" chainstays and an 8" standover keep everything in proportion for a younger rider.
18" specific cockpit. A Fly Mini brake lever, Fly Ruben II Mini grips and a 40mm Trebol Mini top load stem, so small hands can reach and hold on.
Trebol 3-piece chromoly cranks, 152mm. Short chromoly arms on a sealed Spanish bottom bracket, with a CNC machined 25T Trebol sprocket.
Fully sealed hubs and Fuego tyres. Sealed bearing hubs on semi-double walled Trebol rims, wrapped in Fly Fuego 18" rubber.

Specifications

Size: 18" wheels, 17.5" top tube
Frame: Full 4130 CrMo, removable brake mounts
Top tube: 17.5"
Chainstay: 11.6"
Head tube angle: 75°
Seat tube angle: 71°
Standover: 8"
Bottom bracket height: 10.5"
Fork: Full 4130 CrMo with integrated cone shape design, 25mm offset
Headset: Trebol Baja internal, sealed bearing
Stem: Trebol Mini top load, 40mm reach, forged 6061 T-6 aluminium
Bars: Full 4130 CrMo, 8" rise, 26" wide, 10° backsweep, 2° upsweep
Grips: Fly Ruben II Mini, 130mm long
Brakes: Trebol Springhanger, forged 6061 T-6 aluminium
Brake lever: Fly Manual Mini, right, die cast alloy
Cranks: Trebol 3-piece, 4130 CrMo, 152mm arm length
Bottom bracket: Spanish, sealed bearing
Sprocket: Trebol, CNC machined, 6061-T6 aluminium, 25T
Chain: 510 type, 64 links
Pedals: Flybikes Ruben Graphite, nylon and fibreglass compound
Front hub: Trebol male axle, sealed bearing
Rims: Trebol, semi-double walled, 6061-T6 aluminium, 36H
Tyres: Fly Fuego, 18"

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

Fit the handlebars and line them up with the front wheel
Fit the front wheel, pedals and seat post
Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Fly Bikes Supernova 18 Inch Bike

Name: Fly Bikes Supernova 18 Inch Bike
Brand: Fly Bikes
SKU: CBSNBWBR01
Price: 1099.99 AUD
Availability: OutOfStock

Brand: Fly Bikes SKU: Click to copy the SKU and show the pick location

$1,099.99 AUD

Or 4 payments of $274.99 AUD with

Colour - Gloss Black

Top Tube Length - 17.5

Drive Side - Right Hand Drive

An 18 inch bike suits a rider of about 122 to 147cm, usually 7 to 11 years old, on an 18 to 18.5 inch top tube. It is the last step before a full size 20 inch.

Rider height	Wheel size	Top tube
60 to 91cm	12"	12 to 12.5"
81 to 106cm	14"	14 to 14.5"
96 to 122cm	16"	16 to 16.5"
122 to 147cm	18"	18 to 18.5"
147 to 157cm	20"	19.75 to 20.25"
157 to 168cm	20"	20 to 20.5"
168 to 175cm	20"	20.25 to 20.75"
175 to 183cm	20"	20.5 to 21"
183 to 190cm and up	20"	20.75 to 21.5"
160cm and up	22"	21 to 22.25"
160cm and up	24"	21.75 to 22"
160cm and up	26"	22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If your rider is near 147cm and still growing, look at a 20 inch instead: it is the size they will keep riding.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Between an 18 and a 20? Take the 20. It is the size they will keep riding, and an 18 gets outgrown quickly.
They should be able to stand over the top tube with both feet flat on the ground.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
