Fly Bikes Magneto Hub Set (Crmo)

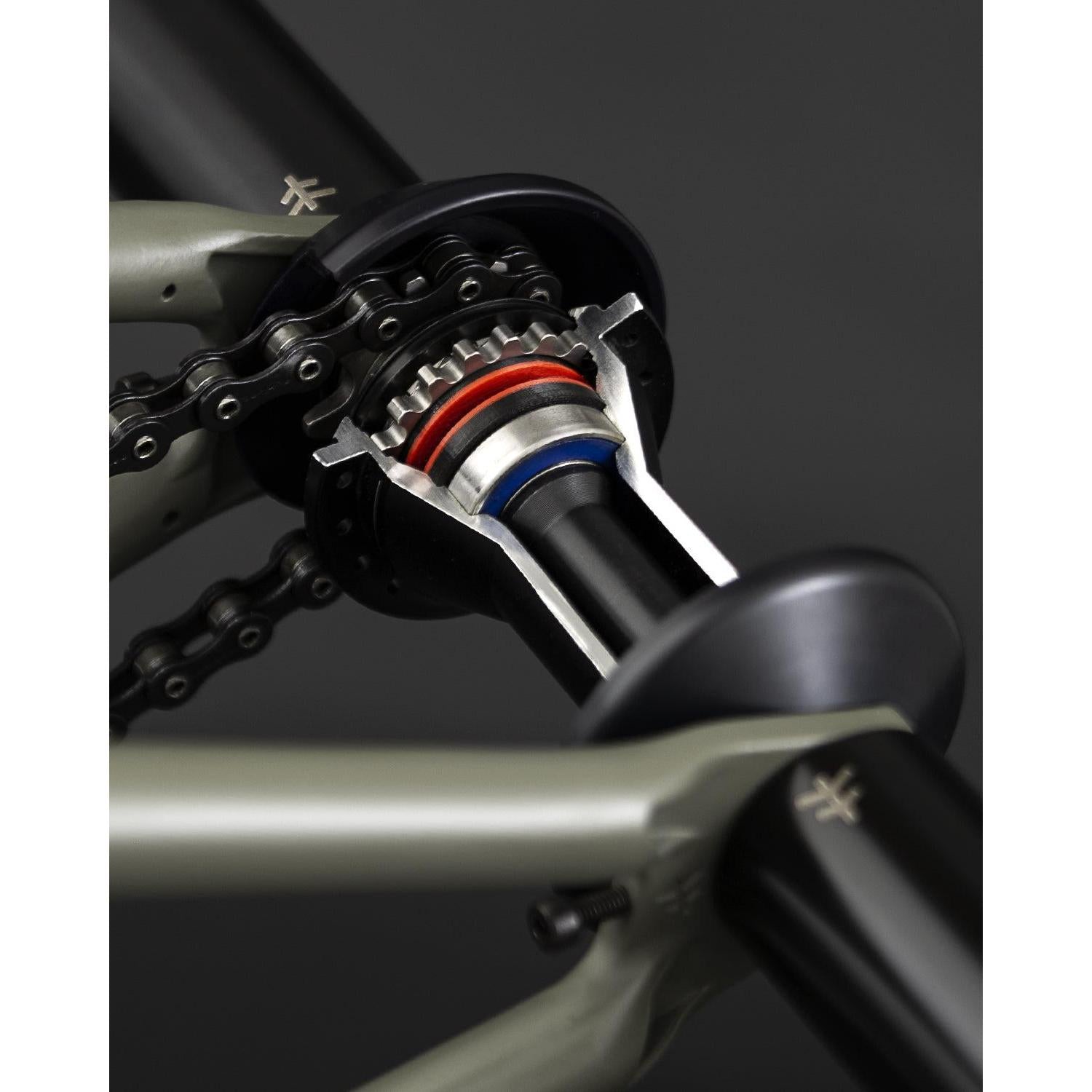

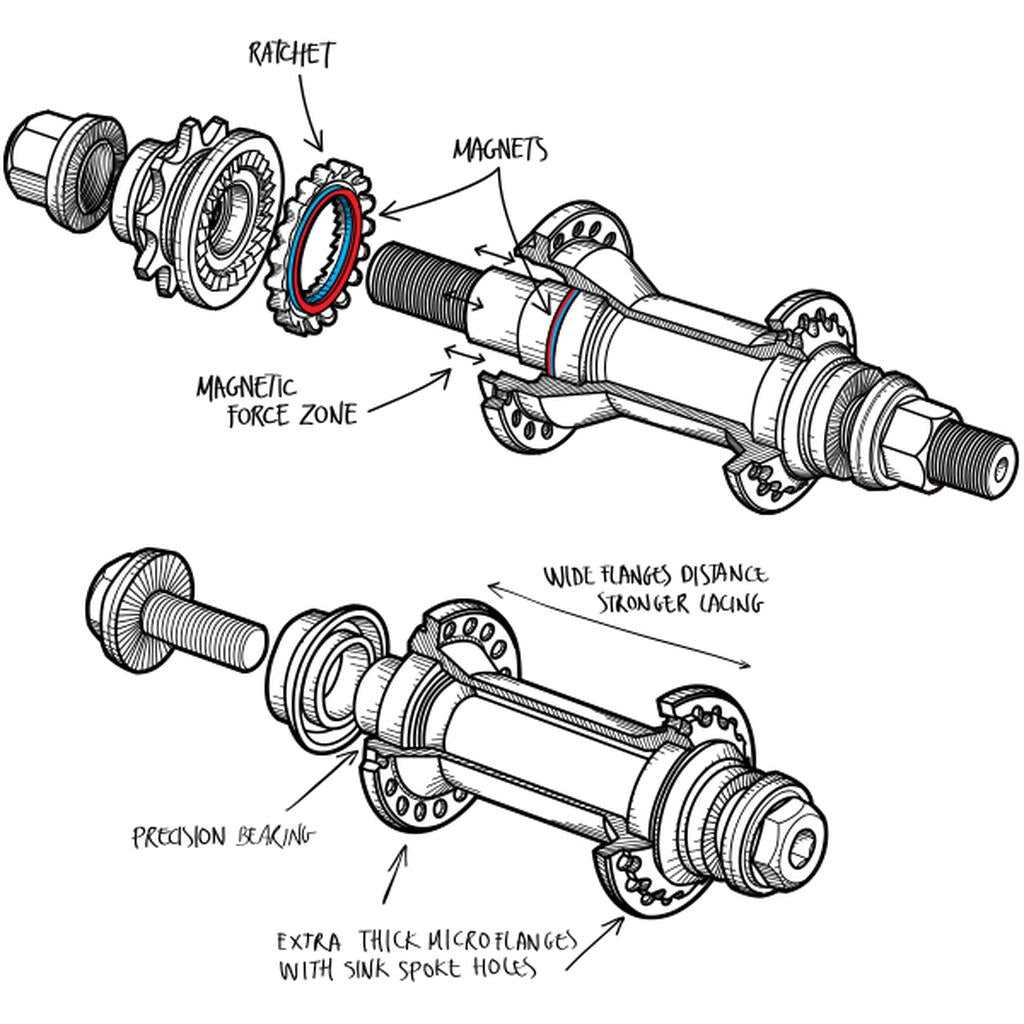

The Magneto Cassette features a magnetic system engage using the force of two magnets that allow the ratchet ring to engage. The magnetic field provides an even repelling force, making the ratchet work completely straight and reducing friction compared to springs system. The Neomidium magnets maintain the magnetic field pretty much forever, as well. These properties create the fastest, most reliable and most durable system possible. Not to mention, the unique and powerful noise...
The Magneto Front Hub features oversized bearings that allow us to use a strong 7075 Aluminum female axle. The end caps and bolts use the same process as the Cassette hub. Compatible with Magneto non-drive side hub guard.

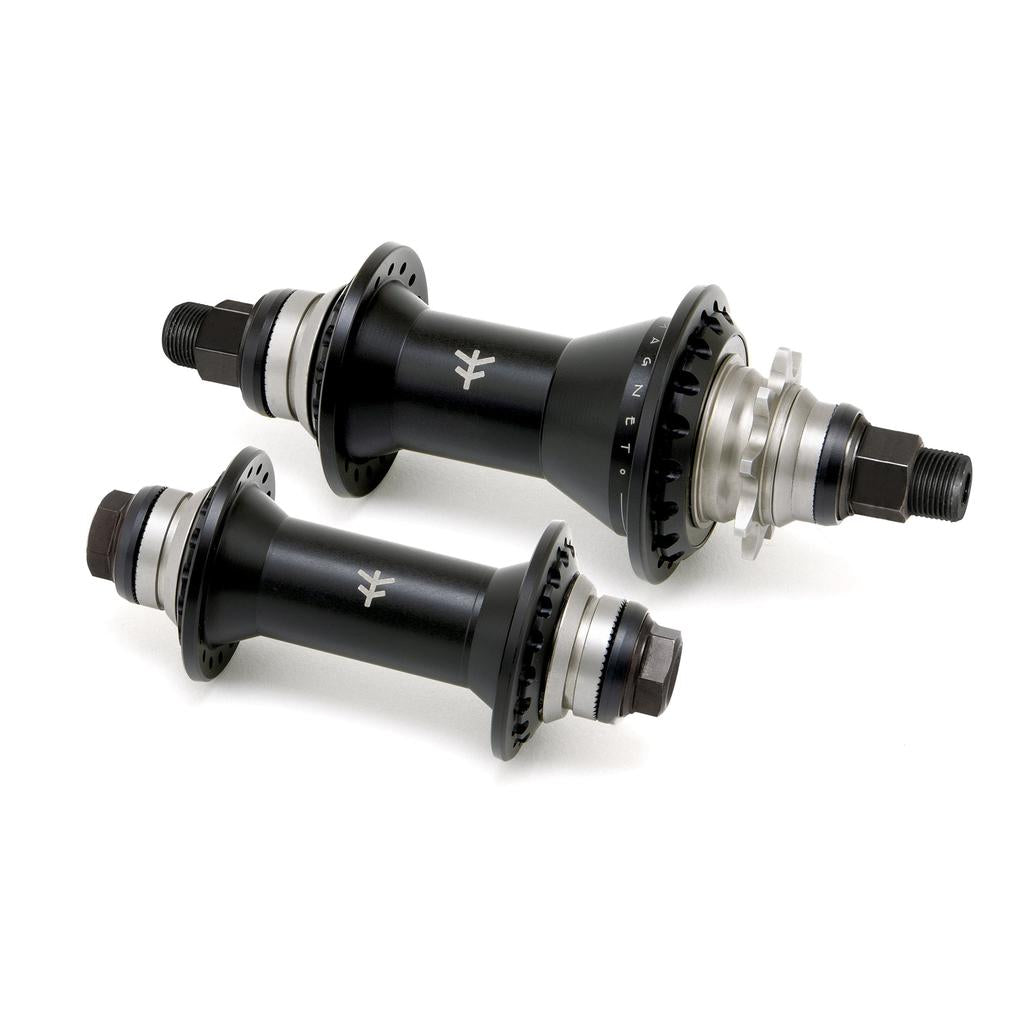

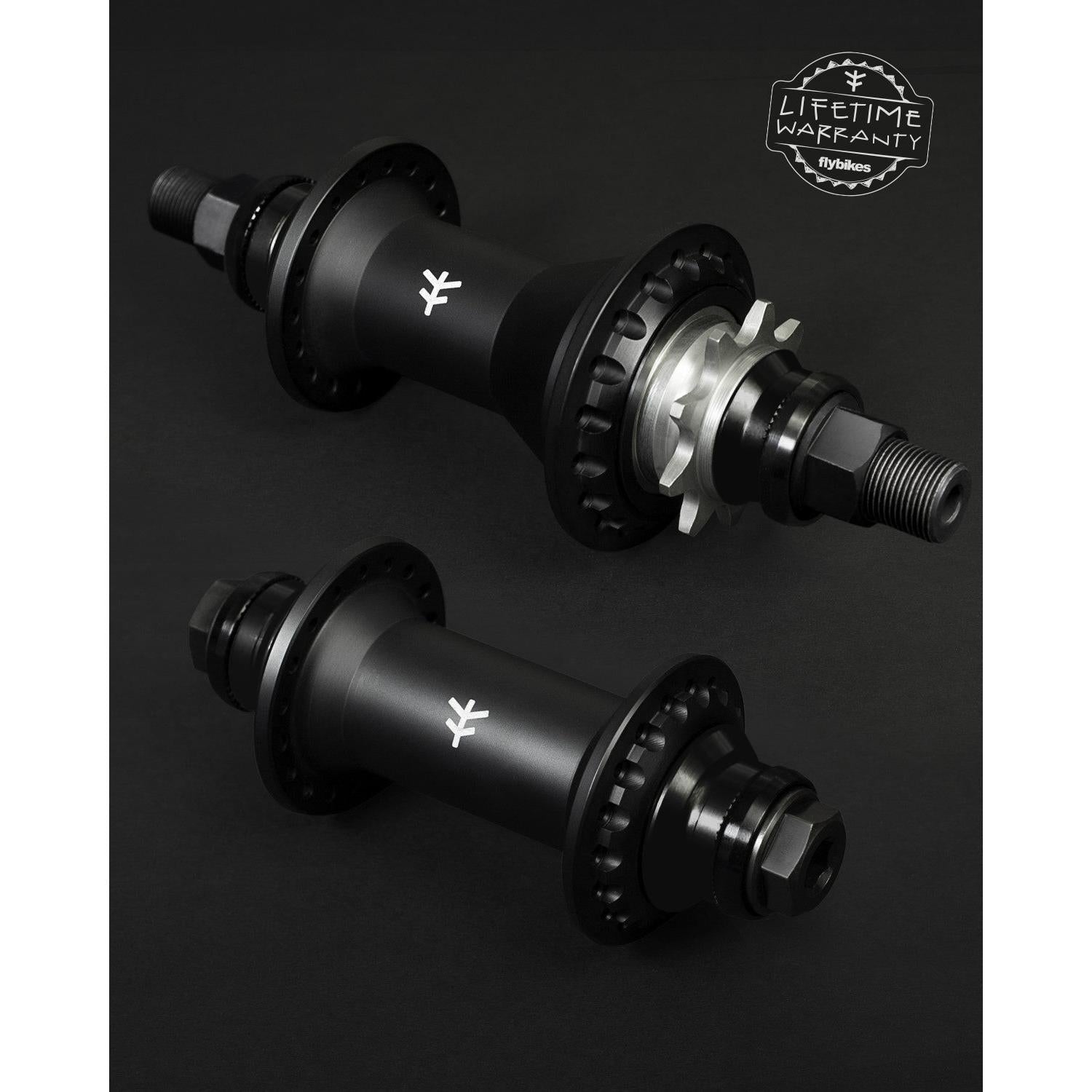

• This set contains both front and rear Magneto hubs.
• Covered with lifetime warranty.
• Made in Europe.

The hub features 10mm. / 3/8" bolt on drive side with 14mm. OD section to fit the dropout.
Only works with dropouts 6mm. and thicker. For thinner dropouts, a 14mm. ID washer is required.
Female version is not suitable for peg use on the drive side.
The simplicity of the system is also great for customization. The Magneto cassette features ONLY ONE moving part, the assembly is as easy as it can get and reduces the overall weight significantly.
We are using heat treated CrMo caps instead of aluminum to be stiff and avoid wobble that can form over time and they are CNC machined outside and inside to achieve almost the same weight.
The shell is made of a much stronger 7075 Aluminum and features the sunken spoke holes.
The driver end caps and bolts use an anti-rust process that also gives the hub an awesome color finish.
Magneto Cassette Hub Male Specs:
Magneto magnetic engage system
7075-T6 Aluminum shell with recessed spoke holes design
Heat treated CrMo driver, caps & bolts with anti-rust treatment
Heat treated CrMo axle
Internally & externally machined CNC CrMo caps
Compatible with Magneto Hub Guards
Drive Side Nylon guard available
Made in Europe
Weight CrMo Male axle: 475 gr / 16.7 oz.
Lacing Info:
Drive Side Flange Diameter: 48mm / 8mm Spokes
Driveside Ofsett: 29mm
Non-Drive Side Flange Diameter: 41mm / 8mm Spokes
Non-Drive Side Offset: 19mm
Magneto Front Hub Specs:
7075-T6 Aluminum shell
Oversized high quality bearings
Internally & externally machined CNC CrMo caps
Heat treated CrMo axle
Heat treated CrMo driver, caps & bolts with anti-rust treatment
Nylon Guard compatible with rear hub
Made in Europe
Weight CrMo axle: 328 gr / 11.5 oz
Lacing Info:
Flange Diameter: 41mm / 8mm Spokes
Offset: 19mm
Spoke Lengths:
Magneto Cassette to Lunar Rim: 184mm Drive Side / 186mm Non-Drive Side
Magneto Cassette to Lunar X Lace Rim: 188mm Drive Side / 190mm Non-Drive Side
Magneto Front to Lunar Rim: 186mm
Magneto Front to Lunar X Lace Rim: 190mm
