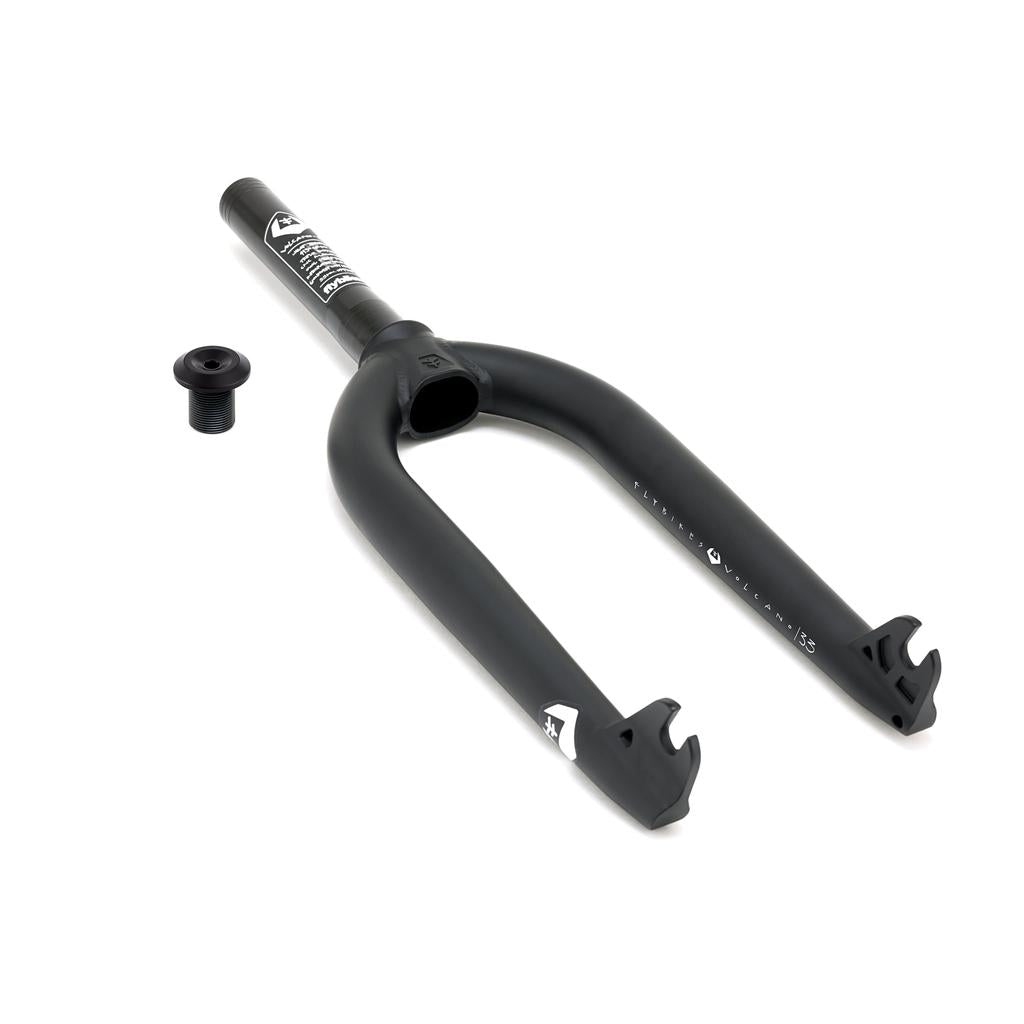

A Fly Bikes Volcano Forks in sleek black, designed for optimal tire clearance, with a small separate component, rests on a pristine white background.

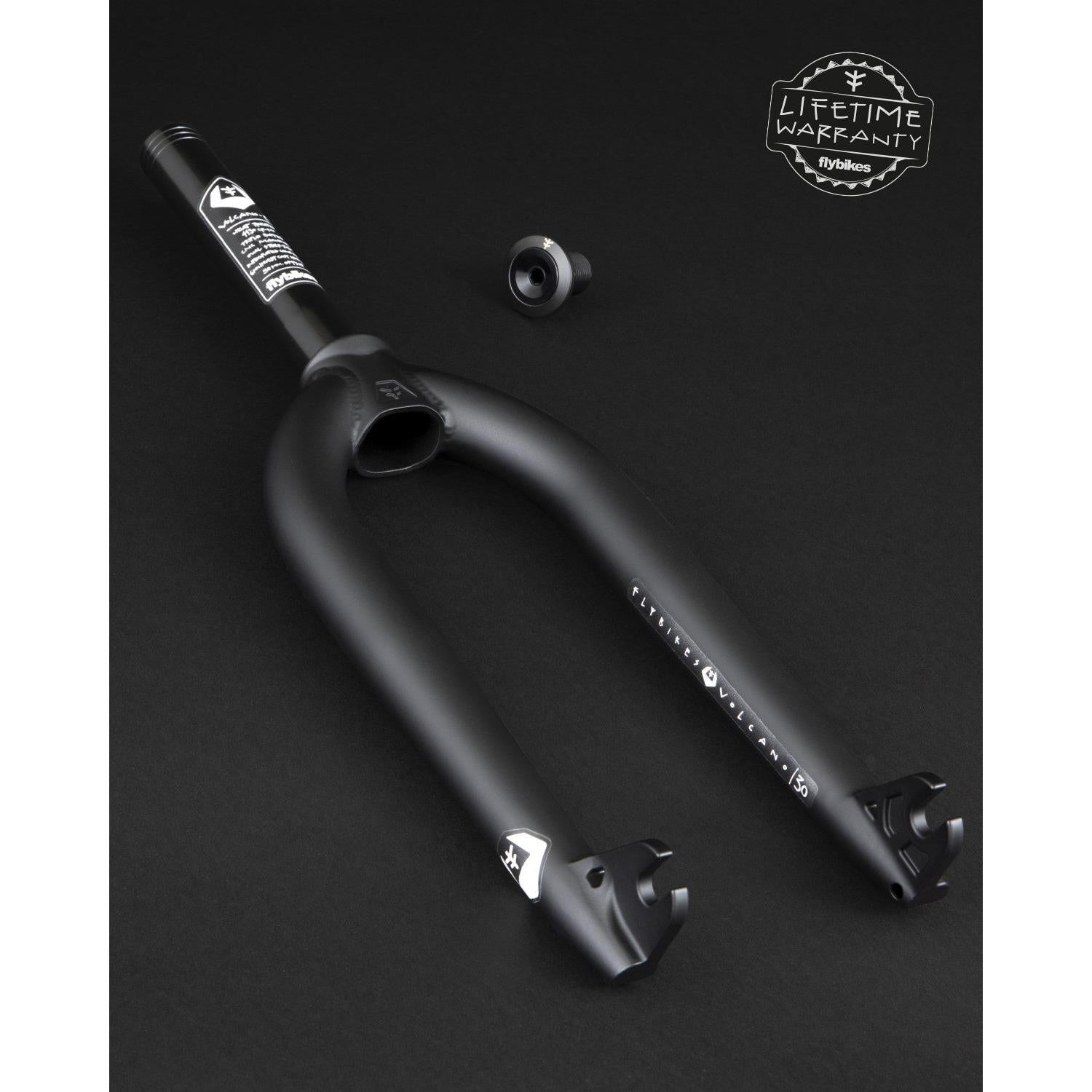

The Fly Bikes Volcano Forks, ideal for BMX steer-tubes, are presented on a dark background with an added metallic part. The black fork includes an attached label and a "Lifetime Warranty" badge, highlighting its exceptional durability and tire clearance.

Close-up of Fly Bikes Volcano Forks and tire, showcasing the generous tire clearance on this BMX steer-tube from the front, against a dark background.

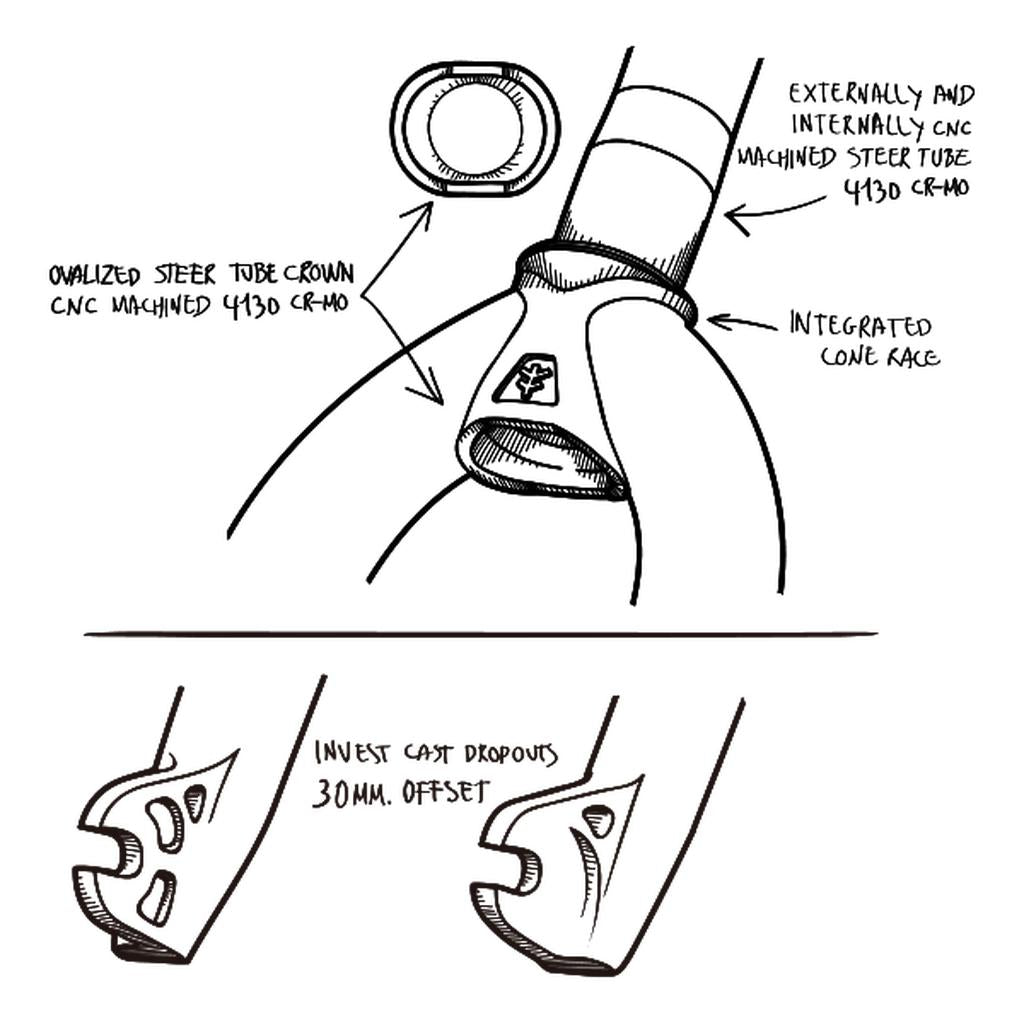

The Fly Bikes Volcano Forks feature technical illustrations highlighting CNC machined BMX steer-tubes, invest cast dropouts with a 30mm offset, and ample tire clearance.

Description

The Volcano is a new take on the BMX steerer tube. A slightly ovalised fork crown spreads the fork legs further apart for greater tyre clearance, creates a stronger overall junction, and flushes the crown up to the base of the head tube for a seamless look.

The Volcano 30 dropouts are a refined 30mm offset version of the Agua dropout, with an improved bottom cone that is angled and rounded to avoid hanging up during grinds. An improved welding process gives deeper weld penetration, and the Volcano top bolt uses a sunken cone washer for better tightening and threads into an insert rather than into the steerer itself. Legs are seamless Sanko triple butted 4130 chromoly, fully post weld heat treated.

Features

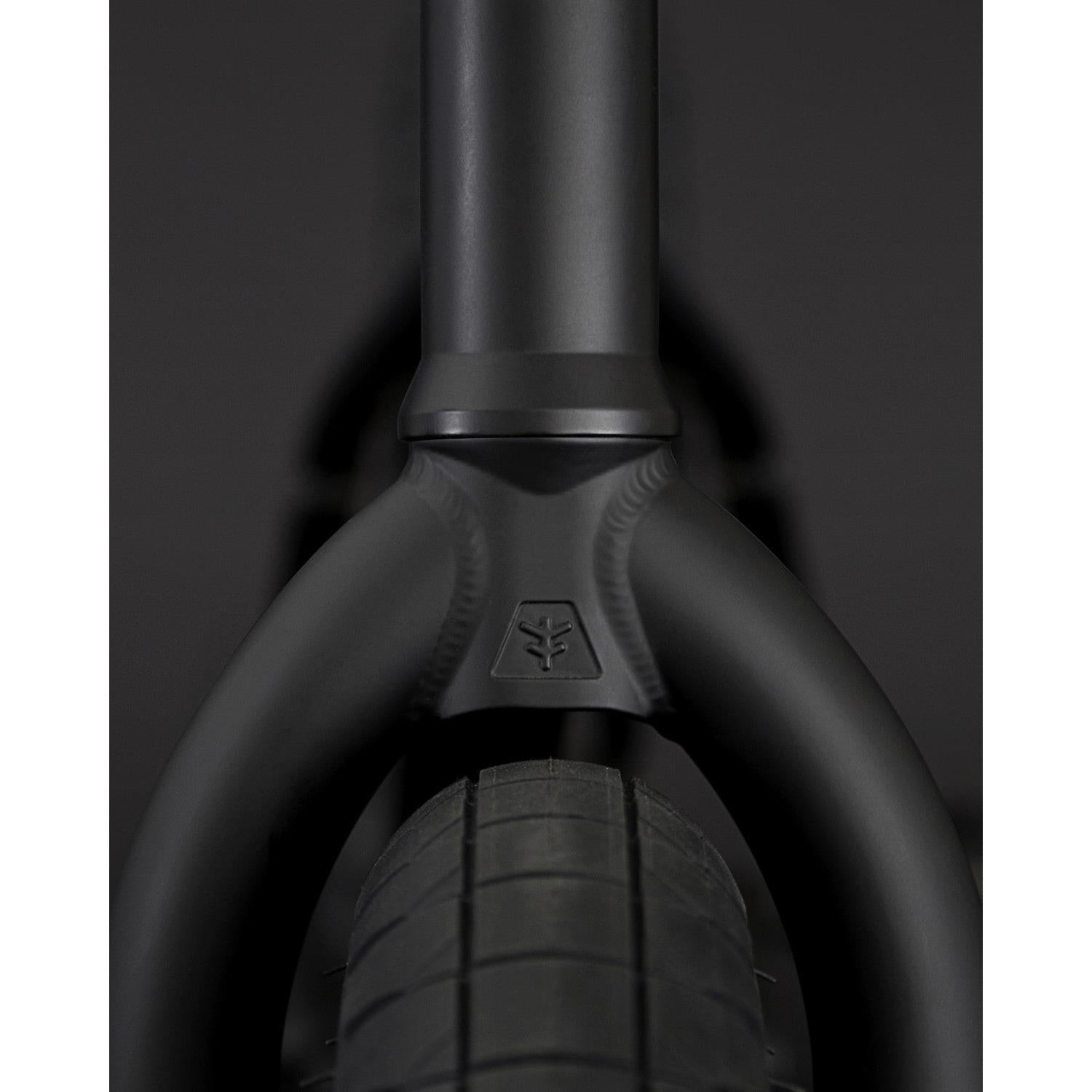

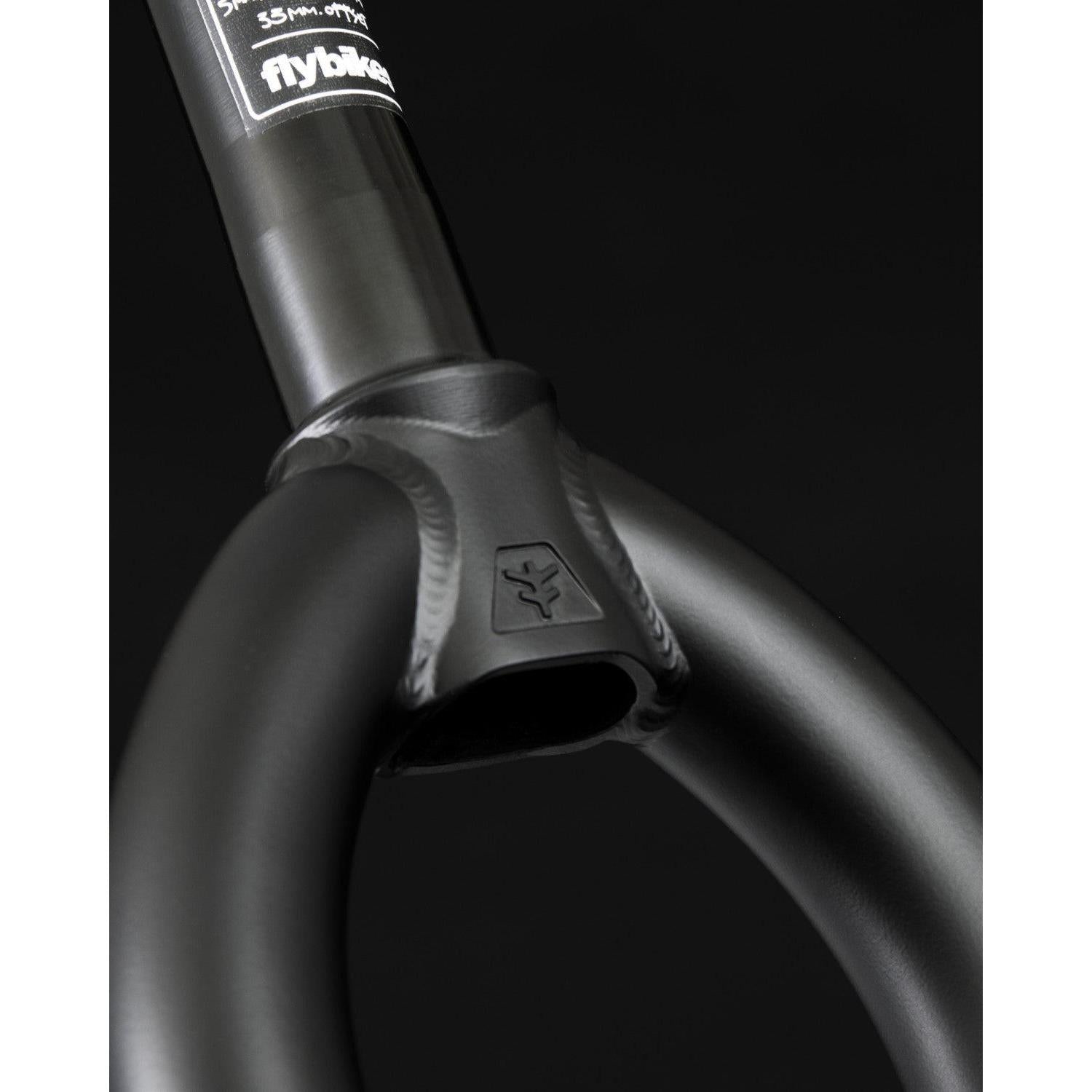

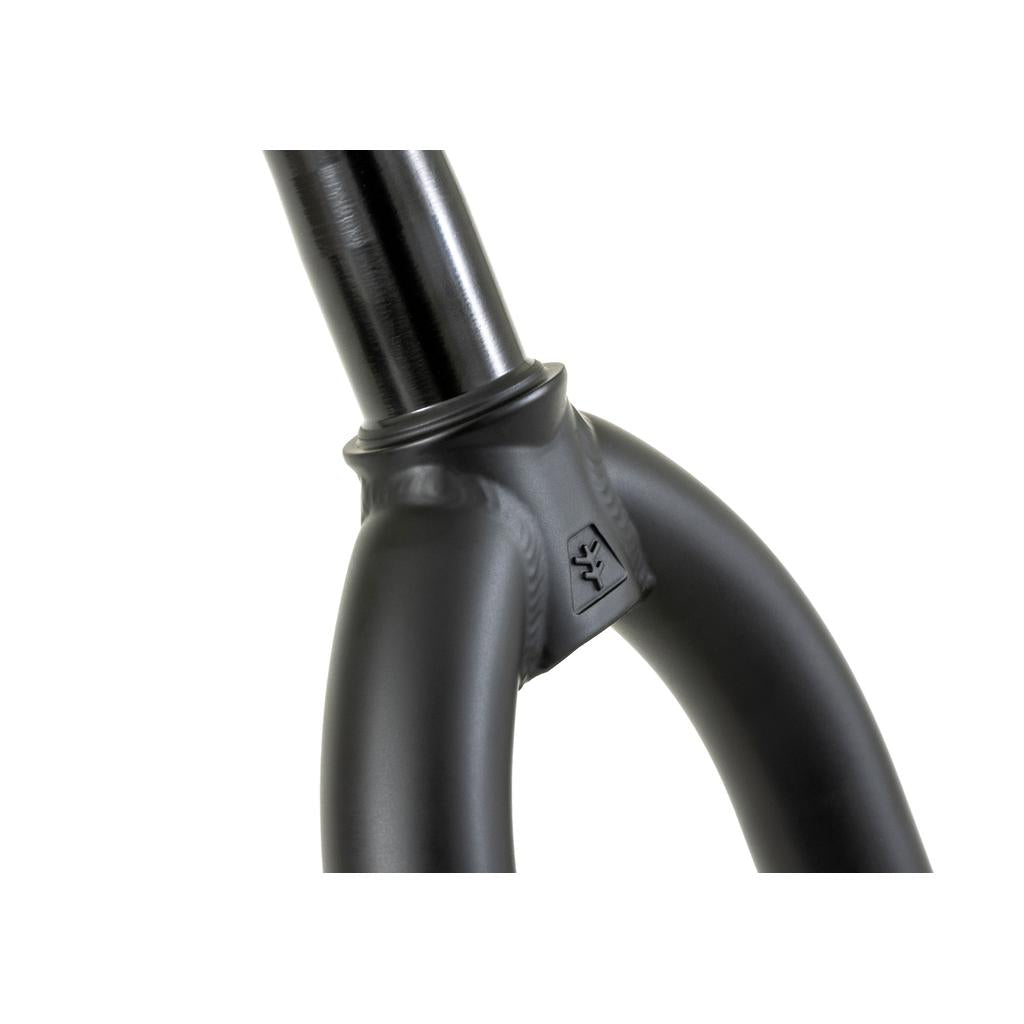

Ovalised crown, seamless look. The slightly ovalised crown spreads the legs further apart for greater tyre clearance and flushes up to the base of the head tube.

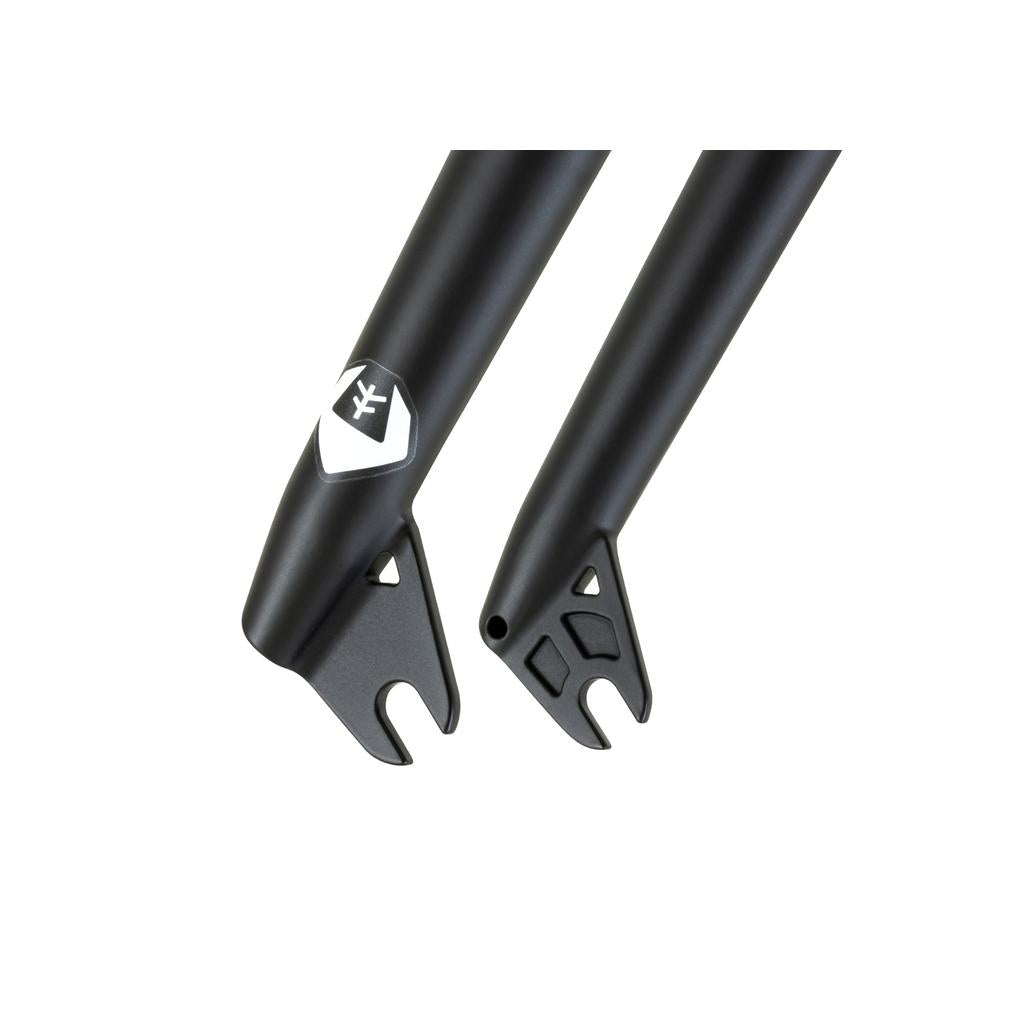

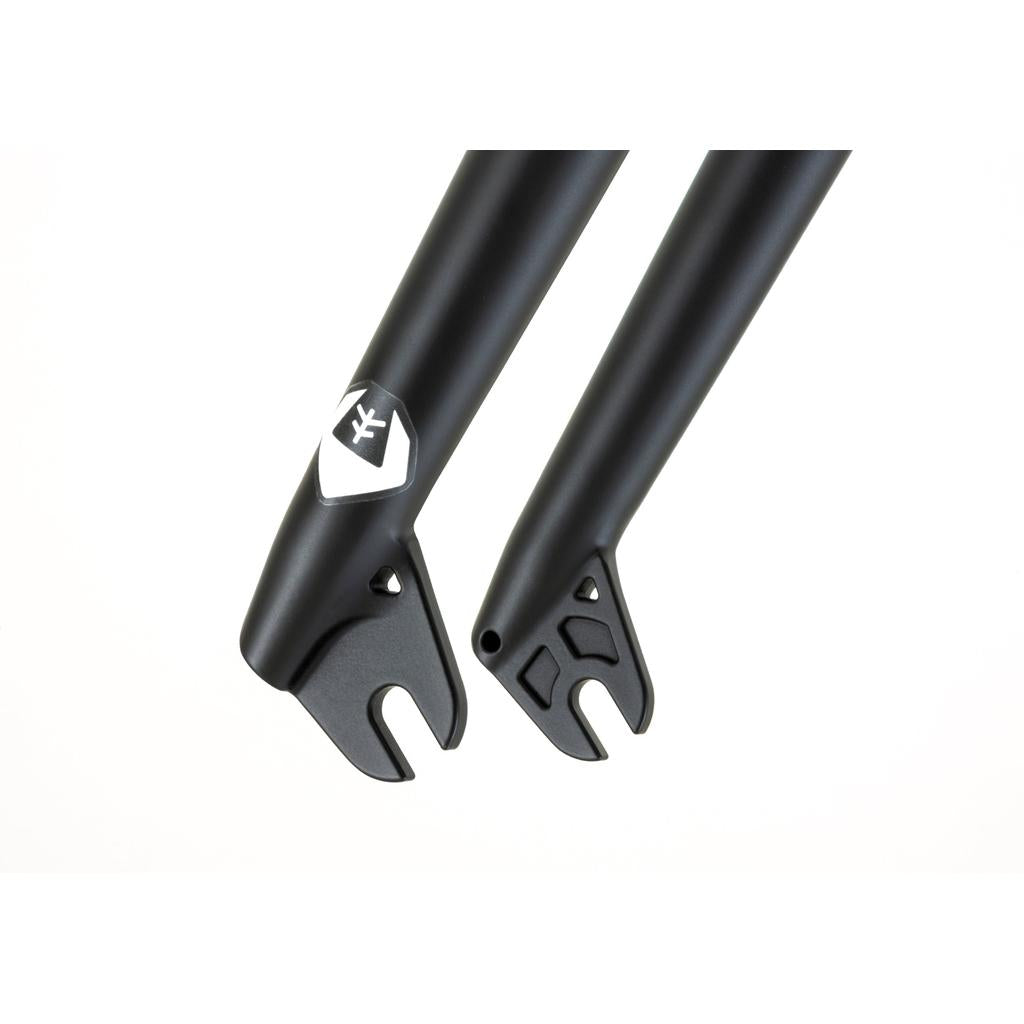

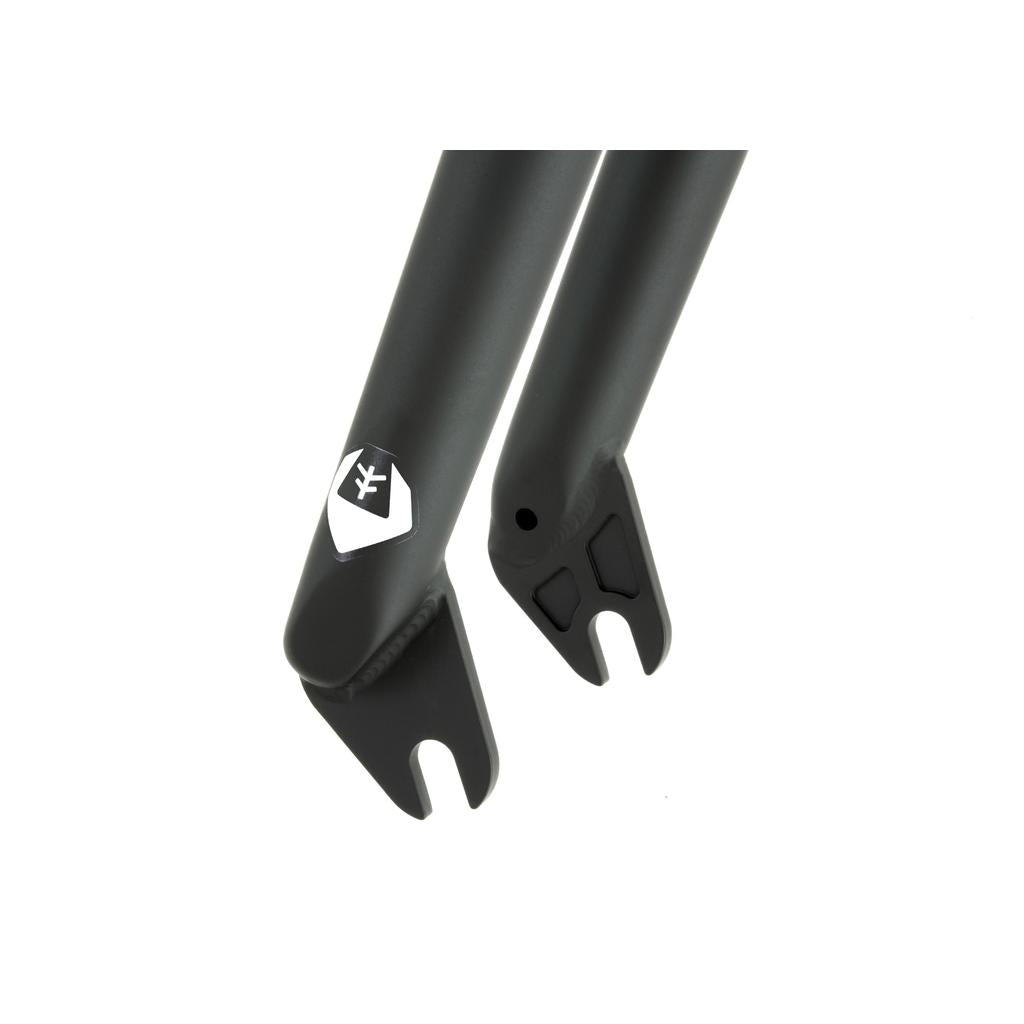

Volcano 30 dropouts. A refined 30mm offset version of the Agua dropout, with the bottom cone angled and rounded so it does not hang up during grinds.
Stronger steerer, better top bolt. The top bolt threads into an insert rather than into the steerer, and a sunken cone washer helps it tighten down properly.
Deeper weld penetration. An improved welding process was used to make this fork as strong as Fly could possibly get it.
Sanko triple butted legs. Seamless 4130 chromoly, fully post weld heat treated, 1.049 kg in black or 1.014 kg in flat raw with the top bolt.

Specifications

Material: 4130 chromoly
Butting: Sanko triple butted
Dropouts: Volcano 30, investment cast 4130 chromoly
Steerer: CNC machined 4130 chromoly, 165 mm, ovalised crown, insert for the top bolt
Fork offset: 30 mm
Fork legs: Seamless 4130 chromoly, Sanko triple butted
Weight: 1.049 kg / 2.31 lb black, 1.014 kg / 2.23 lb flat raw, top bolt included
Colour: Black, Flat Raw
Note: Full post welding heat treated. Top bolt is CNC machined 7075 T6 aluminium
