Haro Lineage Sport Freestyler Bashguard 20 Bike / Black/ 21TT

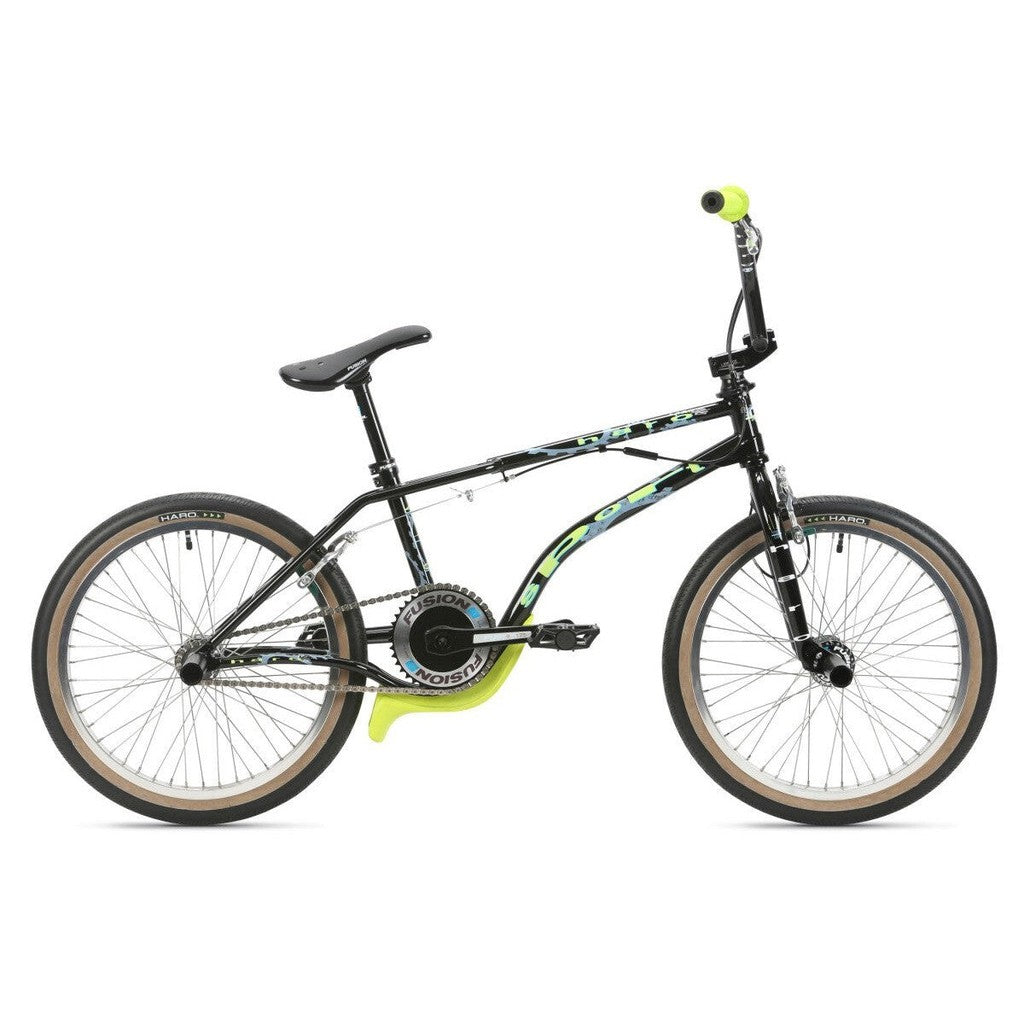

Product Description: A sleek Haro Lineage Sport Freestyler Bashguard 20 Bike resting gracefully on a polished wooden floor.
Haro Lineage Sport Freestyler Bashguard 20 Bike

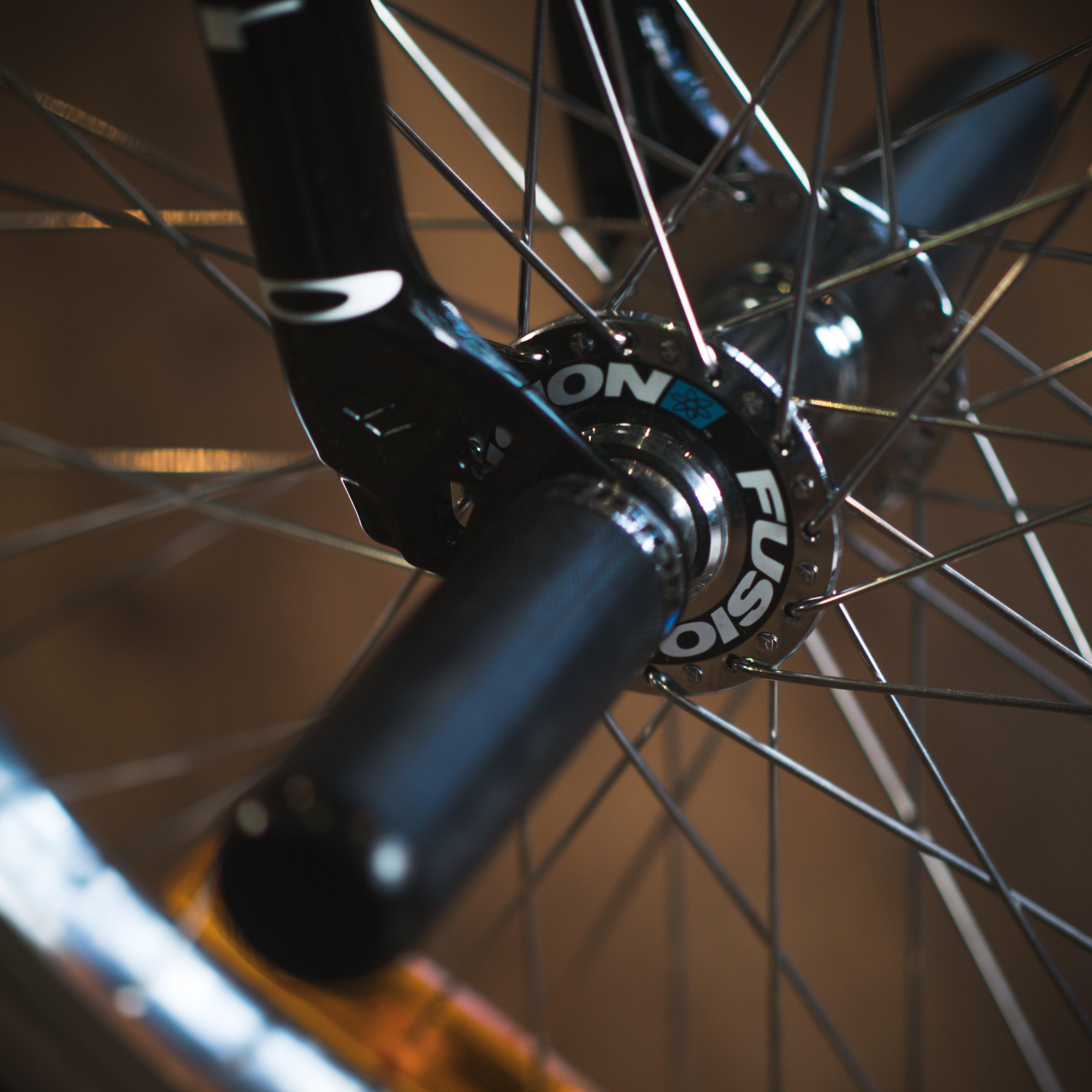

A detailed shot of a Haro Lineage Sport Freestyler Bashguard 20 Bike wheel.

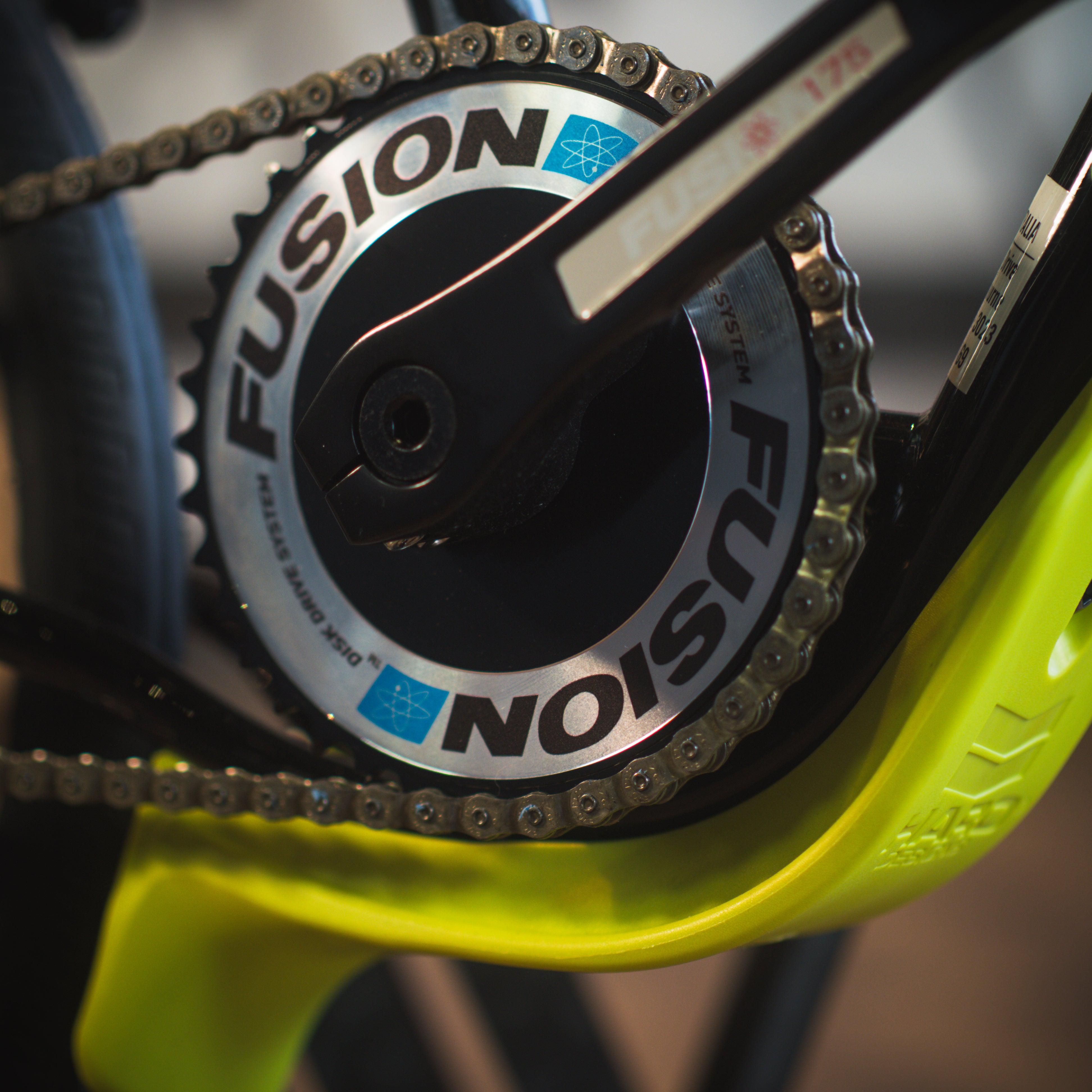

A detailed image of a Haro Lineage Sport Freestyler Bashguard 20 Bike gear.

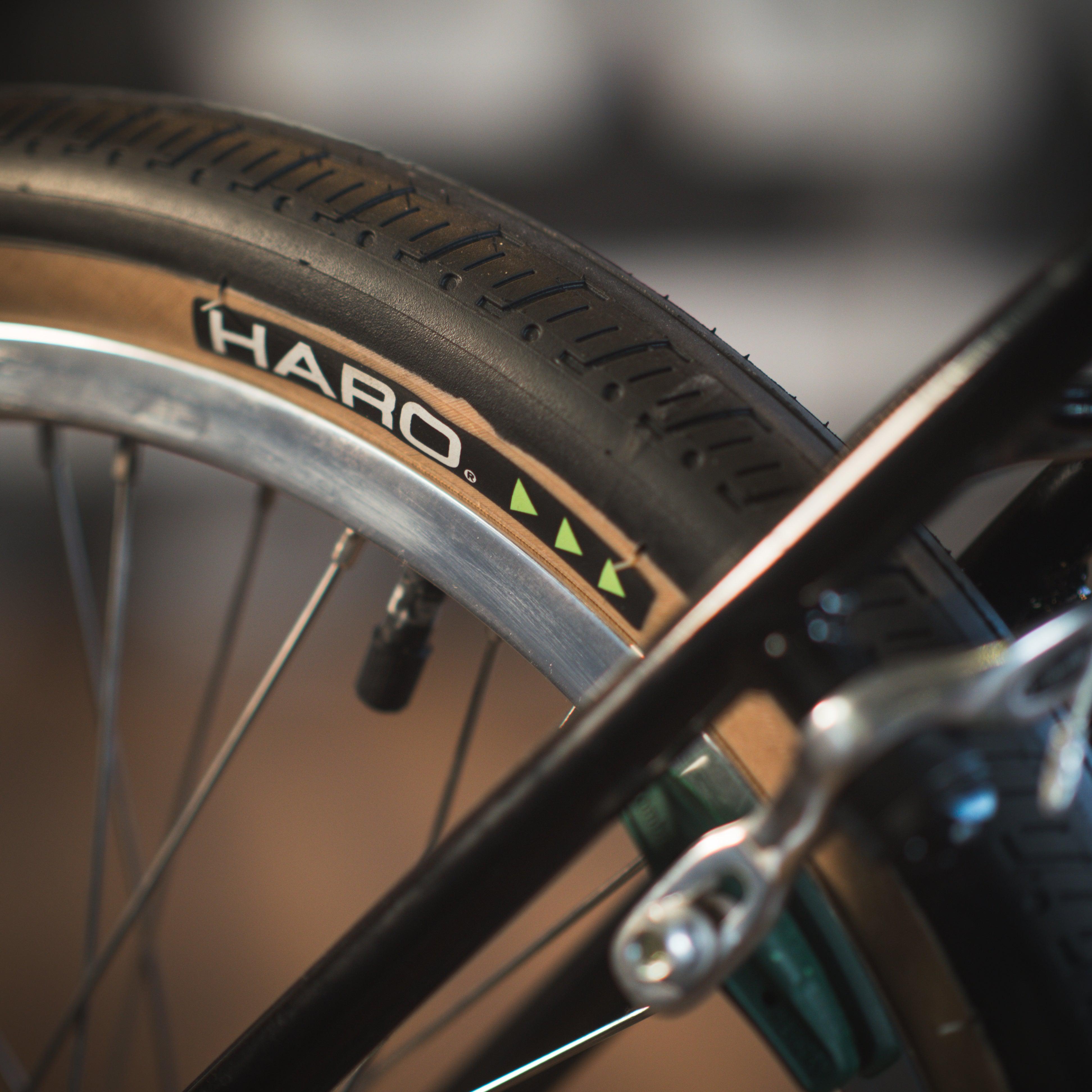

A detailed shot of a Haro Lineage Sport Freestyler Bashguard 20 Bike tire.

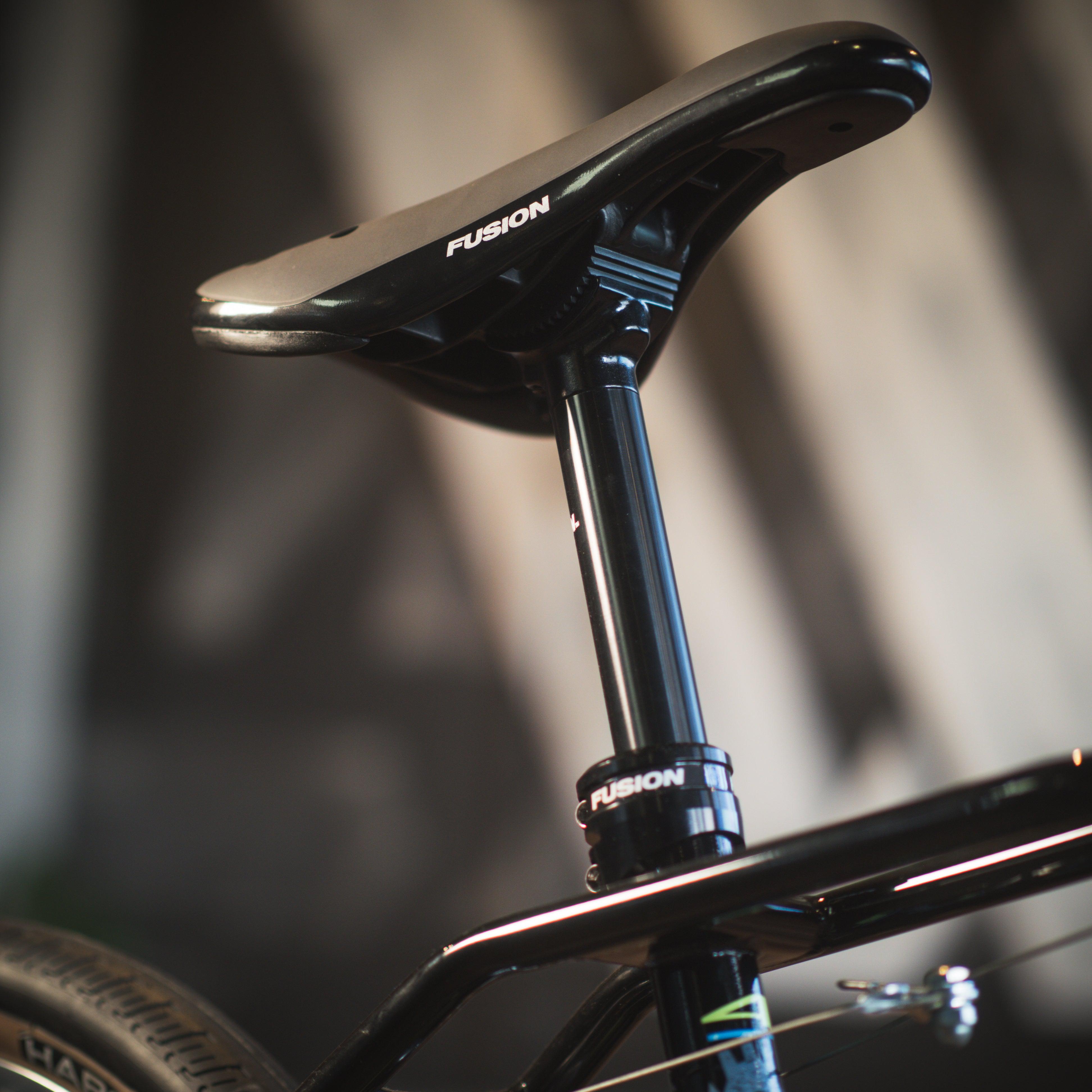

A close up of a Haro Lineage Sport Freestyler Bashguard 20 Bike with a black seat.

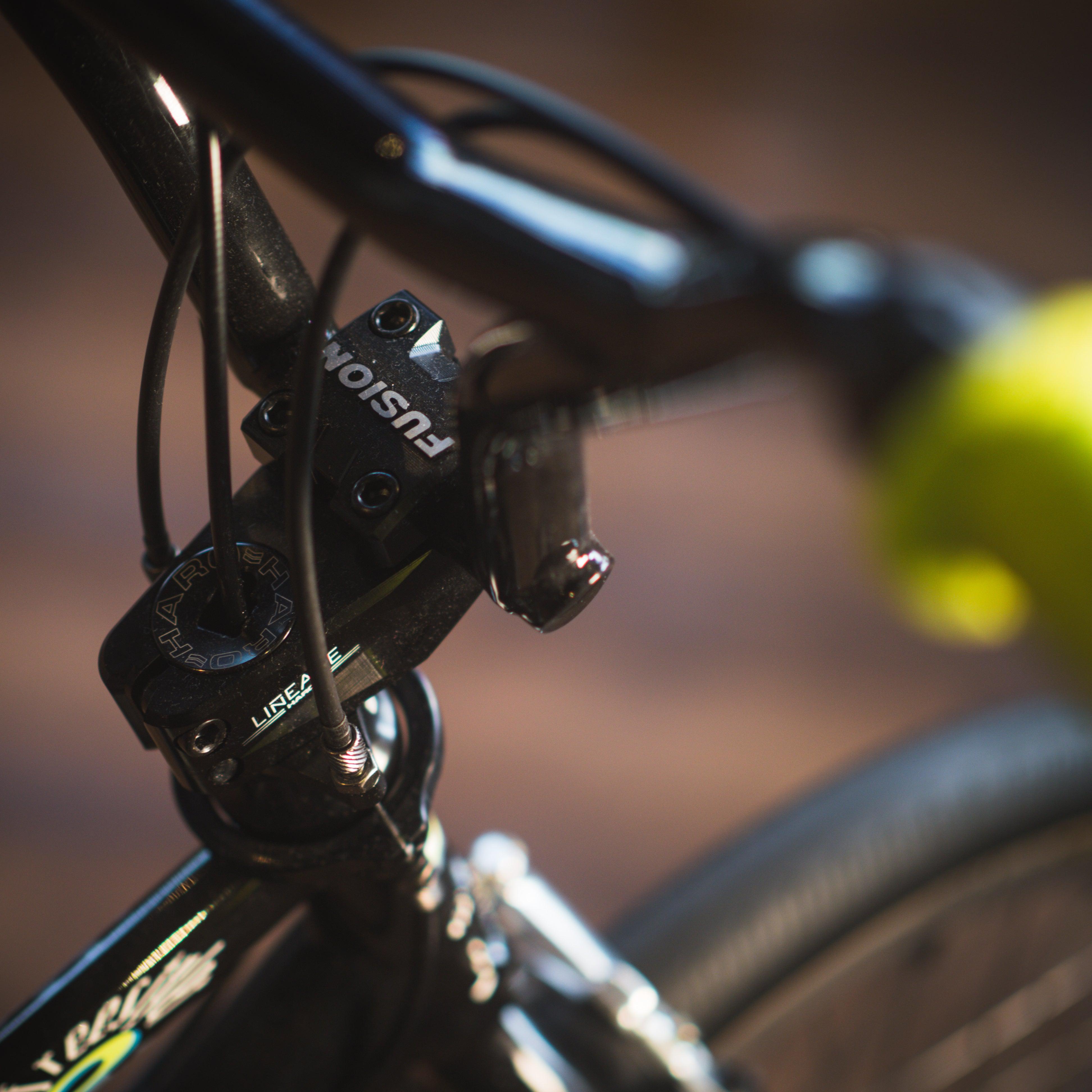

A detailed view of the Haro Lineage Sport Freestyler Bashguard 20 Bike handlebars.

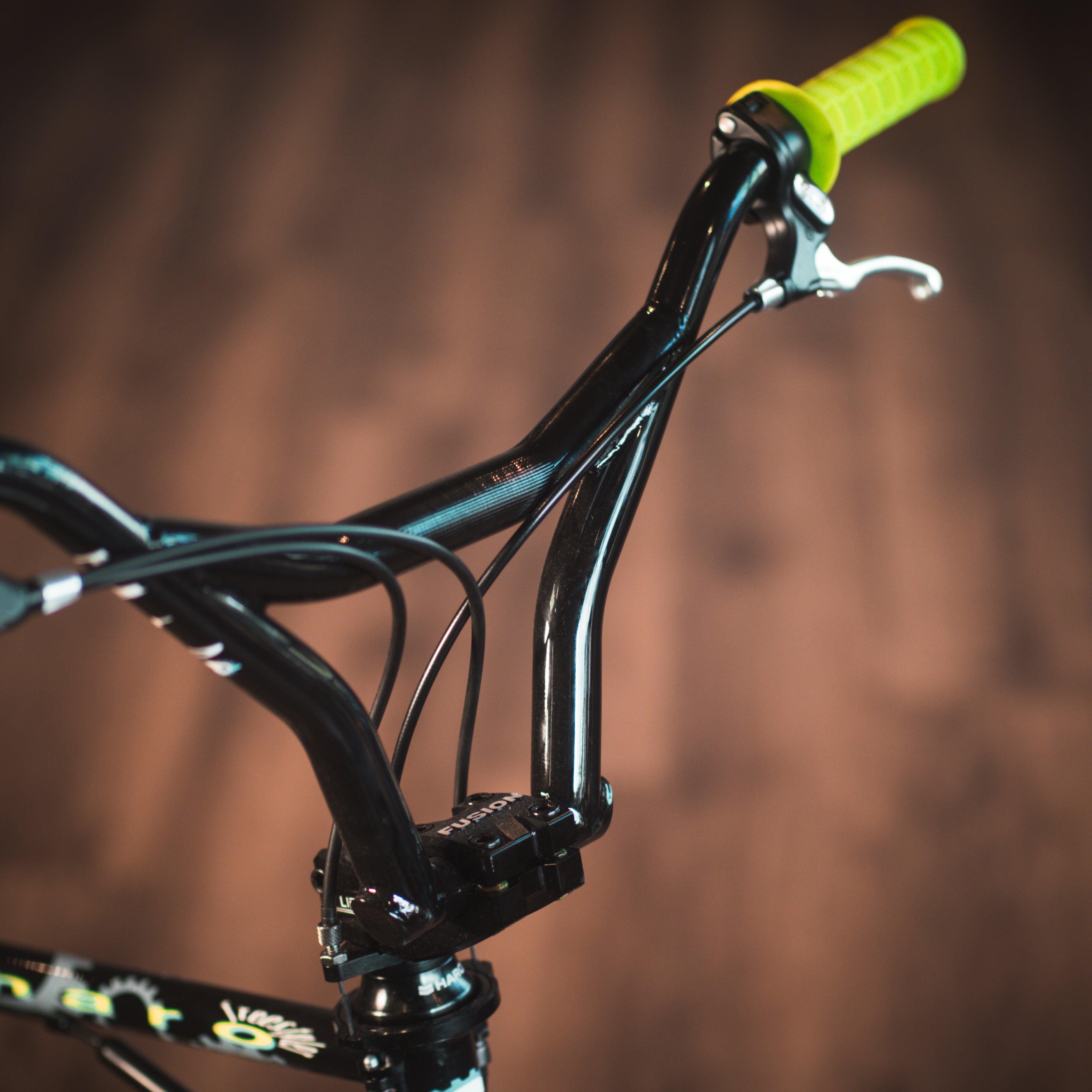

A close up of a Haro Lineage Sport Freestyler Bashguard 20 Bike with yellow handlebars.

Highlights

  • Replaceable nylon bash guard
  • All chromoly frame and fork
  • Roomy 21" top tube
  • Era-correct wheels, ready for action

Description


Bash guard BMX subculture" is a thing and the seeds for the Lineage Sport Bashguard were planted in 1992. In the here and now, this bike is designed to do everything it could then (and a lot of things it couldn't). All chromoly construction with a durable, replaceable nylon bash guard. A roomy 21" top tube length, hourglass mid BB shell, seatstay brake mounts and heat-treated chromoly forks are all ready for big riders to go big. The wheel set is era-correct and ready for action: Double wall rims, high flange hubs and 100PSI Haro HPF tires roll fast and stay tight. Bolt on Kneesaver bars, knurled alloy pegs and a collection of our Fusion parts line for a timeless BMX dream machine.

Features
  • Replaceable nylon bash guard. A durable guard sits on the frame platform and can be swapped once it wears, so the bike keeps doing what it did in 1992.
  • All chromoly frame and fork. 100% chromoly frame with mid BB shell and integrated head tube, plus a heat-treated fork with internal brake cable routing.
  • Roomy 21" top tube. Built for bigger riders to go big, with seatstay brake mounts and Lineage cast dropouts with integrated chain tensioners.
  • Era-correct wheels, ready for action. Double wall rims, fully sealed high flange hubs and 100 psi Haro HPF 20 x 2.2" tyres roll fast and stay tight.
  • Bolt-on Kneesaver bars and pegs. 8.5" heat-treated butted chromoly Kneesaver bars, CNC alloy pegs and a CNC alloy gyro with Teflon bearing.

Specifications
  • Size: 20" wheels, 21" top tube
  • Frame: 100% chromoly Lineage Sport frame with platform and bash guard, mid BB shell, integrated head tube, Lineage cast dropouts with integrated chain tensioners
  • Top tube: 21"
  • Fork: 100% heat-treated chromoly Lineage fork, CNC 1-piece internal threaded steer tube, integrated bearing race, tapered legs, investment cast dropouts, 990 brake mounts with internal brake cable routing
  • Stem: Haro Lineage CNC alloy top load
  • Bars: 100% heat-treated and butted chromoly Lineage Kneesaver bars, 8.5"
  • Grips: Haro Team grips
  • Brakes: Dia-Compe Hombre FS996 front and AD996 rear
  • Brake lever: Dia-Compe Tech 77
  • Cranks: Lineage Fusion alloy 175mm cranks with 22mm chromoly spindle
  • Bottom bracket: Sealed mid
  • Sprocket: Haro Lineage Fusion Disc 39T CNC alloy bolt drive
  • Chain: KMC K710SL super light
  • Pedals: Haro Fusion alloy
  • Front hub: Lineage high flange, fully sealed
  • Rear hub: Lineage high flange, fully sealed, 14T cassette
  • Rear cog: 14T
  • Rims: Double-wall alloy
  • Tyres: Haro HPF 100 psi, 20 x 2.2" front and rear
  • Seat: Haro Lineage padded Pivotal stealth Fusion seat
  • Seat post: Alloy Lineage Pivotal fluted post
  • Seat clamp: Haro Lineage two-bolt alloy
  • Pegs: CNC alloy
  • Gearing: 39/14
  • Note: CNC alloy gyro with Teflon bearing fitted.

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Haro Lineage Sport Freestyler Bashguard 20 Bike

Brand: Haro Bikes SKU:

$2,699.99 AUD

Or 4 payments of $674.99 AUD with

Recommended Rider Height: 175 cm and taller

Size - 21

Colour - Black

Haro Lineage Sport Freestyler Bashguard 20 Bike - 21 / Black

$2,699.99 AUD

Price match request

  • Arrives mostly assembled. Most people finish it in 10 to 20 minutes.
  • Pay over time with Zip Money. PayPal Pay in 4 covers orders under $2,000. How it works

Bike shipping from $39.99All rates

Free in-store pickup - Brisbane
