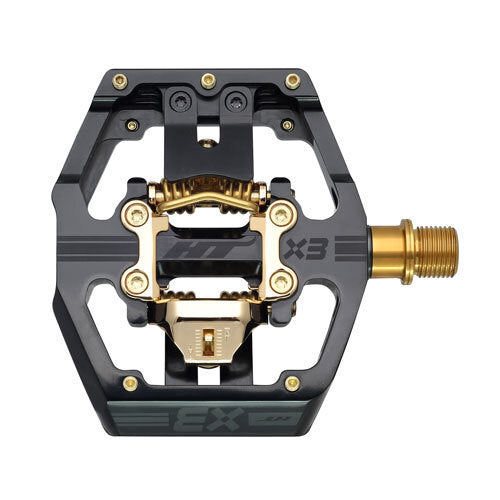

Limited Edition Gold HT Components X3Ti mountain bike pedal with open hexagonal platform and central clipless mechanism, viewed from above—a true Downhill World Cup pedal.

Chart displaying the HT Pro Cleat System’s five cleat models and their cycling discipline compatibility, including the limited edition HT Components X3Ti Pedals in gold and standard X3 downhill race pedal options.

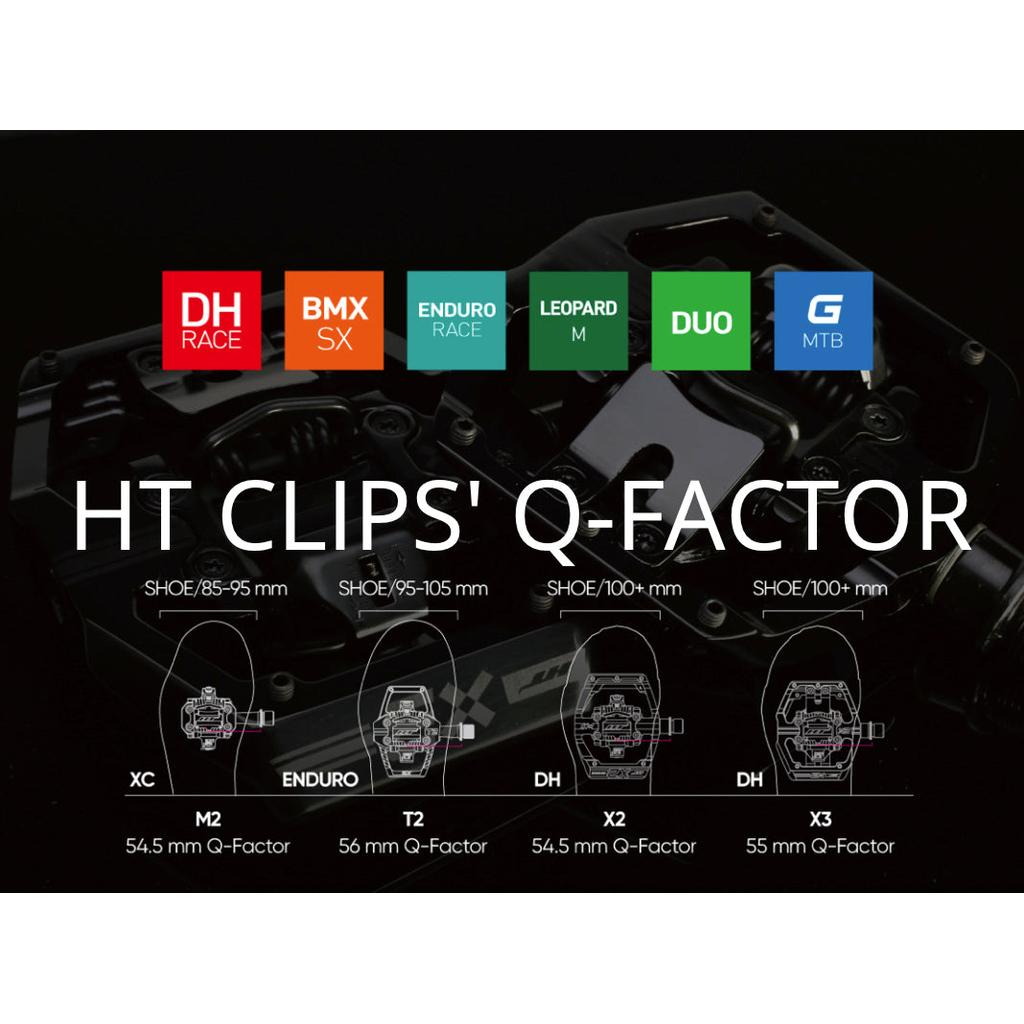

Diagram showing Q-factors (54.5–55 mm) for HT Components - X3Ti Pedals / Limited Edition Gold across XC, Enduro, DH, and X3 shoes, with matching pedal and discipline icons above.

A close-up of the HT Components - X3Ti Pedals / Limited Edition Gold highlights the black and gold design with metallic accents, showcasing the precision of these exclusive Gold Titanium pedals against a sleek black background.

Description

The HT Components X3 is a Downhill World Cup race winning pedal out of the box, used by pro riders worldwide. This limited edition gold X3-Ti runs a CNC machined titanium spindle in an extruded and CNC machined aluminium body, on sealed bearings and IGUS bushings.

The platform measures 85 x 94 x 14 mm with a deep concave and mud shedding shape, and it is fully adjustable and customisable with replaceable grip pins. It weighs 413 g a pair and comes with X1 and X1F cleats plus an 8mm service socket. Recommended maximum rider weight for the titanium version is 80 kgs.

Features

Titanium spindle, 413g a pair. The CNC machined titanium spindle keeps the pair at 413 g, with the cleats adding another 64 g.
World Cup winning platform. The X3 is a Downhill World Cup race winner out of the box and is used by pro riders worldwide.
Deep concave, sheds mud. A light, strong 85 x 94 x 14 mm platform with deep concave and mud shedding capabilities.
Adjustable with replaceable pins. Fully adjustable and customisable with replaceable grip pins, running sealed bearings and IGUS bushings.
Cleats and tool included. Supplied with X1 and X1F cleats and an 8mm service socket, on HT's exclusive X1E, X1 and X1F system.

Specifications

Sizes: 85 x 94 x 14 mm
Spindle: CNC machined titanium
Material: Extruded and CNC machined aluminium body
Bearings: Sealed bearings and IGUS bushings
Mount: X1E / X1 / X1F cleat system (HT exclusive)
Included: X1 and X1F cleats, 8mm service socket
Weight: 413 g per pair (cleats 64 g per pair)
Colour: Limited Edition Gold
Note: Recommended maximum rider weight for the titanium version is 80 kgs. Grip pins are replaceable.

HT Components - X3Ti Pedals / Limited Edition Gold

Name: HT Components - X3Ti Pedals / Limited Edition Gold
Brand: HT Components
SKU: 4711126200873
Price: 524.99 AUD
Availability: InStock
