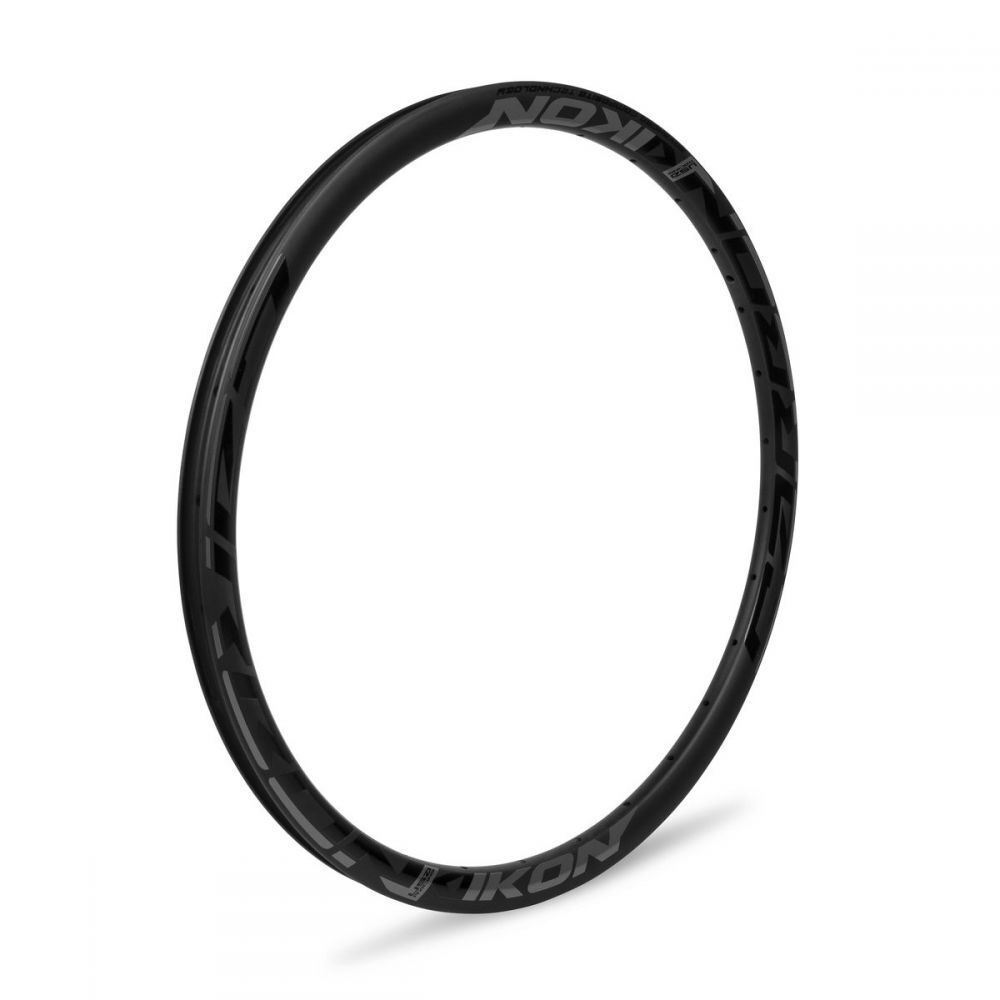

The IKON Carbon 28H Rim (20 x 1 1/8 - 1 3/8th) Non-Braking features a matte finish with subtle graphics, measures 451x22mm, is tubeless compatible, and is photographed against a white background.
The IKON Carbon 28H Rim (20 x 1 1/8 - 1 3/8th) Non-Braking is a black circular Toray T700 carbon rim with subtle branding, sized at 451x22mm, tubeless compatible, and is shown against a white background.

Description

A 451 rim (20 x 1 1/8 to 1 3/8 inch) made from Toray T700 unidirectional carbon with a UD finish. It is a front profile with no brake surface, so it is not intended for V brake use, though the sidewalls are fine at the rear if you are running a disc.

It measures 22mm wide and 23.35mm deep, is drilled 28 hole with an ERD of 423.4mm, takes a Presta valve and is tubeless compatible. Weight is 284g, maximum recommended tyre pressure is 110psi (7.58 bar) and recommended spoke tension is 115KGF or less.

Features
  • Toray T700 carbon. Unidirectional Toray T700 carbon with a UD finish, at 284g for a 451 rim.
  • No brake surface. The sidewalls have no braking track, so it is not for V brakes: run it up front or at the rear with a disc.
  • Tubeless compatible. Set it up tubeless and you can drop pressure without pinching, up to a maximum of 110psi.
  • 28 hole drilling. Drilled 28 hole with an ERD of 423.4mm and a recommended spoke tension of 115KGF or less.
  • 22mm wide, 23.35mm deep. A 22mm width gives a 20 x 1 1/8 to 1 3/8 inch tyre a solid base to sit on.

Specifications
  • Wheel size: 451 (20" x 1 1/8" to 1 3/8")
  • Material: Toray T700 unidirectional carbon
  • Finish: UD
  • Hole count: 28
  • Rim width: 22mm
  • Rim depth: 23.35mm
  • Brake surface: None, not intended for V brake use
  • Pressure: 110psi / 7.58 bar maximum recommended
  • Valve: Presta F/V
  • Weight: 284g
  • Note: ERD 423.4mm. Tubeless compatible. Recommended spoke tension 115KGF or less. Usable in rear mount for disc braking.

IKON Carbon 28H Rim (20 x 1 1/8 - 1 3/8th) Non-Braking

Brand: Ikon SKU:

$599.99 AUD

Or 4 payments of $149.99 AUD with

Colour - Black/Black

Spoke Holes - 28 Hole

$599.99 AUD
