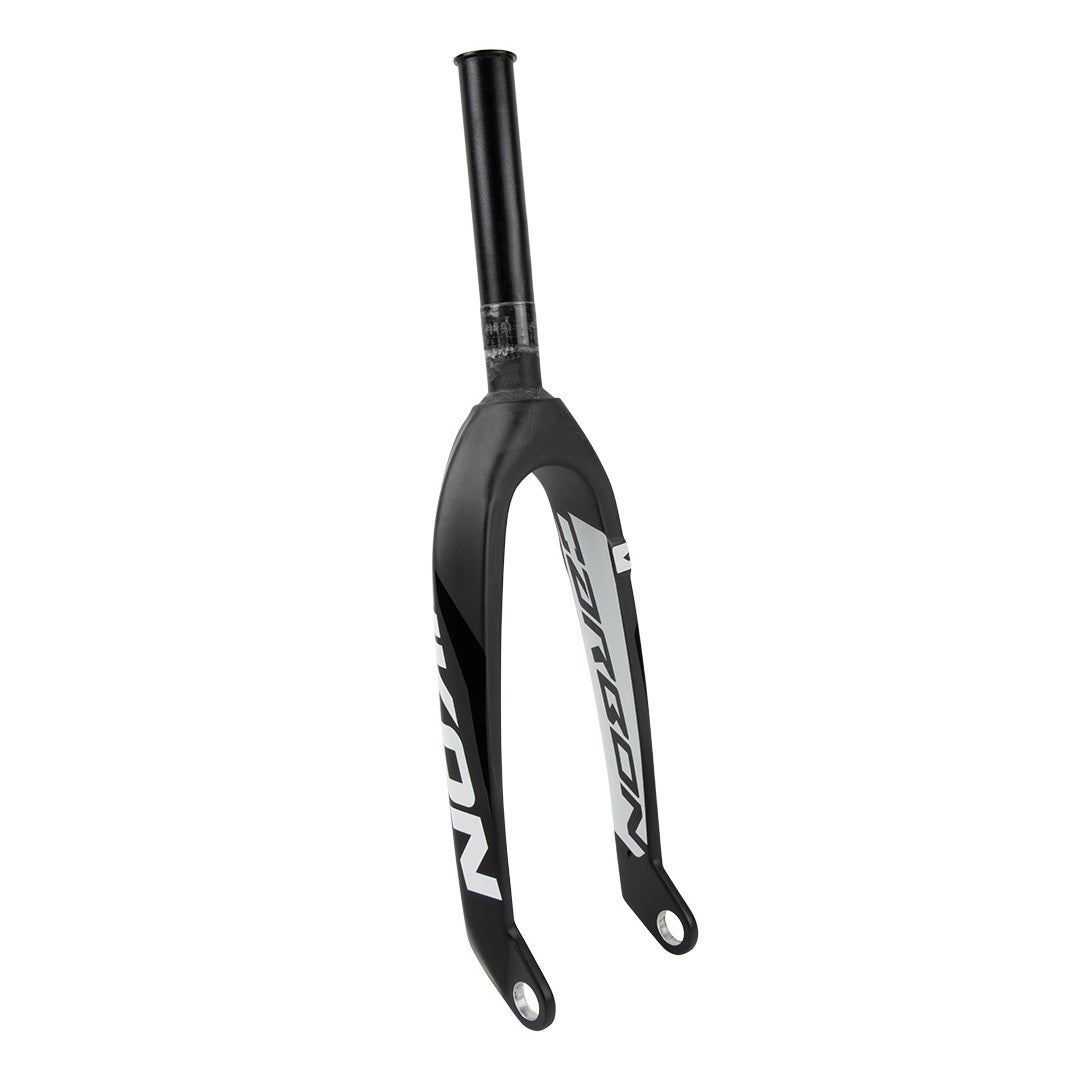

Introducing the Ikon Pro 20 Inch 20mm Carbon Fork, crafted from Toray UD carbon fibre for ultimate durability and performance. This sleek black and white fork features brand text on the sides, designed to excel on supercross tracks while adding a touch of style to your ride.

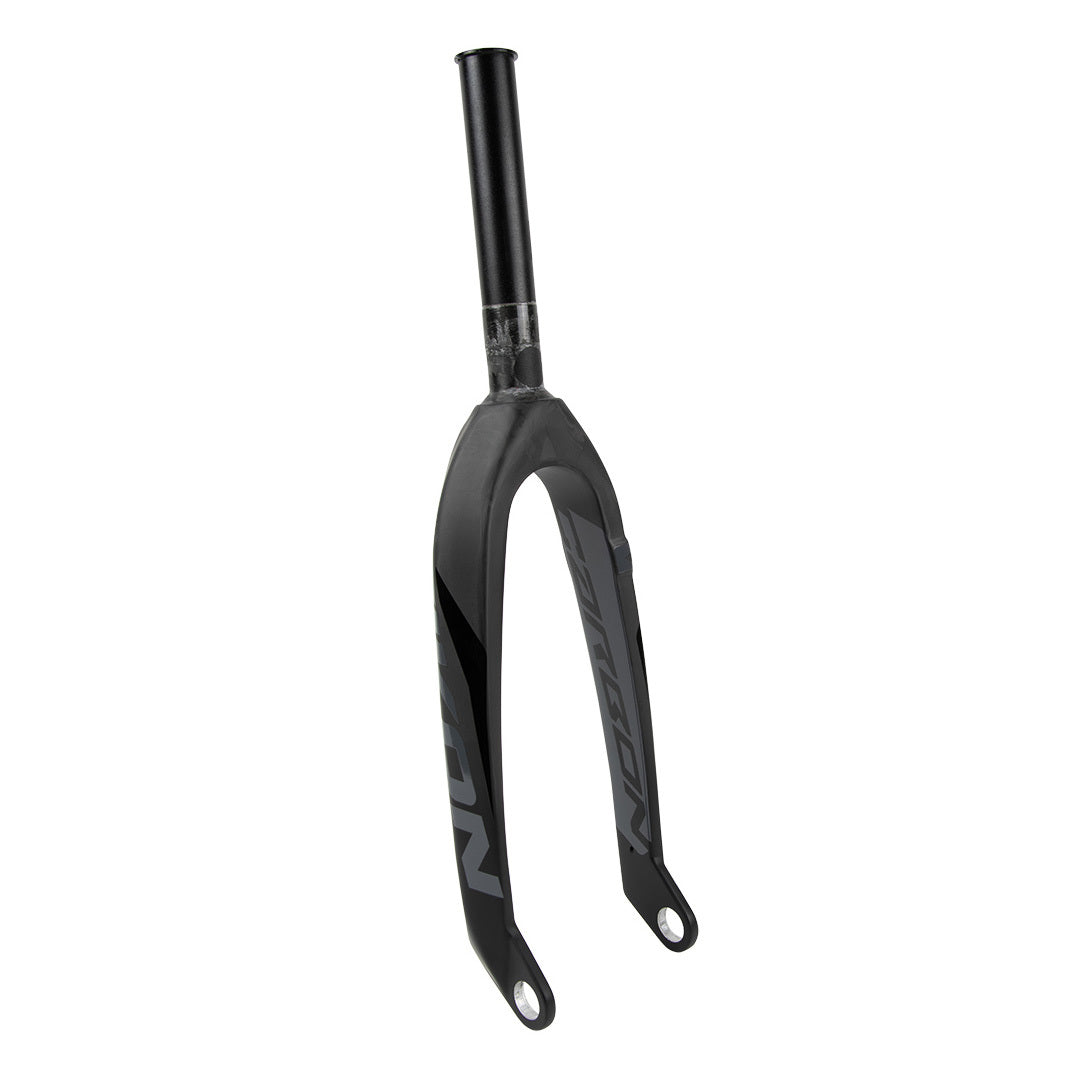

The Ikon Pro 20 Inch 20mm Carbon Fork boasts a sleek black design made from Toray UD carbon fibre, featuring a tapered steerer tube and two dropout mounts for added versatility.

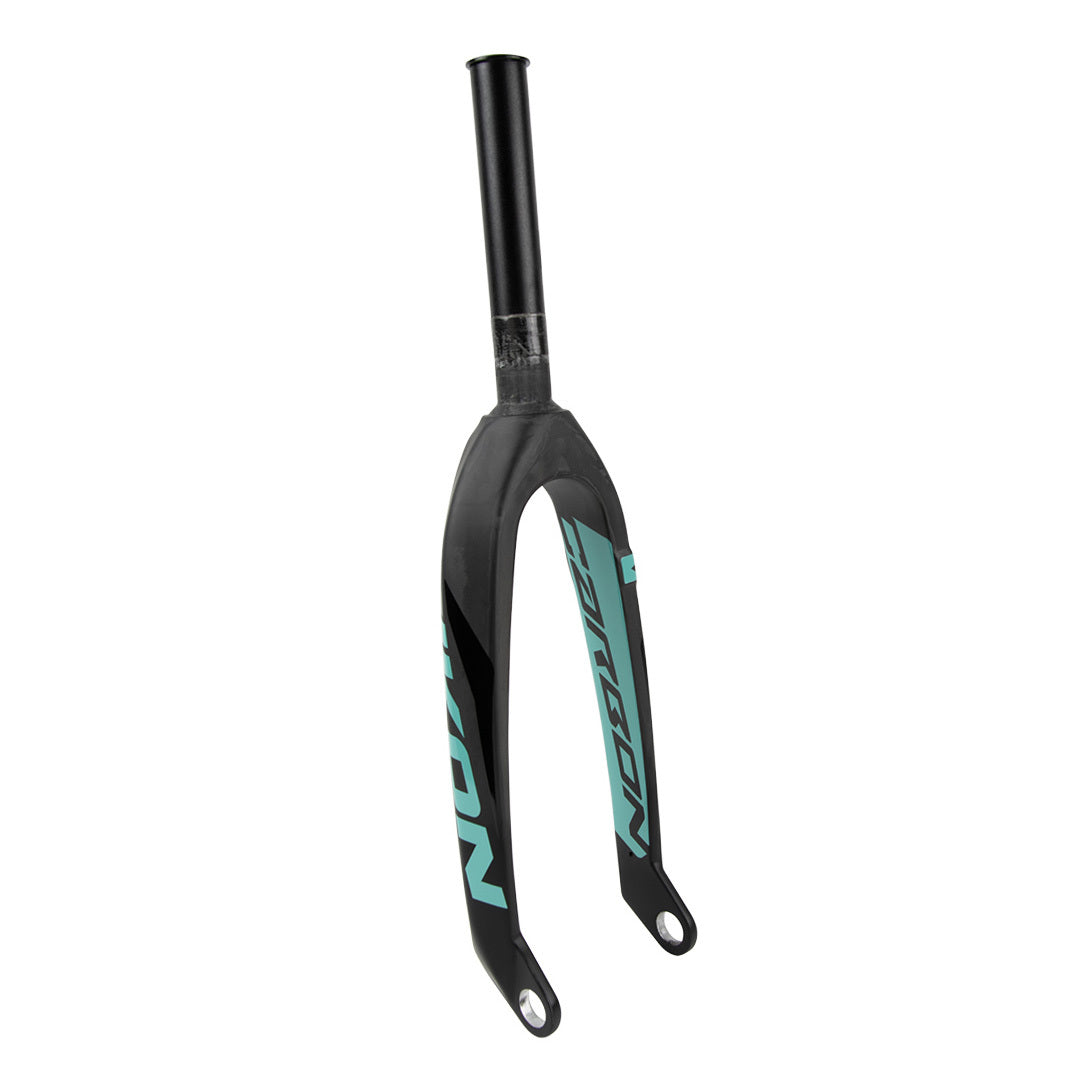

The Ikon Pro 20 Inch 20mm Carbon Fork boasts a stylish black and teal design made from Toray UD carbon fiber, featuring a slim, tapered profile with two 20mm thru-bolt attachment points at the base.

Description

From the company that knows how to win! With riders like Connor Fields and Joris Daudet slinging a set of Ikon Carbon Forks on their Olympic bikes, you know these forks are the made of the right stuff! In fact they are manufactured from Toray UD carbon fibre and aluminium. With 7076 T6 aluminium used in the steerer tube and a wall thickness of 7mm, these forks have the kind of strength required for the demands of today's supercross tracks.

The Ikon forks feature a straight steerer tube fork, with a 1-1/8th design that integrates perfectly with the Chase RSP frames Expert XL and smaller.

These forks are designed for a 20mm thru-bolt, another design feature that adds stiffness to this set up. Recommended thru-bolt length is 112mm.

Features
  • Toray UD carbon legs and crown. Tapered legs and an oversized crown to suit today's oversized head tubes, with an aero spoiler shape flowing off the back.
  • 7075-T6 alloy steerer. The alloy steerer is bonded and keyed into the carbon crown, 173mm long, with the fork race built in for a 45° bottom bearing.
  • Built for a 20mm thru-bolt. The thru-bolt design adds stiffness through the front end, and 112mm is the recommended bolt length.
  • 6061-T6 alloy 20mm dropouts. CNC machined dropouts bonded and keyed into the carbon legs, so the axle clamps against metal.
  • 641g with 31mm offset. A light front end at 305mm axle to crown, with a straight 1-1/8th steerer that suits Chase RSP frames Expert XL and smaller.

Specifications
  • Material: Toray UD carbon fibre
  • Dropouts: CNC machined 6061-T6 aluminium, reinforced 20mm, bonded and keyed into the carbon legs
  • Steerer: 7075-T6 aluminium, threadless, 173mm length, integrated fork race for 45° bottom bearing, bonded and keyed into the carbon crown
  • Steerer diameter: 1-1/8"
  • Fork offset: 31mm
  • Fork legs: Tapered, oversized crown construction
  • Axle: 20mm thru-bolt, 112mm length suggested
  • Wheel size: 20"
  • Weight: 641g
  • Note: Axle to crown 305mm. Ikon 7075-T6 alloy top cap and compressor bolt, M18, threading into the steerer. Ikon 10mm black anodised alloy axle adapters sold separately.

Ikon Pro 20 Inch 20mm Carbon Fork

Brand: Ikon SKU:

From

$898.99 AUD

 $998.99 AUD

Or 4 payments of $224.74 AUD with

Colour - Black/Teal

Offset - 31mm

Discount 10%

Instead of $998.99

$898.99 AUD

Price match request

Ikon Pro 20 Inch 20mm Carbon Fork - Black/Teal / 31mm

$12.99 flat-rate shipping Australia-wide

Express from $21.99

Free in-store pickup - Brisbane

Availability

31mm
Black/Teal
Black/Grey
Black/White

● In stock at LUXBMX ● With supplier ● Preorder ○ Sold out
