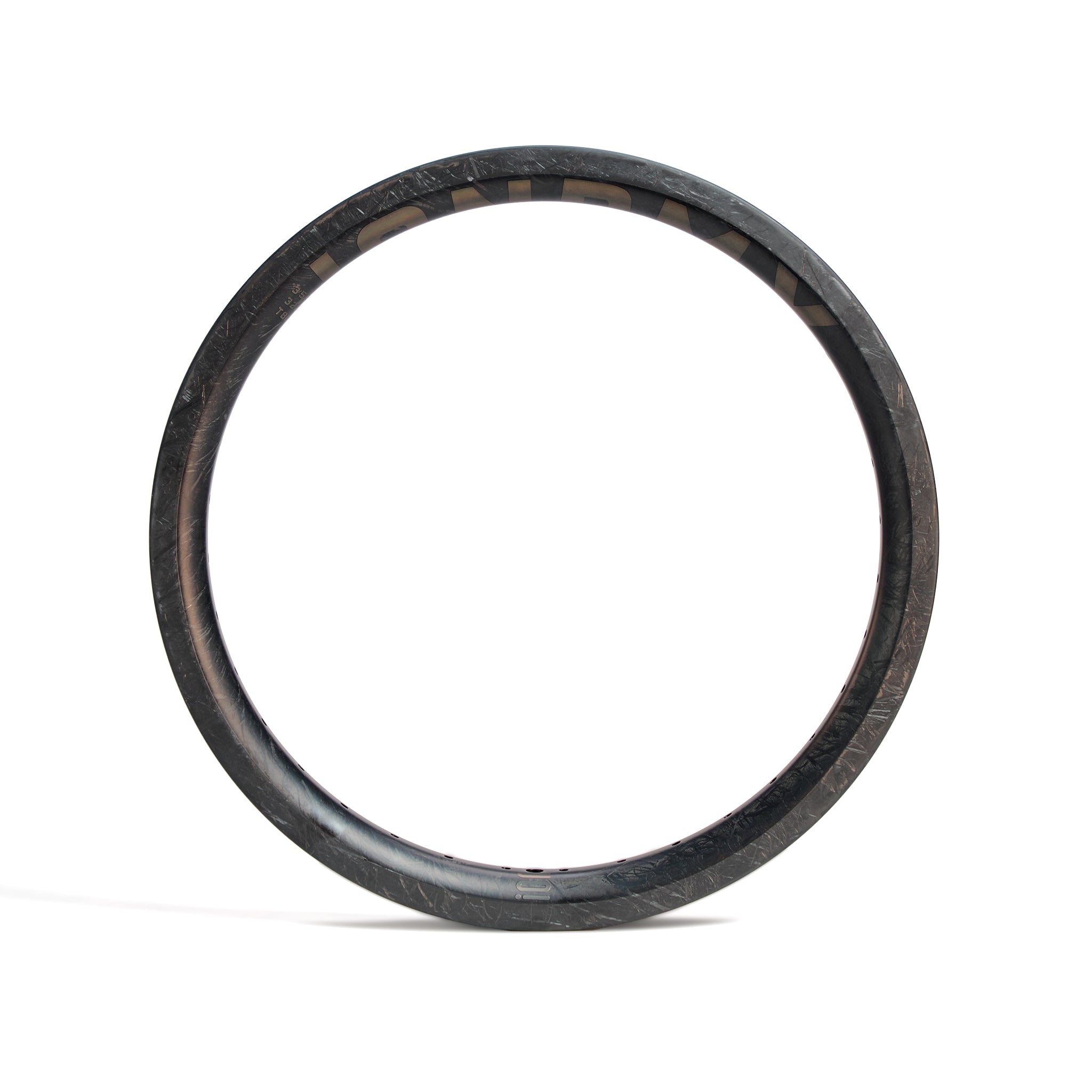

The ION BMX C18 Carbon Fiber 18 Inch Braking Rim is shown upright on a white background, featuring a round shape, dark color, and smooth matte finish made from Toray T800s carbon fiber.
The ION BMX C18 Carbon Fiber 18 Inch Braking Rim is displayed standing vertically against a white background.
Close-up of the top edge of a carbon fiber badminton racket frame, showcasing texture and partial design details similar to those found on the ION BMX C18 Carbon Fiber 18 Inch Braking Rim.

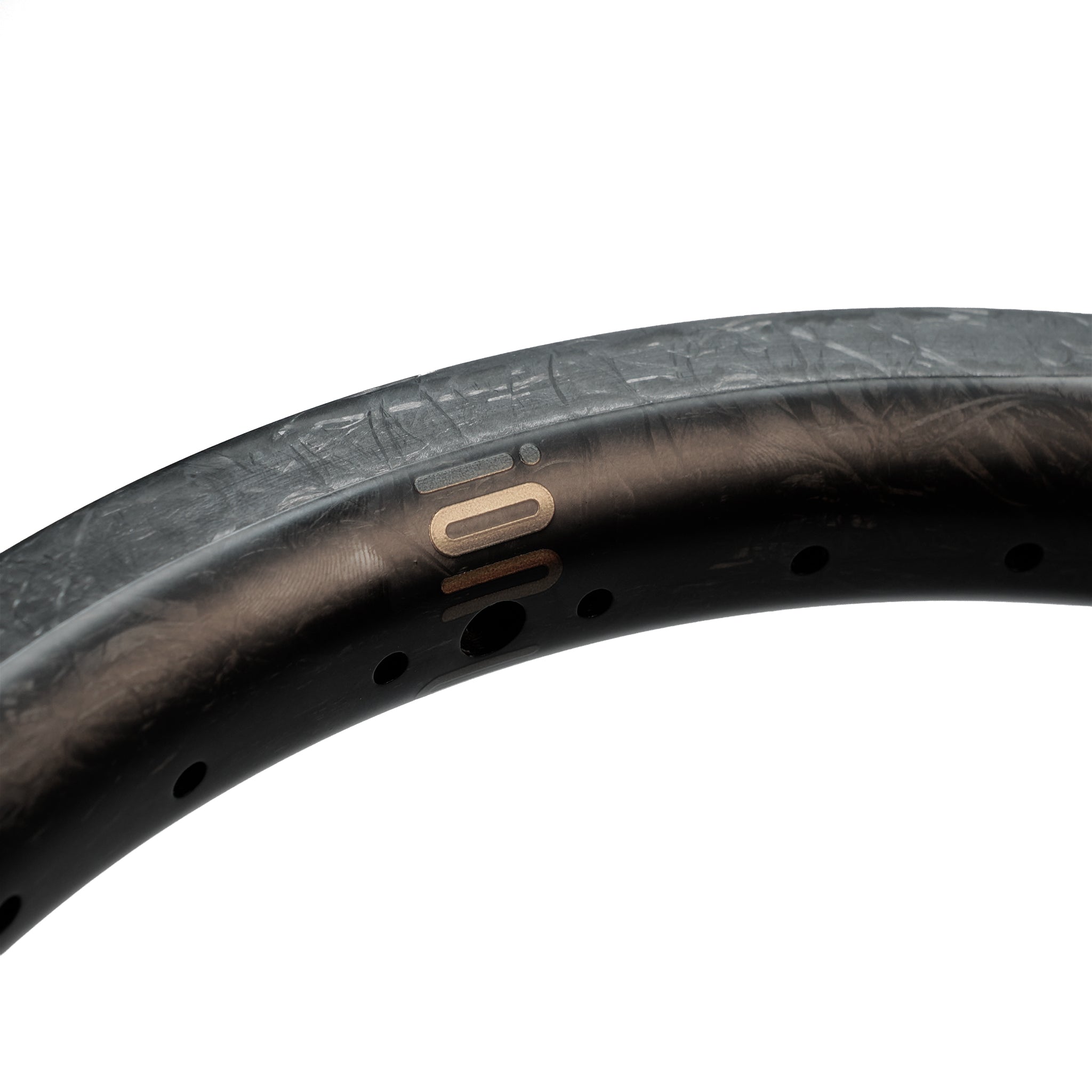

Close-up of the ION BMX C18 Carbon Fiber 18 Inch Braking Rim featuring a matte black finish, small ventilation holes, and a subtle metallic logo.

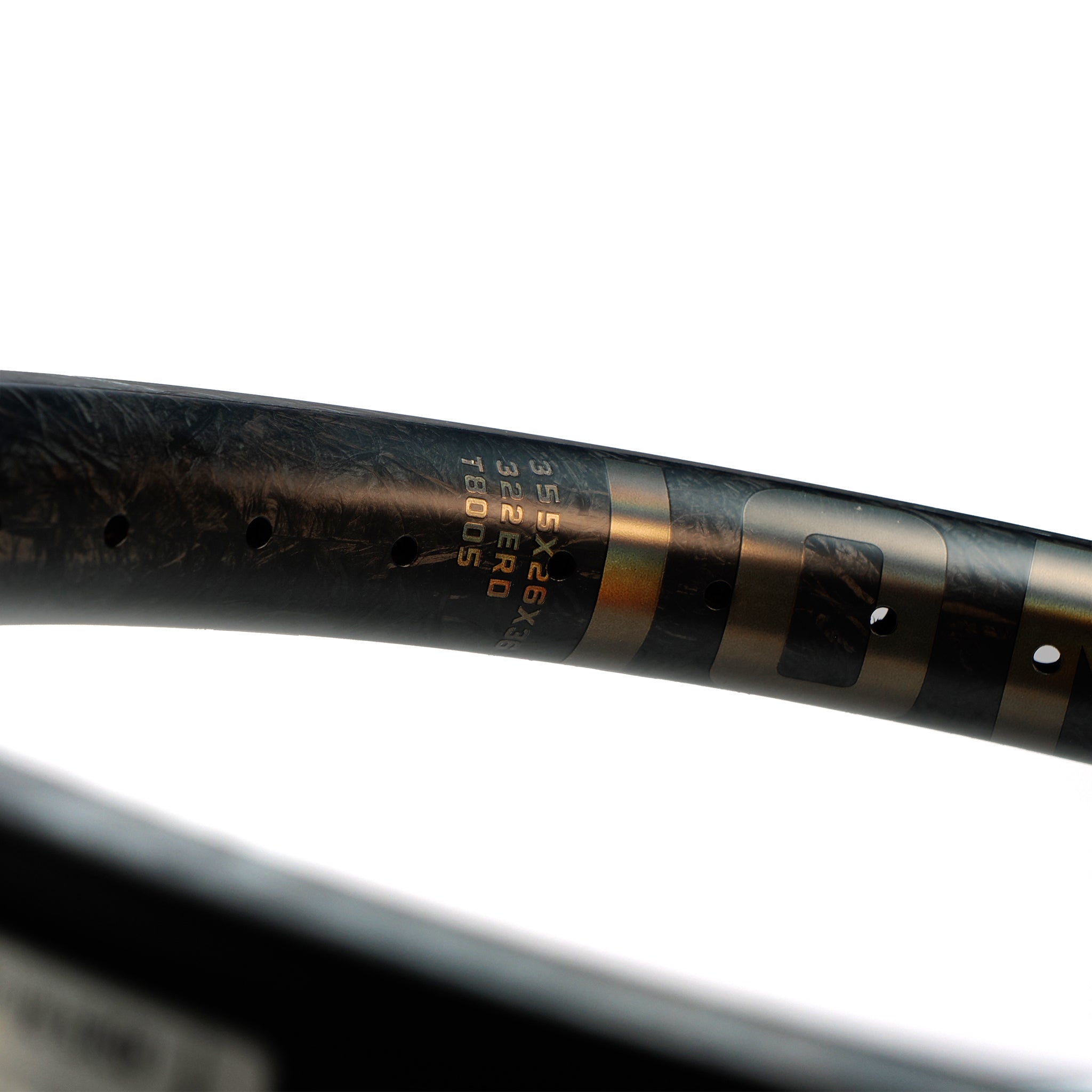

Close-up of a black ION BMX C18 Carbon Fiber 18 Inch Braking Rim showing specifications and serial numbers in gold text.

Description

The ION BMX carbon fiber 18 rims are crafted specifically for freestyle BMX riding. Built using Toray T800s intermediate modulus carbon fiber, these rims combine high tensile strength with exceptional lightweight durability, resulting in a rim that excels in both toughness and performance.

Features
  • 18 inch, 36 hole only. This rim is drilled 36h only, so plan the build around a 36 hole hub and 18 inch tyres.
  • Toray T800s carbon. Intermediate modulus, high tensile strength carbon fibre gives the rim toughness while keeping it light.
  • Patented braking surface. The tonal marble weave braking surface is built into the rim, and it needs carbon specific brake pads to work with it.
  • Light at 300g. At 300g plus or minus 15g there is very little weight out at the rim of an 18 inch wheel.
  • Schrader drilled, 4D holes. The valve hole is drilled for a Schrader (A/V) valve, and the spoke holes use ION's 4D drilling.

Specifications
  • Wheel size: 18" (ETRTO 355x29c)
  • Material: Toray T800s intermediate modulus carbon fibre
  • Hole count: 36h only
  • Rim width: 36mm
  • Rim depth: 26mm
  • Brake surface: Patented tonal marble weave
  • Valve: Drilled for Schrader (A/V)
  • Weight: 300 +/- 15g
  • Note: Requires carbon specific brake pads. ERD 322mm. 4D spoke hole drilling. 2 year warranty against manufacturer defects.

ION BMX C18 Carbon Fiber 18 Inch Braking Rim

Brand: ION BMX SKU:

$459.99 AUD

Or 4 payments of $114.99 AUD with

Colour - Hologram Dark

Spoke Holes - 36 Hole

Braking Surface - Braking

$459.99 AUD
