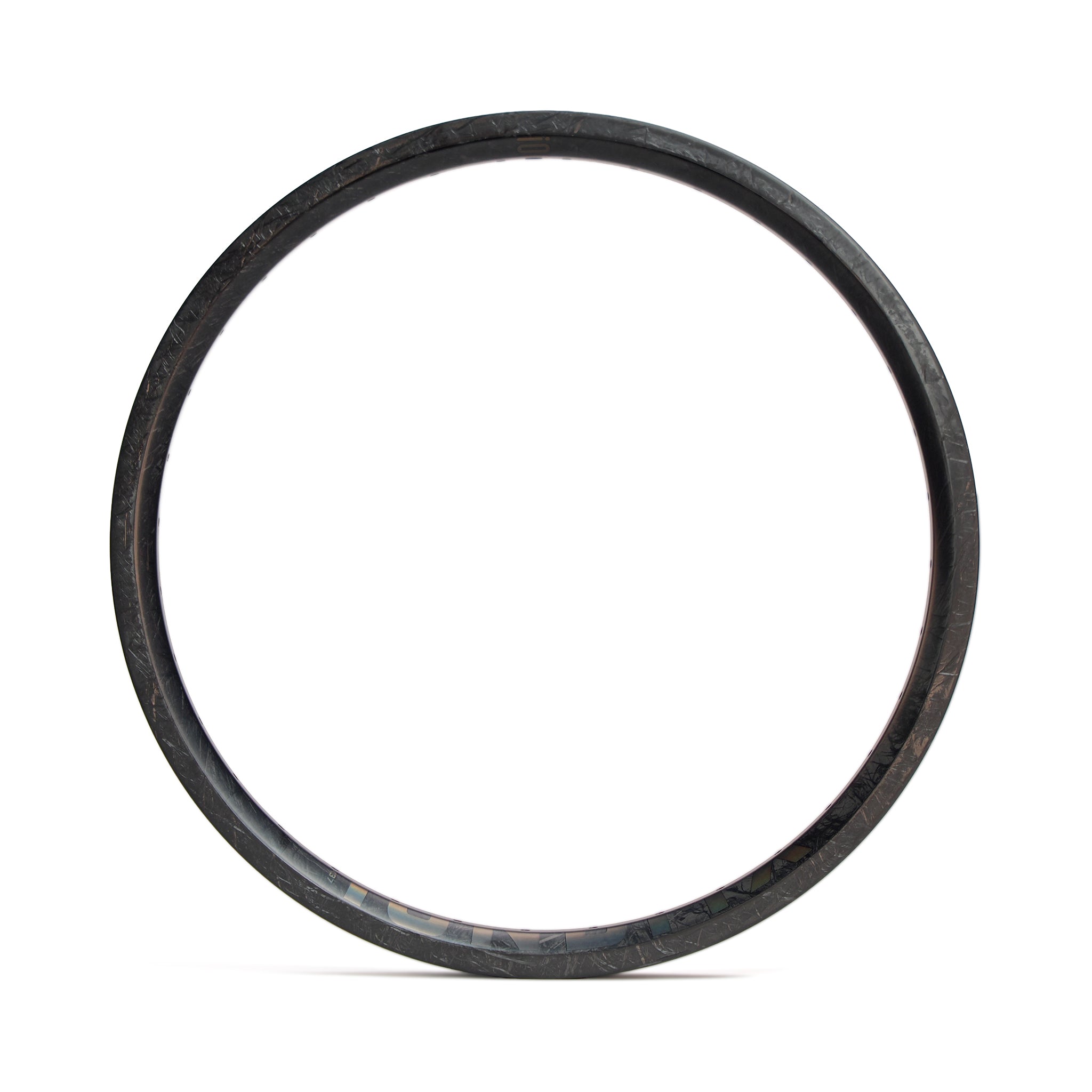

The ION BMX C20 Carbon Fiber 20 Inch Braking Rim, made from Toray T800 carbon fiber with a textured black surface, is pictured as a single circular ring against a plain white background.
The ION BMX C20 Carbon Fiber 20 Inch Braking Rim, made from Toray T800 carbon fiber with multiple spoke holes, is shown in black at a slight angle against a white background.

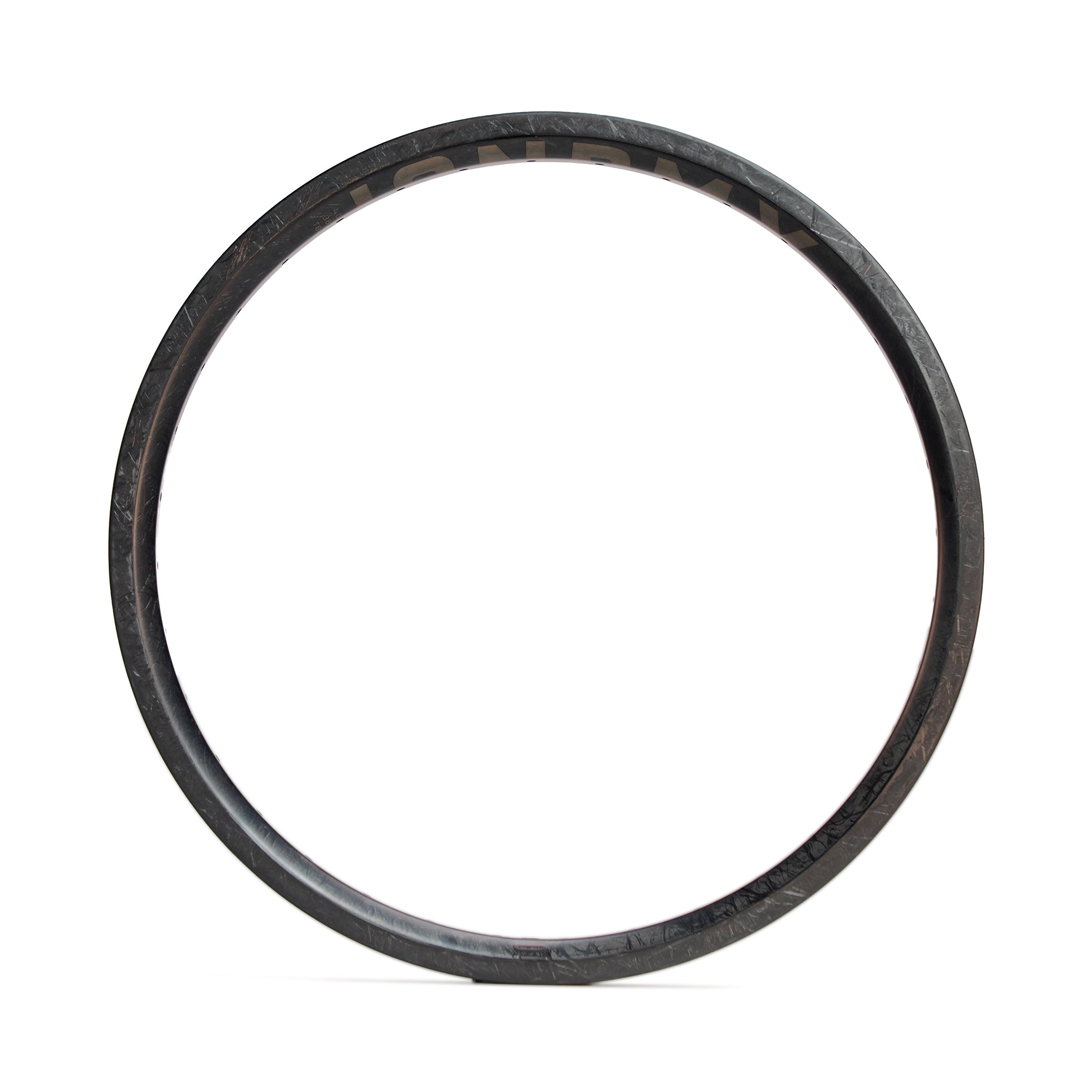

The ION BMX C20 Carbon Fiber 20 Inch Braking Rim, made from Toray T800 carbon fiber, is shown upright against a white background.

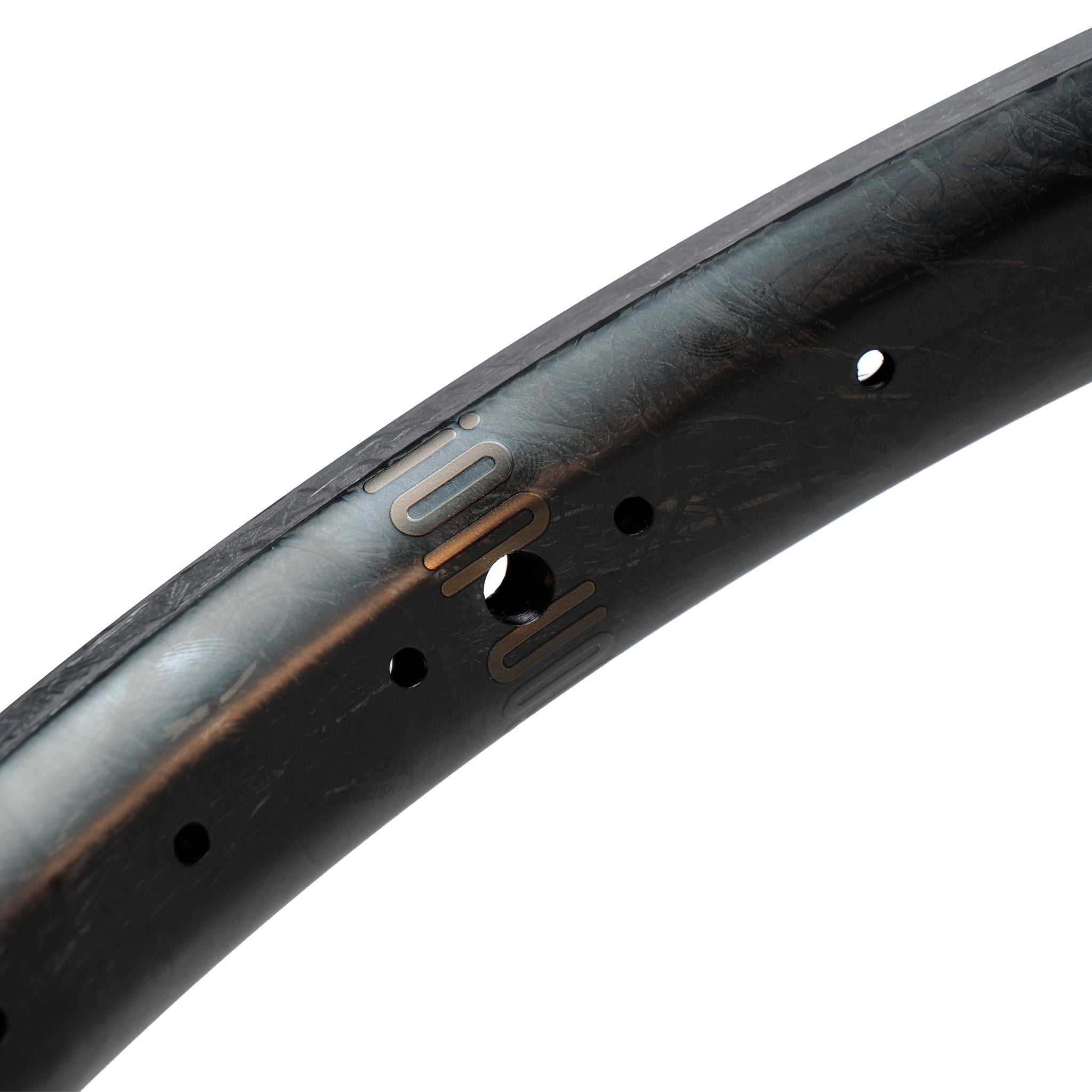

Close-up of the ION BMX C20 Carbon Fiber 20 Inch Braking Rim, made from Toray T800 carbon fiber, with multiple spoke holes and a subtle logo on its sleek black surface.

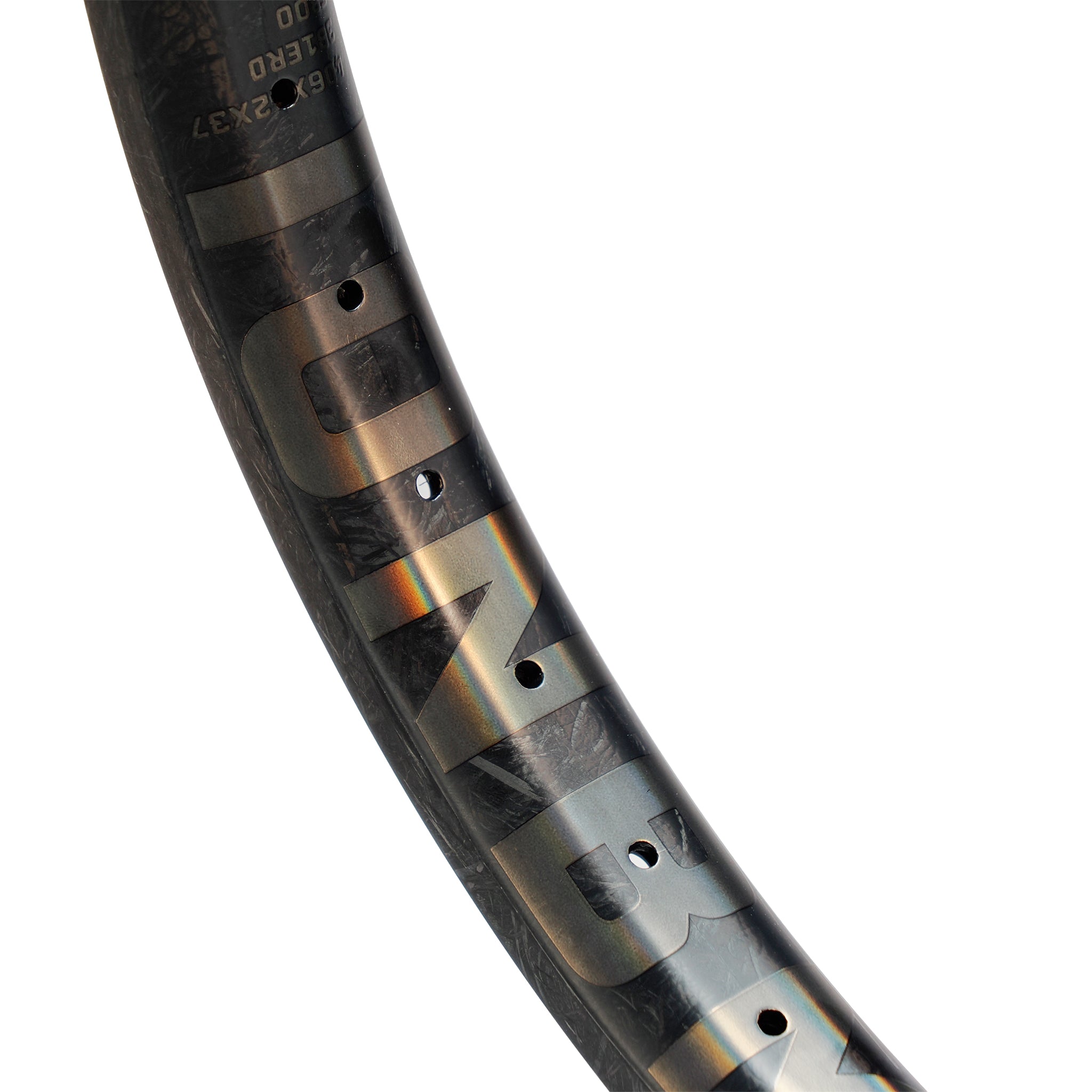

Close-up of the ION BMX C20 Carbon Fiber 20 Inch Braking Rim, made from Toray T800 carbon fiber with visible spoke holes and subtle branding—ideal for freestyle BMX.

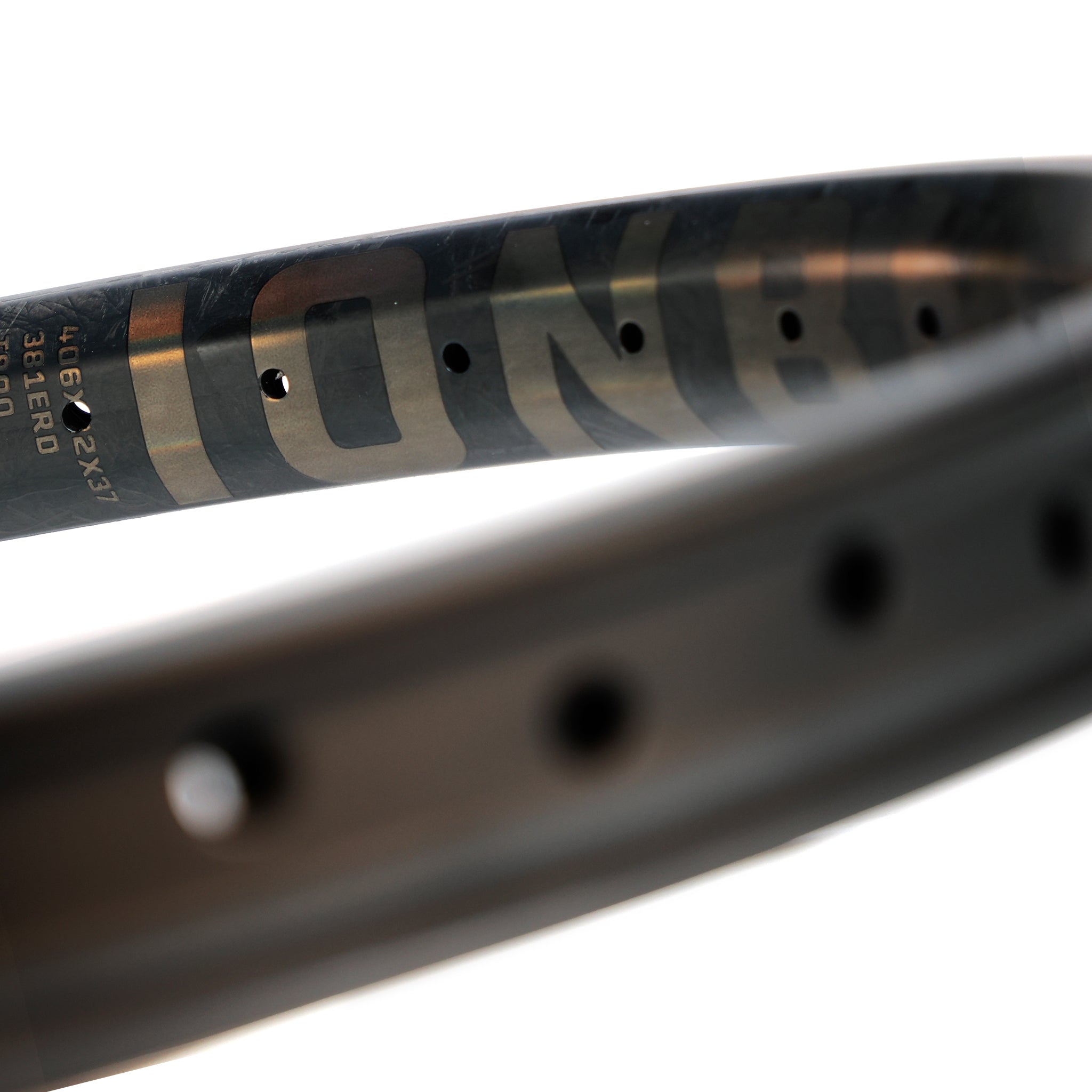

Close-up of the ION BMX C20 Carbon Fiber 20 Inch Braking Rim, featuring ventilation holes and subtle inner branding, crafted from premium Toray T800 carbon fiber.

Highlights

  • Toray T800 carbon fibre
  • About 315g per rim
  • 36 hole only
  • Braking surface built in

Description

The ION BMX Carbon Fiber 20 rims are designed specifically for freestyle BMX riding.
Made from Toray T800 high modulus carbon fiber, they deliver a blend of superior tensile strength and exceptional lightweight durability, creating a rim that stands out in both strength and performance.

Features
  • Toray T800 carbon fibre. High modulus, high tensile strength carbon gives a rim that is both strong and very light for freestyle riding.
  • About 315g per rim. Weight is 315g plus or minus 15g, which takes a serious chunk out of the weight you have to spin up.
  • 36 hole only. It comes in 36 hole with 4D spoke hole drilling, so you will need a 36 hole hub to lace it.
  • Braking surface built in. The patented tonal marble weave braking surface runs on the rim itself, but you must use carbon specific brake pads.
  • 37mm wide, 22mm deep. ETRTO 406x30c with an ERD of 381mm, 383mm effective, so you can size spokes and tyres before you build.

Specifications
  • Wheel size: 20" (ETRTO 406x30c)
  • Material: Toray T800 high modulus carbon fibre
  • Hole count: 36
  • Rim width: 37mm
  • Rim depth: 22mm
  • Brake surface: Patented tonal marble weave
  • Valve: Drilled for Schrader (A/V)
  • Weight: 315g +/- 15g
  • Note: Requires carbon specific brake pads. ERD 381mm, 383mm effective. Two year warranty against manufacturer defects.

Spoke calculator
Display

Pick the part it is laced to and we will give you the lengths to buy.

This rim

Looking up its measurements.

Check or change its figures

Laced to which hub?

Or type its figures

Flange diameter/PCD (pitch circle diameter) spoke hole centre to the opposite hole centre. The drive side is the driver side, left or right hand drive alike, and is usually the bigger flange

Flange position

Spoke lengths to buy

Drive side —mm
Non-drive side —mm

Pick the hub and your lengths will appear here.

Open the full spoke calculator for offset rims, other cross patterns and measuring help.
