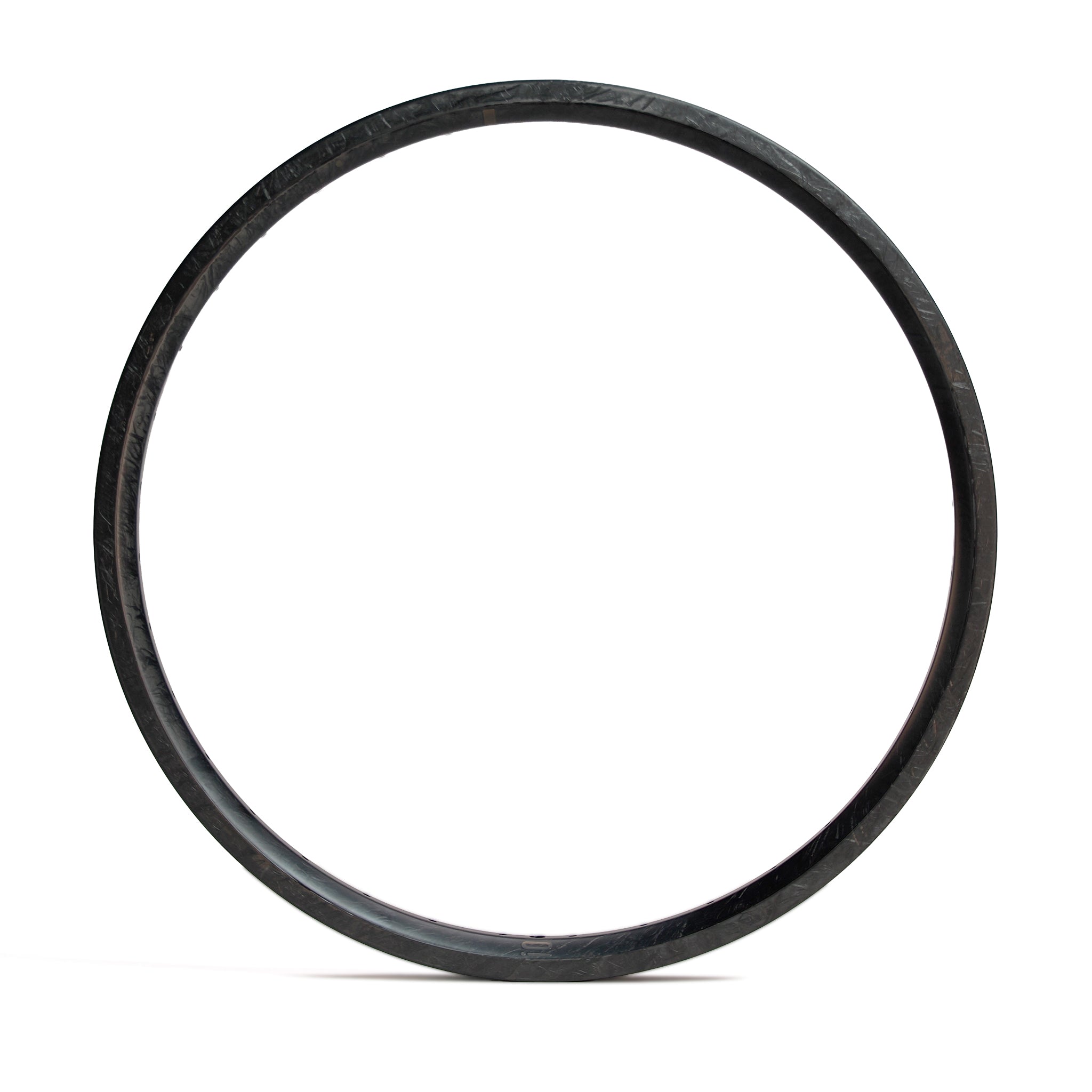

The ION BMX C22 Carbon Fiber 22 Inch Braking Rim, featuring a black, circular design with a textured surface, stands vertically against a plain white background.
The ION BMX C22 Carbon Fiber 22 Inch Braking Rim is a black, circular, lightweight rim with multiple spoke holes, shown standing upright against a white background.

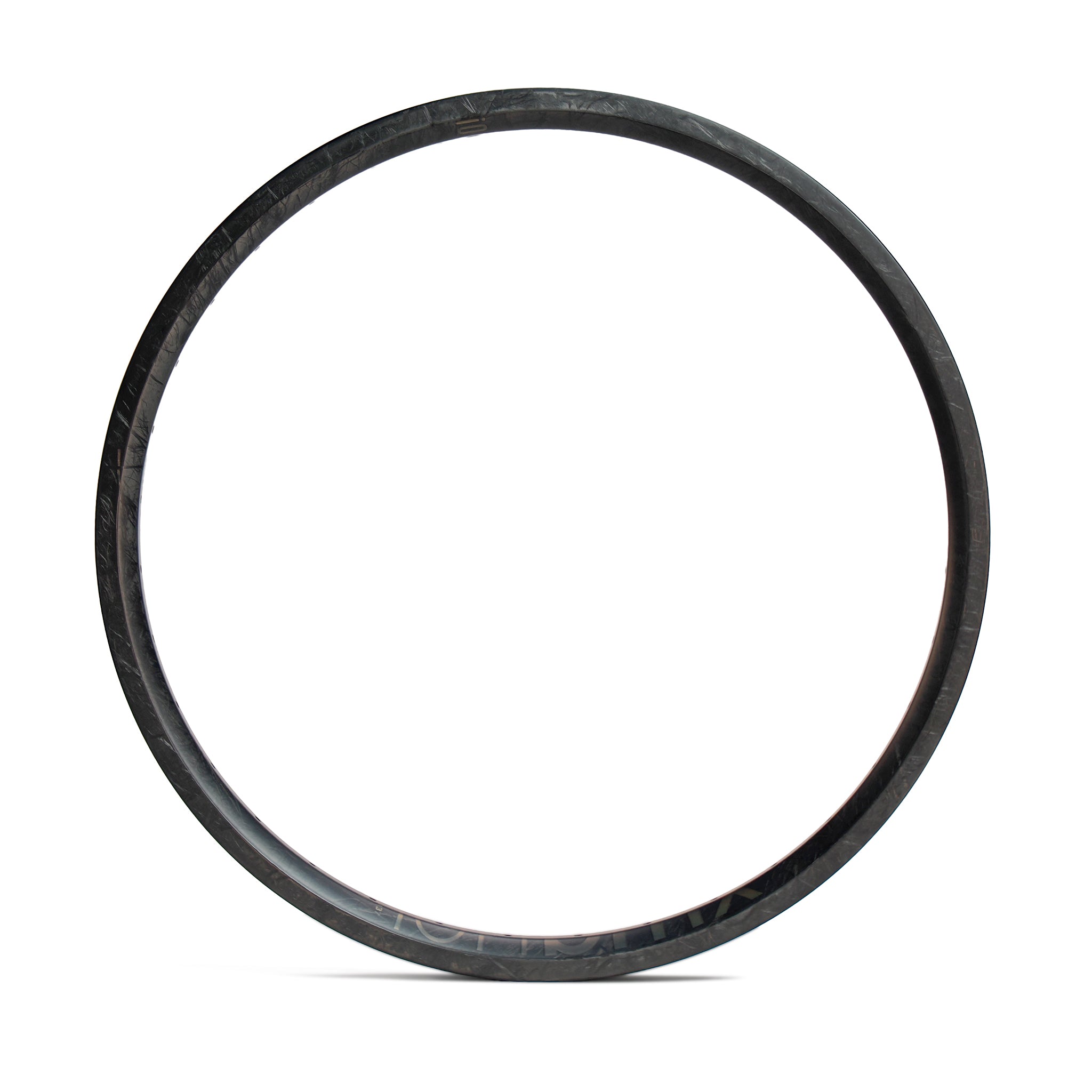

Featuring a smooth, circular black design, the ION BMX C22 Carbon Fiber 22 Inch Braking Rim delivers lightweight BMX performance and durability, shown here against a plain white background.

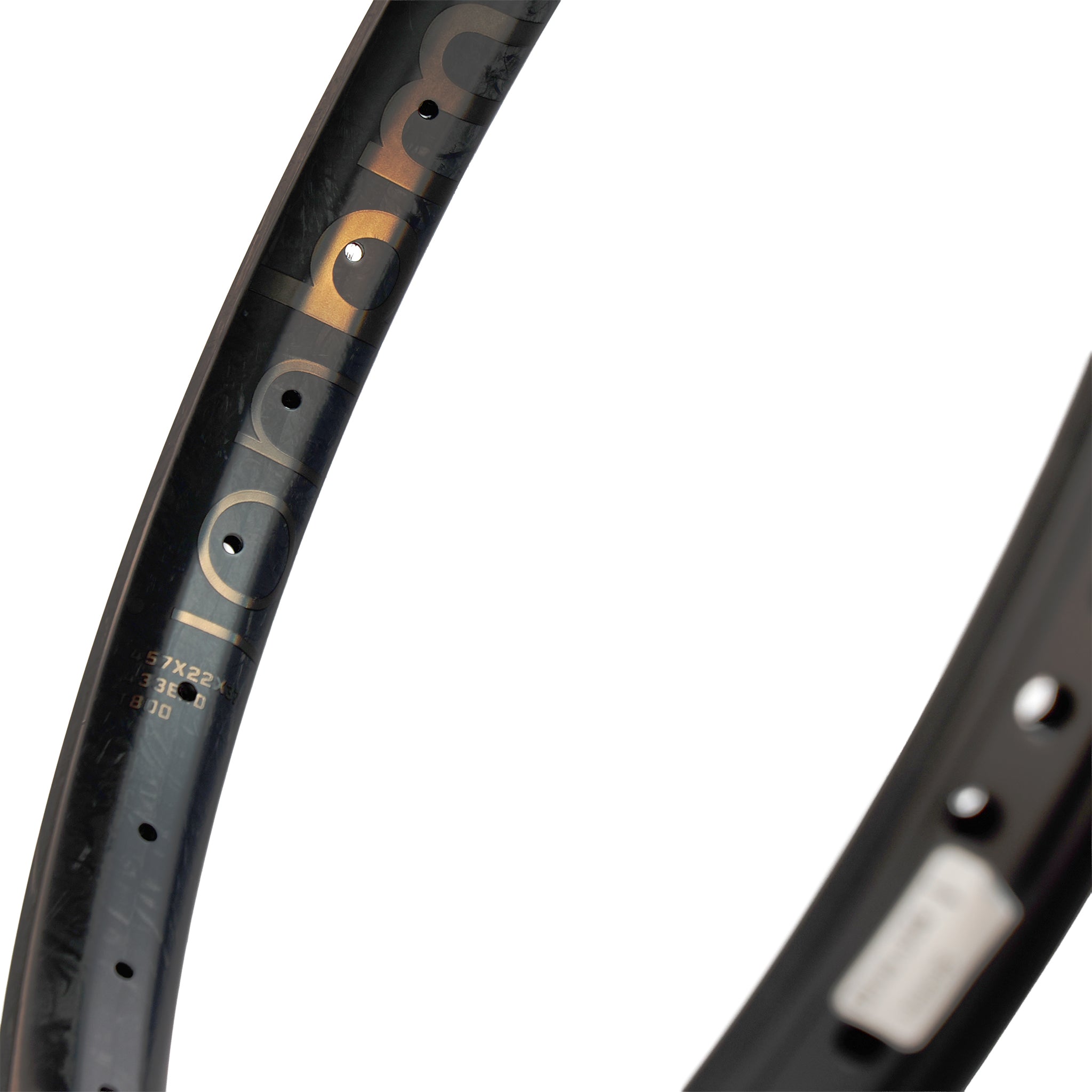

Close-up of the ION BMX C22 Carbon Fiber 22 Inch Braking Rim, featuring branding, size markings, and spoke holes—ideal for riders seeking a lightweight BMX rim.

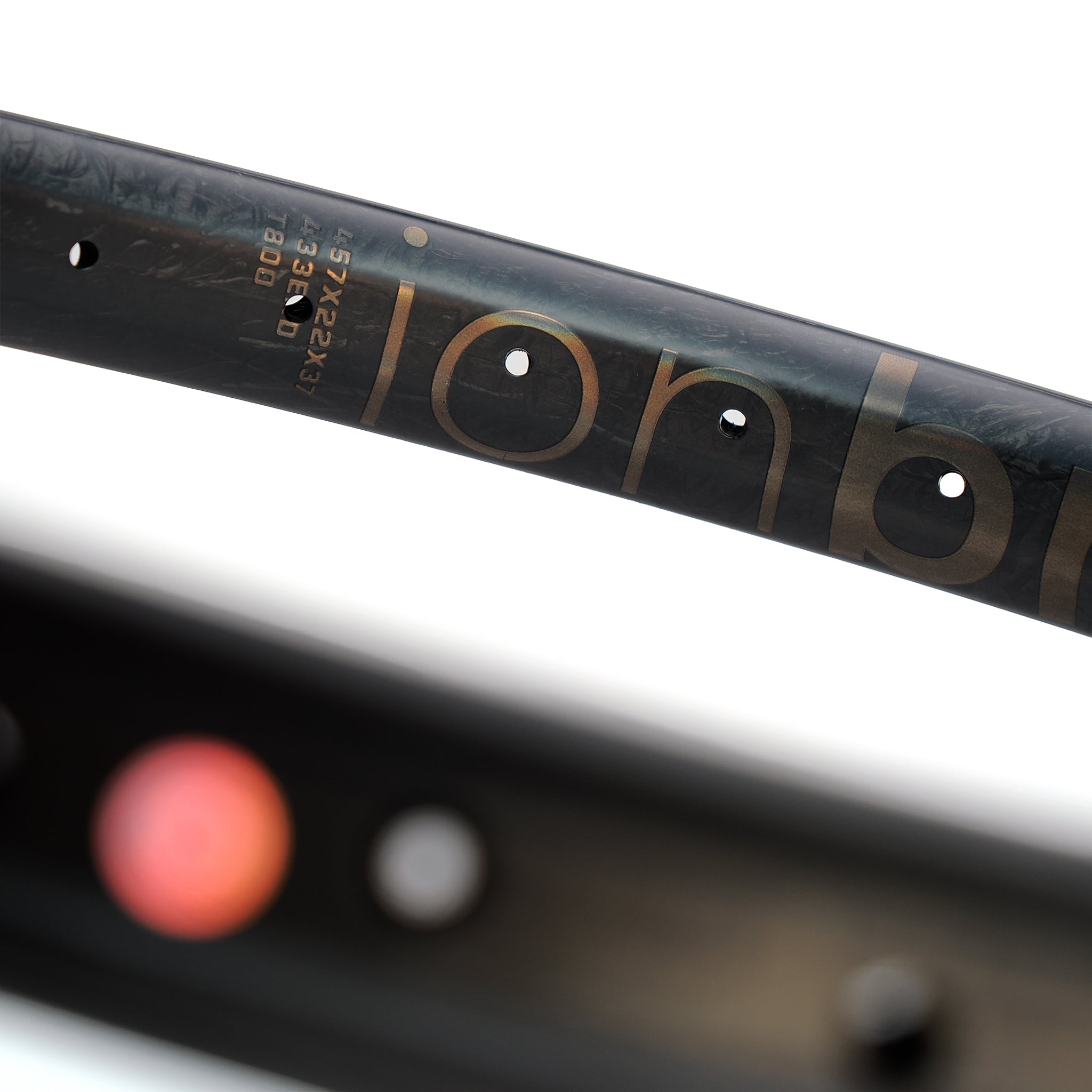

Close-up of the ION BMX C22 Carbon Fiber 22 Inch Braking Rim, highlighting part of the brand name, spoke holes, and a section with technical specifications printed on its lightweight surface.

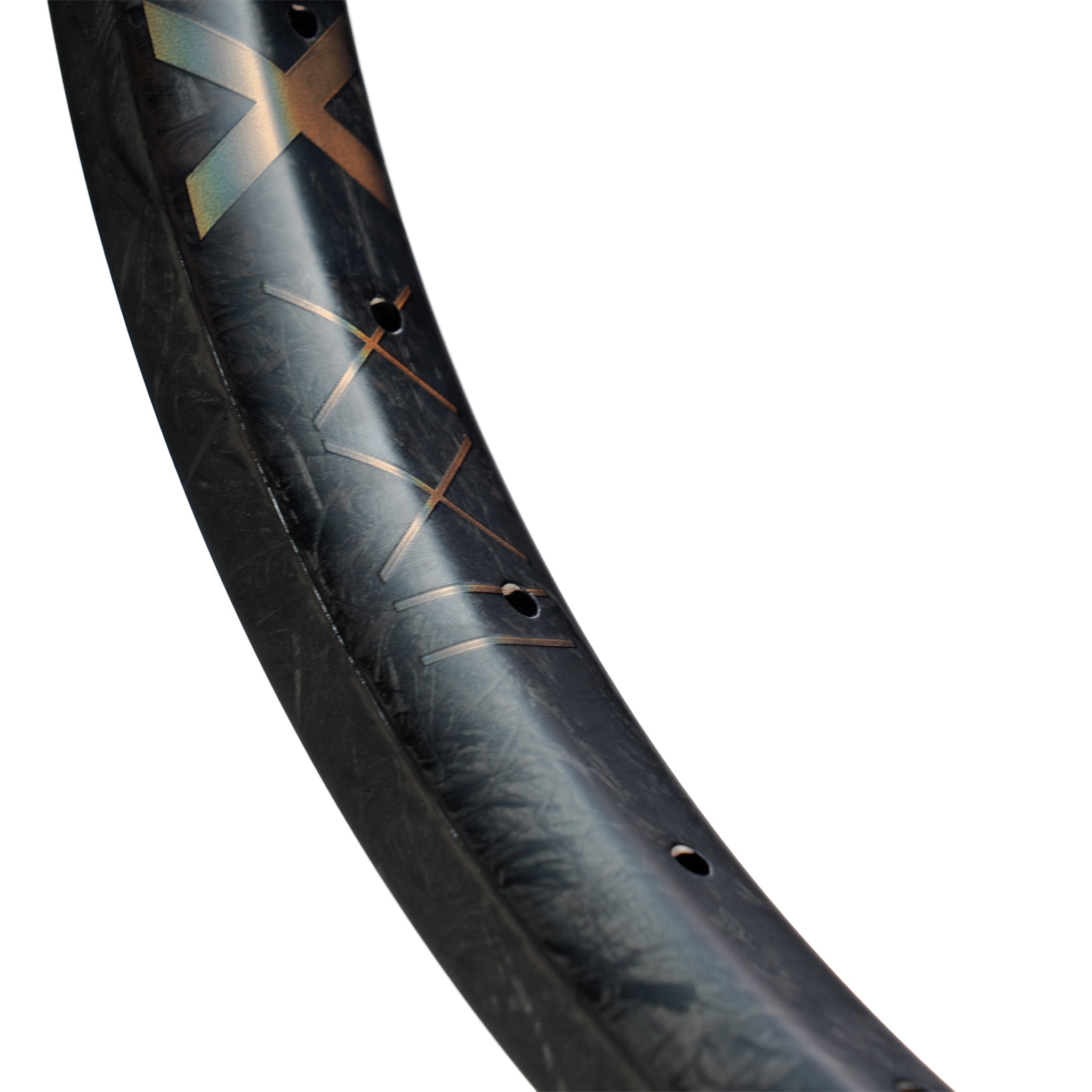

Close-up of the ION BMX C22 Carbon Fiber 22 Inch Braking Rim, featuring a black lightweight design with metallic graphics and evenly spaced spoke holes.

Highlights

  • First 22 inch carbon freestyle rim
  • About 130 grams lighter
  • Toray T800s carbon construction
  • 4D drilled, 36 hole only

Description

The ION BMX Carbon Fiber 22 rims are the first 22" Freestyle BMX carbon fiber rims. Weighing almost 130 grams less than any other 22" rim available, reduces rotational mass to enhance the bike’s agility and responsiveness.
Constructed from Toray T800s intermediate modulus carbon fiber, these rims offer an exceptional combination of high tensile strength and outstanding lightweight durability, resulting in a rim that excels in both strength and performance.

Features
  • First 22 inch carbon freestyle rim. ION built the first carbon fibre rim for 22 inch freestyle bikes, so cruiser riders finally get a carbon option.
  • About 130 grams lighter. It weighs almost 130 grams less than any other 22 inch rim, cutting rotational mass so the bike feels more agile.
  • Toray T800s carbon construction. Intermediate modulus carbon gives high tensile strength with light weight, so the rim is strong and quick to spin up.
  • 4D drilled, 36 hole only. The 36 hole 4D drilling sets the spoke angle at the rim, and it is drilled for a Schrader valve.
  • Patented braking surface. The tonal marble weave sidewall gives you a braking surface, but you will need carbon specific brake pads.

Specifications
  • Wheel size: 22", ETRTO 457x30c
  • Material: Toray T800s intermediate modulus carbon fibre
  • Hole count: 36h only, 4D spoke hole drilling
  • Rim width: 37mm
  • Rim depth: 22mm
  • Brake surface: Patented tonal marble weave, requires carbon specific brake pads
  • Valve: Schrader (A/V)
  • Weight: 380g plus or minus 15g
  • Note: ERD 433mm. Two year warranty against manufacturer defects.

Spoke calculator
Display

Pick the part it is laced to and we will give you the lengths to buy.

This rim

Looking up its measurements.

Check or change its figures

Laced to which hub?

Or type its figures

Flange diameter/PCD (pitch circle diameter) spoke hole centre to the opposite hole centre. The drive side is the driver side, left or right hand drive alike, and is usually the bigger flange

Flange position

Spoke lengths to buy

Drive side —mm
Non-drive side —mm

Pick the hub and your lengths will appear here.

Open the full spoke calculator for offset rims, other cross patterns and measuring help.

ION BMX C22 Carbon Fiber 22 Inch Braking Rim

Brand: ION BMX SKU:

$499.99 AUD

Or 4 payments of $124.99 AUD with

Colour - Hologram Dark

Spoke Holes - 36 Hole

Braking Surface - Braking

ION BMX C22 Carbon Fiber 22 Inch Braking Rim - Hologram Dark / 36 Hole / Braking

$499.99 AUD
