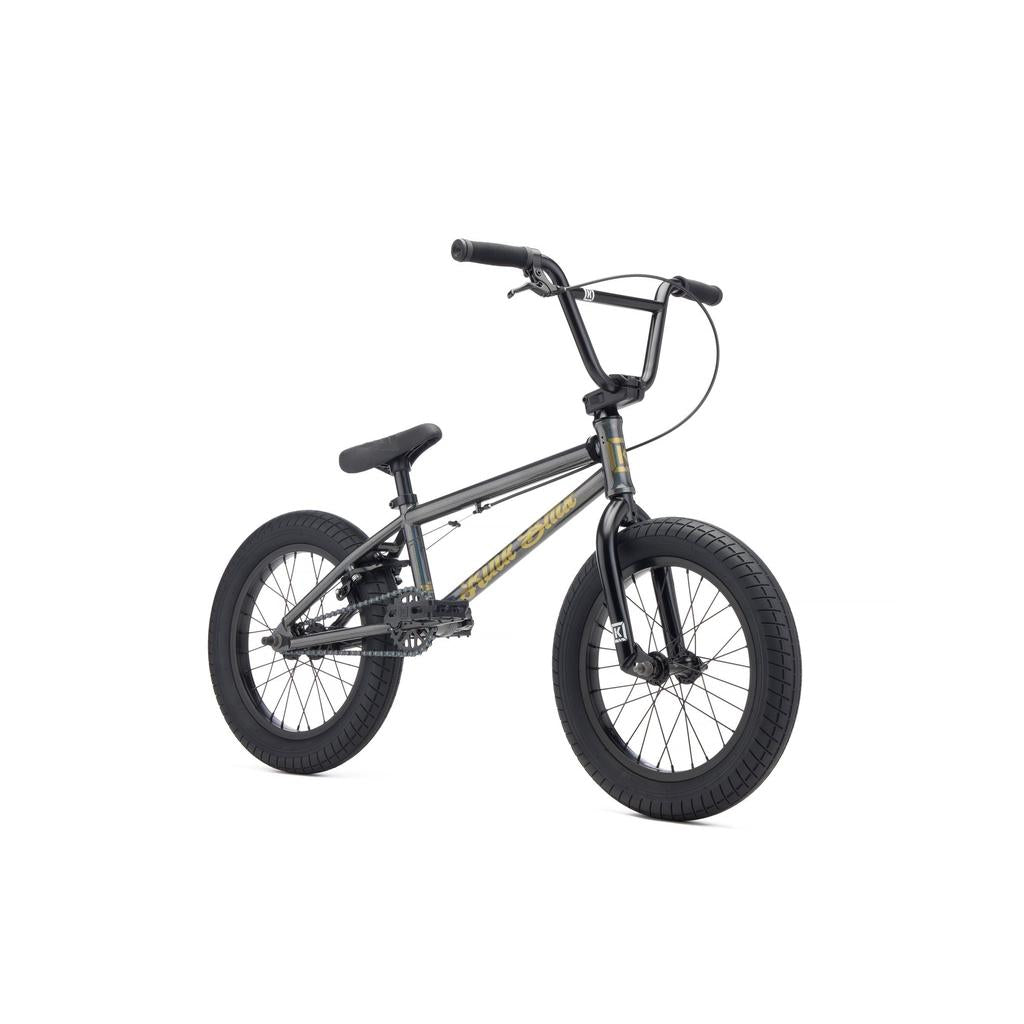

The Kink Carve 16 Inch Bike (2027) is a black kids BMX with thick tires, a straight top tube, and a small saddle, pictured from the side on a white background.

The Kink Carve 16 Inch Bike (2027) is a black BMX with thick tires, a padded seat, and straight handlebars, shown on a white background.

Description

The Carve is a 16 inch BMX bike for little riders who are keen on the sport. The frame is 100% Hi-Ten steel to keep the weight down, with splashes of chromoly through the parts that need the strength: a 4130 chromoly fork steerer and Mission Triumph 3-piece tubular chromoly cranks.

Wide 2.4" Mission Tracker tyres give plenty of grip, and a Mission sealed integrated headset and sealed mid bottom bracket keep things turning smoothly for longer. A 16.5" top tube, 140mm cranks and a Mission Mini lever keep everything in proportion for small hands and short legs.

Features

Shrunk down, built like the big bikes. A 16.5" top tube, 11.25" chainstays and a 74.5° head tube angle give little riders proper BMX geometry to learn on.
Hi-Ten frame with chromoly where it counts. The 100% Hi-Ten steel frame keeps the bike at 10.09kg, while the Kink Circuit fork runs a 4130 chromoly steerer.
Sealed headset and sealed mid bottom bracket. Mission sealed bearings in the steering and the cranks mean smoother spinning and less fiddling with adjustments.
Wide 2.4" Mission Tracker tyres. Mounted on Mission X7 28H rims for grip on rough concrete and dirt.
Mission Triumph 3-piece chromoly cranks. 140mm tubular chromoly arms on an 8 spline axle, with a Mission Rank 25T sprocket and a 9T cassette hub.

Specifications

Size: 16" wheels, 16.5" top tube
Frame: Kink Carve, 100% Hi-Ten steel, tapped for gyro tabs
Top tube: 16.5"
Chainstay: 11.25"
Head tube angle: 74.5°
Seat tube angle: 71°
Fork: Kink Circuit, 4130 chromoly steerer, tapered legs, 30mm offset
Headset: Mission sealed integrated
Stem: Mission Topload 40mm
Bars: Kink T700, 7" rise, 100% Hi-Ten steel
Grips: Mission Mini Helix
Bar ends: Mission
Brakes: Mission Cease V2, Mission L1 linear cable, welded mounts
Brake lever: Mission Mini
Cranks: Mission Triumph 3-piece tubular chromoly, 140mm, 8 spline
Bottom bracket: Sealed mid 19mm
Sprocket: Mission Rank 25T
Chain: Mission 410
Pedals: Kink Hemlock
Front hub: Mission Covert unsealed, 3/8" axle
Rear hub: Mission Function semi-sealed cassette, 14mm, 9T driver
Rims: Mission X7 28H
Tyres: Mission Tracker 16x2.4"
Seat: Mission Cypress Mini combo
Seat post: Mission combo steel
Seat clamp: Mission Slim
Weight: 10.09kg
Colour: Digital Gray

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

Fit the handlebars and line them up with the front wheel
Fit the front wheel, pedals and seat post
Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Kink Carve 16 Inch Bike (2027)

Name: Kink Carve 16 Inch Bike (2027)
Brand: Kink
SKU: KIREK408GRY27
Price: 719.99 AUD
Availability: InStock

Brand: Kink SKU: Click to copy the SKU and show the pick location

From

$719.99 AUD

$748.99 AUD

Or 4 payments of $179.99 AUD with

Colour - Digital Gray

Top Tube Length - 16.5

A 16 inch bike suits a rider of about 96 to 122cm, usually 4 to 7 years old, on a 16 to 16.5 inch top tube. It is the size most kids learn to ride properly on.

Rider height	Wheel size	Top tube
60 to 91cm	12"	12 to 12.5"
81 to 106cm	14"	14 to 14.5"
96 to 122cm	16"	16 to 16.5"
122 to 147cm	18"	18 to 18.5"
147 to 157cm	20"	19.75 to 20.25"
157 to 168cm	20"	20 to 20.5"
168 to 175cm	20"	20.25 to 20.75"
175 to 183cm	20"	20.5 to 21"
183 to 190cm and up	20"	20.75 to 21.5"
160cm and up	22"	21 to 22.25"
160cm and up	24"	21.75 to 22"
160cm and up	26"	22 to 23"

Sizes overlap on purpose, so personal preference comes into it. At this wheel size the top tube barely changes the fit: go by height, and check they can stand over the bike flat footed.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Between two wheel sizes? Go up. Kids grow into a bike far faster than they grow out of the fun.
They should be able to stand over the top tube with both feet flat on the ground.

Not sure? Send us their height and we will tell you what we would put them on.
