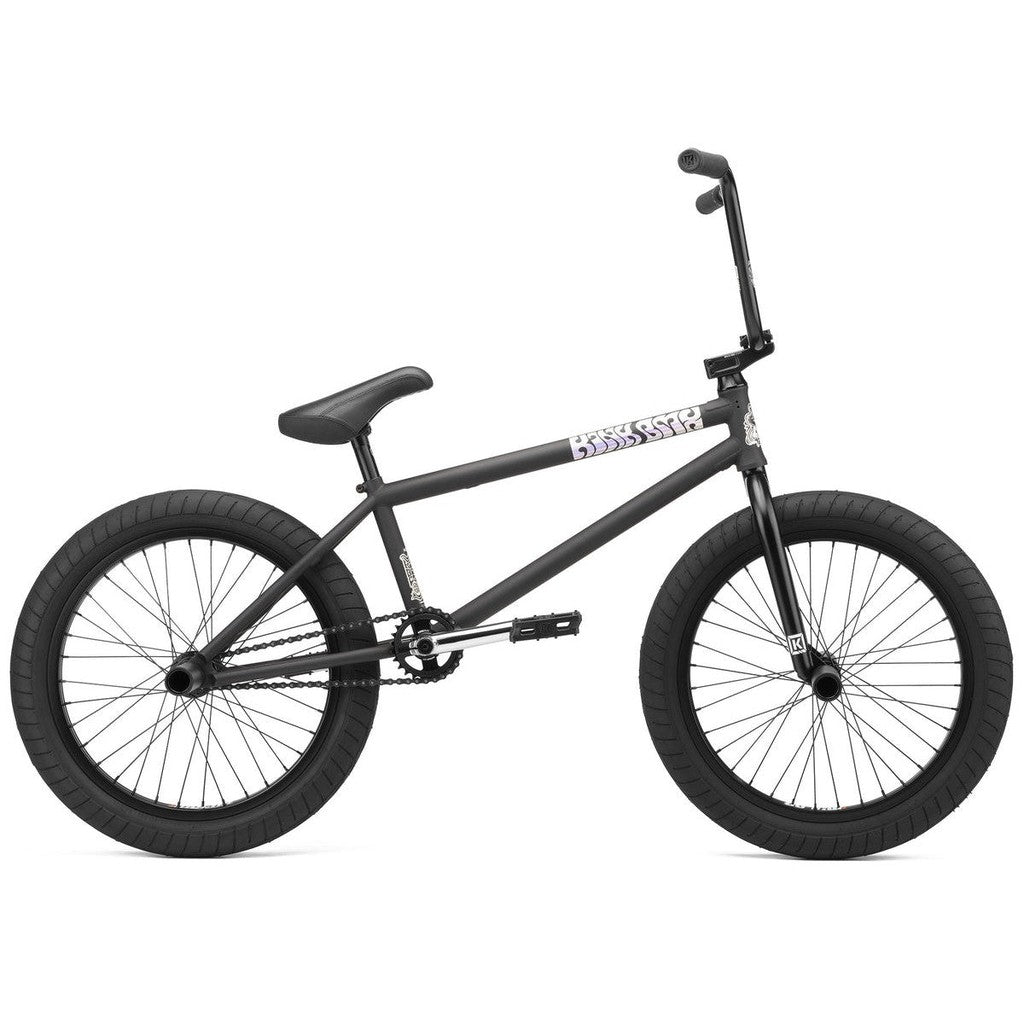

Kink Cloud 20 Inch Bike (2023) / Matte Iridescent Black / 21TT

Description

Tear it up just like the absolute shredder Travis Hughes on one of his very own signature complete bikes from the legends at Kink! Just look at that colour way. Clean, crisp and stylish - just like Travis' riding. Coming stock with a freecoaster and 4 x pegs you will be tearing up the streets in no time at all. Kink have decked this bike out with loads of their signature parts and have thrown in a few Mission parts to top off this epic package.

The Kink Cloud is Kink Pro team rider Travis Hughes’ signature bike. If you’ve seen Travis ride, you know there is just about nothing he can’t do on a bike, and the Cloud is based on his personal geometry preferences. Component wise, the Kink Cloud has got you covered with the included four plastic pegs and rear freecoaster wheel. The stealthy Matte Iridescent Black colorway really sets this bike apart without being flashy, and graphics inspired by Travis’s design ideas really finish off the look of this bike.

In addition to the full 100% 4130 chromoly frame and fork, the Cloud features an amazing list of components. This model comes with aftermarket Kink Rex 9.5” 13-butted 100% 4130 chromoly bars, Kink Ericsson Stealth seat, and Kink 2.4” Sever tires front and rear. The integrated seat clamp, removable brake design, and Mission Pace freecoaster rear wheel solidify the aftermarket look and feel to this bike. To top it all off, the Cloud of course comes standard with four Mission Targa plastic pegs.

Features

Travis Hughes signature complete. The Cloud runs Travis's own geometry preferences, his design ideas in the graphics and a stealthy Matte Iridescent Black colourway.
Freecoaster and four pegs, stock. A Mission Pace sealed 9T freecoaster and four Mission Targa nylon pegs: roll backwards and grind straight off the shop floor.
Full 4130 chromoly frame and fork. Kink Cloud frame with a Kink Trident fork, both 100% 4130 chromoly, with a 13.25" chainstay and 21" top tube.
Aftermarket parts out of the box. Kink Rex 9.5" 13-butted chromoly bars, a Kink Ericsson Stealth seat, integrated seat clamp and removable brake mounts.
Kink Sever 2.4" tyres. Wide rubber front and rear on Mission Mylar rims, with Kink Ridge 3-piece tubular chromoly 170mm cranks underneath.

Specifications

Size: 20" wheels
Frame: Kink Cloud, 100% 4130 chromoly
Top tube: 21"
Chainstay: 13.25"
Head tube angle: 75.5°
Seat tube angle: 71°
Standover: 8.75"
Bottom bracket height: 11.65"
Fork: Kink Trident, 100% 4130 chromoly, one-piece steerer tube, tapered legs, 26mm offset
Headset: Mission sealed integrated, 41.8 x 45
Stem: Kink Bold HRD, 50mm
Bars: Kink Rex, 9.5" rise, 100% 4130 chromoly, 13-butted TruTherm
Grips: Kink Form
Bar ends: Thrust
Brakes: Mission Cease V2 with removable mounts, Mission L4 Linear cable
Brake lever: Mission Token
Cranks: Kink Ridge, 3-piece tubular chromoly, 170mm, 8 spline
Bottom bracket: Sealed mid, 19mm
Sprocket: Kink Imprint, 25T, CNC 7075-T6
Chain: Mission 510H
Pedals: Kink Hemlock
Front hub: Mission Bond, sealed bolt-in, 3/8" x 24 TPI bolts
Rear hub: Mission Pace sealed freecoaster, 14mm, 9T
Rims: Mission Mylar
Tyres: Kink Sever, 2.4" front and rear
Seat: Kink Ericsson Stealth
Seat post: Mission aluminium Stealth
Seat clamp: Integrated
Pegs: Four Mission Targa nylon pegs
Weight: 12.3 kg
Colour: Matte Iridescent Black

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

Fit the handlebars and line them up with the front wheel
Fit the front wheel, pedals and seat post
Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Kink Cloud 20 Inch Bike

Name: Kink Cloud 20 Inch Bike
Brand: Kink
SKU: KIBI23K480BLK
Price: 1299.99 AUD
Availability: OutOfStock

Brand: Kink SKU: Click to copy the SKU and show the pick location

$1,299.99 AUD

Or 4 payments of $324.99 AUD with

Recommended Rider Height:

175cm+

Colour - Matte Iridescent Black

Top Tube Length - 21

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider height	Wheel size	Top tube
60 to 91cm	12"	12 to 12.5"
81 to 106cm	14"	14 to 14.5"
96 to 122cm	16"	16 to 16.5"
122 to 147cm	18"	18 to 18.5"
147 to 157cm	20"	19.75 to 20.25"
157 to 168cm	20"	20 to 20.5"
168 to 175cm	20"	20.25 to 20.75"
175 to 183cm	20"	20.5 to 21"
183 to 190cm and up	20"	20.75 to 21.5"
160cm and up	22"	21 to 22.25"
160cm and up	24"	21.75 to 22"
160cm and up	26"	22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
