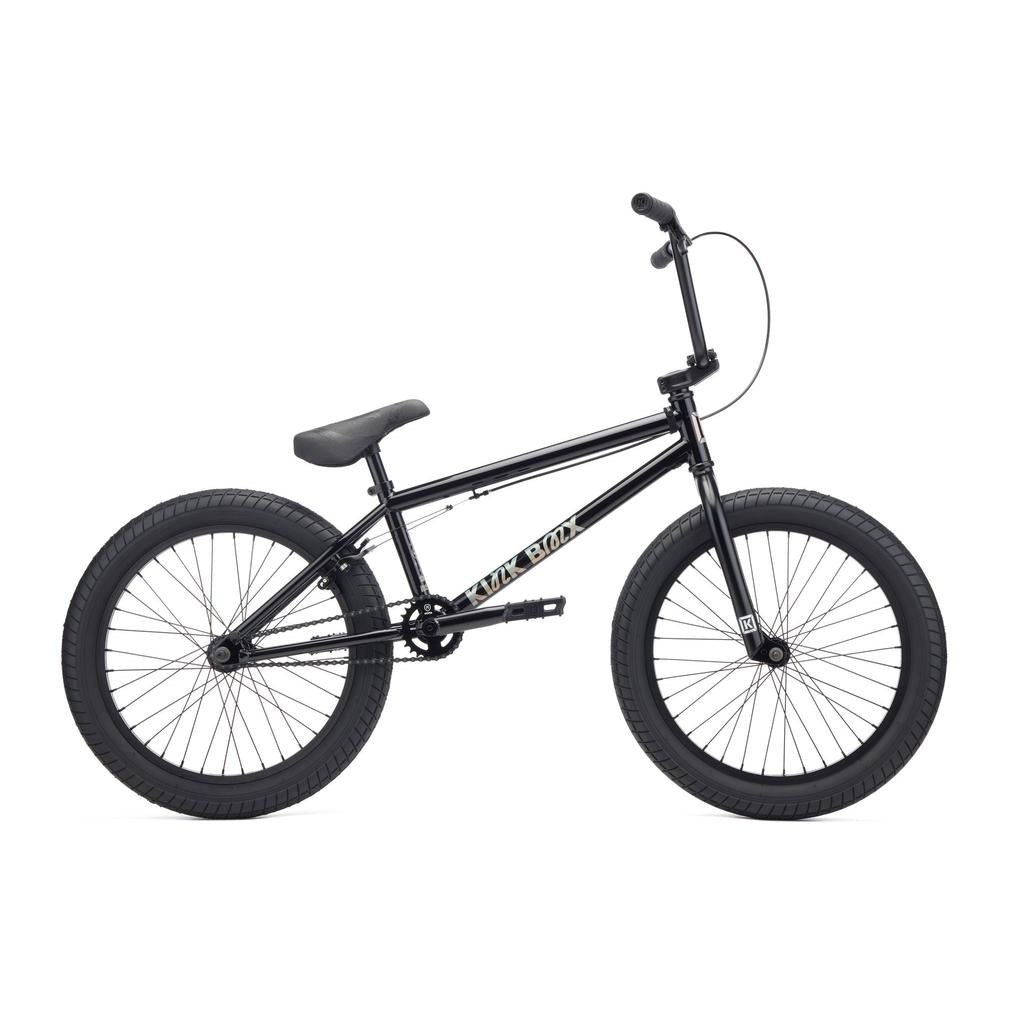

The Kink Curb 20 Inch Bike (2027) is a black beginner’s BMX with thick tires, straight top tube, Mission components, and a padded seat, pictured in profile on a white background.
The Kink Curb 20 Inch Bike (2027) is shown in profile on a white background, featuring thick tires, a straight top tube, and a padded seat—making it an ideal beginner’s BMX bike.

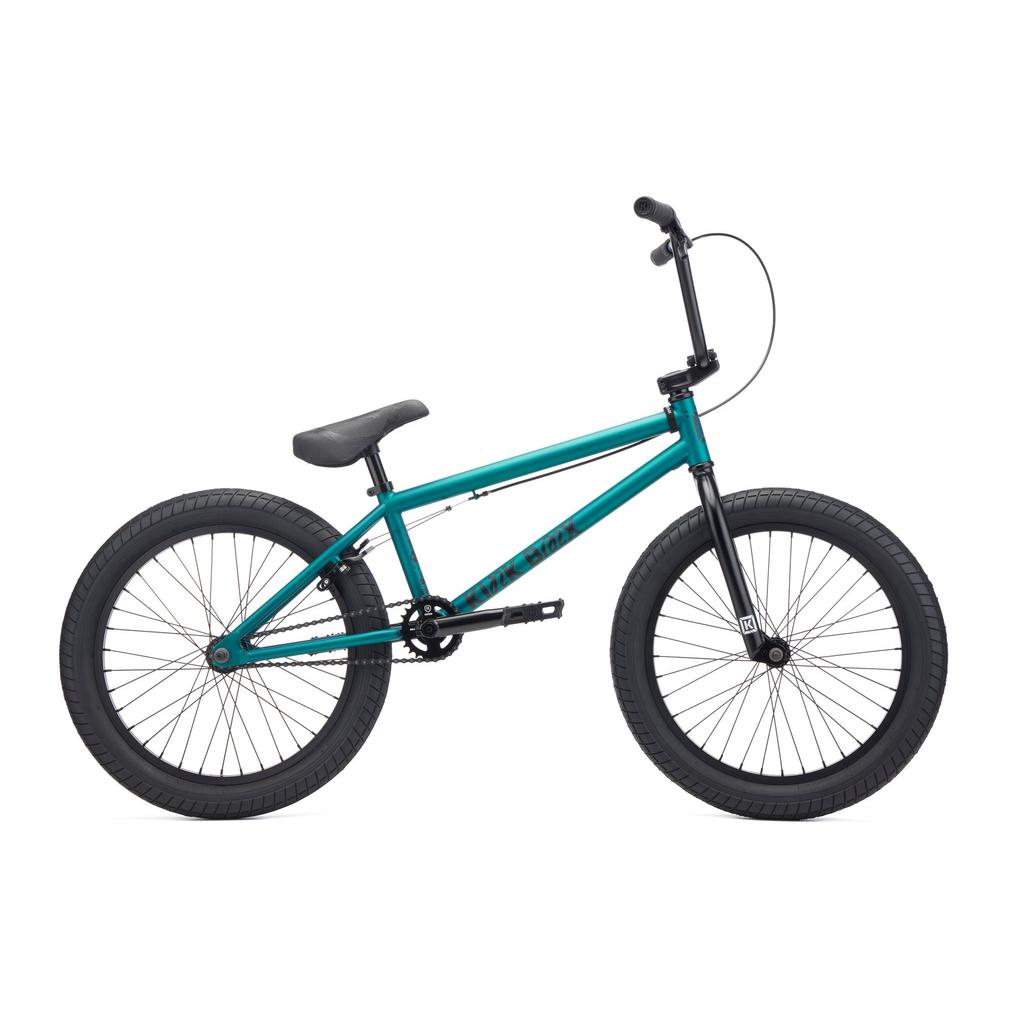

The Kink Curb 20 Inch Bike (2027) in teal features black seat, handlebars, pedals, and tires with premium Mission parts. Shown in profile against a white background, it’s ideal for beginners seeking a stylish BMX ride.

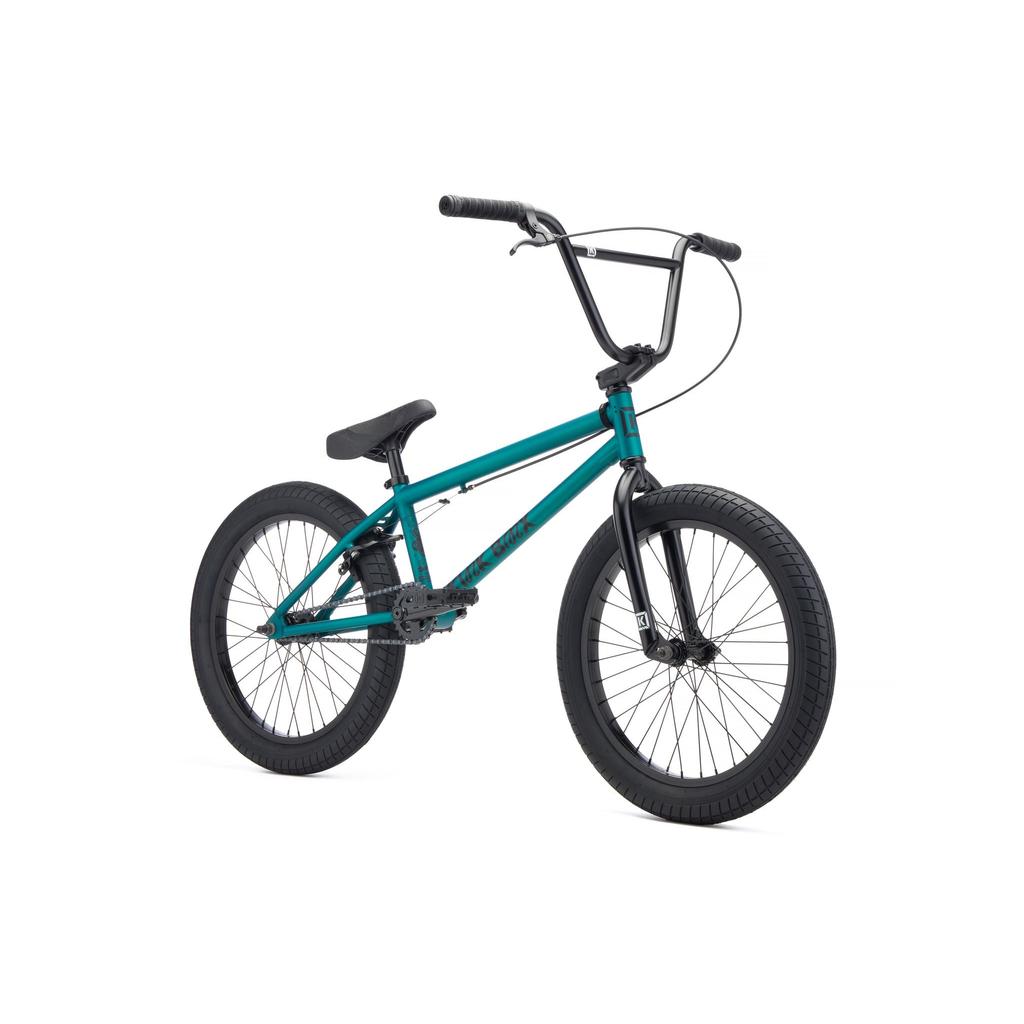

The Kink Curb 20 Inch Bike (2027) is a teal BMX for beginners with black handlebars, seat, pedals, and tires, plus reliable Mission parts, displayed on a white background.

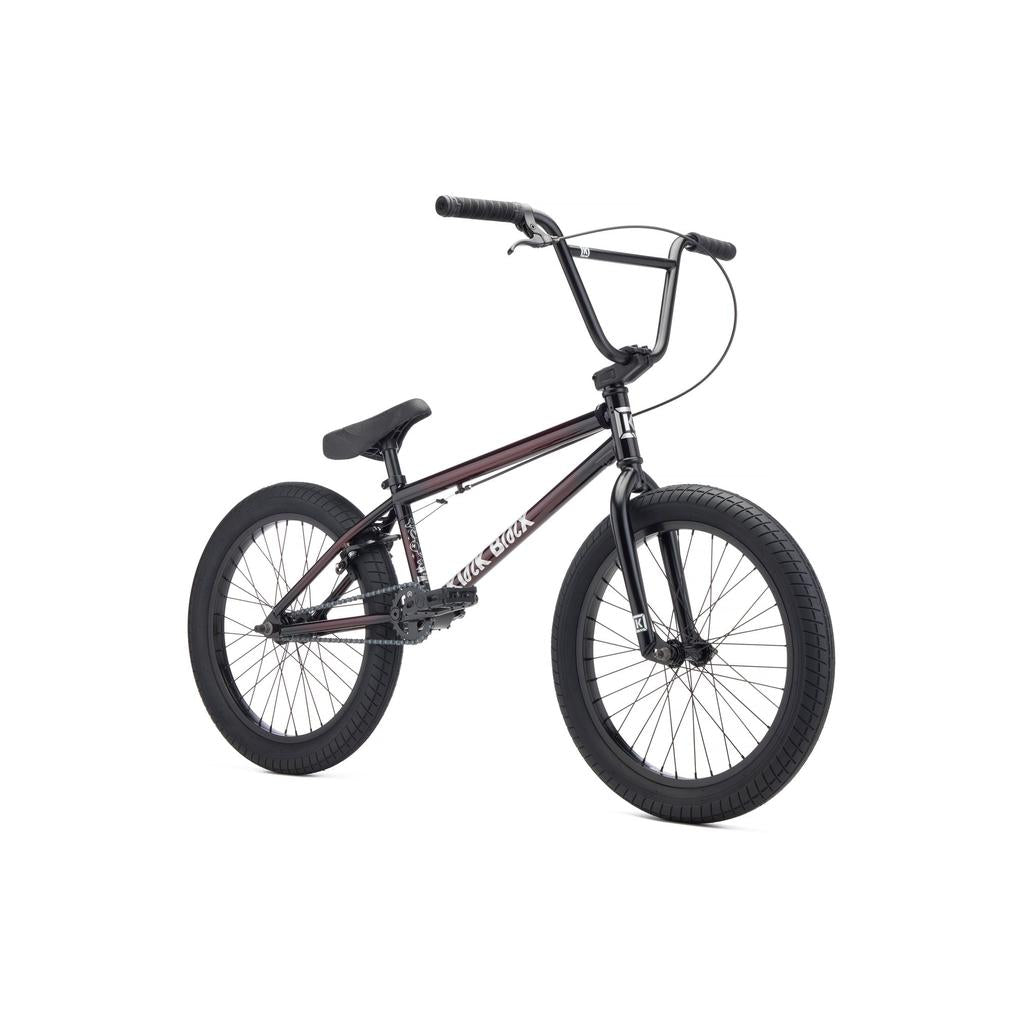

The Kink Curb 20 Inch Bike (2027), a black beginner BMX with Mission parts, thick tires, a padded seat, and high handlebars, is displayed on a plain white background.

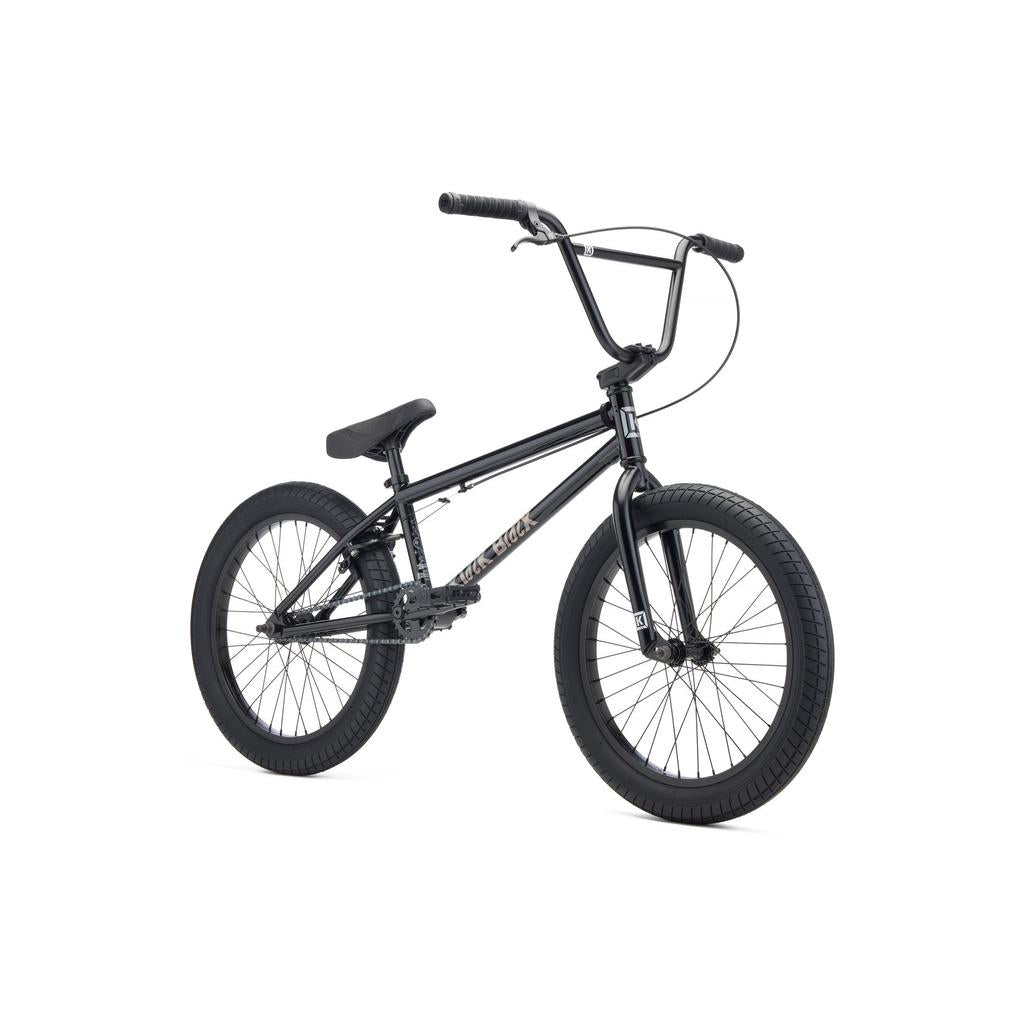

The Kink Curb 20 Inch Bike (2027) is a black BMX with a compact frame, thick tires, straight handlebars, and Mission parts, shown on a white background—ideal for beginners.

Description

The Curb is a beginner's 20 inch BMX built to be ridden hard. Frame and fork are 100% Hi-Ten steel, and the 20" top tube is on the short side, which makes the bike easier to throw around while you are still working things out.

The parts kit is mostly Mission: Cease V2 brakes, a Warsaw combo seat, Tracker 2.4" tyres on X7 rims and a Function semi-sealed cassette hub. The Mission Triumph 3-piece tubular chromoly cranks are the important bit, putting the strength where the bike takes the most abuse.

Features
  • Solid first bike, built for shredding. A 100% Hi-Ten steel Kink Curb frame and Conduit fork with a short 20" top tube: easy to get started on, and tough.
  • 3-piece tubular chromoly cranks. Mission Triumph 170mm cranks on an 8 spline axle put the strongest part of the bike where it takes the most abuse.
  • Wide 2.4" Mission Tracker tyres. On Mission X7 rims, they give plenty of grip on rough concrete and dirt.
  • A roomy, comfortable cockpit. An 8.75" Kink T875 bar, a Mission Control topload 50mm stem, Kink Ace grips and Kink Thrust bar ends.
  • Full Kink and Mission parts kit. A 9T cassette hub, Mission Breach 25T sprocket, Cease V2 brakes and a Mission Warsaw combo seat, all up 12.3kg.

Specifications
  • Size: 20" wheels, 20" top tube
  • Frame: Kink Curb, 100% Hi-Ten steel, tapped for gyro tabs
  • Top tube: 20"
  • Chainstay: 13.25"
  • Head tube angle: 74.5°
  • Seat tube angle: 71°
  • Fork: Kink Conduit, 100% Hi-Ten steel, tapered legs, 30mm offset
  • Headset: Standard 1 1/8" threadless
  • Stem: Mission Control TL 50mm
  • Bars: Kink T875, 8.75" rise, 100% Hi-Ten steel
  • Grips: Kink Ace
  • Bar ends: Kink Thrust
  • Brakes: Mission Cease V2, Mission L3 linear cable, welded mounts
  • Brake lever: Mission Token
  • Cranks: Mission Triumph 3-piece tubular chromoly, 170mm, 8 spline
  • Bottom bracket: Unsealed American 19mm
  • Sprocket: Mission Breach 25T
  • Chain: Mission 410
  • Pedals: Kink Hemlock
  • Front hub: Mission Reserve unsealed, 3/8" axle
  • Rear hub: Mission Function semi-sealed cassette, 14mm, 9T driver
  • Rims: Mission X7
  • Tyres: Mission Tracker 2.4"
  • Seat: Mission Warsaw combo
  • Seat post: Mission combo steel
  • Seat clamp: Mission Slim
  • Weight: 12.3kg
  • Colour: Emerald Green

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Kink Curb 20 Inch Bike (2027)

Brand: Kink SKU:

From

$599.99 AUD

 $648.99 AUD

Or 4 payments of $149.99 AUD with

Colour - Midnight Black

Top Tube Length - 20

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
