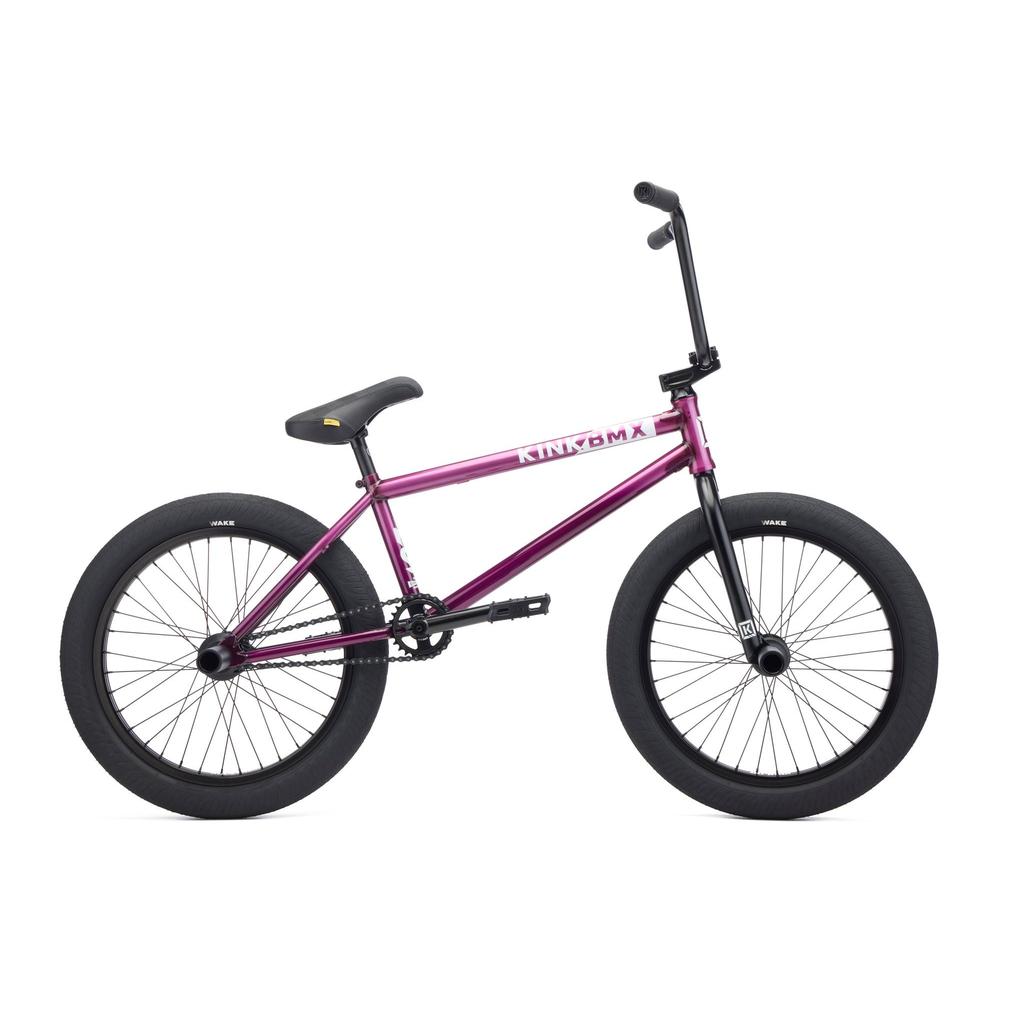

The Kink Downside 20 Inch Bike (2027) is shown in side view, featuring a purple chromoly frame with black handlebars, seat, pedals, and tires against a white background.
The Kink Downside 20 Inch Bike (2027) is a purple BMX street bike featuring a durable chromoly frame, black handlebars, seat, and tires, displayed on a white background.

Description

The Kink Downside is a street build: 100% 4130 chromoly frame and Relay fork, a Mission Pace sealed freecoaster, Kink Ridge 3-piece tubular chromoly cranks and four Mission nylon pegs straight out of the box.

Every bearing is sealed, both hubs come with guards, and the cockpit runs Kink Foundry 9.5" TruTherm bars, a Brute 48mm stem, Form grips and Thrust bar ends. Mission Cease V2 brakes sit on removable mounts. It weighs 12.67kg and comes in Deep Purple.

Features
  • Mission Pace sealed freecoaster. Roll backwards without the cranks turning, so fakies and half cab lines come easy on the Downside.
  • Four pegs and guarded hubs. Both hubs come with guards and the bike ships with four Mission nylon pegs, so it is ready to grind either side from day one.
  • Full 4130 chromoly frame and fork. The Downside frame is tapped for gyro tabs and pairs with the Kink Relay fork, tapered legs and 25mm offset, all 100% chromoly.
  • Kink Foundry 9.5" TruTherm bars. Heat treated 4130 chromoly with Thrust bar ends and Form grips for a tall, comfortable cockpit.
  • 3-piece cranks, sealed mid BB. Kink Ridge 165mm tubular chromoly cranks, a CNC 7075-T6 Imprint 25T sprocket and a sealed mid 19mm bottom bracket. 12.67kg in Deep Purple.

Specifications
  • Size: 20" wheels
  • Frame: Kink Downside, 100% 4130 chromoly, tapped for gyro tabs
  • Top tube: 20.75"
  • Chainstay: 12.75"
  • Head tube angle: 75°
  • Seat tube angle: 71°
  • Fork: Kink Relay, 100% 4130 chromoly, 1pc steerer tube, tapered legs, 25mm offset
  • Headset: Mission sealed integrated
  • Stem: Kink Brute 48mm
  • Bars: Kink Foundry, 9.5", 100% 4130 chromoly, TruTherm heat treatment
  • Grips: Kink Form
  • Bar ends: Kink Thrust
  • Brakes: Mission Cease V2 with Mission L4 linear cable, removable mounts
  • Brake lever: Mission Captive
  • Cranks: Kink Ridge 3pc tubular chromoly, 165mm, 8 spline
  • Bottom bracket: Sealed mid 19mm
  • Sprocket: Kink Imprint 25T, CNC 7075-T6
  • Chain: Mission 510H
  • Pedals: Kink Hemlock
  • Front hub: Mission Bond sealed bolt in with guards
  • Rear hub: Mission Pace sealed freecoaster, 14mm, with guards
  • Rear cog: Sealed 9T driver
  • Rims: Mission Mylar
  • Tyres: Kink Wake 2.45"
  • Seat: Kink Impression Stealth
  • Seat post: Mission Aluminium Stealth
  • Seat clamp: Integrated
  • Pegs: 4 x Mission nylon
  • Weight: 12.67kg
  • Colour: Deep Purple

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Kink Downside 20 Inch Bike (2027)

Brand: Kink SKU:

From

$1,329.99 AUD

 $1,398.99 AUD

Or 4 payments of $332.49 AUD with

Colour - Deep Purple

Top Tube Length - 20.75

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
