Side view of the Kink Launch LTD 20 Inch Bike, a limited edition BMX with a metallic frame, black saddle and handlebars, thick black tires, and precision sealed bearings.
The Kink Launch LTD 20 Inch Bike is a limited edition BMX with a matte gray frame, black handlebars, seat, tires, and pedals, plus smooth sealed bearings. Shown against a dark brick wall background.

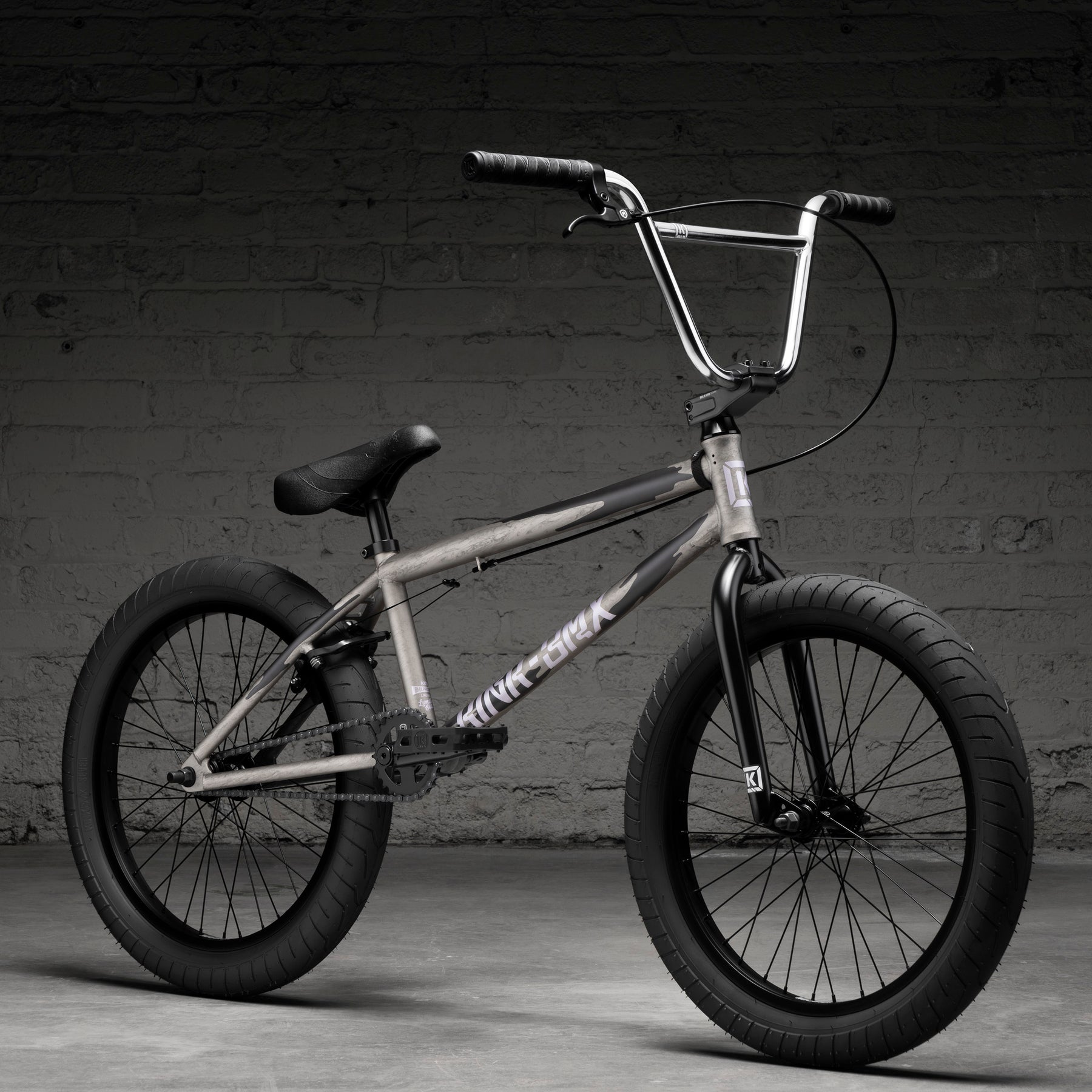

The Kink Launch LTD 20 Inch Bike, a limited edition BMX with a metallic frame, black handlebars, wheels, and seat plus sealed bearing headset, is displayed indoors against a textured brick wall.

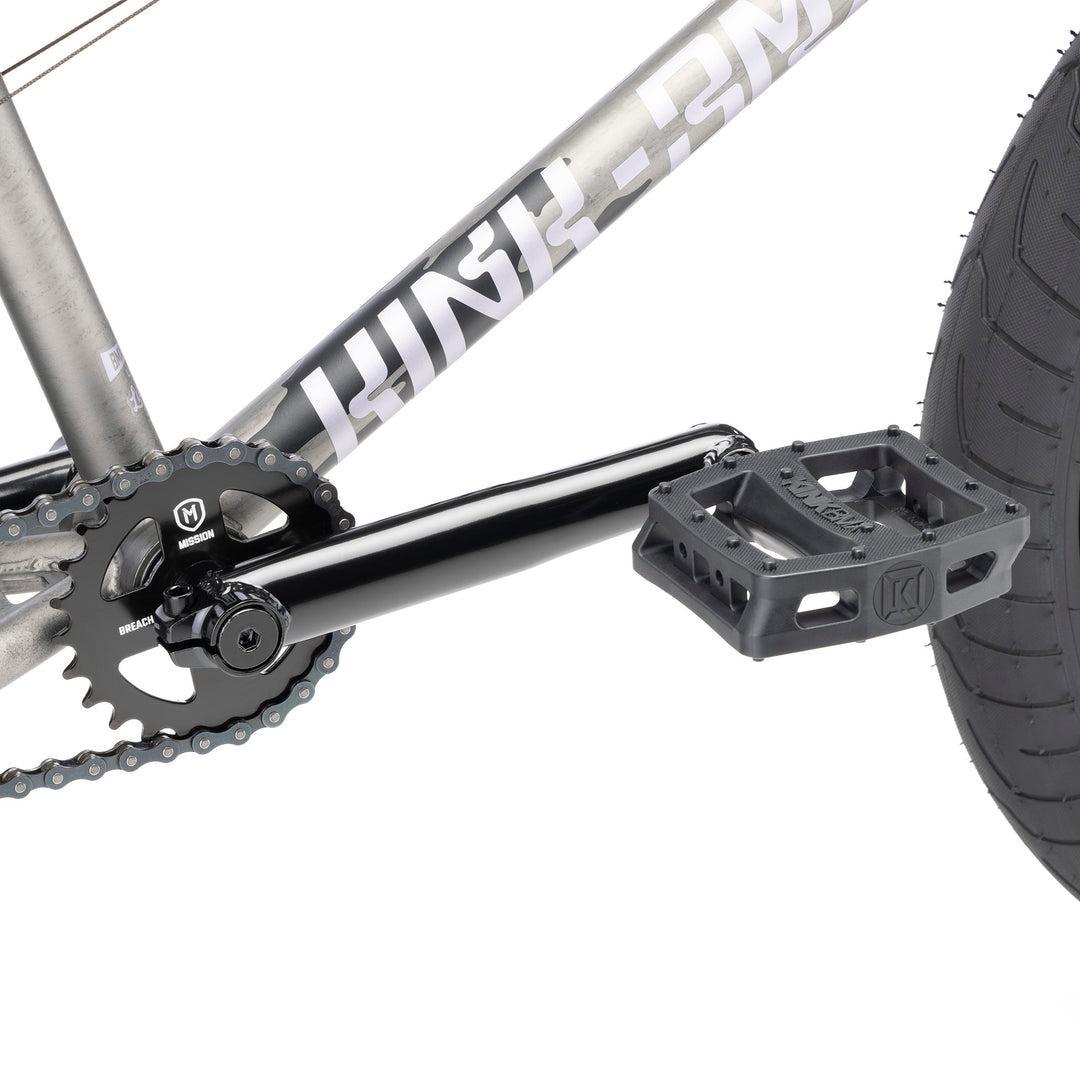

Close-up view of the Kink Launch LTD 20 Inch Bike's crankset, chainring, and platform pedal with sealed bearings attached to the frame and rear wheel.

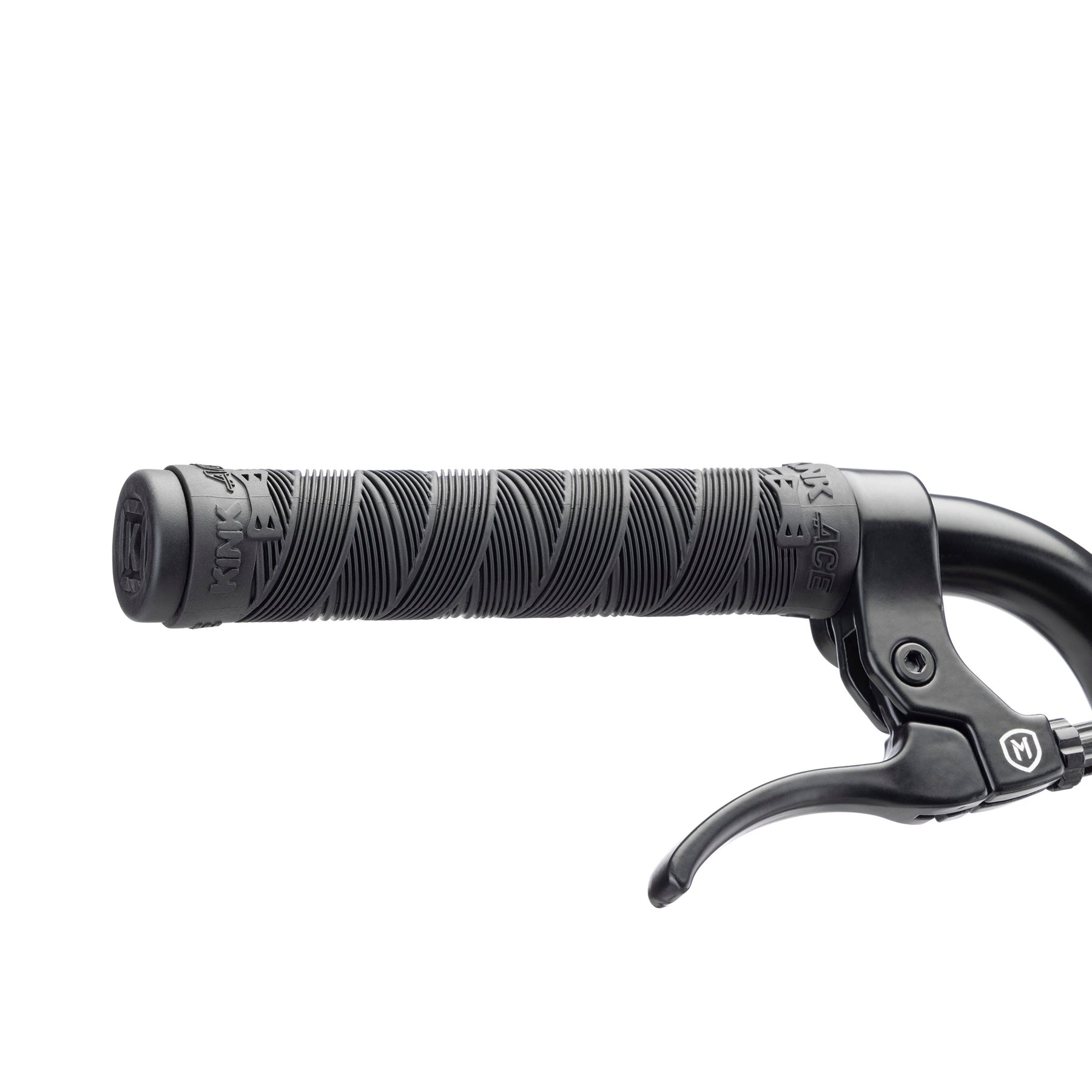

Close-up of the Kink Launch LTD 20 Inch Bike’s black BMX handlebar with a textured rubber grip, brake lever, and sealed bearing headset, all set against a white background.

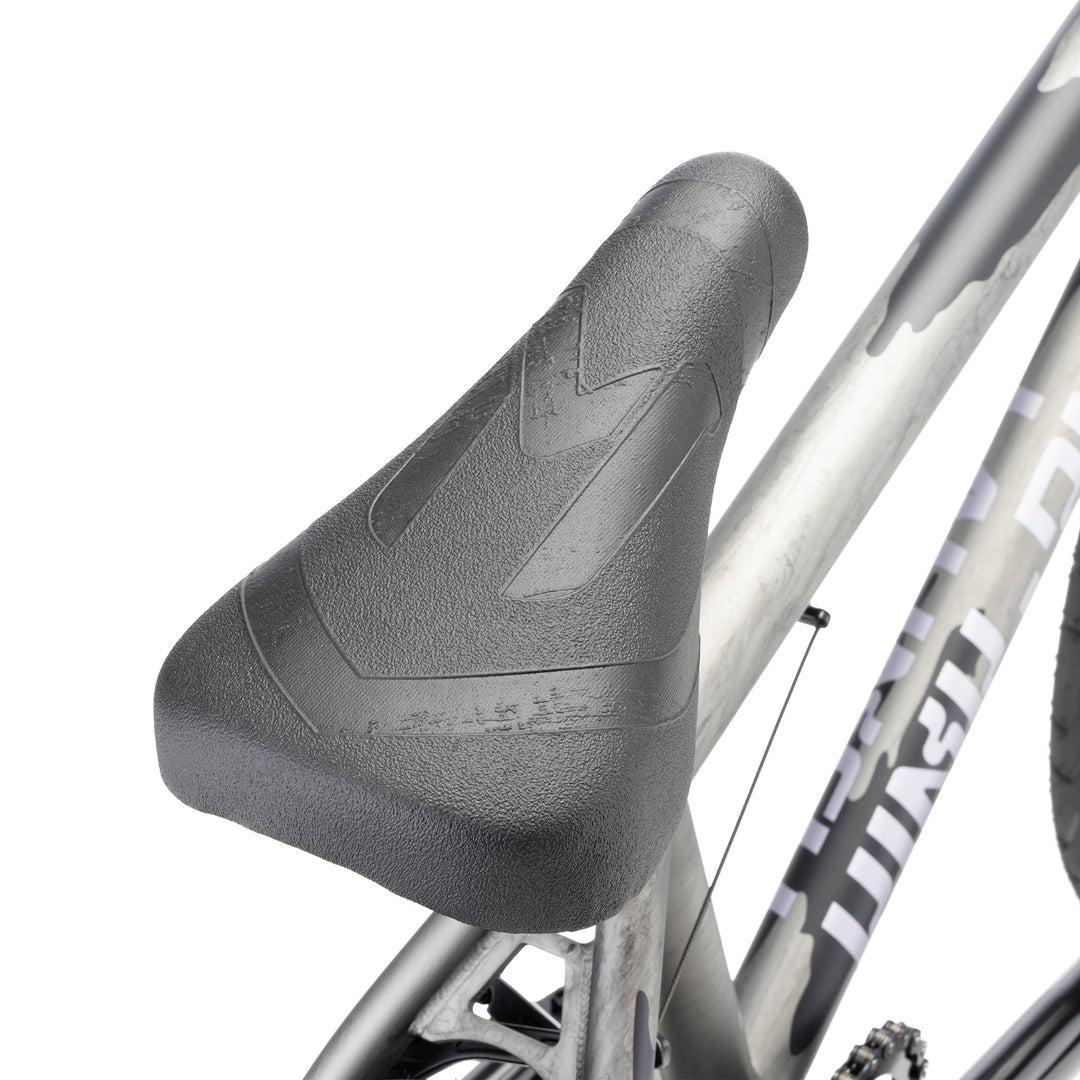

Close-up of the Kink Launch LTD 20 Inch Bike’s black BMX seat on a silver frame, with pedals and chain visible—ideal for showcasing this limited edition ride.

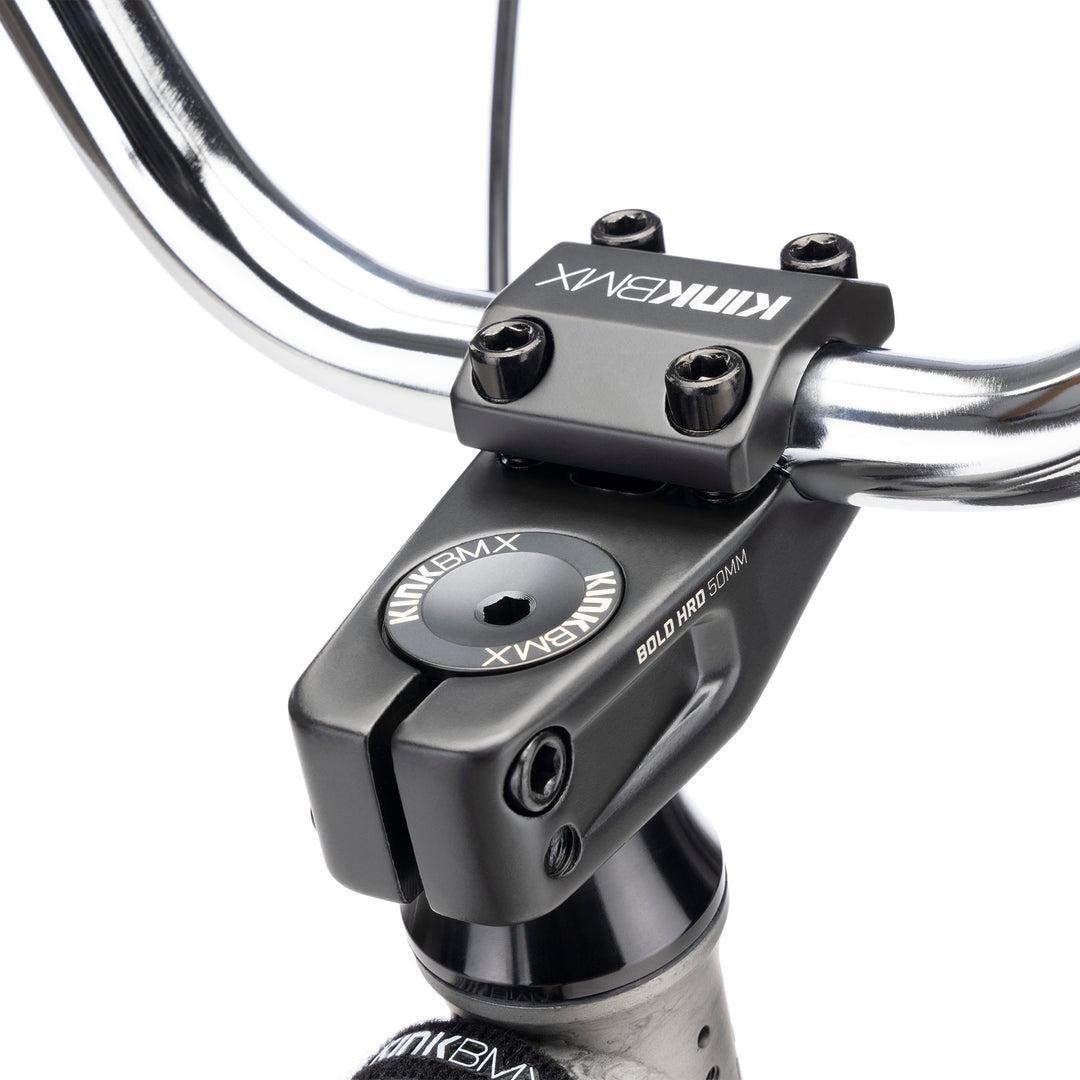

Close-up of the limited edition Kink Launch LTD 20 Inch Bike's black Bold HRD 50mm stem, securely mounted to chrome handlebars.

Highlights

  • Sealed headset and bottom bracket
  • 3-piece tubular chromoly cranks
  • Geometry that suits every kind of riding
  • Full Mission parts kit

Description

Launch into the stratosphere with one of these banging limited bikes from Kink! 3 Piece Cranks, sealed Headset and BB, Mission Parts, a sick paint job- this is a tasty little treat that's begging for a shredding!

Features
  • Sealed headset and bottom bracket. Sealed integrated headset and sealed mid bottom bracket bearings keep you riding longer with much less maintenance.
  • 3-piece tubular chromoly cranks. Mission Triumph 170mm cranks put proper chromoly where the bike takes the most abuse.
  • Geometry that suits every kind of riding. A 20.25" top tube, 13.25" chainstays and a 75 degree head angle make it responsive but still stable.
  • Full Mission parts kit. Mission Cease V2 brakes, X7 rims, a Function semi-sealed 9T cassette hub and a Warsaw combo seat, all up 12.13kg.
  • Limited Concrete Camo colourway. The same reliable Launch build in a limited edition paint job, whether it is your first BMX or your second.

Specifications
  • Size: 20"
  • Frame: Kink Launch, 100% Hi-Ten steel
  • Top tube: 20.25"
  • Chainstay: 13.25"
  • Head tube angle: 75°
  • Seat tube angle: 71°
  • Fork: Kink Stryker 4130 chromoly steerer, tapered legs
  • Headset: Mission sealed integrated (41.8 x 45)
  • Stem: Kink Bold HRD 50mm
  • Bars: Kink T875 8.75", 100% Hi-Ten steel
  • Grips: Kink Ace
  • Bar ends: Thrust
  • Brakes: Mission Cease V2 with Mission L3 linear cable
  • Brake lever: Mission Token
  • Cranks: Mission Triumph 3pc tubular chromoly 170mm, 8 spline
  • Bottom bracket: Sealed mid 19mm
  • Sprocket: Mission Breach 25T
  • Chain: Mission 410
  • Pedals: Kink Hemlock
  • Front hub: Mission Covert unsealed, 3/8" axle
  • Rear hub: Mission Function semi-sealed cassette, 14mm
  • Rear cog: 9T
  • Rims: Mission X7
  • Tyres: Kink Sever 20 x 2.4"
  • Seat: Mission Warsaw combo
  • Seat post: Mission combo steel post
  • Seat clamp: Mission Slim Clamp
  • Weight: 12.13kg (26lb 12oz)
  • Colour: Concrete Camo

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Kink Launch LTD 20 Inch Bike

Brand: Kink SKU:

From

$669.99 AUD

 $788.99 AUD

Or 4 payments of $167.49 AUD with

Recommended Rider Height: 157 to 175 cm

Colour - Concrete Camo

Top Tube Length - 20.25

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
