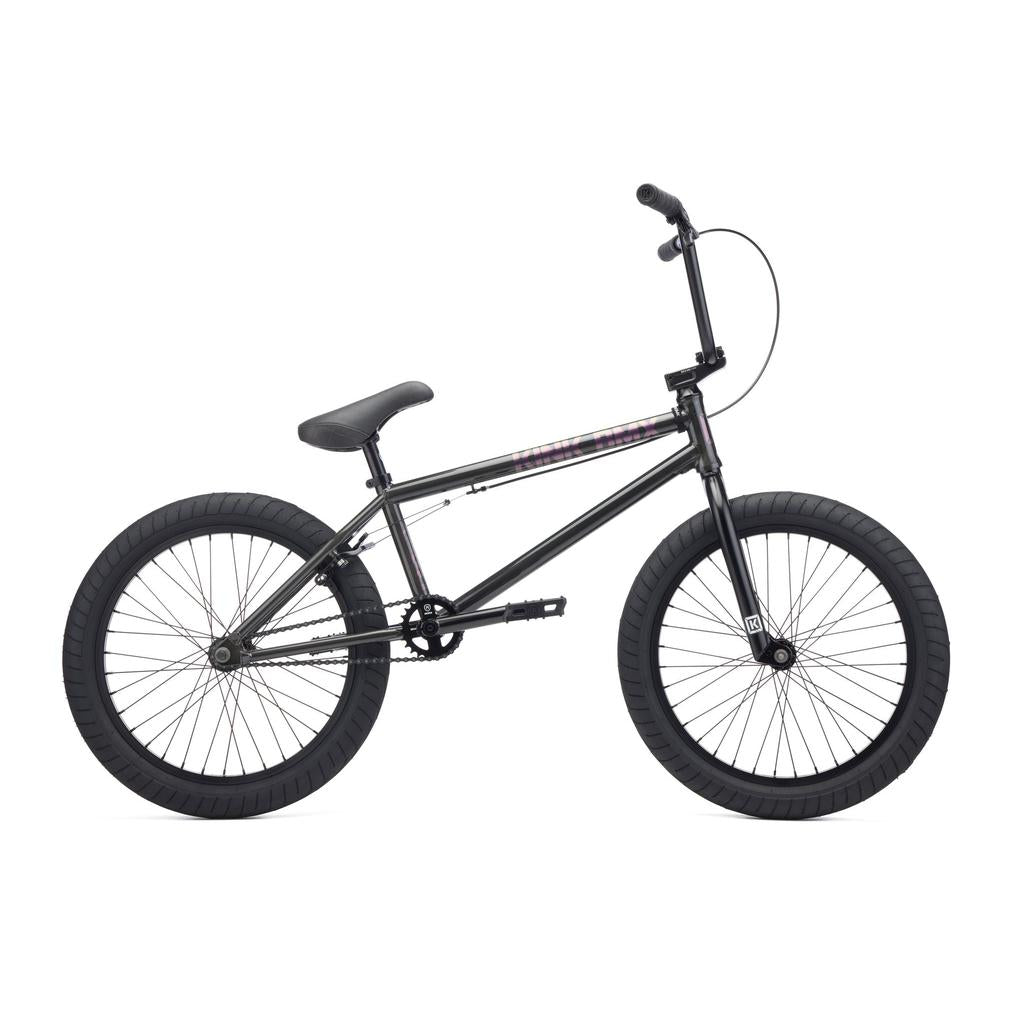

The Kink Setup 20 Inch Bike (2027) is a black beginner BMX with thick tires, upright handlebars, and a compact Chromoly frame featuring quality Kink and Mission parts, shown in a side view against a white background.

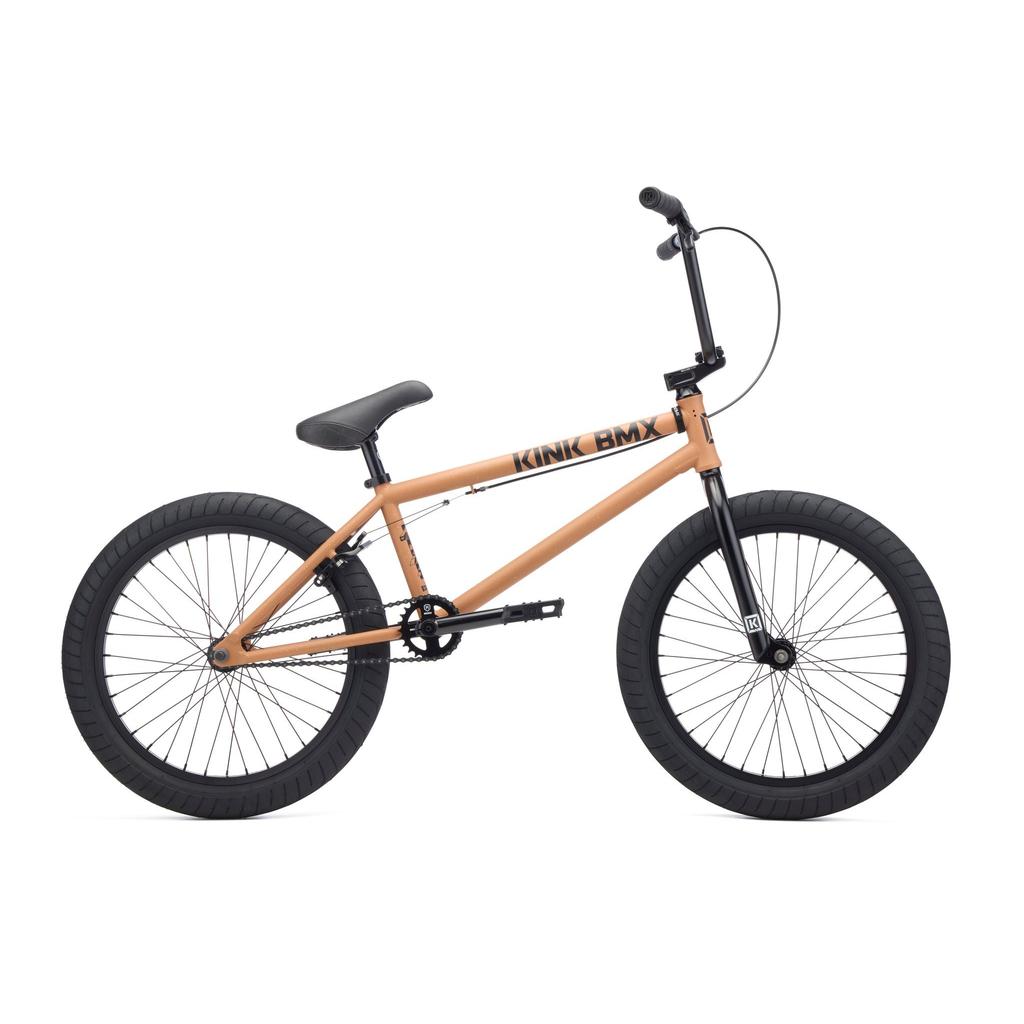

The Kink Setup 20 Inch Bike (2027), a tan beginner BMX with a durable Chromoly frame, black wheels, seat, pedals, and handlebars, is shown from the side against a white background.

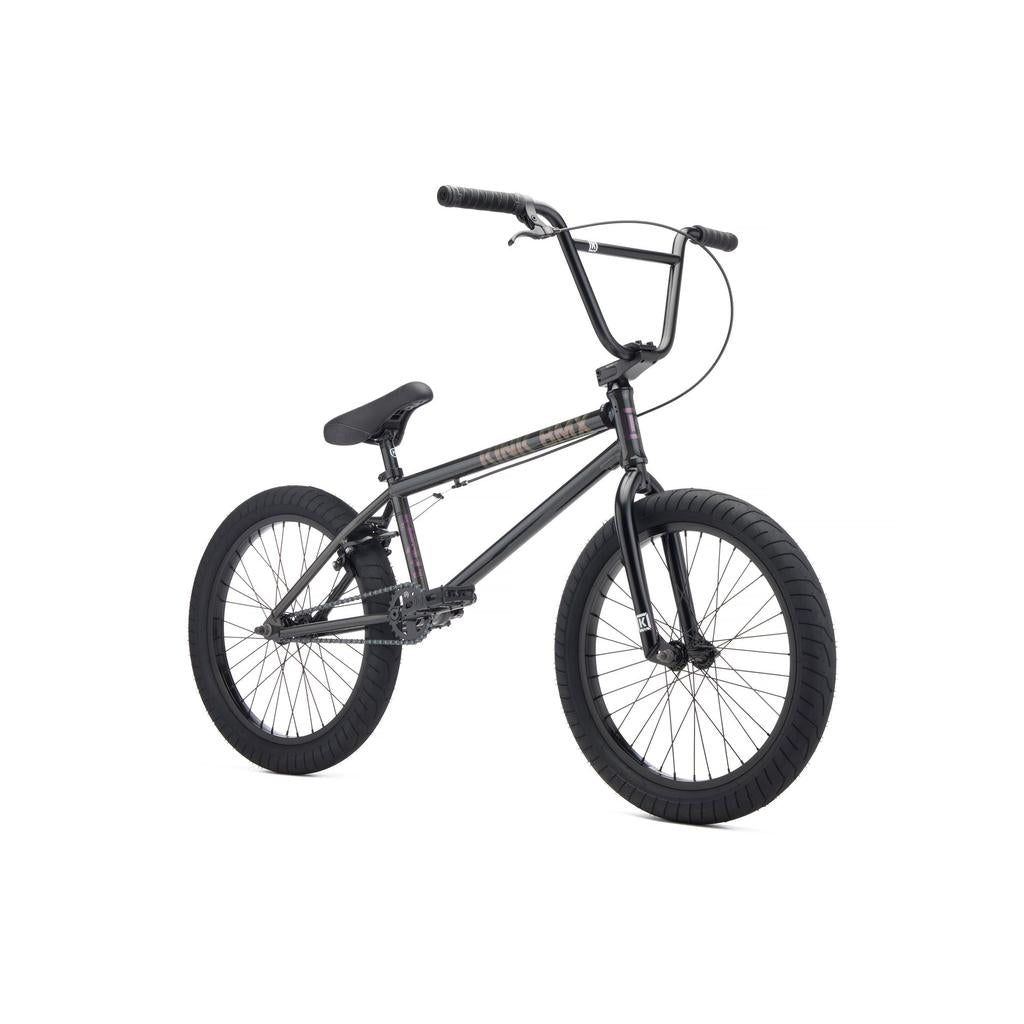

The Kink Setup 20 Inch Bike (2027) is a black beginner BMX with thick tires, a straight top tube, raised handlebars, and durable Kink and Mission parts, displayed on a white background.

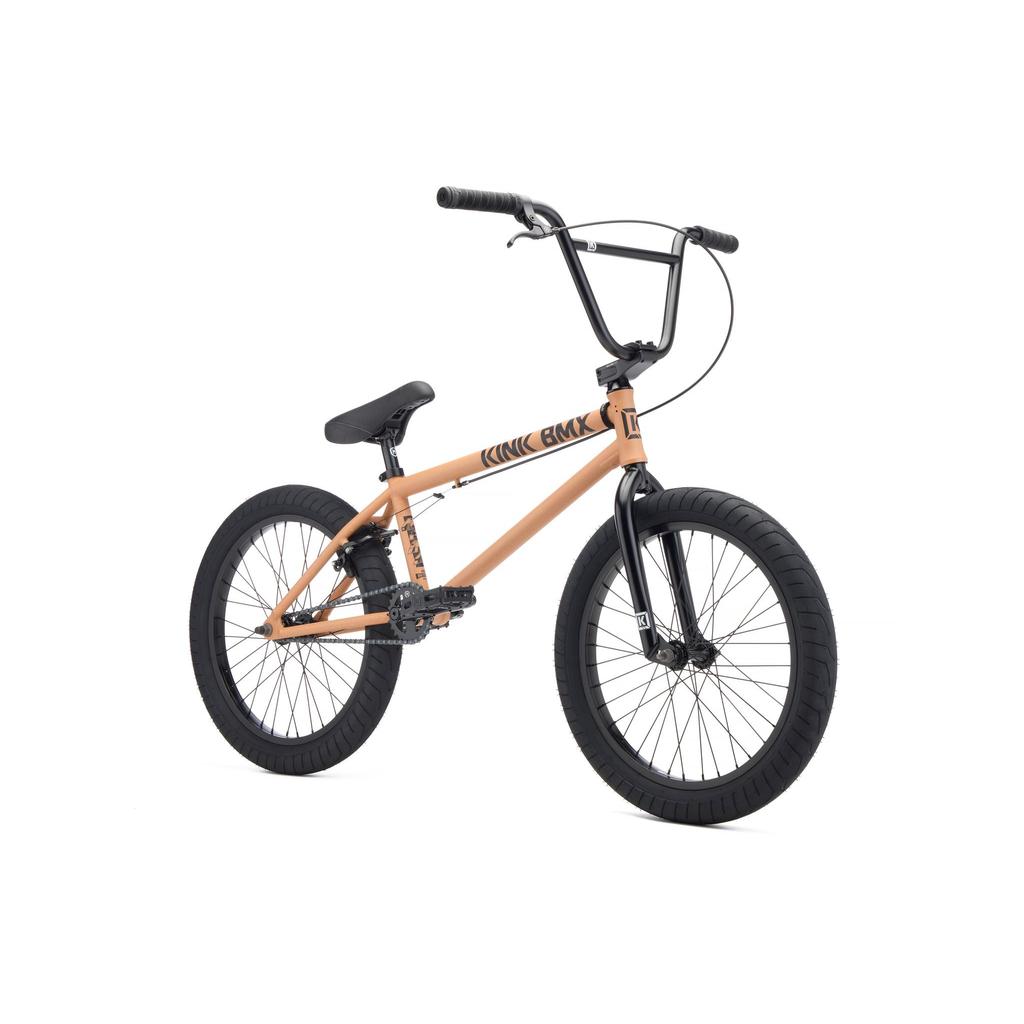

The Kink Setup 20 Inch Bike (2027) is a tan and black beginner BMX with thick tires, a padded seat, upright handlebars, and quality Kink and Mission parts, shown on a plain white background.

Description

The Setup is a serious beginner bike with chromoly in the places that need it. The frame has a 4130 chromoly front triangle, the Circuit fork has a 4130 chromoly steerer, and the Kink Ridge cranks and Kink T900 bars are chromoly as well.

Bearings are sealed through the Mission integrated headset, the mid 19mm bottom bracket and the Mission Engage rear hub with its sealed 9T driver. Kink Sever 2.4" tyres, a Plymouth Stealth seat and Mission Cease V2 brakes finish it off at 12.2kg.

Features
  • 4130 chromoly front triangle. Chromoly through the front of the frame puts the strength where the bike takes the hardest hits.
  • Chromoly bars and cranks too. A 9" Kink T900 chromoly bar and Kink Ridge 3-piece tubular chromoly 170mm cranks handle the parts that cop the most force.
  • Sealed bearings front to back. A Mission sealed integrated headset, a sealed mid 19mm bottom bracket and a Mission Engage sealed cassette hub with a sealed 9T driver.
  • Wide, grippy Kink Sever tyres. The 2.4" Sever tyres on Mission X7 rims give a solid footprint on concrete and dirt.
  • Clean Kink cockpit and seat. A Kink Bold HRD 50mm stem, Ace grips, Thrust bar ends and a Kink Plymouth Stealth seat on a Mission Stealth post.

Specifications
  • Size: 20" wheels, 20.5" top tube
  • Frame: Kink Setup, 4130 chromoly front triangle, tapped for gyro tabs
  • Top tube: 20.5"
  • Chainstay: 13.25"
  • Head tube angle: 75°
  • Seat tube angle: 71°
  • Fork: Kink Circuit, 4130 chromoly steerer, tapered legs, 30mm offset
  • Headset: Mission sealed integrated
  • Stem: Kink Bold HRD 50mm
  • Bars: Kink T900, 9" rise, 100% 4130 chromoly
  • Grips: Kink Ace
  • Bar ends: Kink Thrust
  • Brakes: Mission Cease V2, Mission L3 linear cable, welded mounts
  • Brake lever: Mission Token
  • Cranks: Kink Ridge 3-piece tubular chromoly, 170mm, 8 spline
  • Bottom bracket: Sealed mid 19mm
  • Sprocket: Mission Breach 25T
  • Chain: Mission 410
  • Pedals: Kink Hemlock
  • Front hub: Mission Covert unsealed, 3/8" axle
  • Rear hub: Mission Engage sealed cassette, 14mm, sealed 9T driver
  • Rims: Mission X7
  • Tyres: Kink Sever 2.4"
  • Seat: Kink Plymouth Stealth
  • Seat post: Mission Stealth
  • Seat clamp: Mission Slim
  • Weight: 12.2kg
  • Colour: Oxide Orange

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Kink Setup 20 Inch Bike (2027)

Brand: Kink SKU:

From

$799.99 AUD

 $848.99 AUD

Or 4 payments of $199.99 AUD with

Colour - Iridescent Black

Top Tube Length - 20.5

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
