The Kink Setup XL 20 Inch Bike (2027), a black BMX for beginners with chromoly frame, thick tires, straight top tube, padded seat, and upright handlebars, is shown in side profile against a white background.

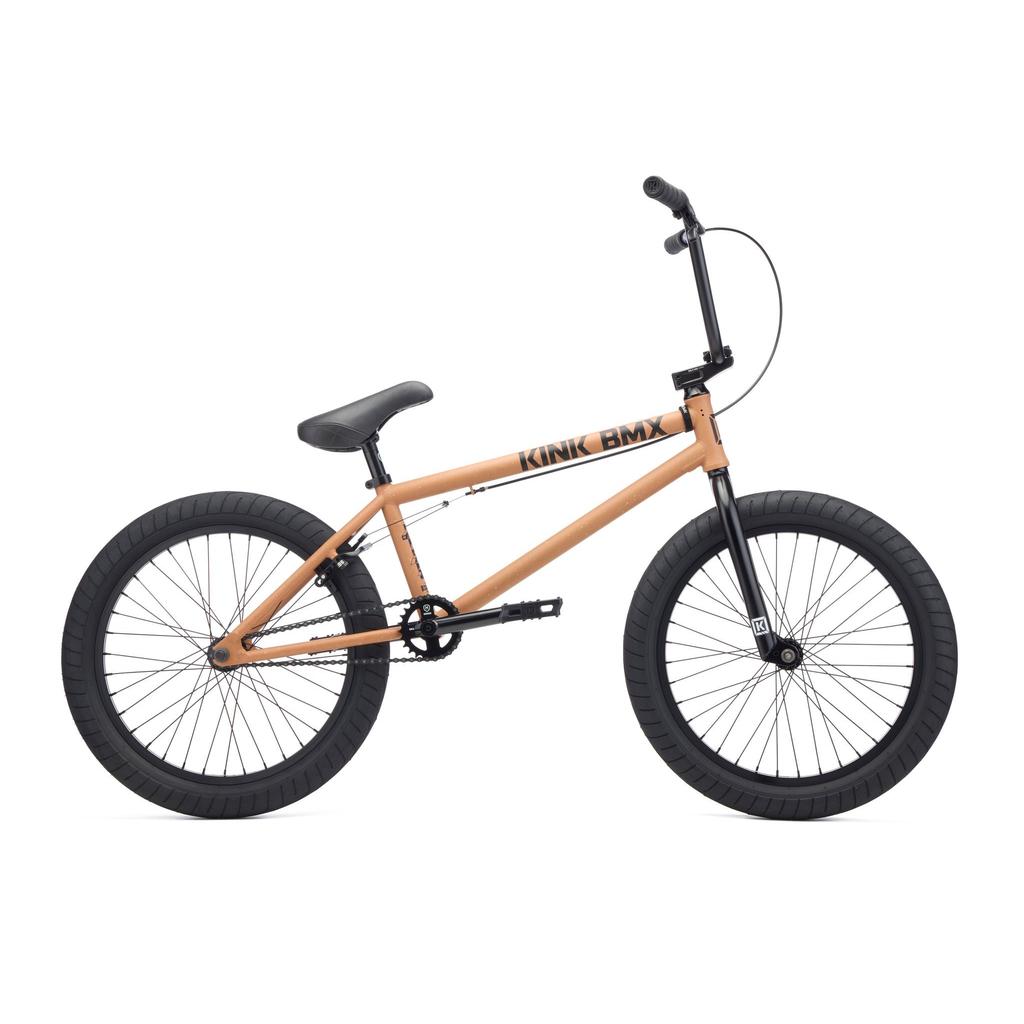

The Kink Setup XL 20 Inch Bike (2027) is a matte tan BMX beginner bike featuring a durable chromoly frame, black tires, seat, pedals, and handlebars, displayed side-on against a white background.
The Kink Setup XL 20 Inch Bike (2027), featuring a black chromoly frame, thick tires, padded seat, and wide handlebars, sits on a white background—perfect for beginner BMX riders seeking durability in their first bike.

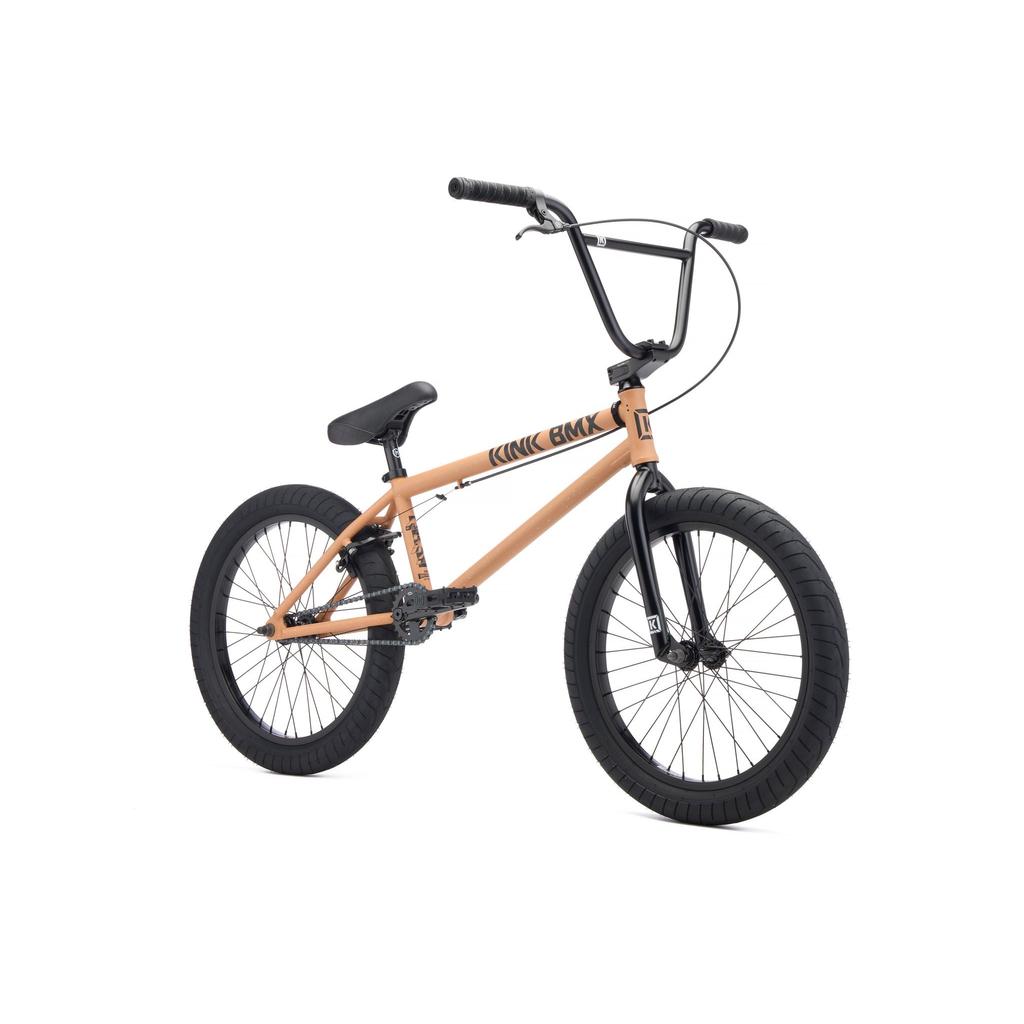

The Kink Setup XL 20 Inch Bike (2027) is a tan and black BMX beginner bike featuring a chromoly frame, thick tires, a straight top tube, and raised handlebars, displayed on a white background.

Description

The Setup XL is the taller rider's version of the Setup, with a 21" top tube and a 9.25" Kink T925 bar. The frame has a 4130 chromoly front triangle and the Circuit fork runs a 4130 chromoly steerer.

Sealed bearings run through the Mission integrated headset, the mid 19mm bottom bracket and the Mission Engage rear hub with its sealed 9T driver. Kink Ridge chromoly cranks, Sever 2.4" tyres and a Plymouth Stealth seat bring it in at 12.24kg.

Features
  • Built for taller beginner riders. The 21" top tube and 9.25" Kink T925 bar give bigger riders room to move, with 13.25" chainstays behind them.
  • 4130 chromoly front triangle. Chromoly through the front of the frame puts the strength where the bike takes the hardest hits.
  • Chromoly bars, cranks and fork steerer. Kink Ridge 3-piece tubular chromoly 170mm cranks, a chromoly T925 bar and a 4130 chromoly Circuit fork steerer.
  • Sealed bearings front to back. A Mission sealed integrated headset, a sealed mid 19mm bottom bracket and a Mission Engage sealed cassette hub with a sealed 9T driver.
  • Wide, grippy Kink Sever tyres. The 2.4" Sever tyres run on Mission X7 rims, with Mission Cease V2 brakes and a Token lever to slow it down.

Specifications
  • Size: 20" wheels, 21" top tube
  • Frame: Kink Setup XL, 4130 chromoly front triangle, tapped for gyro tabs
  • Top tube: 21"
  • Chainstay: 13.25"
  • Head tube angle: 75°
  • Seat tube angle: 71°
  • Fork: Kink Circuit, 4130 chromoly steerer, tapered legs, 30mm offset
  • Headset: Mission sealed integrated
  • Stem: Kink Bold HRD 50mm
  • Bars: Kink T925, 9.25" rise, 100% 4130 chromoly
  • Grips: Kink Ace
  • Bar ends: Kink Thrust
  • Brakes: Mission Cease V2, Mission L3 linear cable, welded mounts
  • Brake lever: Mission Token
  • Cranks: Kink Ridge 3-piece tubular chromoly, 170mm, 8 spline
  • Bottom bracket: Sealed mid 19mm
  • Sprocket: Mission Breach 25T
  • Chain: Mission 410
  • Pedals: Kink Hemlock
  • Front hub: Mission Covert unsealed, 3/8" axle
  • Rear hub: Mission Engage sealed cassette, 14mm, sealed 9T driver
  • Rims: Mission X7
  • Tyres: Kink Sever 2.4"
  • Seat: Kink Plymouth Stealth
  • Seat post: Mission Stealth
  • Seat clamp: Mission Slim
  • Weight: 12.24kg
  • Colour: Iridescent Black

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Kink Setup XL 20 Inch Bike (2027)

Brand: Kink SKU:

From

$799.99 AUD

 $848.99 AUD

Or 4 payments of $199.99 AUD with

Colour - Iridescent Black

Top Tube Length - 21

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
