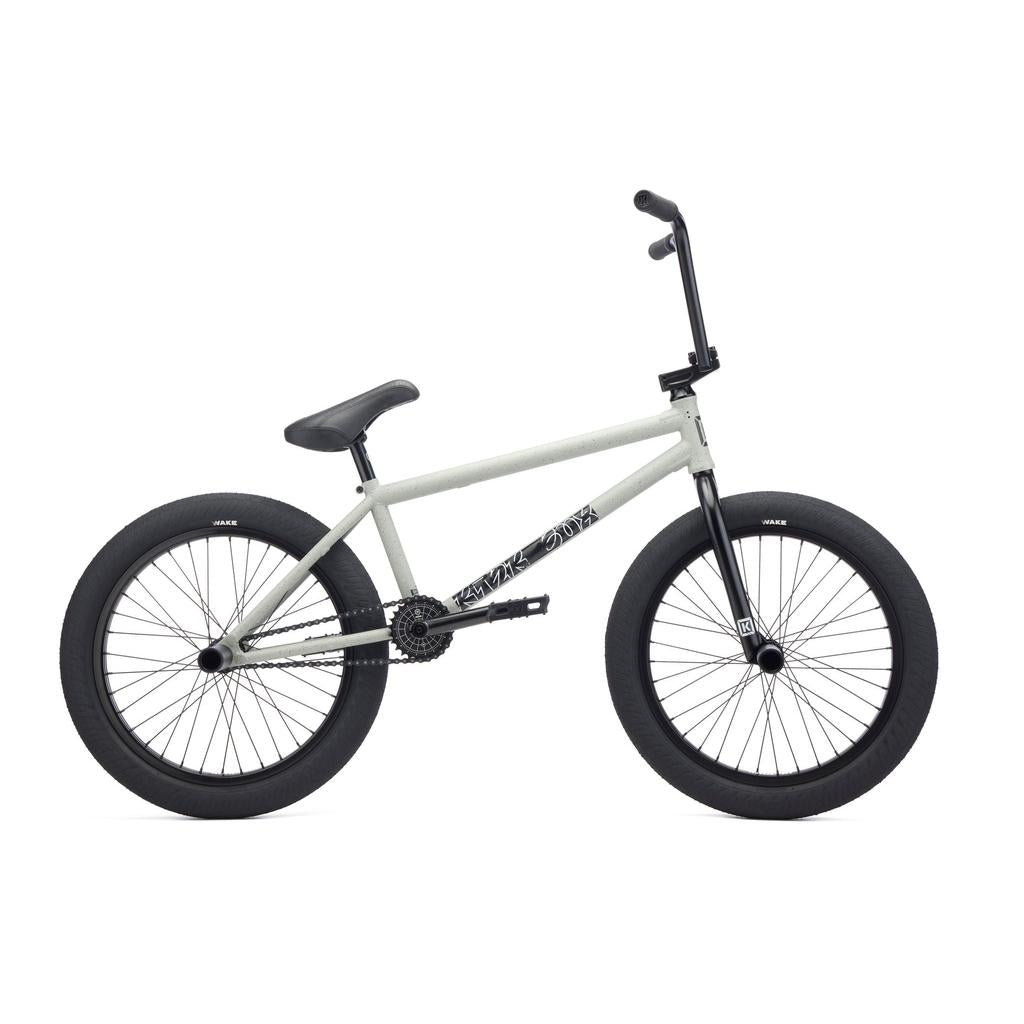

The Kink Switch 20 Inch Bike (2027) is shown from the side on a plain white background, featuring a white frame with black tires, handlebars, and seat, plus durable chromoly construction and Mission components.

The Kink Switch 20 Inch Bike (2027) features a gray and black frame, thick tires, padded seat, straight handlebars, and durable chromoly construction, all displayed against a white background.

Description

The Kink Switch is a full 4130 chromoly complete built around the Kink Switch frame and Relay fork, with Kink Ridge 3-piece tubular chromoly cranks and sealed bearings through the hubs and bottom bracket. The frame is tapped for gyro tabs if you want to run a detangler later.

The parts kit is all Kink and Mission: F900 9" bars with Thrust bar ends, a Brute 48mm stem, Mission Cease V2 brakes on removable mounts, a sealed 9T cassette driver, 2.45" Kink Wake tyres and two Mission nylon pegs. It comes in Composite Gray and weighs 12.52kg.

Features

Full 4130 chromoly frame and fork. The Switch frame and Relay fork are 100% chromoly with 25mm offset, and the frame is tapped for gyro tabs if you want a detangler.
Sealed bearings front to back. Mission Bond front hub, Engage sealed cassette rear with a 9T driver and a sealed mid 19mm bottom bracket: less drag, less maintenance.
3-piece tubular chromoly cranks. Kink Ridge 165mm 8 spline cranks with a Mission Locator 25T sprocket put the strongest steel where the bike takes the most abuse.
Fat 2.45" Kink Wake tyres. Plenty of grip and cushion on rough concrete, laced onto Mission Mylar rims.
Brakes, pegs and a 9" cockpit. Mission Cease V2 brakes on removable mounts, two Mission nylon pegs and Kink F900 bars with Form grips, all up 12.52kg.

Specifications

Size: 20" wheels
Frame: Kink Switch, 100% 4130 chromoly, tapped for gyro tabs
Top tube: 20.75"
Chainstay: 12.75"
Head tube angle: 75.5°
Seat tube angle: 71°
Fork: Kink Relay, 100% 4130 chromoly, 1pc steerer tube, tapered legs, 25mm offset
Headset: Mission sealed integrated
Stem: Kink Brute 48mm
Bars: Kink F900, 9", 100% 4130 chromoly
Grips: Kink Form
Bar ends: Kink Thrust
Brakes: Mission Cease V2 with Mission L4 linear cable, removable mounts
Brake lever: Mission Captive
Cranks: Kink Ridge 3pc tubular chromoly, 165mm, 8 spline
Bottom bracket: Sealed mid 19mm
Sprocket: Mission Locator 25T, 6061-T6
Chain: Mission 510H
Pedals: Kink Hemlock
Front hub: Mission Bond sealed bolt in
Rear hub: Mission Engage sealed cassette, 14mm
Rear cog: Sealed 9T driver
Rims: Mission Mylar
Tyres: Kink Wake 2.45"
Seat: Kink Perception Stealth
Seat post: Mission Stealth
Seat clamp: Integrated
Pegs: 2 x Mission nylon
Weight: 12.52kg
Colour: Composite Gray

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

Fit the handlebars and line them up with the front wheel
Fit the front wheel, pedals and seat post
Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Kink Switch 20 Inch Bike (2027)

Name: Kink Switch 20 Inch Bike (2027)
Brand: Kink
SKU: KIREK465GRY27
Price: 1139.99 AUD
Availability: OutOfStock

Brand: Kink SKU: Click to copy the SKU and show the pick location

From

$1,139.99 AUD

$1,198.99 AUD

Or 4 payments of $284.99 AUD with

Colour - Composite Gray

Top Tube Length - 20.75

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider height	Wheel size	Top tube
60 to 91cm	12"	12 to 12.5"
81 to 106cm	14"	14 to 14.5"
96 to 122cm	16"	16 to 16.5"
122 to 147cm	18"	18 to 18.5"
147 to 157cm	20"	19.75 to 20.25"
157 to 168cm	20"	20 to 20.5"
168 to 175cm	20"	20.25 to 20.75"
175 to 183cm	20"	20.5 to 21"
183 to 190cm and up	20"	20.75 to 21.5"
160cm and up	22"	21 to 22.25"
160cm and up	24"	21.75 to 22"
160cm and up	26"	22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
