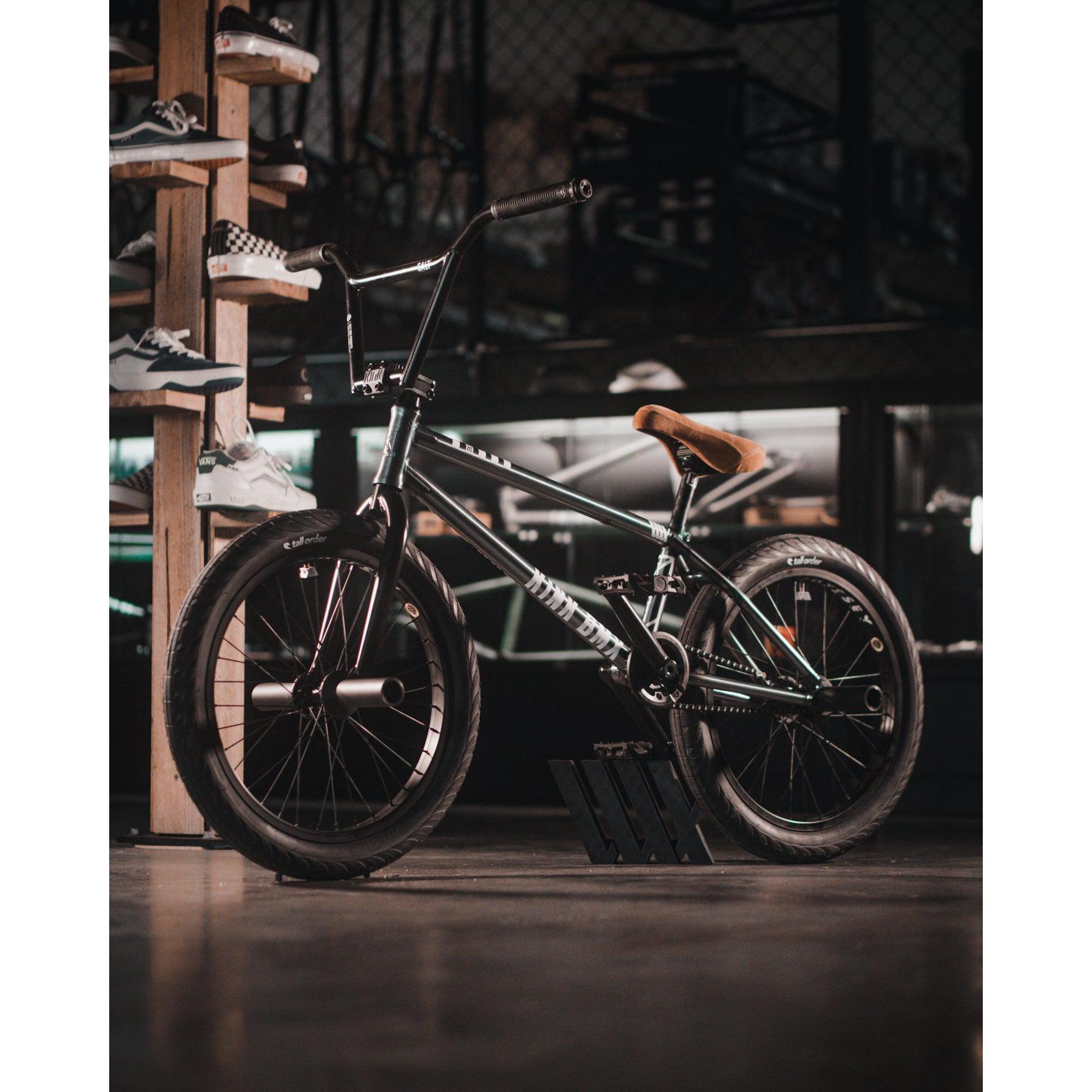

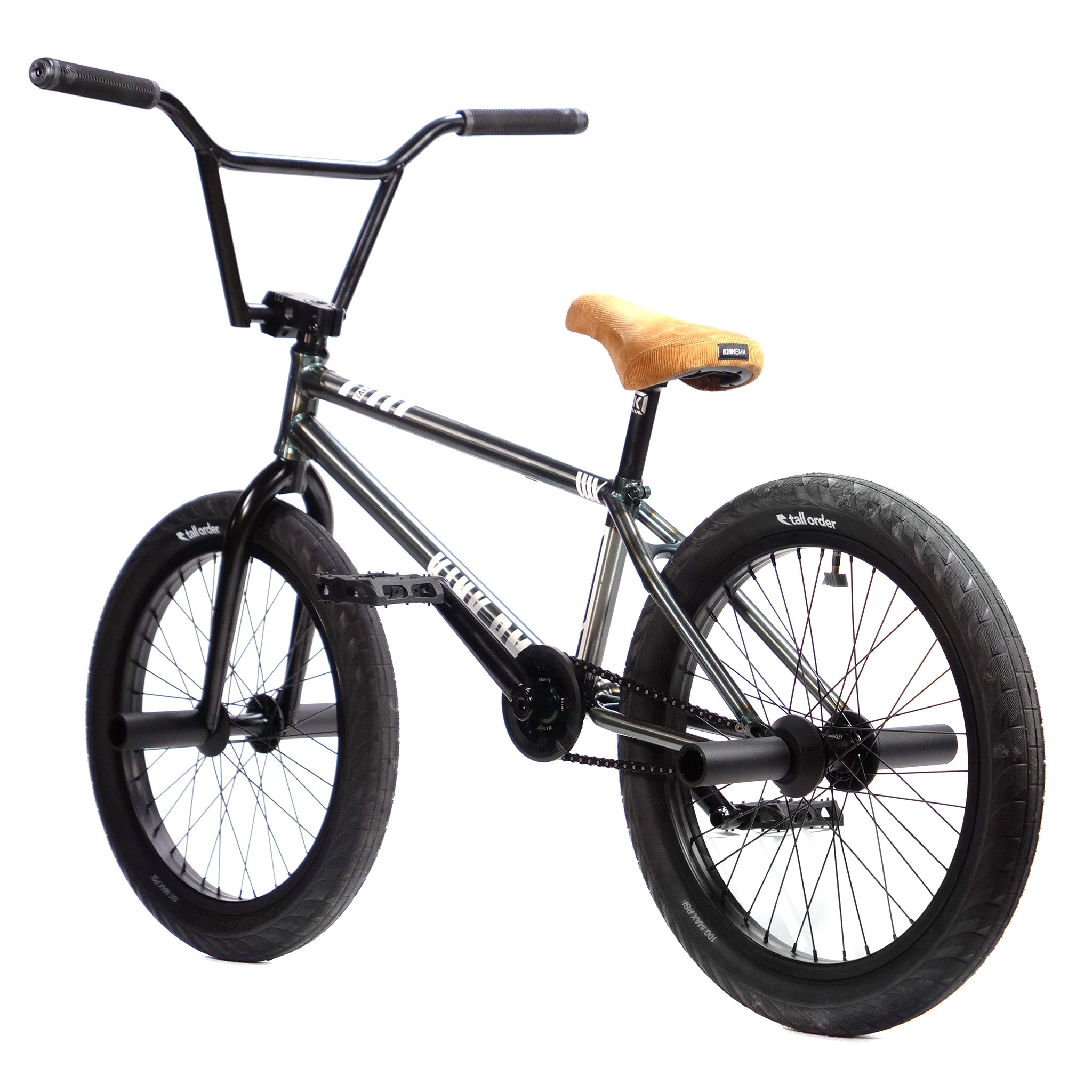

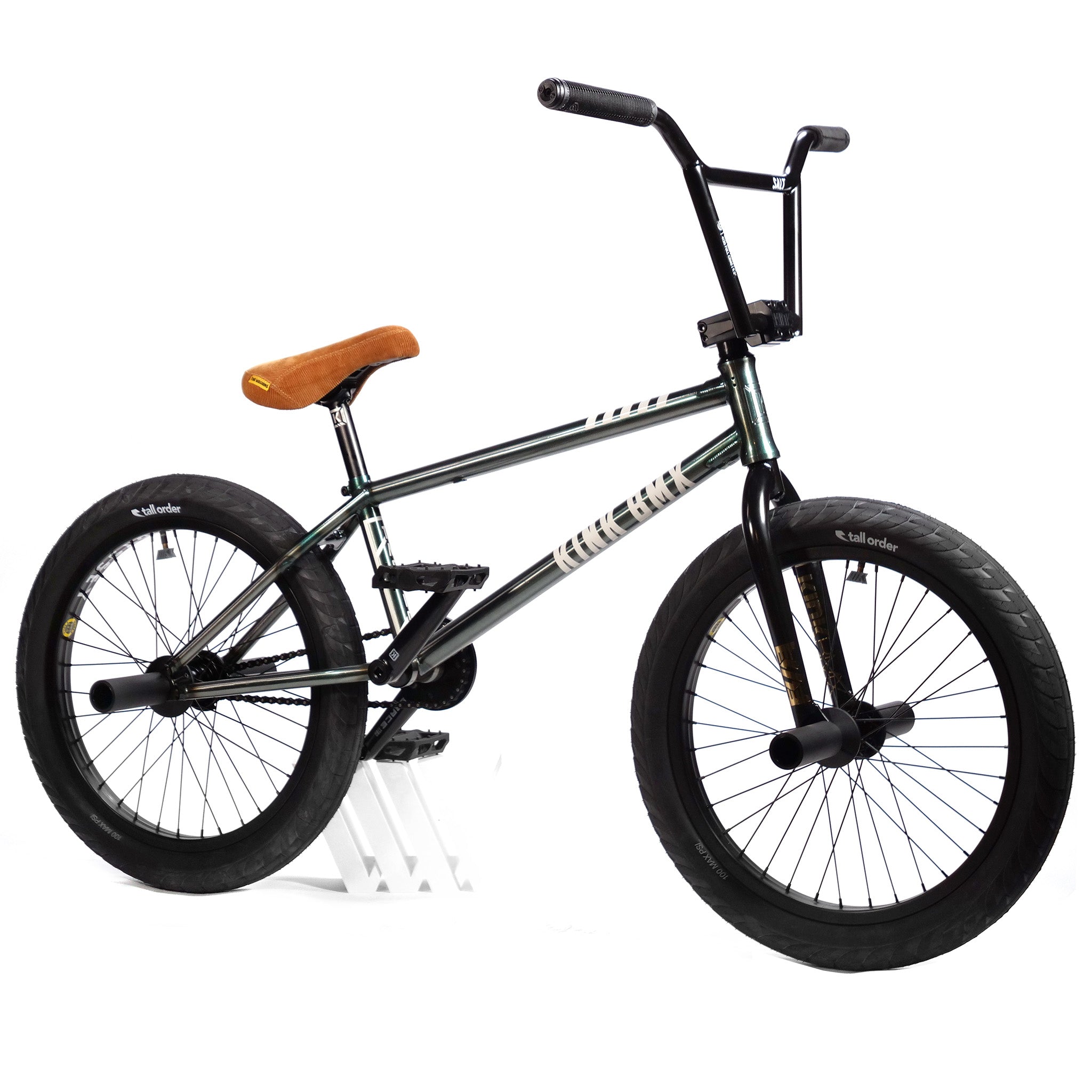

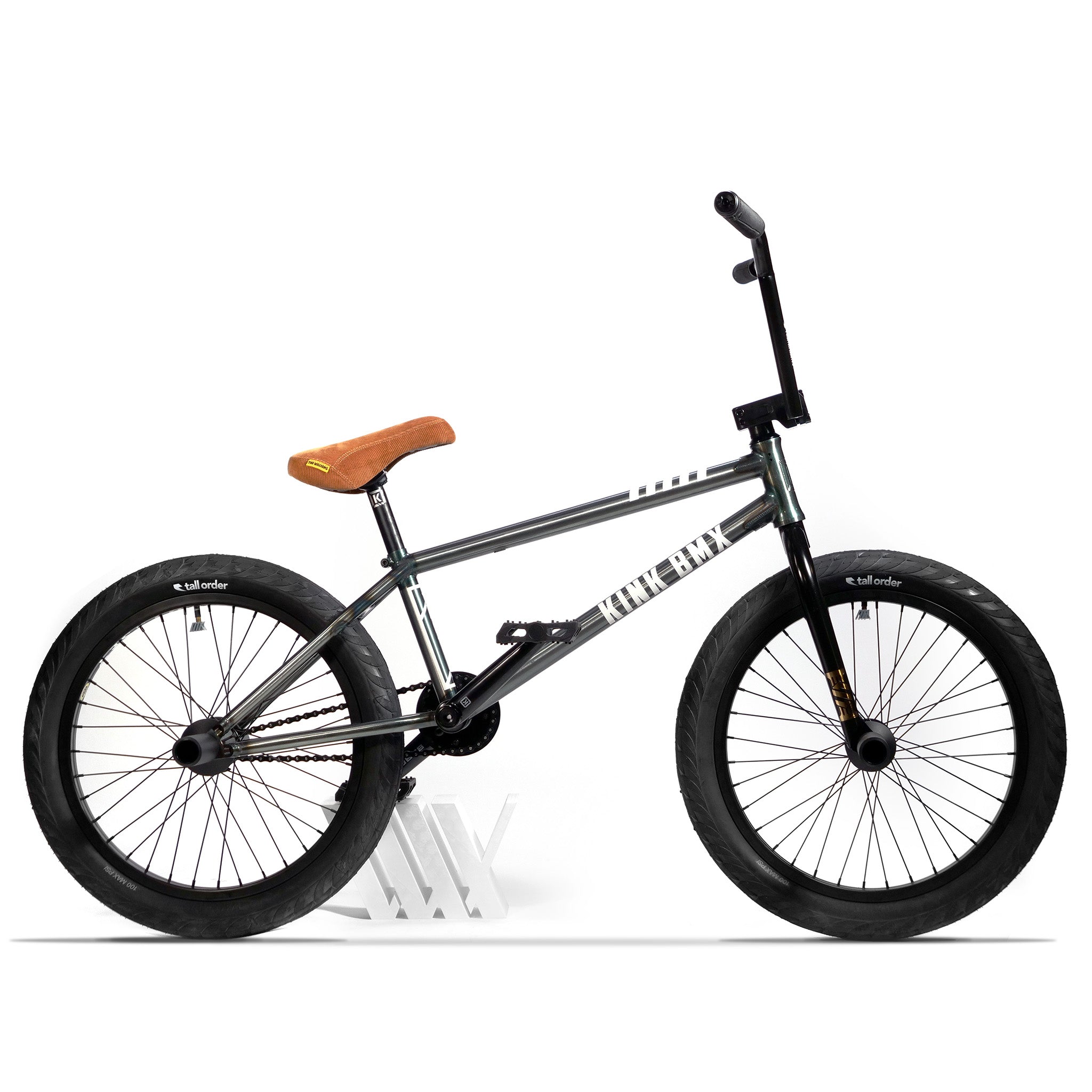

Here at LUXBMX we've been hard at work to get this 100% Custom KINK BMX build together - based around the Kink Tactic frame, with other feature Kink BMX parts alongside a suite of select brands including: Eclat, Odyssey, Federal, Salt, Cult, Spectre, and Motive.
For this build, we wanted to fill the gap in complete bike market to fit our riders' wants and needs, making a bespoke budget-friendly custom build which didn't break the bank, and this is one of our answers - which, bear in mind, we're more than happy to modify to meet your spec's or to build up something similar!
Basically; we've listened to you guys in the shop, kept our finger on the pulse of the BMX scene, and done all the hard work for you, shopping around to find the best value products we could across multiple brands to put this high-end, high-quality custom bike together while using our collective years of BMX experience to get the best value for money out of this thing without cutting any corners on build quality.
This specific build is 'street' orientated for a rider around 160cm to 180cm tall who wants to get their grind on. The rear end is nice and responsive at 13 inches for getting the front end up/spinning out of grinds without being so short you lose stability and catch your feet while running the 4-pegs, the bottom bracket is 11.6 inches high for a nice stable balance point on the bike, this build also has a 75 degree head tube angle paired with 15mm offset Kink Stoic Forks to keep the front end nice and strong and responsive.
This custom build is completely customisable to suit what you want, or we can just put together an equivalent kit in a day or two if it's going to be a better fit (hit us up to work out exactly what you should be running if you need some advice).
Have a look over the build list and see if there's any tweaks needed to make it yours!
Features:

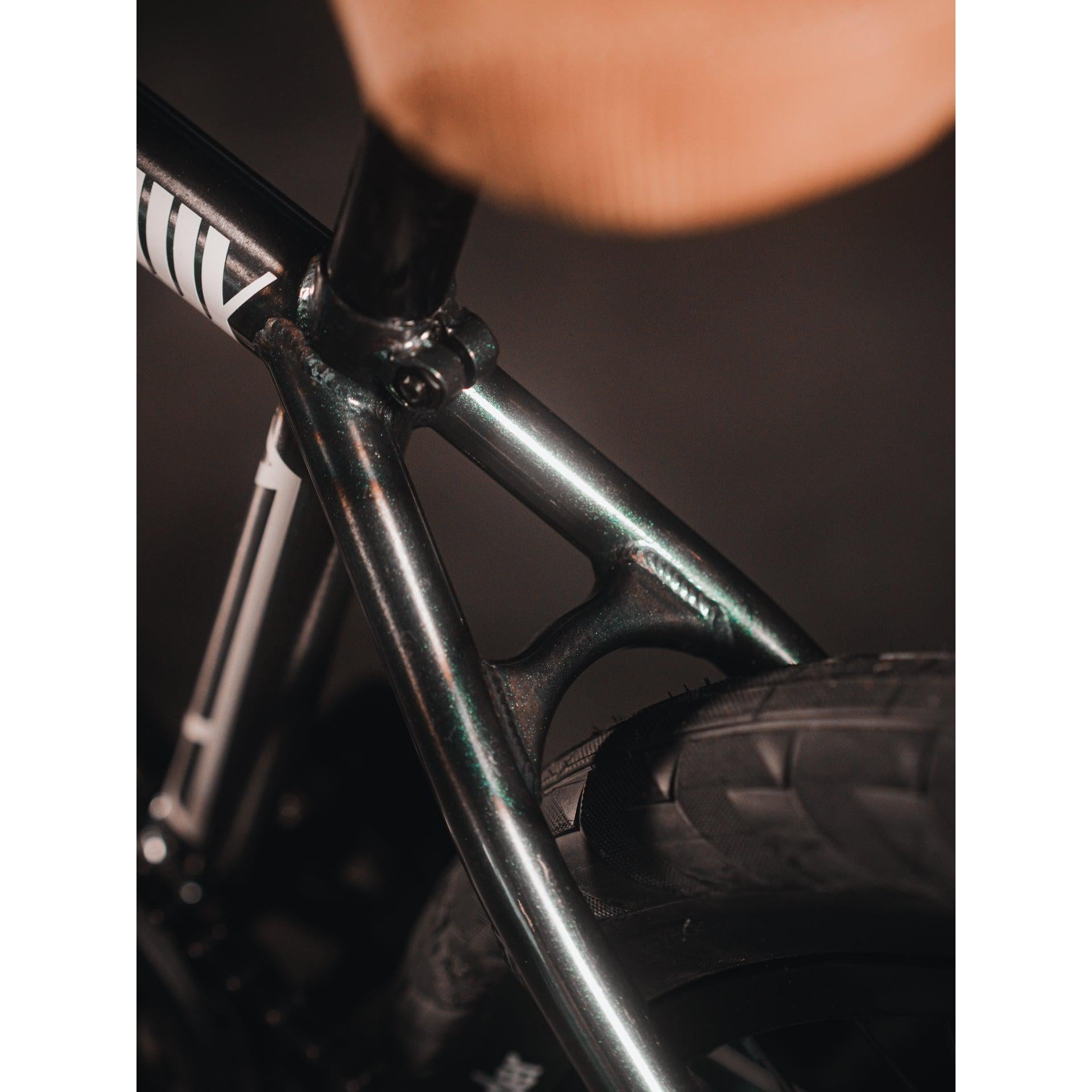

Frame: Kink Tactic Frame
- 20.75 inch top tube length
- 100% chromoly tubing
- See below for full frame geometry/specifications
Fork: Kink Stoic Forks
- Black
- 15mm offset for a responsive front end

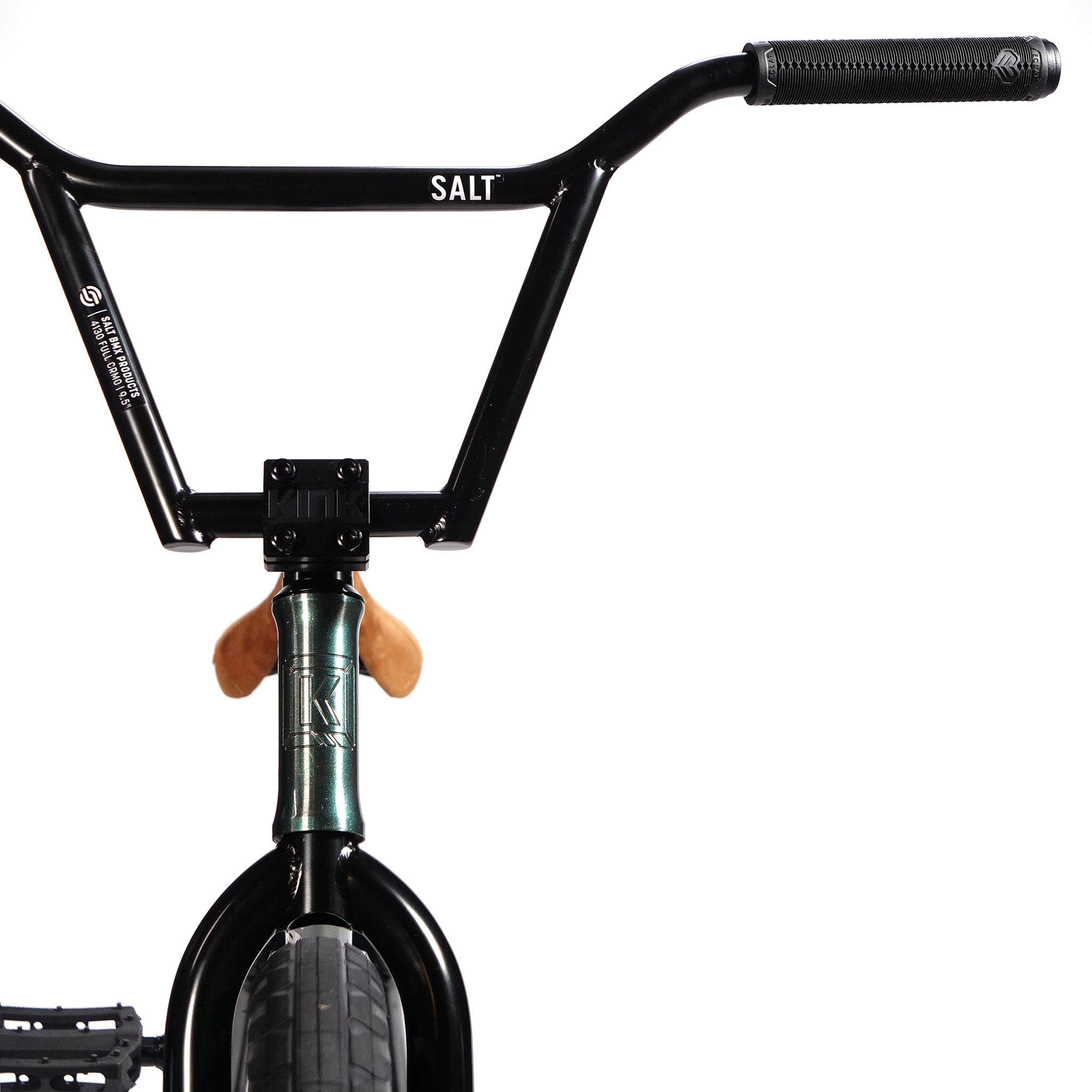

Bars: Salt Classic 4 Piece Bars
- 100% chromoly - build for strength
- 4-piece bars (2-piece available if 4-piece isn't your thing!)
- ED Black
- Rise: 9.5 inch (also available to swap down to 9 inch on request)
- Width: 29 inch (we can cut down to desired width)
- Backsweep: 11 degrees
- Upsweep: 5 degrees
- Paying homage to the OG Animal Foursome Bars these won't look out of place in the streets!

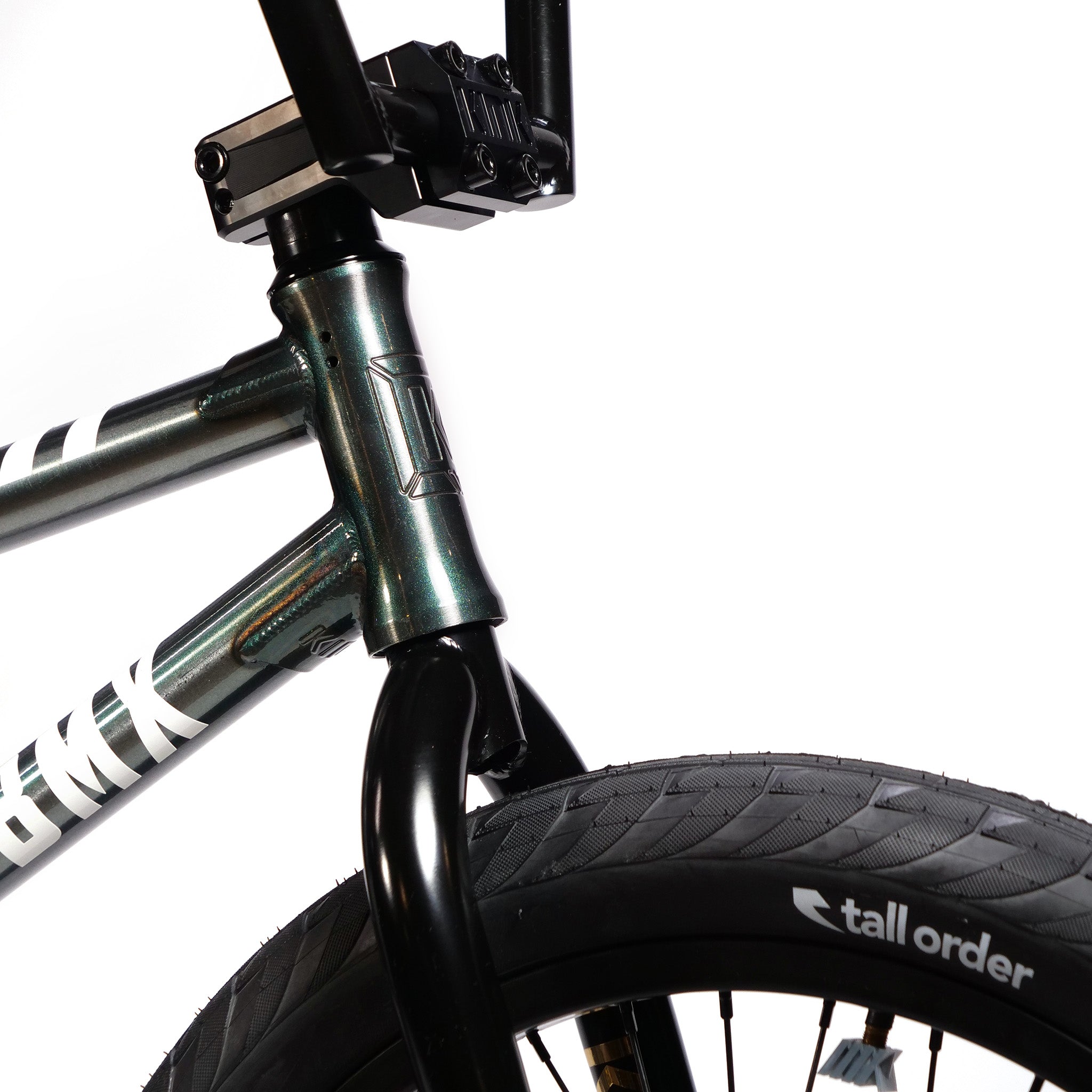

Stem: Kink Track Front Load Stem
- Reach: 50mm
- Rise: 7mm
Grips: Eclat Shogun Grips

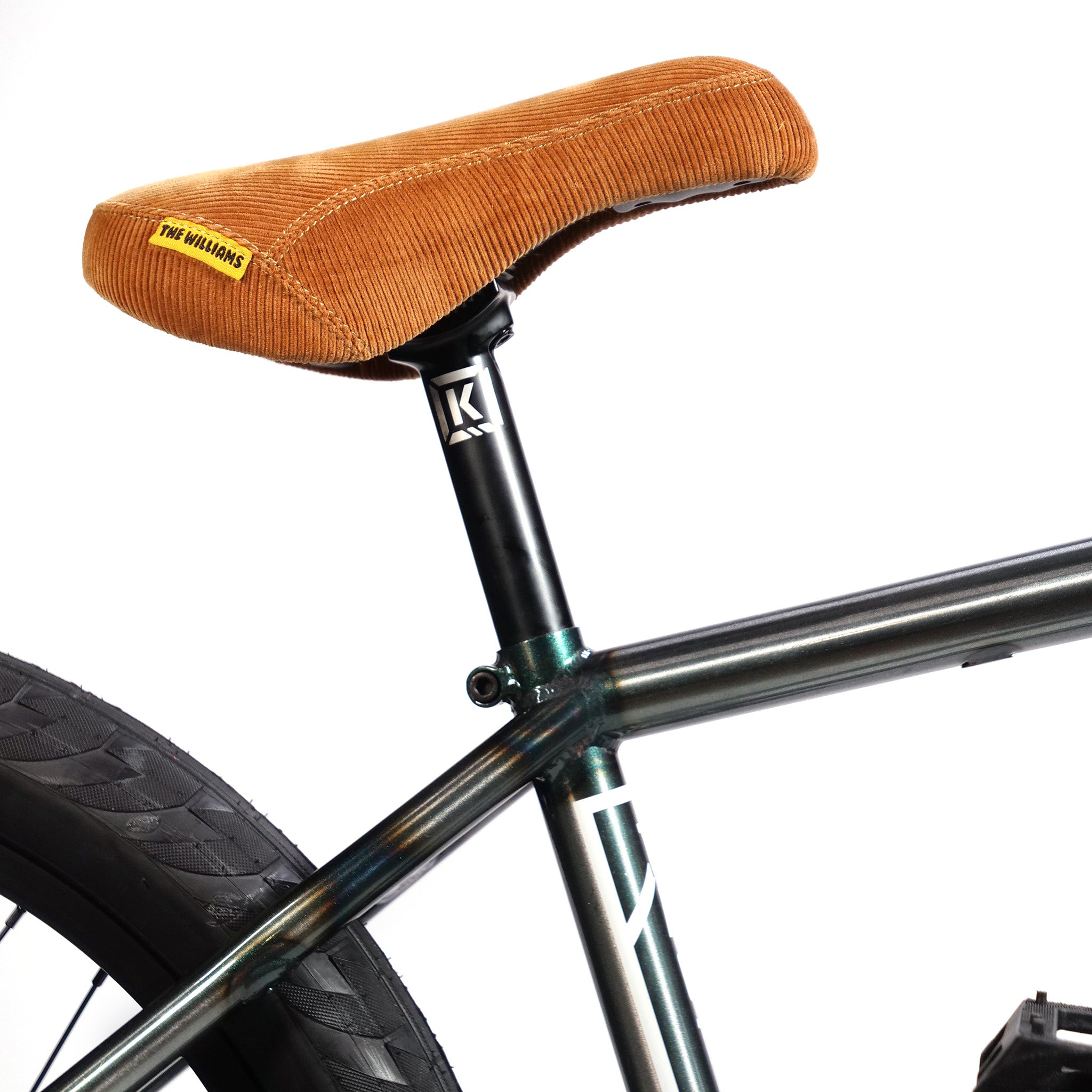

Seat: Kink Williams Stealth Pivotal Seat
- Brown Corduroy
- Stealth Pivotal Mounting/Compression System
Seat Post: Kink Stealth Pivotal Post
- Length: 330mm
- Future-proofed Stealth Pivotal Mounting/Compression System which can be used with any Pivotal or Stealth Pivotal seat
Cranks: Kink Brace Cranks
- Black
- 170mm

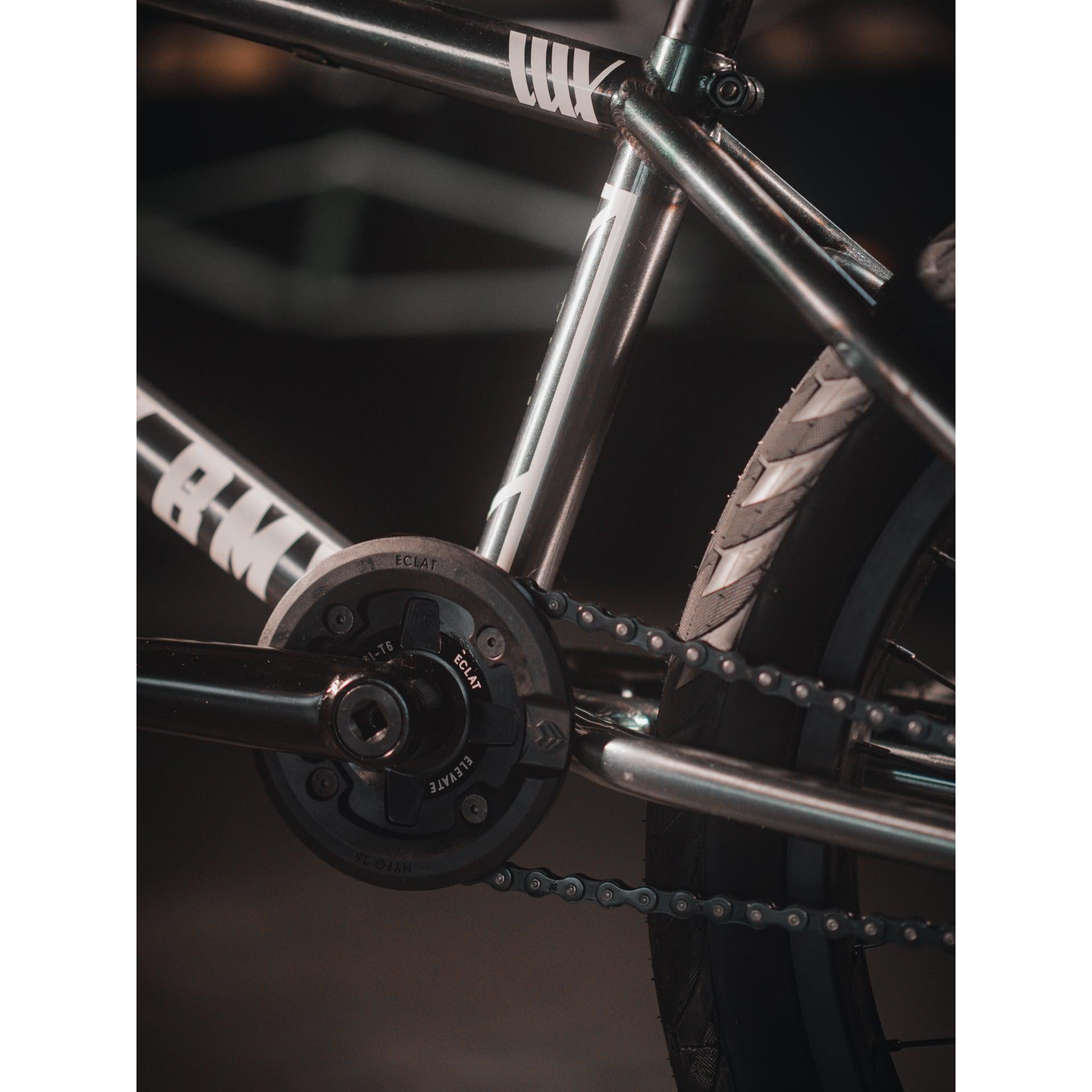

Sprocket: Eclat Elevate Guard Sprocket
- Black
- 25T - Can be swapped to 28T if required
- Bash guard to protect your drive side while you make use of both sides of the bike on the 4-pegs provided
Chain: Odyssey Bluebird Chain
- The BEST chains in BMX, only comparable in quality to the Shadow Supreme Half Link chains
- These also include a half link to adjust rear-end length if you want that extra 1/4 inch of length on the back (or to shorten it up) - we can make adjustments for you once you come and feel the bike out
Pedals: Tall Order Catch Pedals
- Black
- Slight concave to help keep your feet locked in and wear the outer edge of the pedal before getting to the centre pins
Front / Rear Tyre: Tall Order Wallride Tyres
- 2.3 inch width - these are a fat tyre, so your 2.3 is effectively 2.4+ inches wide when compared to other equivalents

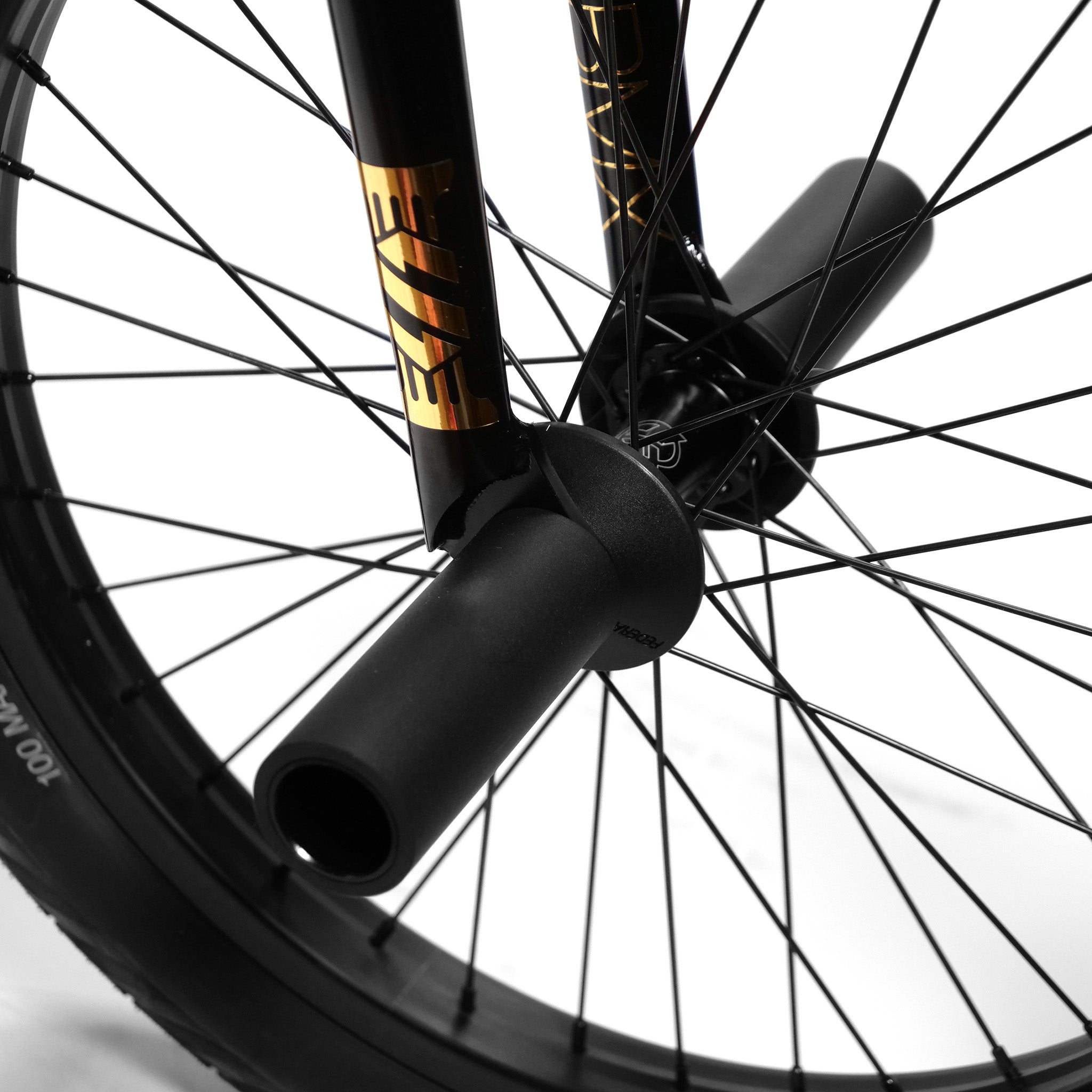

Front Wheel: Federal Stance Pro x Odyssey Stage 2 Custom Front Wheel
- Federal Stance Front Hub
- Hub guards included
- Odyssey Stage 2 Rim - Strong on a budget!
- Laced with Spectre Stainless Steel Spokes and Nipples - these spokes are butted (increase in diameter) into a thicker section at the 'J-bend' of the spoke (the weakest point for breakage/stretching), resulting in a 4 x stronger spoke than your standard stainless steel spokes which will help keep your spokes tensioned and wheels true for longer
- Complete Custom Wheel Sets Available

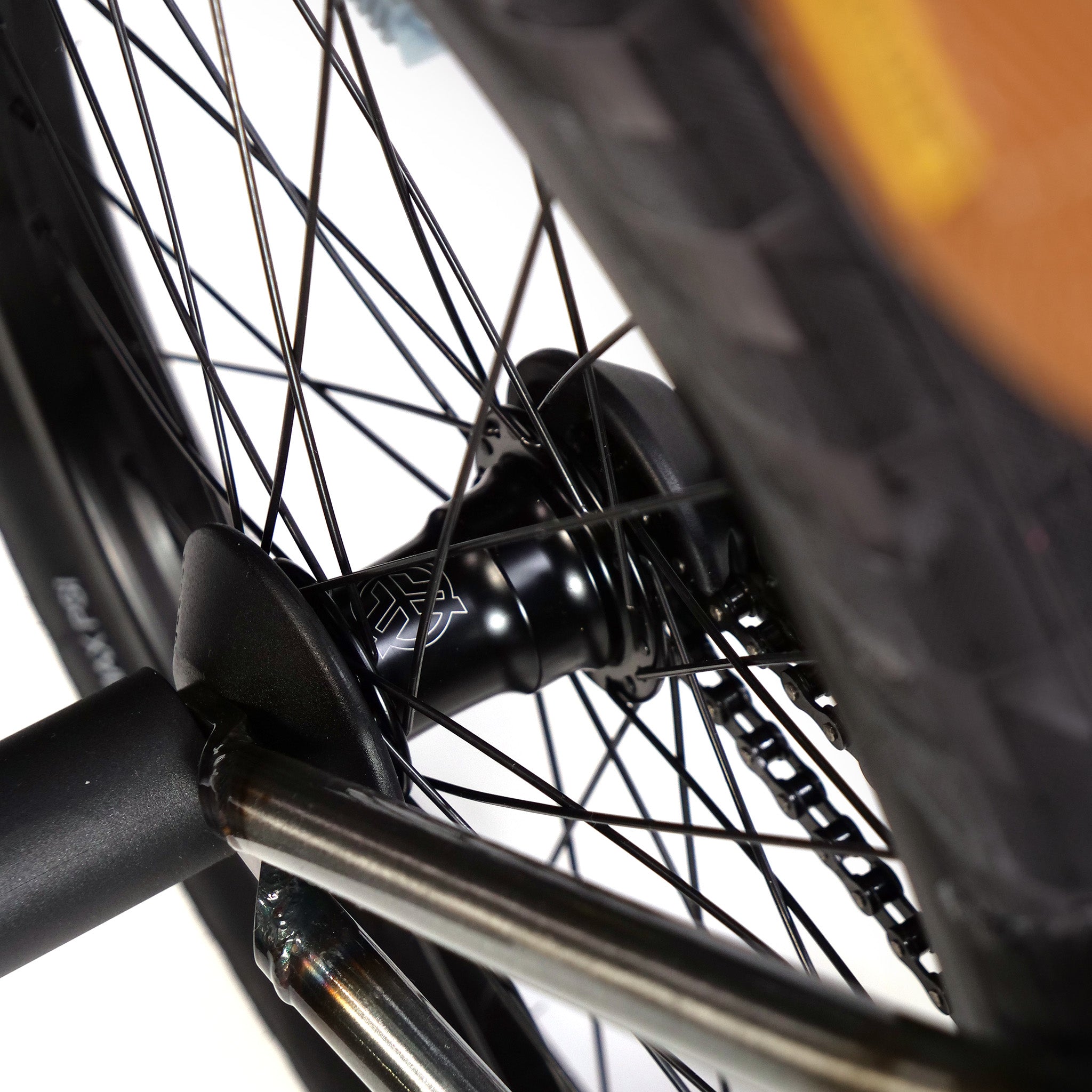

Rear Wheel: Federal Motion x Odyssey Stage 2 Custom Rear Wheel
- Federal Motion Freecoaster in Left Hand Drive - also available in RHD for a quick swap out if you want to change the drive side of the bike
- Hub guards included
- Odyssey Stage 2 Rim - Strong on a budget!
- Laced with Spectre Stainless Steel Spokes and Nipples - these spokes are butted (increase in diameter) into a thicker section at the 'J-bend' of the spoke (the weakest point for breakage/stretching), resulting in a 4 x stronger spoke than your standard stainless steel spokes which will help keep your spokes tensioned and wheels true for longer
- Complete Custom Wheel Sets Available
Pegs: Motive Fibre Reinforced Nylon x Chromoly Core Plastic Pegs
Headset: Motive Integrated Headset
Kink Tactic Frame Geometry:
Chainstay Length: 13" Slammed (Short but not too short)
Bottom Bracket Height: 11.6" (Moderately low for stability)
Standover Height: 8.5"
Headtube Angle: 75°
Seattube Angle: 71°
Headtube Height: 4.6"
