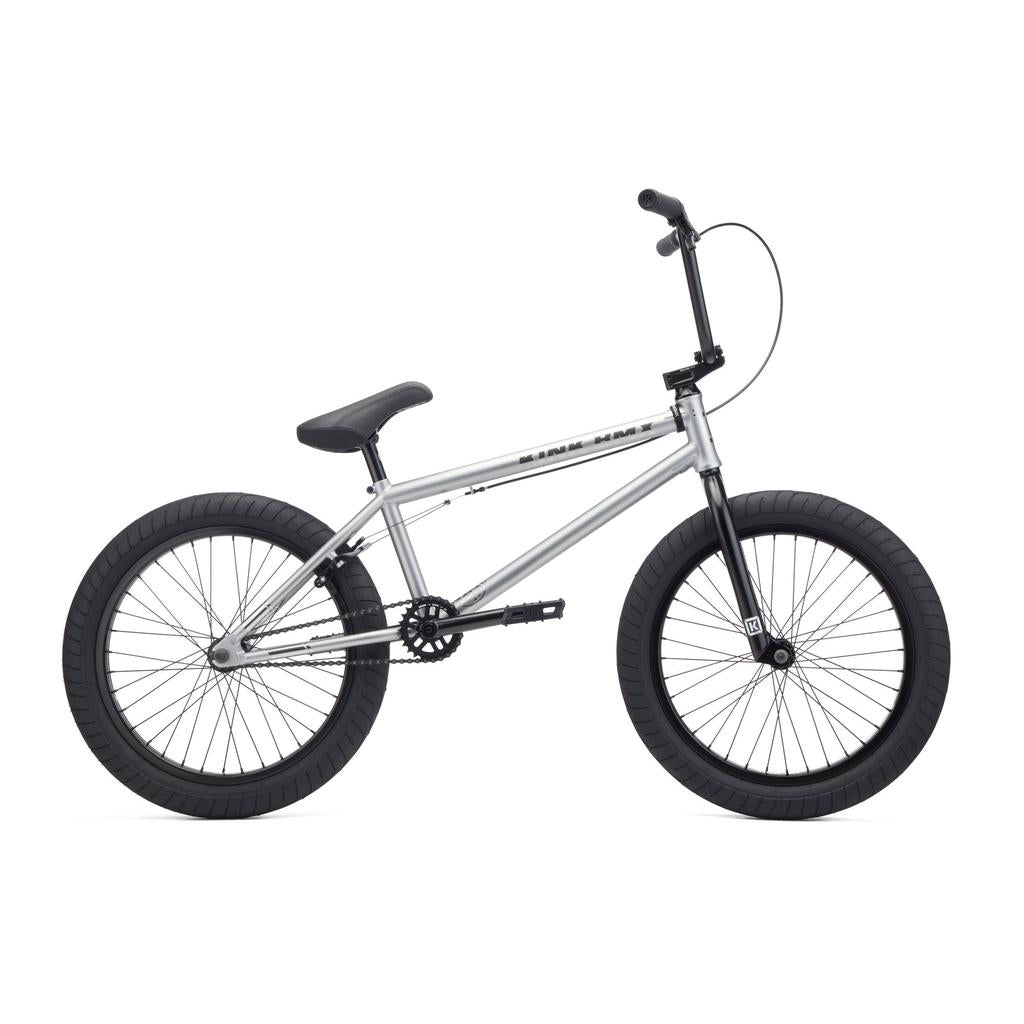

A Kink Whip 20 Inch Bike (2027) with a silver full Chromoly frame, black tires and seat, and straight handlebars, shown from the side against a white background.
The Kink Whip 20 Inch Bike (2027) is a silver BMX bike with full Chromoly construction, black handlebars, seat, pedals, and tires, shown against a white background.

Description

The Whip is a full sized BMX with a 100% 4130 chromoly frame and fork, so the strength runs through the whole bike rather than just the front end. It is fully sealed as well: a Mission sealed integrated headset, a sealed mid 19mm bottom bracket and Mission Foxtrot and Engage sealed hubs.

This is the regular Whip, with a 20.5" top tube for medium sized riders, and it also comes with a 21" top tube. Kink Ridge chromoly cranks, Kink Sever 2.4" tyres on Mission Mylar rims and a Duran Stealth seat on an integrated clamp bring it in at 12.62kg.

Features
  • Full 4130 chromoly frame and fork. Chromoly right through the Kink Whip frame and Circuit fork, so the strength is not limited to the front triangle.
  • Sealed bearings everywhere that matters. A Mission sealed integrated headset, sealed mid 19mm bottom bracket, Foxtrot sealed front hub and Engage sealed cassette rear hub.
  • Kink Ridge chromoly cranks. The 3-piece tubular chromoly 170mm cranks drive a Mission Charge 25T 6061-T6 sprocket and a sealed 9T driver.
  • Medium 20.5" top tube. Sized for medium sized riders, with 13.25" chainstays and a 75° head tube angle. A 21" top tube version is also available.
  • Clean, integrated finish. An integrated seat clamp, Kink Duran Stealth seat, Mission Stealth post, Kink Form grips and Mylar rims, all up 12.62kg.

Specifications
  • Size: 20" wheels, 20.5" top tube
  • Frame: Kink Whip, 100% 4130 chromoly, tapped for gyro tabs
  • Top tube: 20.5"
  • Chainstay: 13.25"
  • Head tube angle: 75°
  • Seat tube angle: 71°
  • Fork: Kink Circuit, 100% 4130 chromoly, tapered legs, 30mm offset
  • Headset: Mission sealed integrated
  • Stem: Kink Bold HRD 50mm
  • Bars: Kink T900, 9" rise, 100% 4130 chromoly
  • Grips: Kink Form
  • Bar ends: Kink Thrust
  • Brakes: Mission Cease V2, Mission L4 linear cable, welded mounts
  • Brake lever: Mission Token
  • Cranks: Kink Ridge 3-piece tubular chromoly, 170mm, 8 spline
  • Bottom bracket: Sealed mid 19mm
  • Sprocket: Mission Charge 25T, 6061-T6
  • Chain: Mission 410
  • Pedals: Kink Hemlock
  • Front hub: Mission Foxtrot sealed, 3/8" axle
  • Rear hub: Mission Engage sealed cassette, 14mm, sealed 9T driver
  • Rims: Mission Mylar
  • Tyres: Kink Sever 2.4"
  • Seat: Kink Duran Stealth
  • Seat post: Mission Stealth
  • Seat clamp: Integrated
  • Weight: 12.62kg
  • Colour: Frost Silver

Assembly information

Your bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Check the brakes and tyre pressure before the first ride

Tools: Allen key set and a 15mm, 17mm or 19mm spanner for the pedals and axle nuts (bikes can vary between these three sizes). A socket is needed if installing pegs.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Kink Whip 20 Inch Bike (2027)

Brand: Kink SKU:

From

$899.99 AUD

 $948.99 AUD

Or 4 payments of $224.99 AUD with

Colour - Frost Silver

Top Tube Length - 20.5

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide

20 inch BMX sizing

A 20 inch bike is the standard adult BMX and suits riders from about 147cm up. At this wheel size the top tube is what changes the fit, so pick that by height.

Rider heightWheel sizeTop tube
60 to 91cm12"12 to 12.5"
81 to 106cm14"14 to 14.5"
96 to 122cm16"16 to 16.5"
122 to 147cm18"18 to 18.5"
147 to 157cm20"19.75 to 20.25"
157 to 168cm20"20 to 20.5"
168 to 175cm20"20.25 to 20.75"
175 to 183cm20"20.5 to 21"
183 to 190cm and up20"20.75 to 21.5"
160cm and up22"21 to 22.25"
160cm and up24"21.75 to 22"
160cm and up26"22 to 23"

Sizes overlap on purpose, so personal preference comes into it. If you land in two bands, riding style breaks the tie: longer for flow, trails and transitions, shorter for technical street and park.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

Top tube is measured from the centre of the seat tube to the centre of the head tube, so it is not the same as the length of the tube you can see.

  • A 20 inch bike is the standard adult BMX and most riders end up there, so do not size a tall child down to a smaller wheel.
  • 22, 24 and 26 inch bikes are adult bikes with a bigger wheel, not bigger frames for taller riders.
  • Size up for stability through trails and transitions. Size down if you want the bike quick and twitchy for spins and grinds.
  • Top tube is fixed, but stem length, fork offset and bar position all shift how roomy the bike feels once you are on it.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
