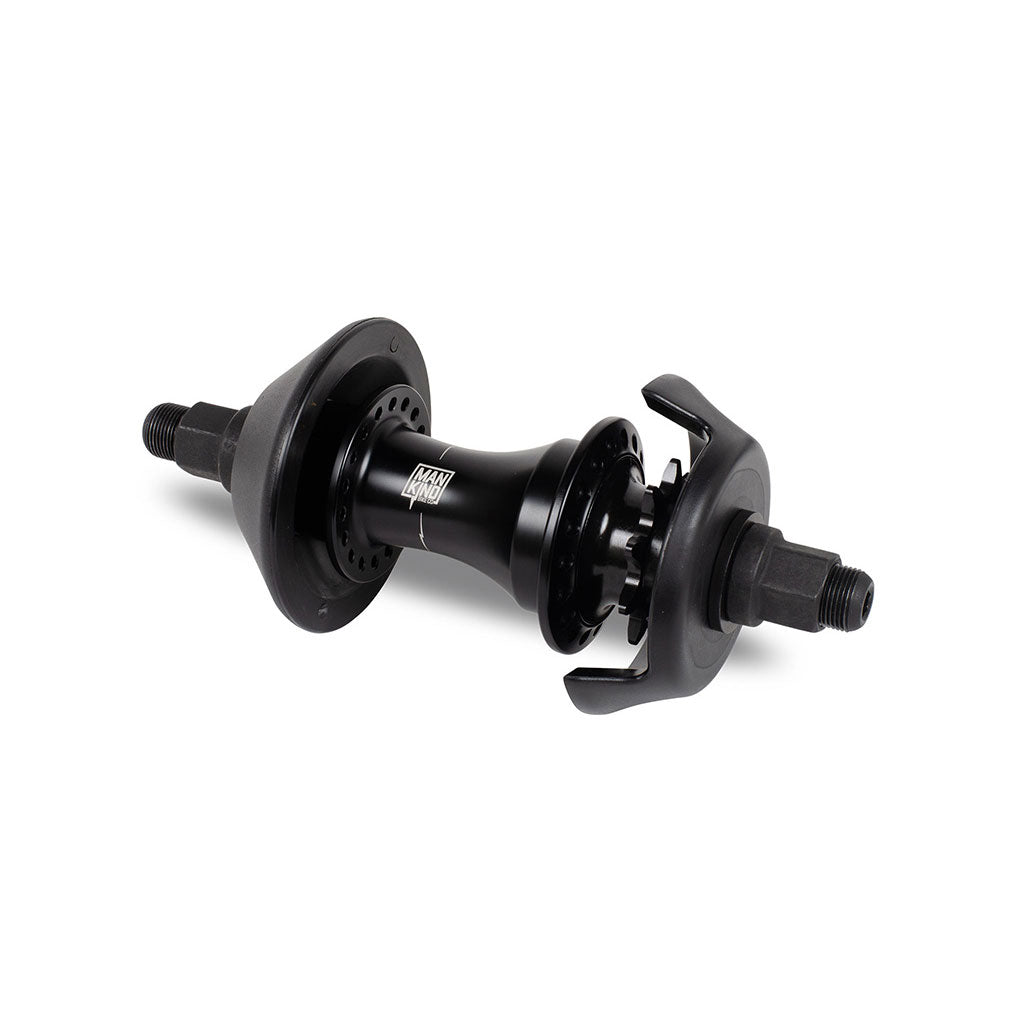

The Mankind Vision Cassette Hub (RHD) is a black rear hub with dual threaded axles, spoke attachment flanges, and a central cylindrical body equipped with robust sealed bearings.

Description

The Mankind Vision cassette rear hub is fully sealed and comes with plastic drive side and non drive side hub guards in the box. The 6061-T6 aluminium shell is drilled 36H and runs two precision sealed 6902 bearings on a 14mm nickel chromoly hollow axle with an 8.0mm inner hex.

Drive comes from a one piece 9 tooth chromoly driver running four pawls on a polymer bushing. It uses an alloy cone on the non driver side and a steel cone on the driver side, ships with 14mm alloy nuts and washers, and takes 184mm spokes for 3x lacing with most rims.

Features
  • Right hand drive, 9t driver. A one piece 9 tooth chromoly driver on the right hand side suits a standard BMX gearing setup.
  • Hub guards included. Plastic drive side and non drive side guards come in the box, so your hub is protected from the first grind.
  • Hollow 14mm chromoly axle. The 14mm nickel chromoly hollow axle takes an 8.0mm inner hex, which makes wheel removal quick with one tool.
  • Four pawl chromoly driver. Four pawls run on a polymer bushing, so drive picks up cleanly when you crank out of a roll.
  • Two sealed bearings. Two precision sealed 6902 bearings keep water and grit out of the hub through wet riding.

Specifications
  • Material: 6061-T6 aluminium hub body
  • Bearings: 2 precision sealed (no. 6902)
  • Driver: 1 piece 9t chromoly, polymer bushing, 4 pawls
  • Hole count: 36H
  • Spokes: 184mm for 3x lacing with most rims
  • Axle: 14mm nickel chromoly hollow axle with 8.0mm inner hex
  • Included: 14mm alloy axle nuts and washers, plastic drive side and non drive side hub guards
  • Weight: 469 grams (16.54oz)
  • Note: Right hand drive. Alloy cone on the non driver side, steel cone on the driver side.

Mankind Vision Cassette Hub (RHD)

Brand: Mankind SKU:

$259.99 AUD

Or 4 payments of $64.99 AUD with

Colour - Black

Spoke Holes - 36 Hole

Drive Side - Right Hand Drive

$259.99 AUD

Price match request

Mankind Vision Cassette Hub (RHD) - Black / 36 Hole / Right Hand Drive
