Highlights

  • 1.51kg pro race frame
  • 21in top tube rider area
  • 6061 T6 multi-butted tubing
  • BB30 shell, 15mm dropouts

Description

Meybo has been the official frame supplier of the Dutch race team for a number of years and has been on every podium, at every event, all over the world, including bagging the 2020 (or is it 2021?) Olympic gold medal courtesy of Niek Kimmann. The 2023 Meybo Holeshots have landed and are popping in all new colours, including an oil slick option. From the design, to the geometry, to the finish on every frame, the 2023 Holeshot frames scream both quality and strength. Manufactured from 6061 T6 square taper, multi-butted alloy tubing, each frame in the range from the smallest Mini, up to the Pro sizes, through to the Cruisers, are incredibly stiff in the areas that count like the bottom bracket and chainstays.

As well as all of the podium places that this company has landed courtesy of some of the best riders on the planet, including the Smulder sisters, Meybo Holeshot frames are becoming more prevalent at local races here in Australia. We expect that the 2023 frames will sell as fast as Niek's hill time, and the pro pilot riding this one will follow suit on this quality alloy frame that comes in at just 1.51kg. In addition, every frame in the range is disc ready, all the way from the mini up to the cruiser, so even the youngest shredders can have the nice smooth, compact look of a disc set up in the sprocket class.

Features

  • 1.51kg pro race frame. Light alloy in a full pro size, so the rider is not carrying weight they have to pedal out of the gate.
  • 21in top tube rider area. Pro L sizing with 14.37in chainstays and a 74° head tube, stable through the straight and into the turn.
  • 6061 T6 multi-butted tubing. Square taper, multi-butted alloy keeps the frame stiff in the areas that count: the bottom bracket and chainstays.
  • BB30 shell, 15mm dropouts. Pro level fitments at the two points that take the most load: the cranks and the rear axle.
  • Disc ready with a compatible mount. Run V-brakes or go disc, with a tapered 1-1/8in to 1.5in head tube and 27.2mm seat post.

Specifications

  • Top tube: 21in rider area
  • Chainstay: 14.37in
  • Head tube angle: 74°
  • Seat tube angle: 71°
  • Bottom bracket: BB30
  • Material: 6061 T6 square taper, multi-butted alloy
  • Dropouts: 15mm
  • Brake mounts: V-brake, disc brake ready with compatible mount
  • Head tube: Tapered 1-1/8in to 1.5in headset
  • Seat tube: 27.2mm seat post
  • Weight: 1.51kg

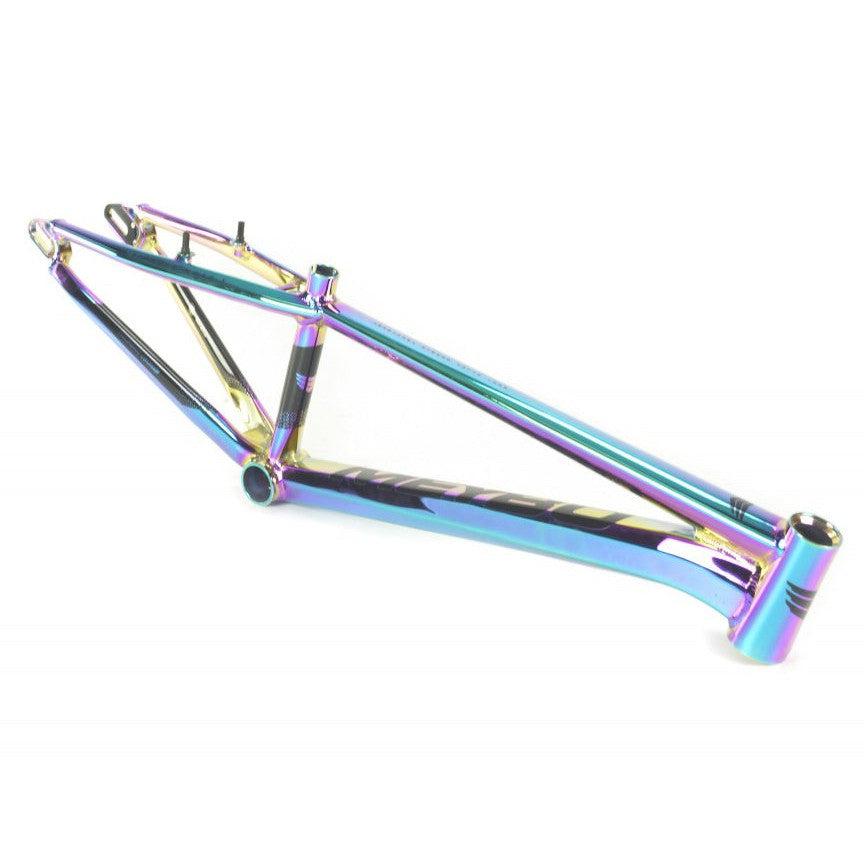

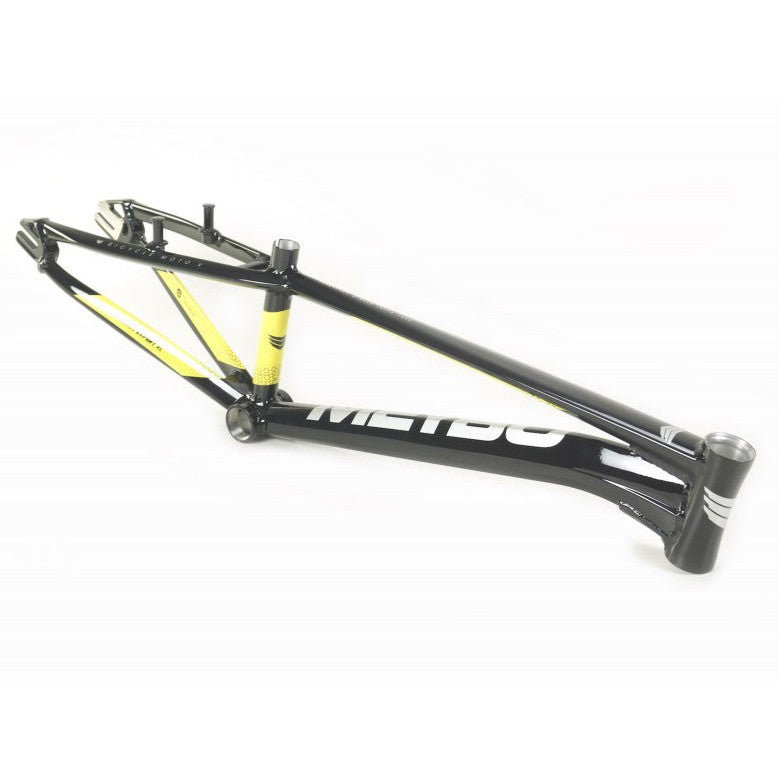

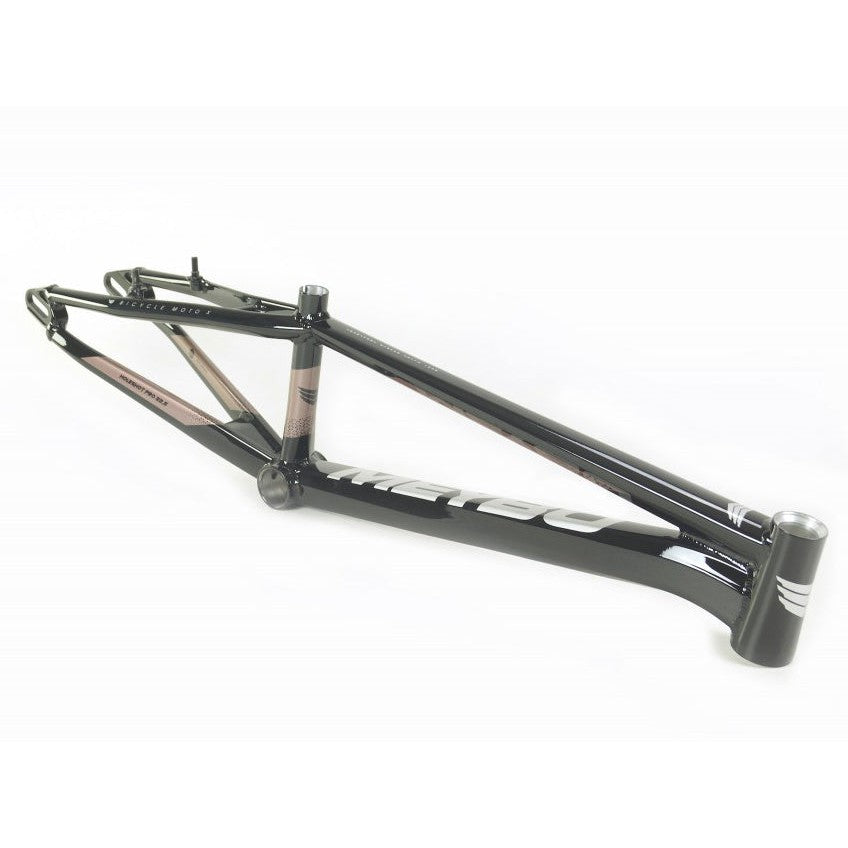

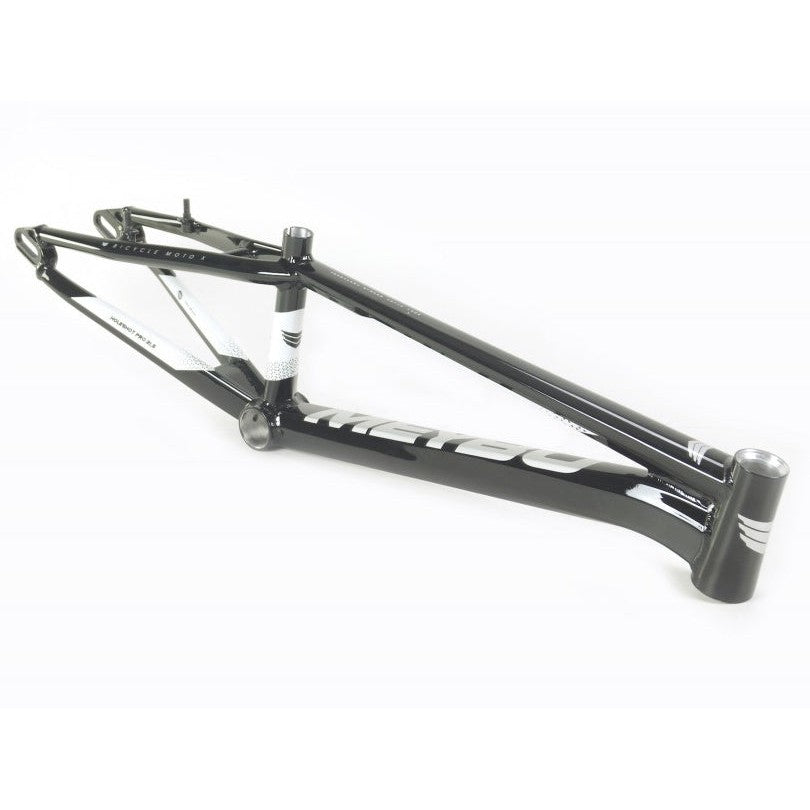

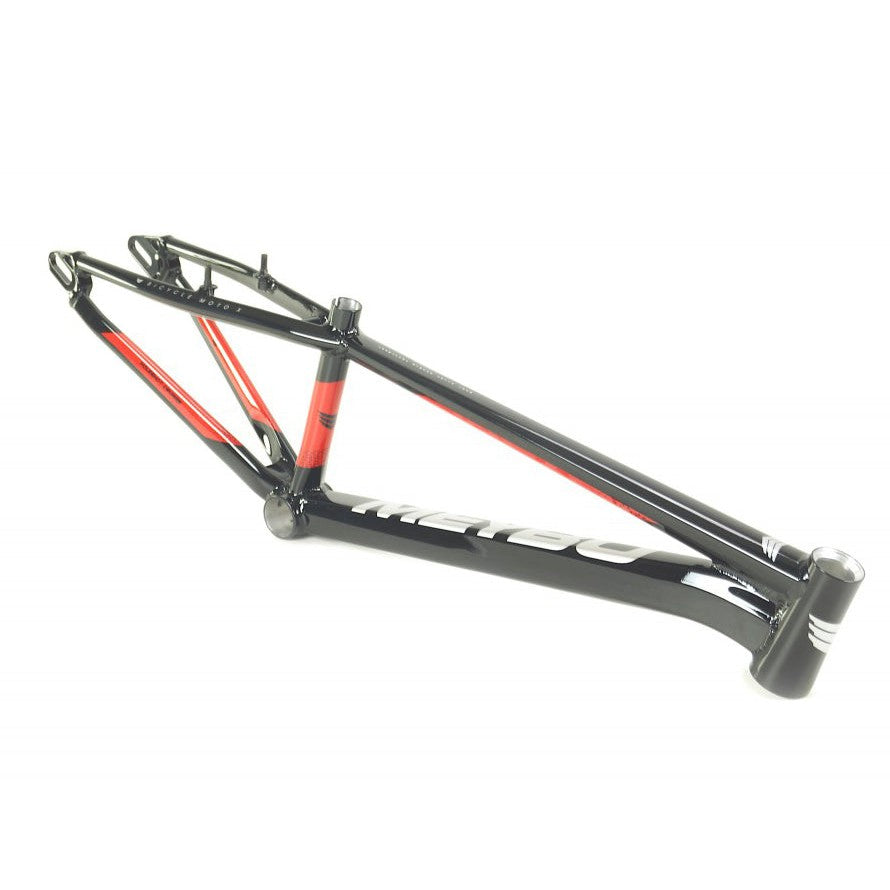

Meybo 2023 Holeshot Frame (Pro L)

Brand: Meybo SKU: Click to copy the SKU and show the pick location

Sale price$999.99 AUD

Or 4 payments of $249.99 AUD with

Colour - Black/Rose Gold/Grey

Top Tube Length - 21

BMX race bike sizing

Race frames are sized by class, and the class you ride is set by rider height rather than age.

SizeRider heightTop tube
Micro (18" wheels)Under 120cm16.25"
Mini (20" wheels)110 to 140cm17 to 18"
Junior120 to 150cm18.25 to 18.75"
Expert130 to 170cm19.5 to 19.75"
Expert XL145 to 170cm20 to 20.75"
Pro150 to 175cm20.25 to 20.75"
Pro XL165 to 180cm21 to 21.25"
Pro XXL170 to 185cm and up21.5 to 21.85"
Pro XXXL175cm and up22"
Pro XXXXL180cm and up22.5"
Cruiser (24" wheels)175cm and up21.5" and up

Heights overlap between classes on purpose. Where you land in two, a growing rider is usually better on the larger, and a rider who wants the bike to turn faster on the smaller. Some brands label the Pro size Pro L, with the same fit.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

  • Between two sizes and still growing? Take the larger size.
  • Racing gates and wanting the bike to turn faster? Take the smaller size.
  • Top tube is the number that actually changes the fit, so compare it against the bike they ride now.

Not sure? Send us their height and we will tell you what we would put them on.
