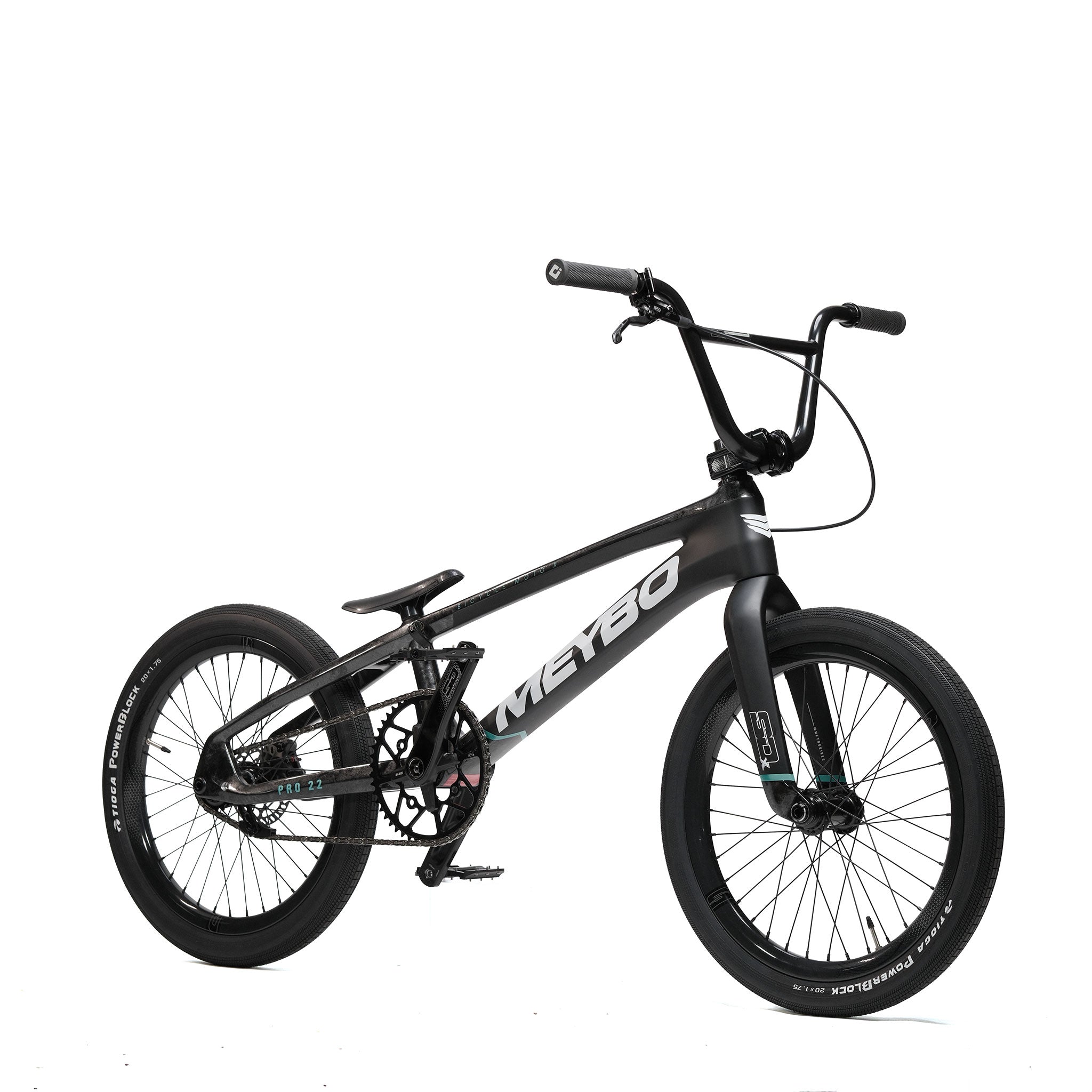

The Meybo HSX Carbon Pro XXL Race Bike is a black BMX bicycle with a matte finish, thick tires, and a straight handlebar, photographed on a white background, featuring high-quality BMX components for enhanced performance.

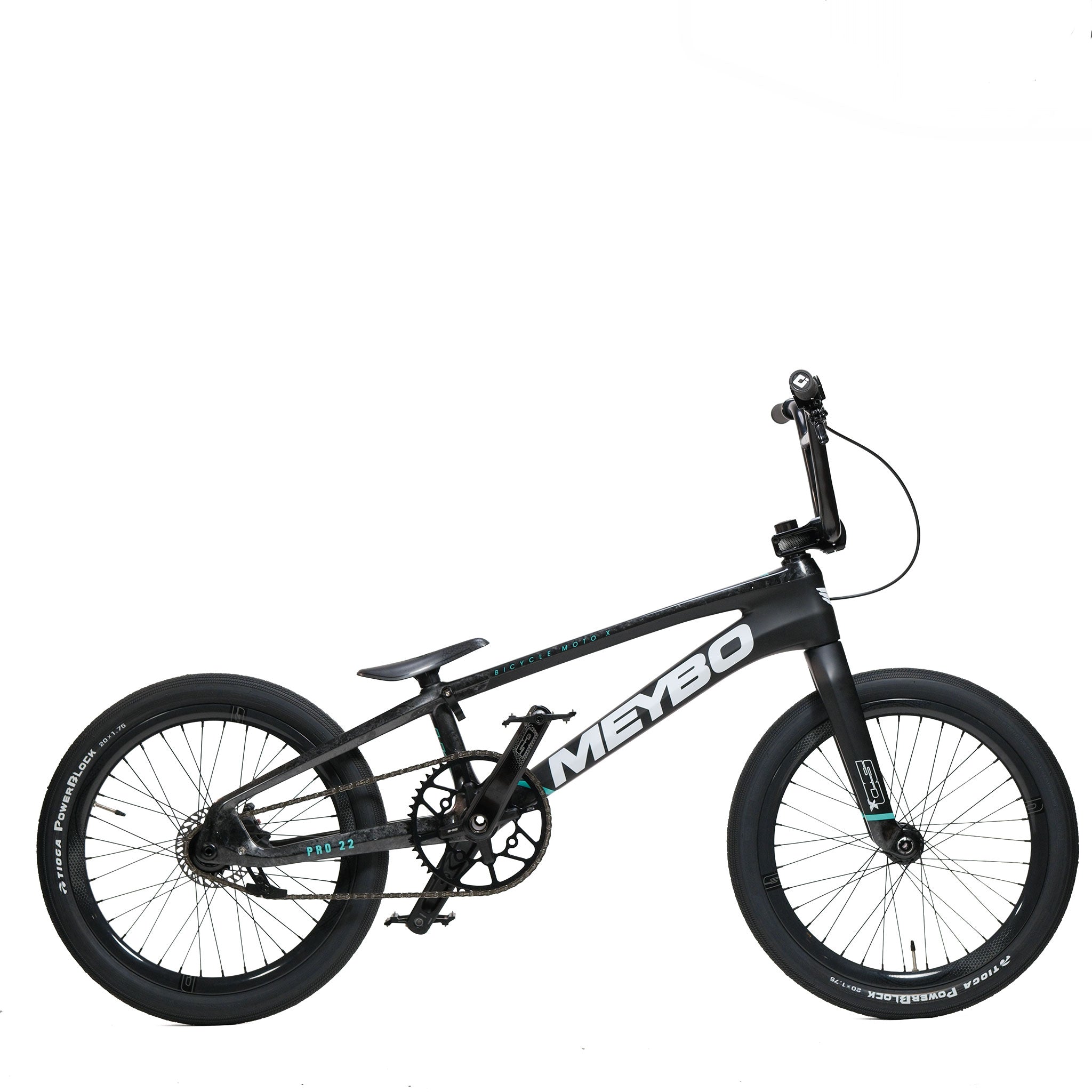

A black Meybo HSX Carbon Pro XXL Race Bike with thick tires and a sturdy frame, shown in profile on a white background, features premium BMX components and the renowned Meybo HSX Carbon Pro XXL Frame for enhanced performance.

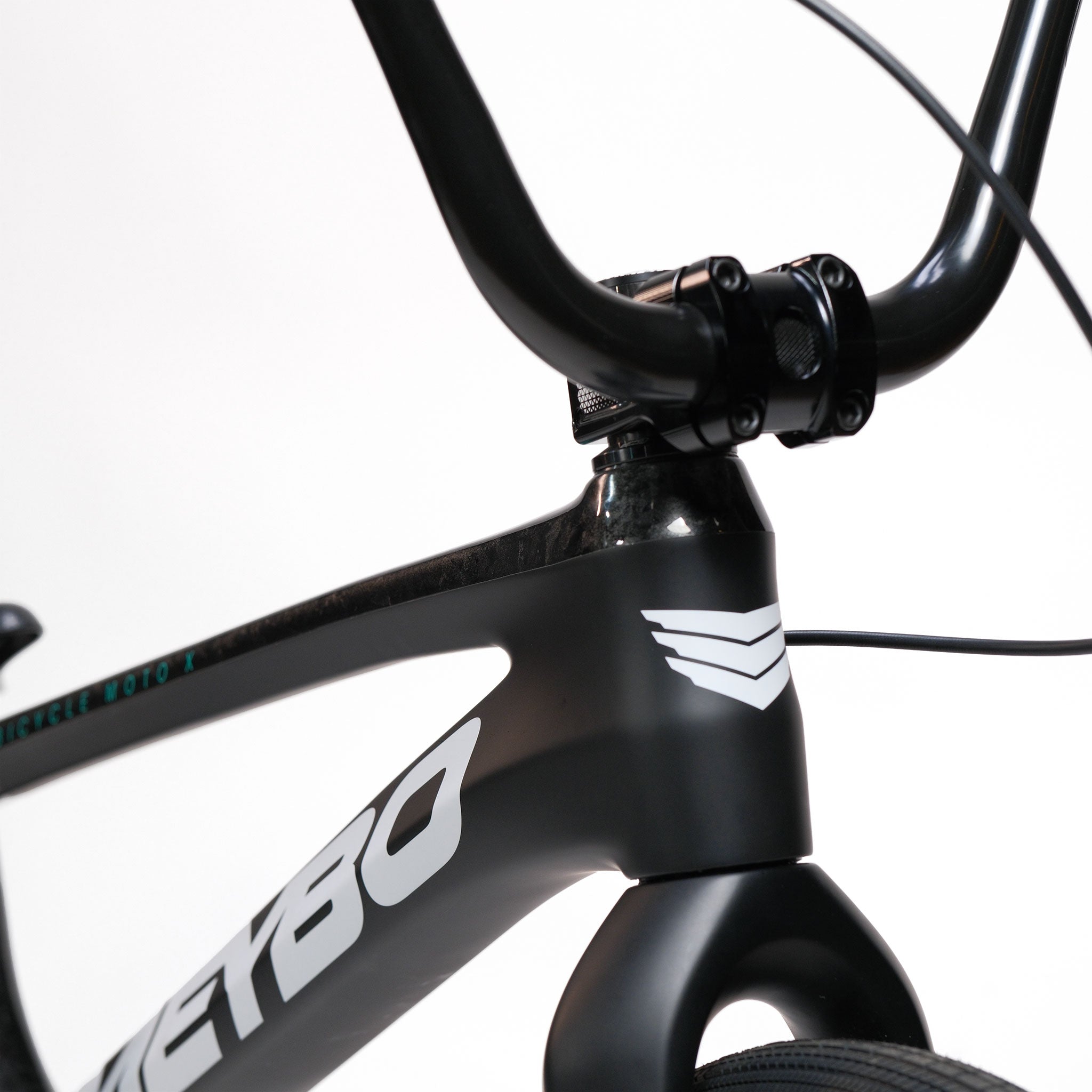

Close-up of a black bicycle frame and handlebars, showcasing a white decal and front brake cable against a plain white background. The sleek design highlights premium BMX parts, reminiscent of the Meybo HSX Carbon Pro XXL Race Bike found on high-performance race tracks.

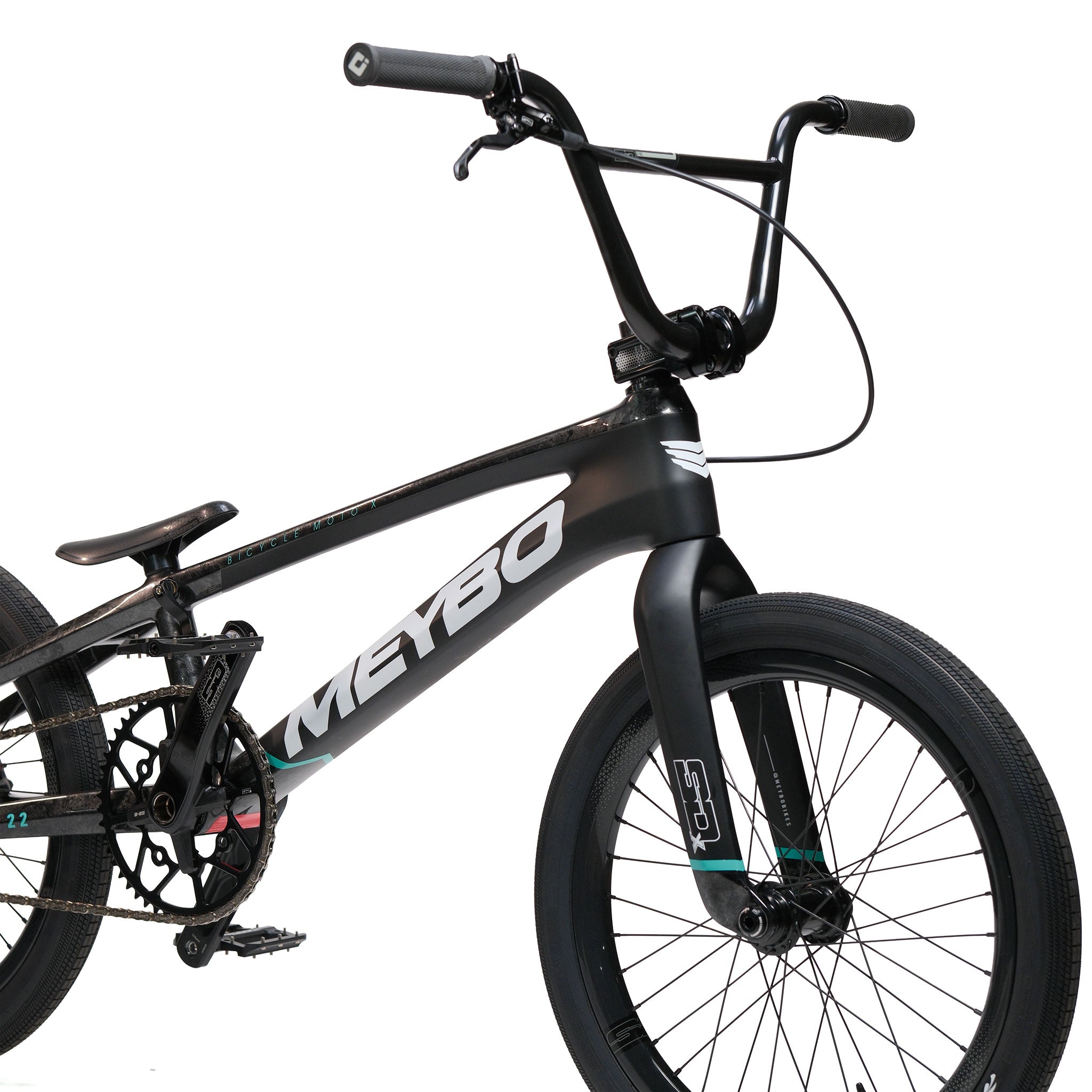

Meybo HSX Carbon Pro XXL Race Bike in black with white branding, shown from the right side, featuring a robust carbon frame, flat pedals, knobby tires, and a visible front brake cable near the handlebars. Built with quality BMX components and equipped with the Meybo HSX Carbon Pro XXL Frame for exceptional strength and performance.

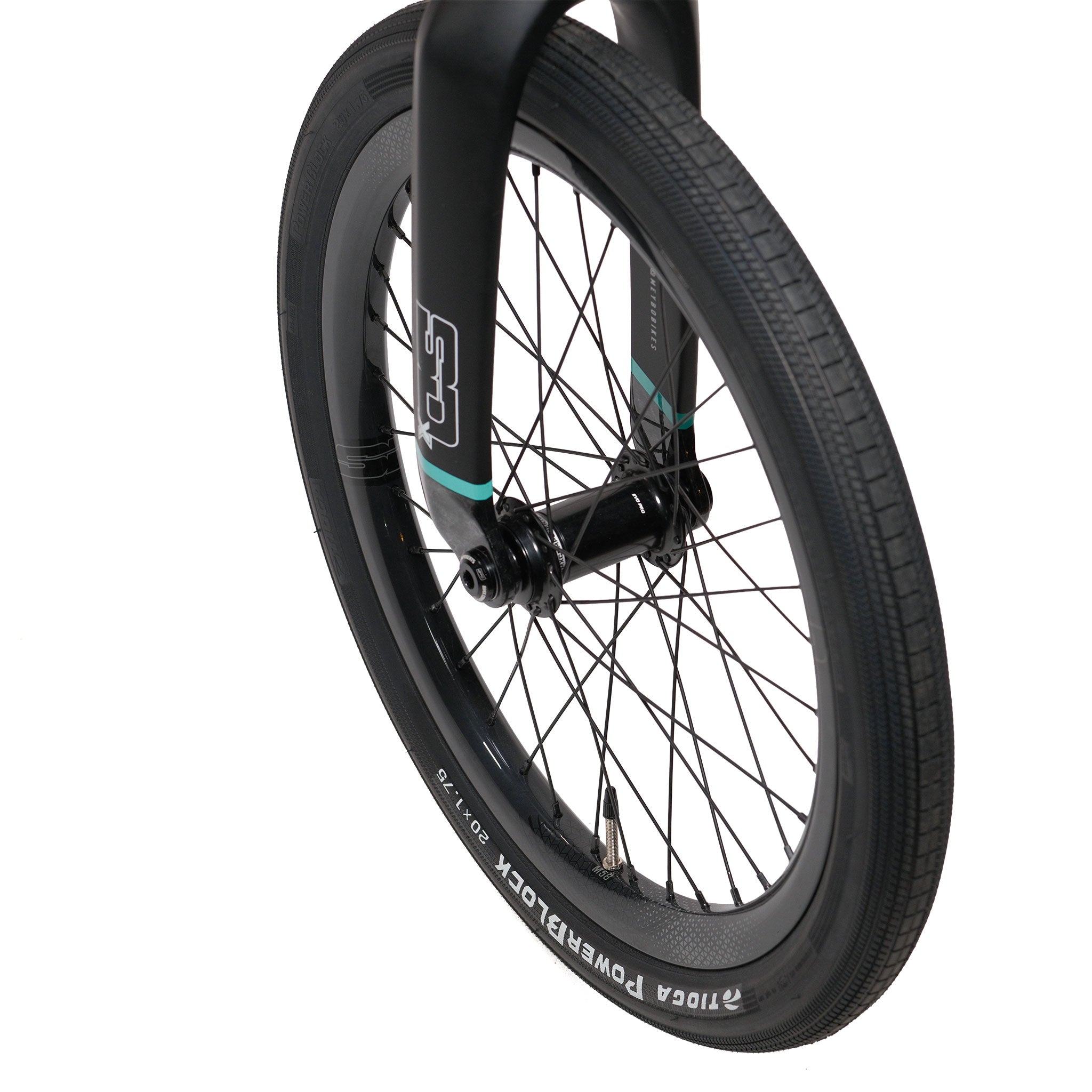

Close-up of a black bicycle front wheel with black spokes, a tire labeled "TIOGA POWERBLOCK," and part of the black front fork visible against a white background, showcasing premium BMX components typically featured on high-performance models such as the Meybo HSX Carbon Pro XXL Race Bike.

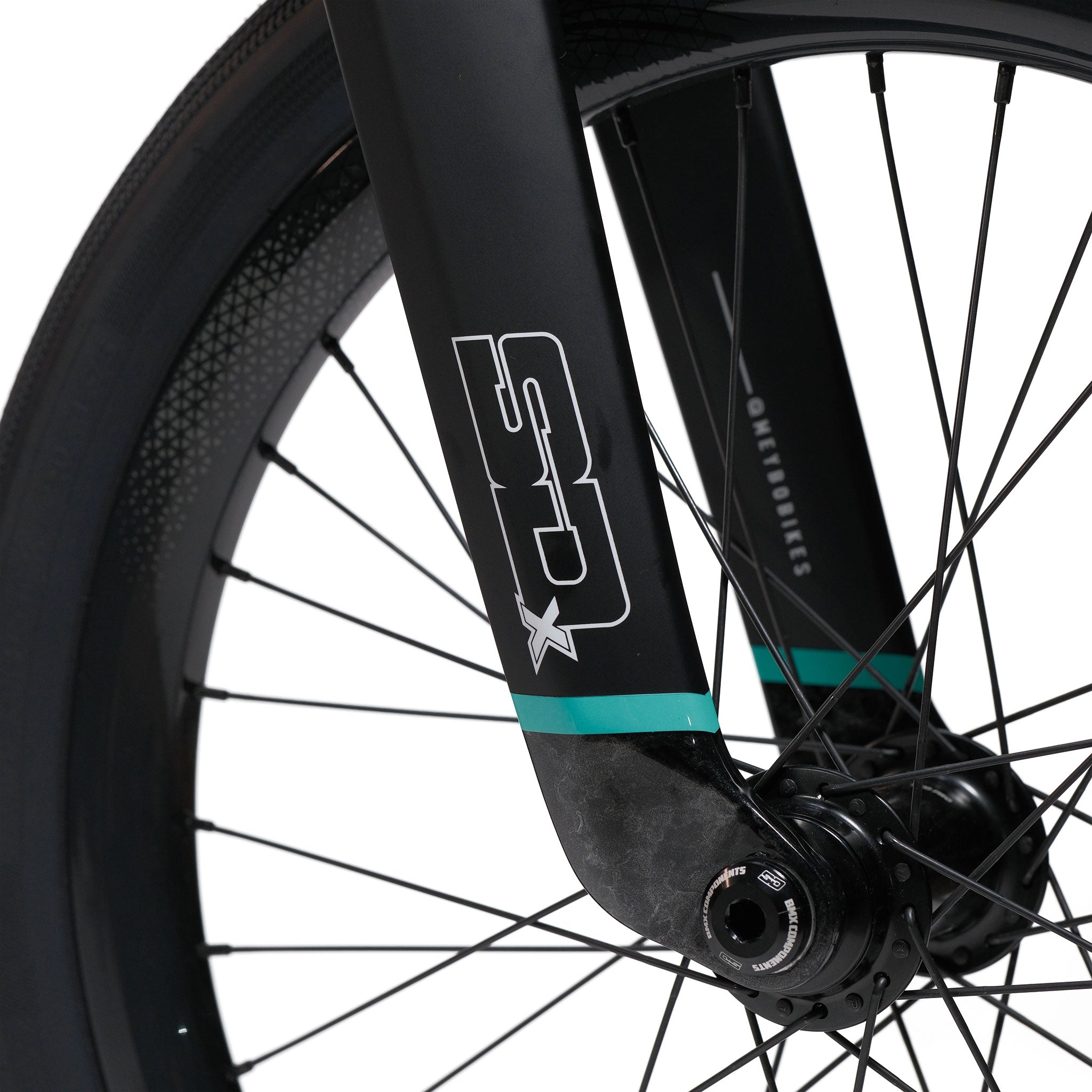

Close-up of the front fork and wheel of the Meybo HSX Carbon Pro XXL Race Bike, featuring "SD" branding, black spokes, and a textured tire tread visible on the left side—an ideal detail for BMX parts enthusiasts or riders building their own carbon race bike.

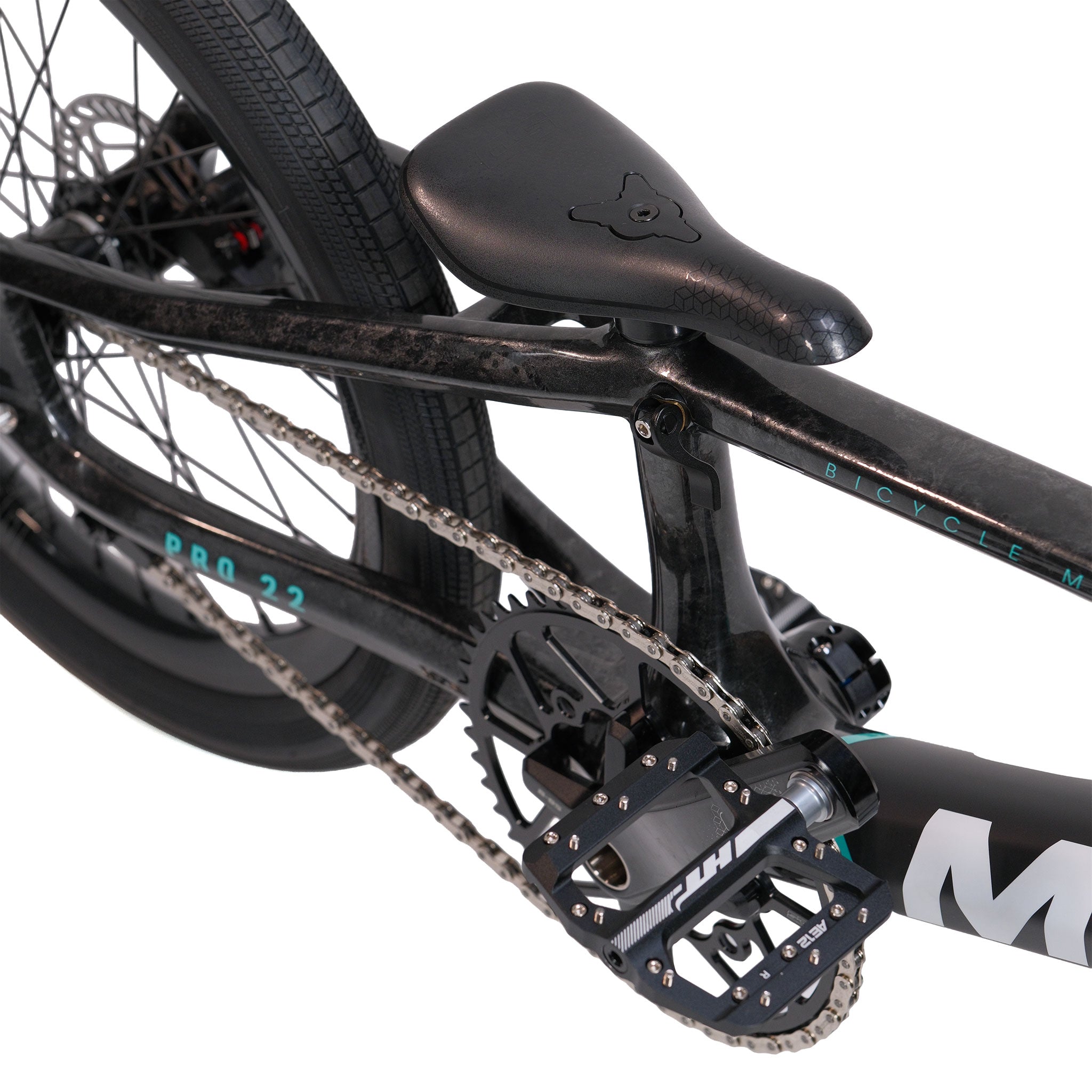

Close-up view of the Meybo HSX Carbon Pro XXL Race Bike's black saddle, pedal, chain, and rear wheel, highlighting essential BMX parts along with the carbon frame and drivetrain components.

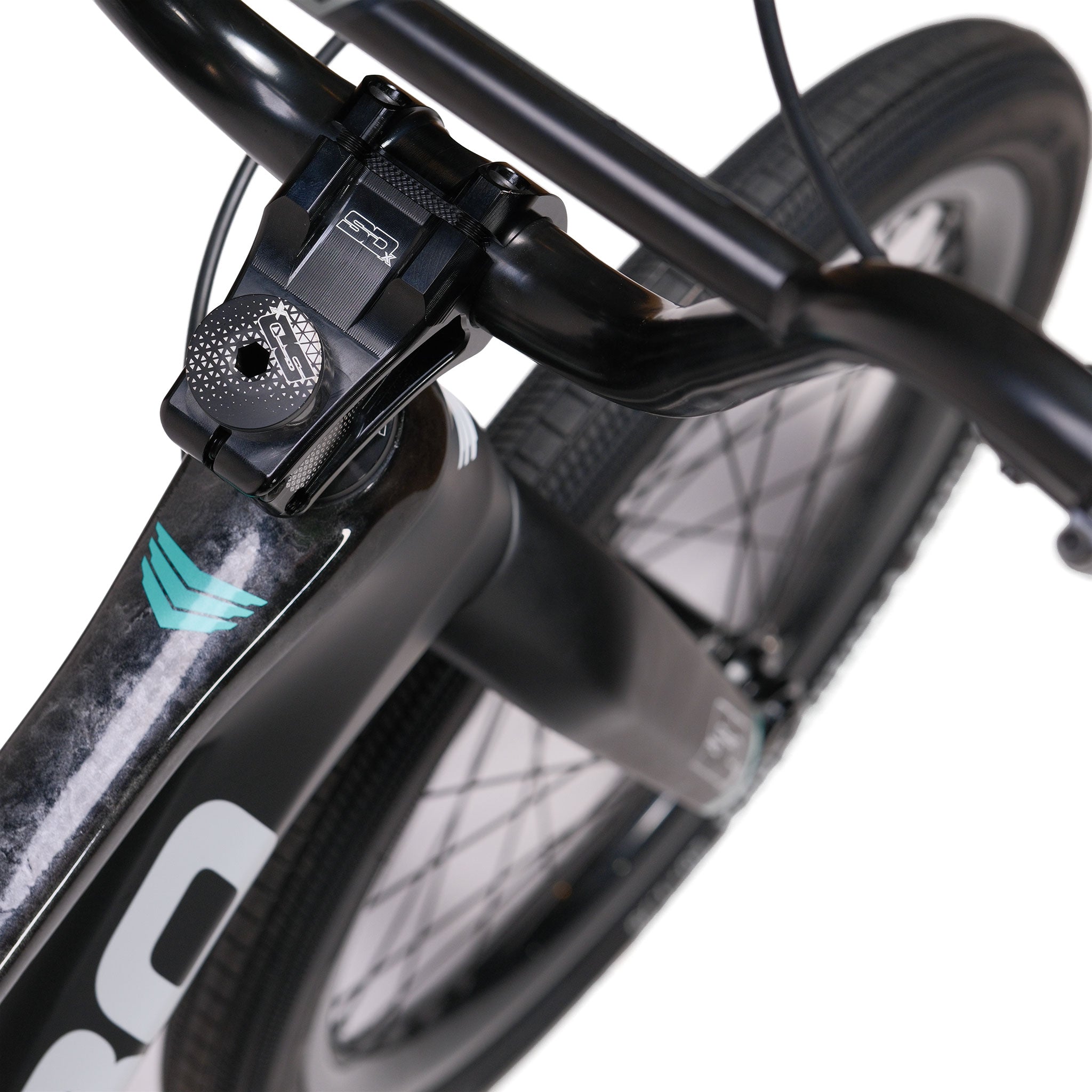

Close-up view of a black bicycle's handlebars, stem, and front wheel—showing tire tread, spokes, and part of the frame with a teal accent. This setup highlights high-quality BMX parts and resembles the streamlined design seen on a Meybo HSX Carbon Pro XXL Race Bike.

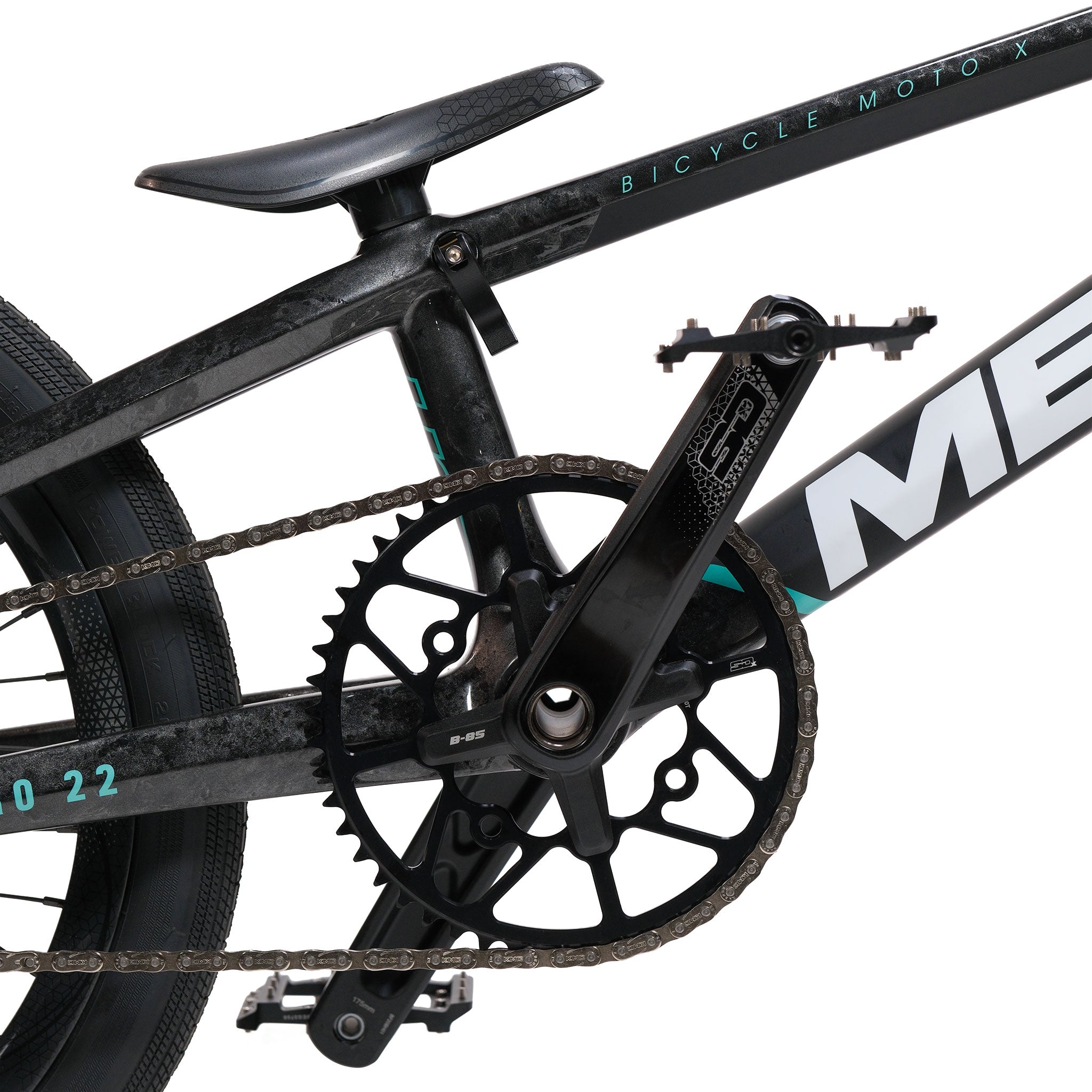

Close-up of a black BMX bike's drivetrain, featuring the chain, pedals, crank, chainring, and part of the seat and frame—showcasing BMX parts on a Meybo HSX Carbon Pro XXL Race Bike.

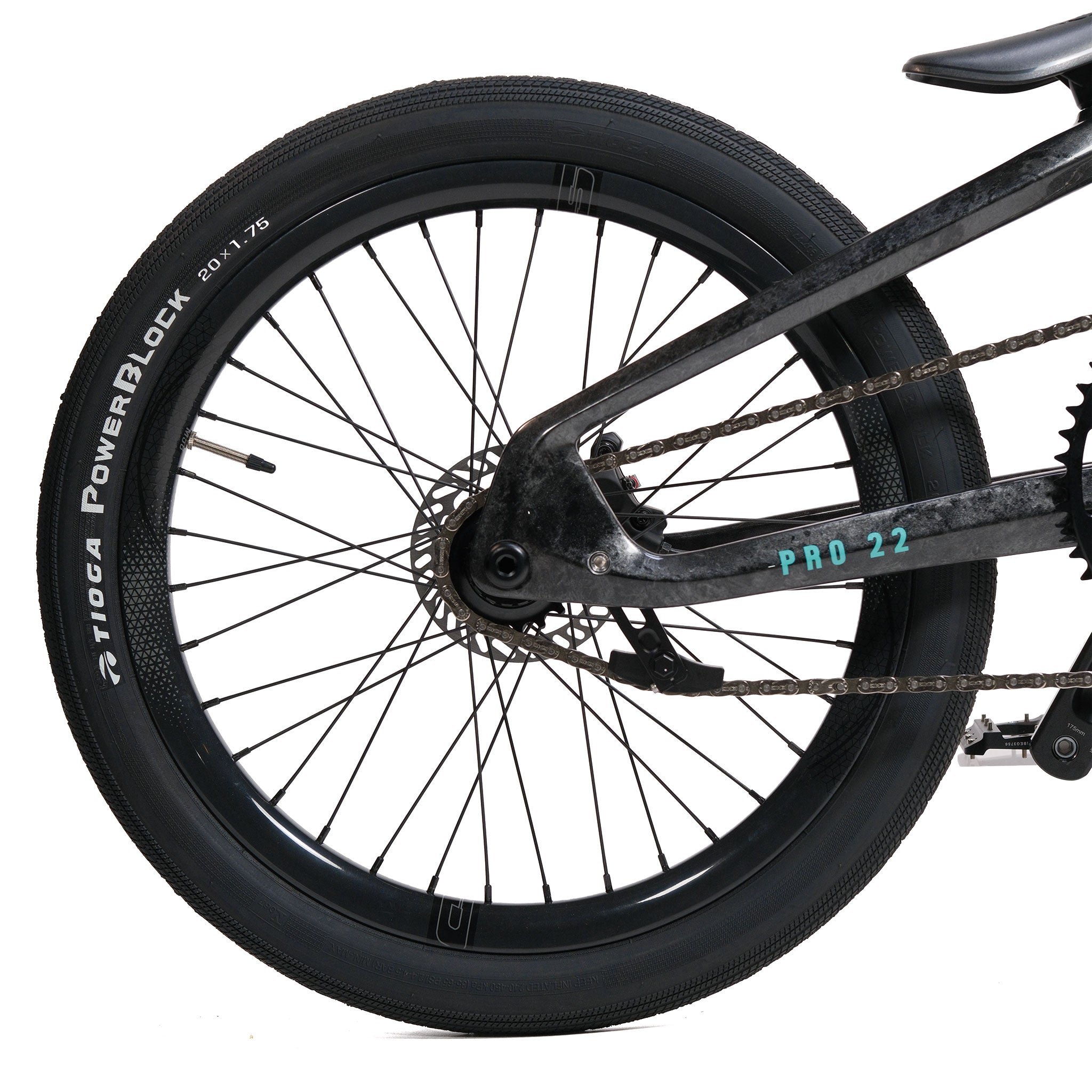

Close-up of a black bicycle’s rear wheel, chain, and part of the frame. The tire sidewall reads "Tioga PowerBlock 20x1.75" and the frame is labeled "PRO 22." This setup features the distinct profile often seen on high-performance carbon BMX race bikes like the Meybo HSX Carbon Pro XXL Race Bike.

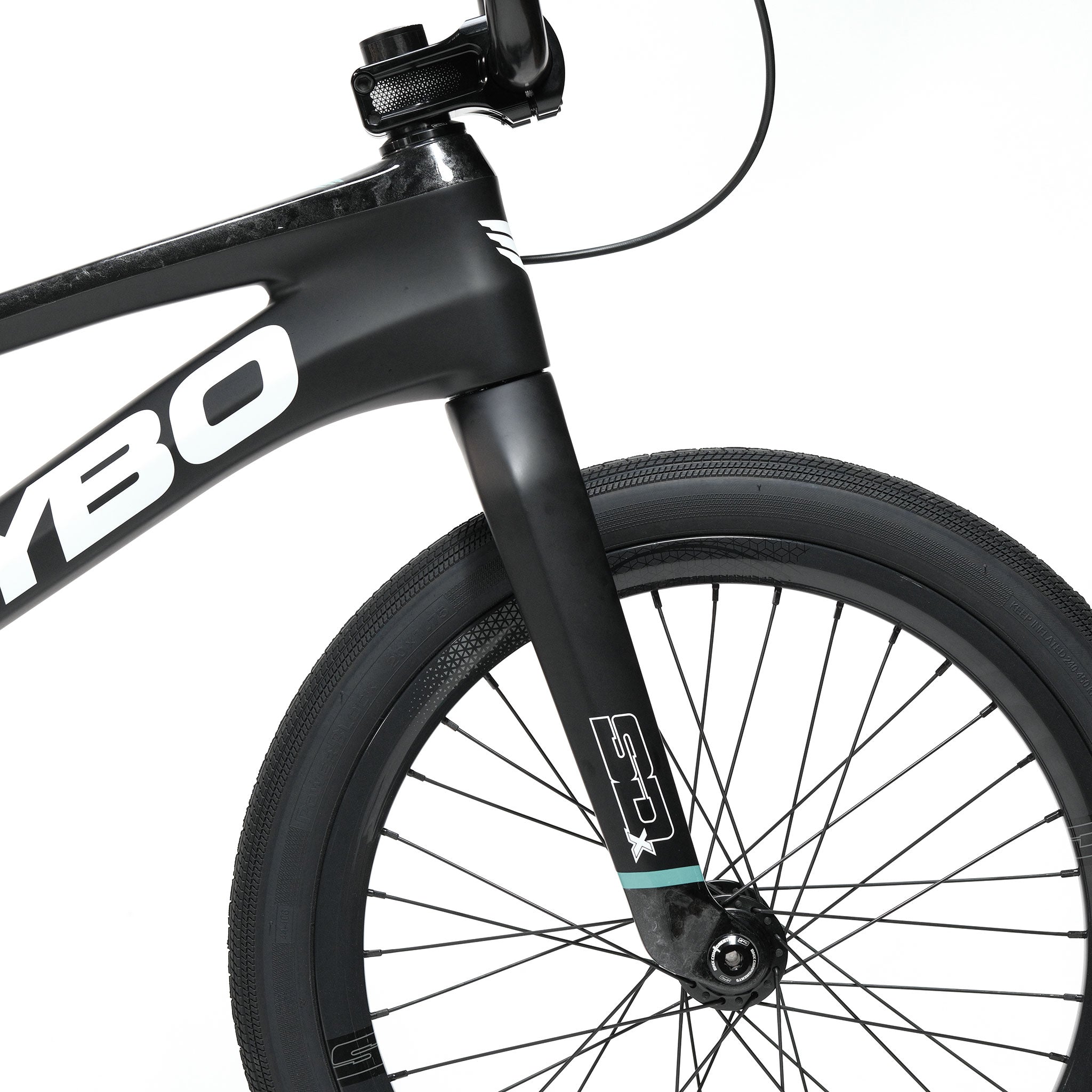

Close-up of a black bicycle’s front wheel and fork, featuring the Meybo HSX Carbon Pro XXL Race Bike, against a white background, with branding and tire tread details visible.

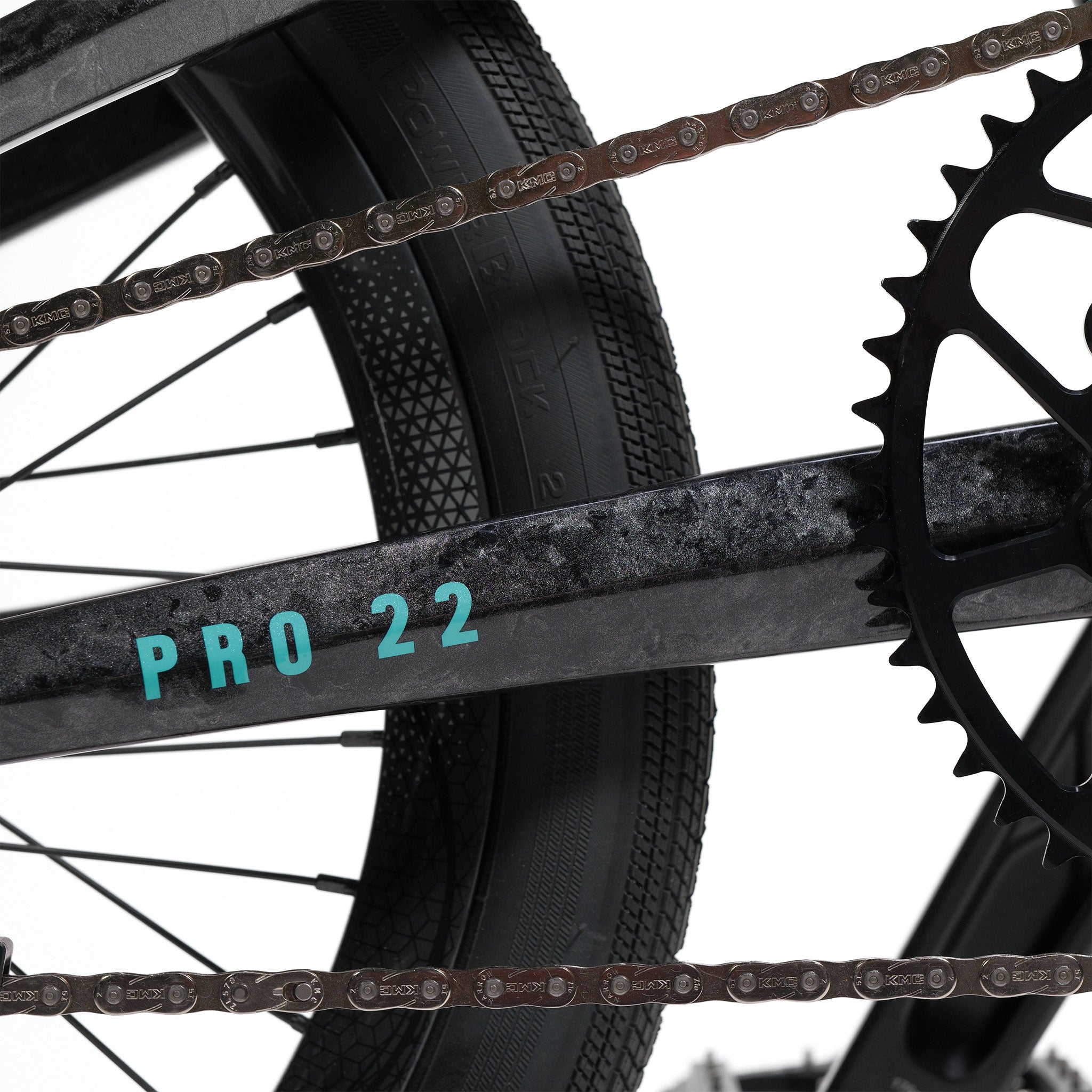

Close-up of a bicycle drivetrain, displaying the chain, gears, a sleek black frame labeled "PRO 22," and part of the rear tire—highlighting design elements inspired by the Meybo HSX Carbon Pro XXL Race Bike.

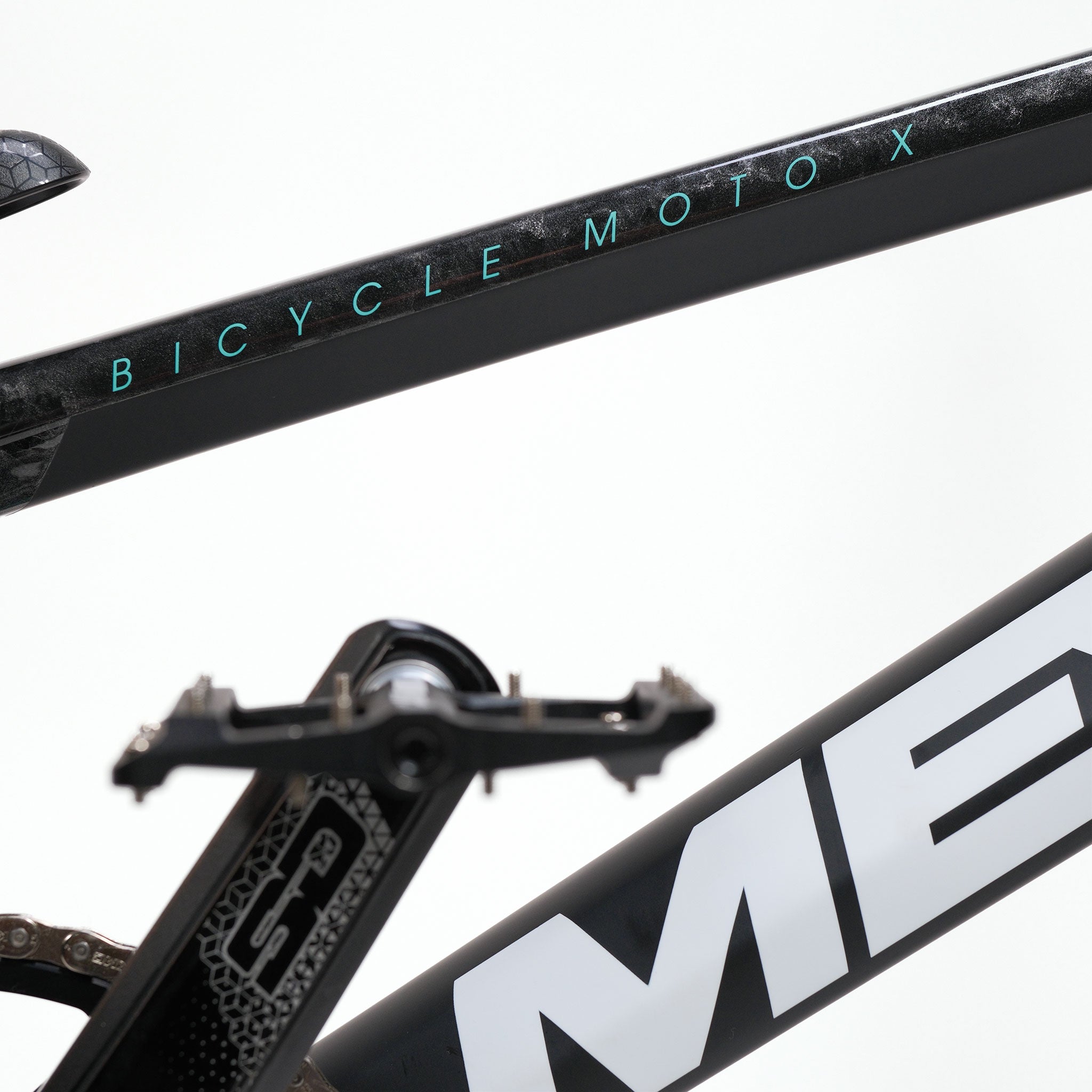

Close-up of a black carbon BMX race frame labeled "BICYCLE MOTO X," with a visible pedal and part of a white logo on a neutral background, reminiscent of the sleek design found in models like the Meybo HSX Carbon Pro XXL Race Bike.

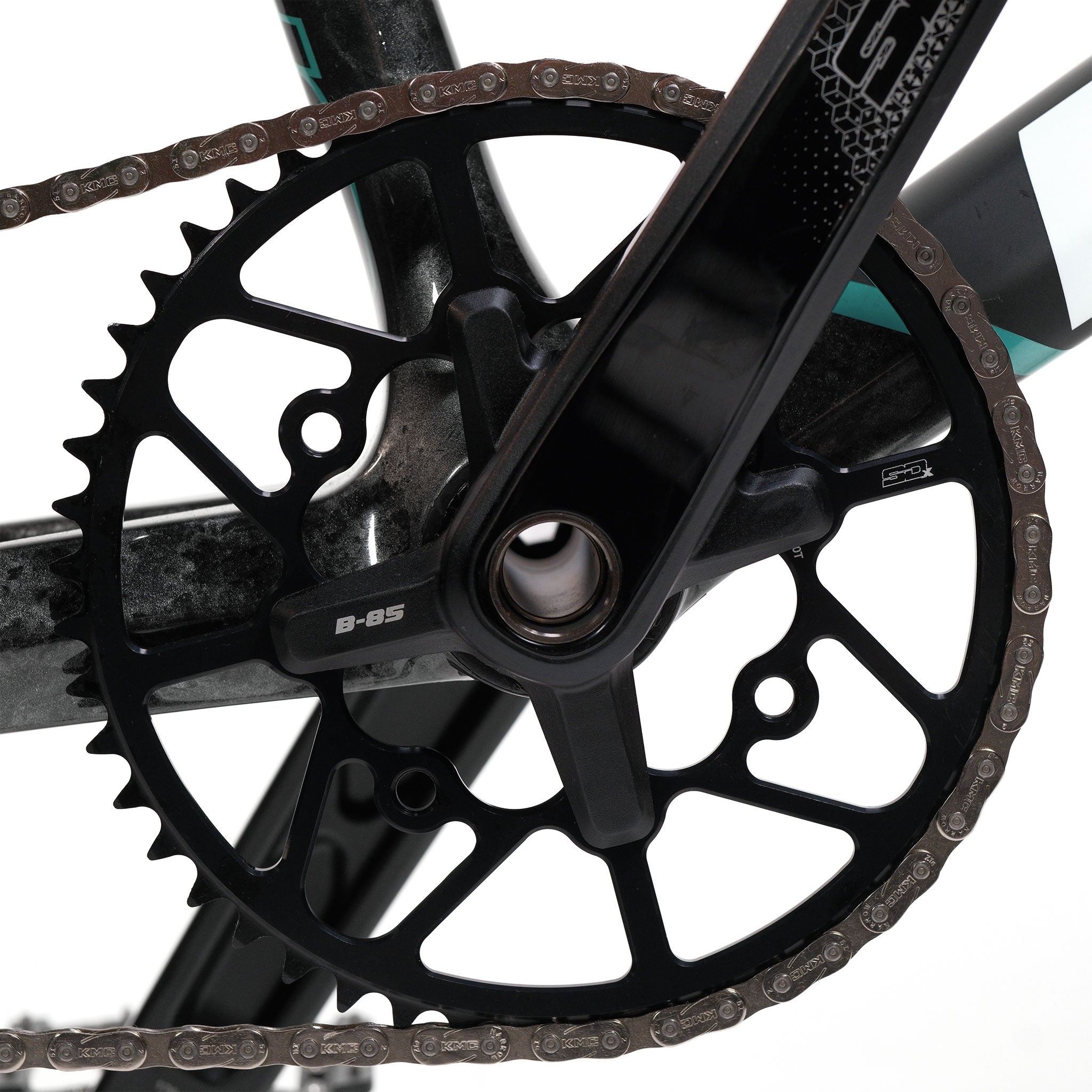

Close-up of a black bicycle crankset and chainring with a chain attached, mounted on a Meybo HSX Carbon Pro XXL Race Bike frame.

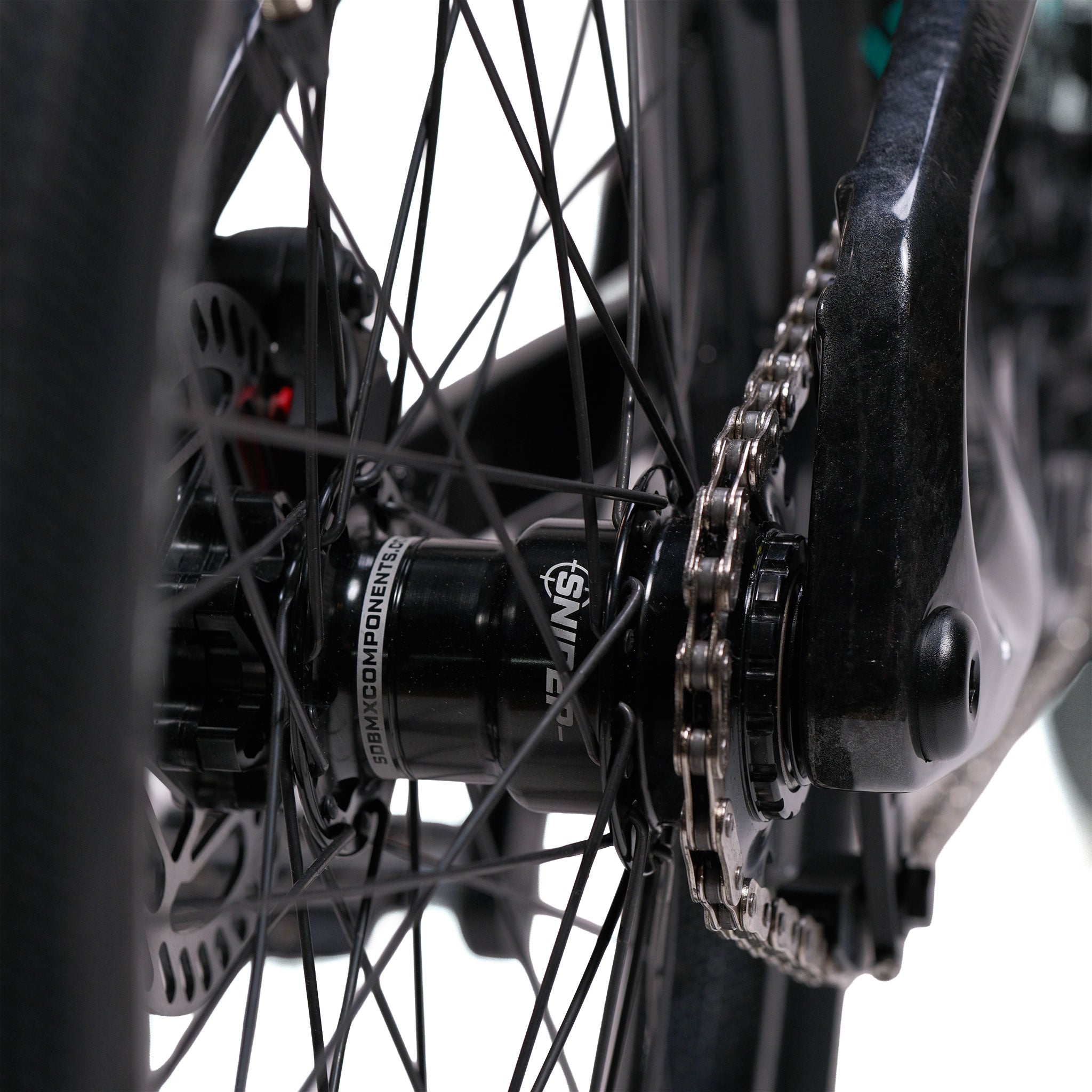

Close-up of a bicycle's rear wheel hub, showing the spokes, chain, and part of the brake rotor against a white background. The setup is featured with a Meybo HSX Carbon Pro XXL Race Bike for enhanced performance and durability.

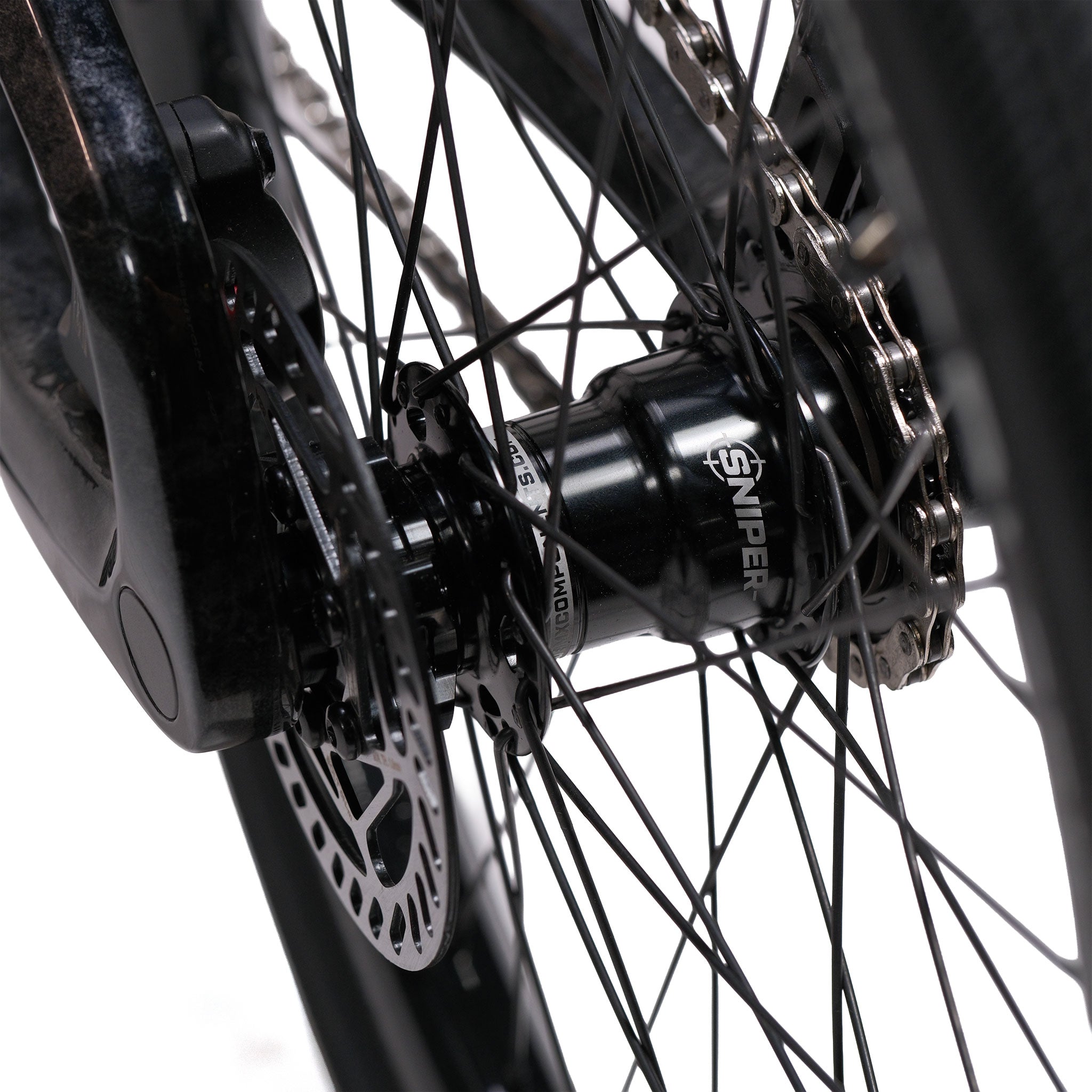

Close-up of a bicycle wheel hub labeled "SNIPER," showing black spokes, disc brake rotor, and part of the gear cassette on a white background—designed to perfectly complement the Meybo HSX Carbon Pro XXL Race Bike.

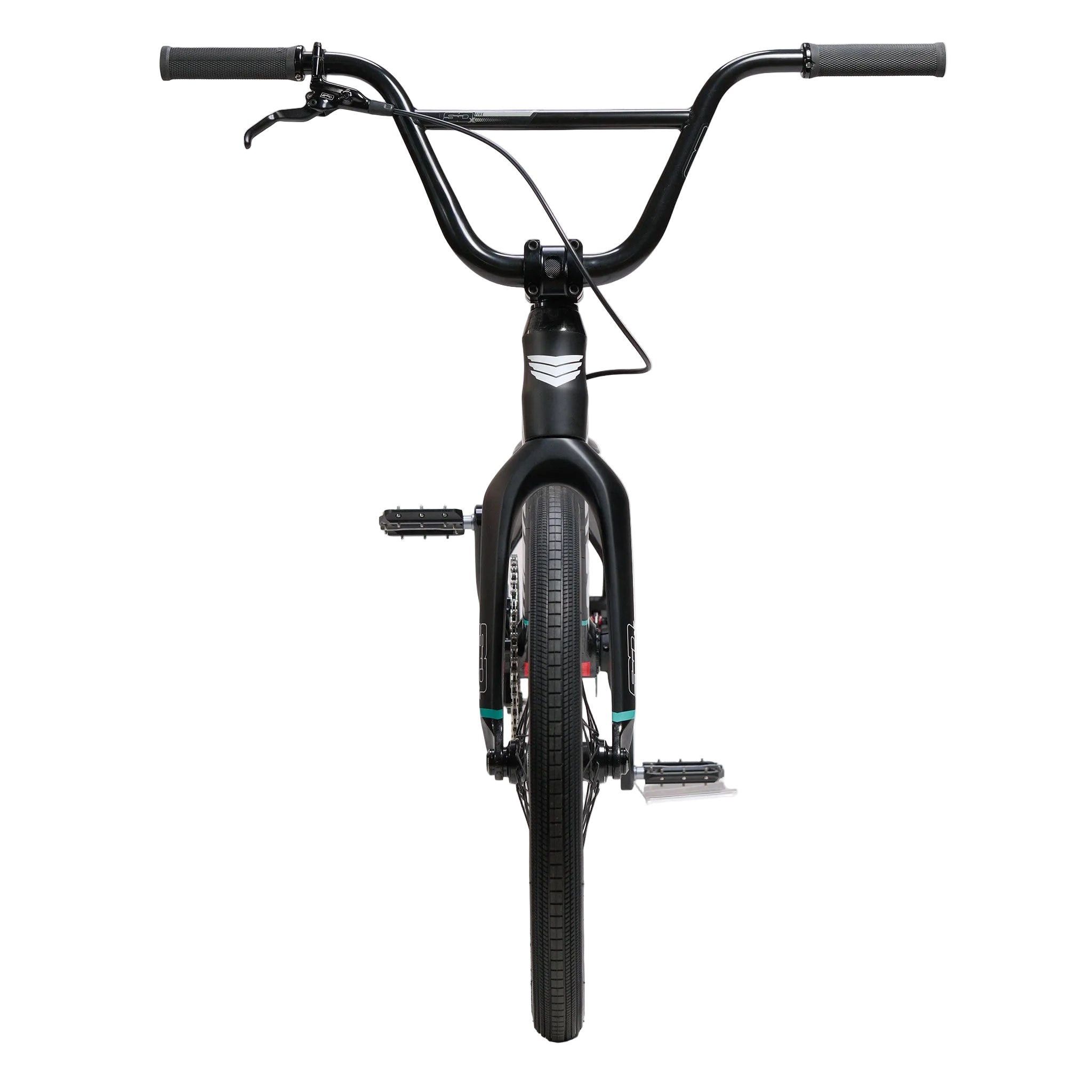

Front view of the Meybo HSX Carbon Pro XXL Race Bike in black, showcasing its handlebars, front tire, and dual foot pegs against a white background. This BMX features a carbon race frame inspired by high-performance models like the SD-X Sniper Evo and Meybo HSX Pro XL.

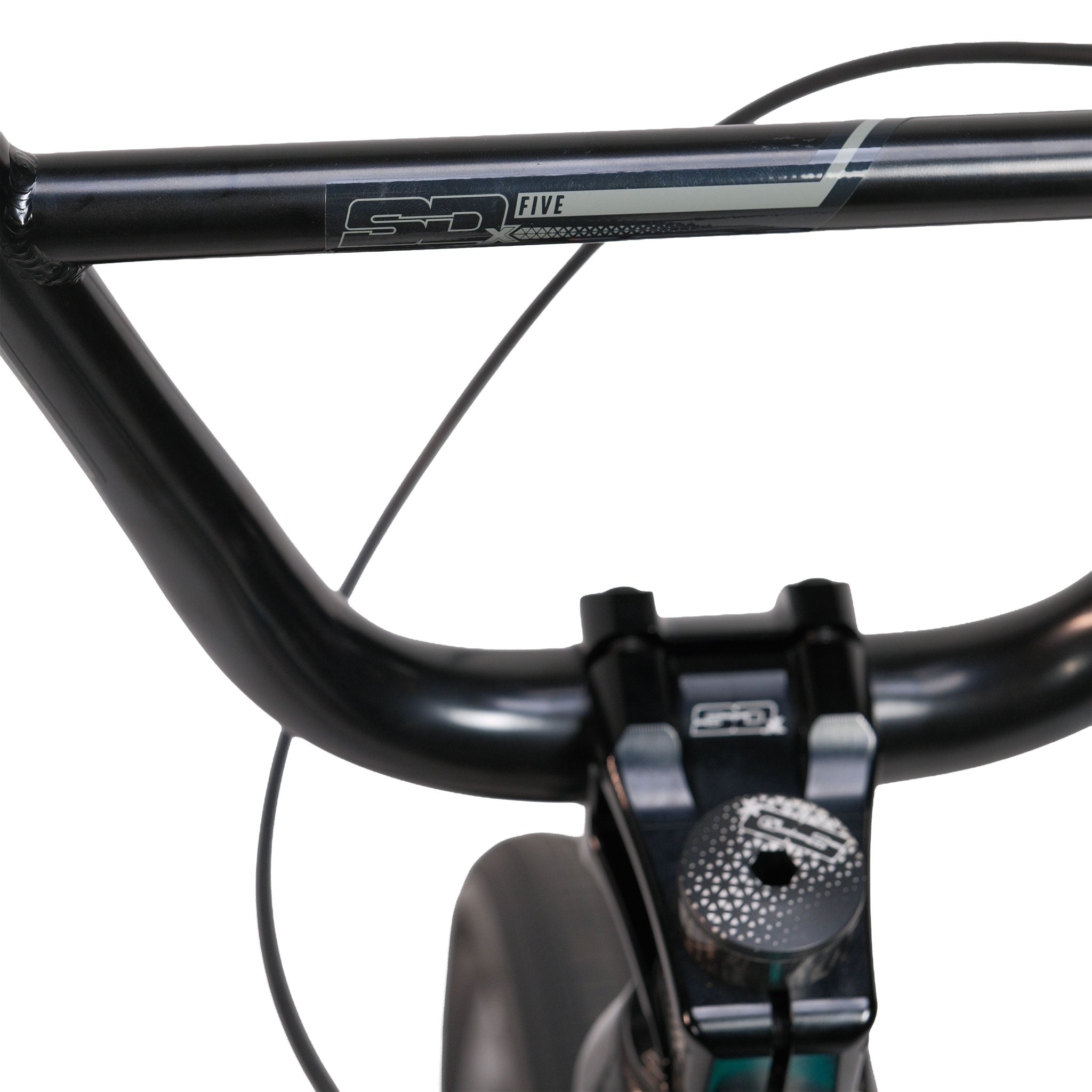

Close-up of a black handlebar and stem with visible brake cables and a partial view of the frame in the background, showcasing the premium build of the Meybo HSX Carbon Pro XXL Race Bike.

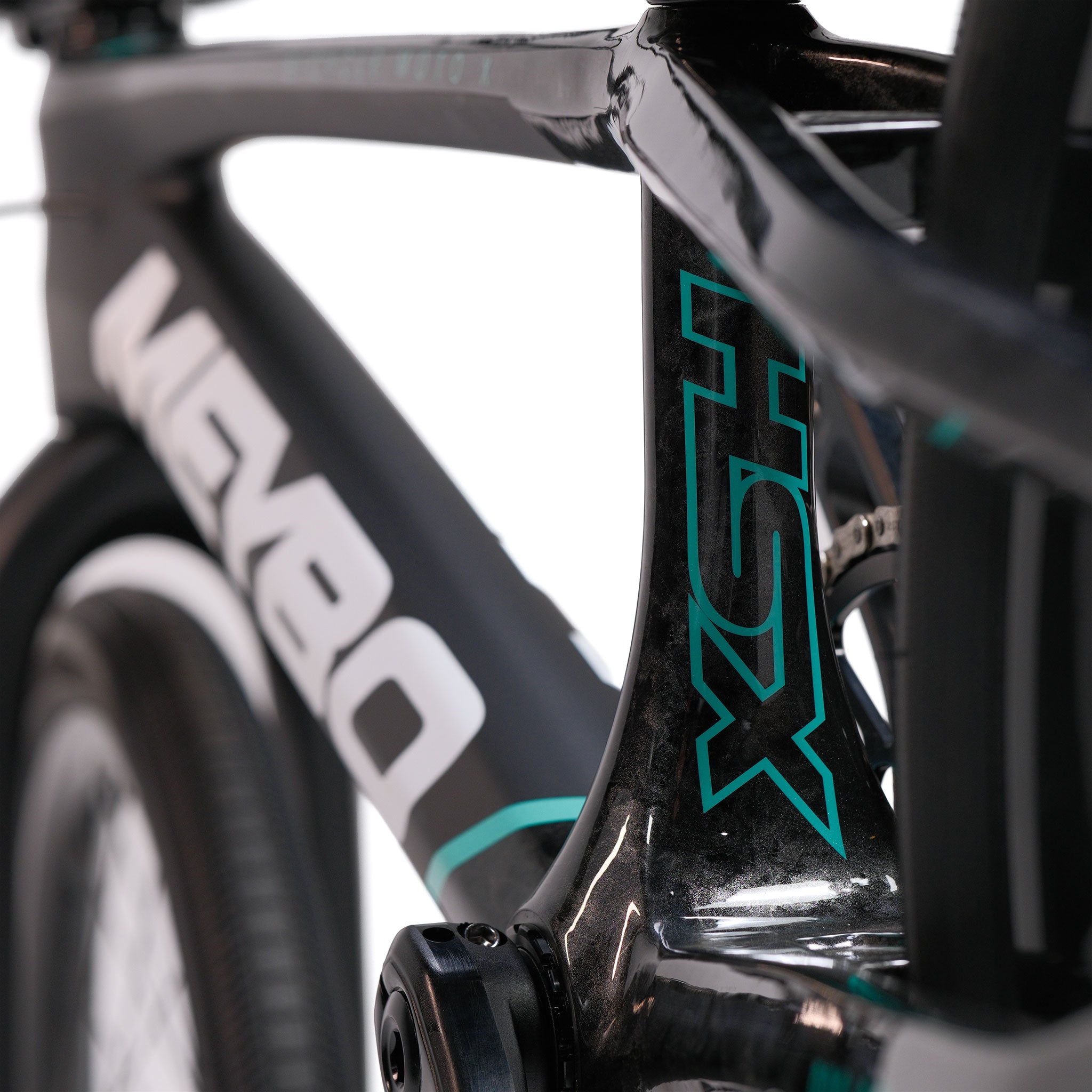

Close-up of the Meybo HSX Carbon Pro XXL Race Bike, featuring a black carbon BMX race frame with turquoise accents and "HSX" lettering visible, part of the tire, and the Meybo brand on the frame.

Description

There's not many sports where you can jump onto the identical equipment that the athletes at the very top of the game use to compete with, but in BMX racing you can courtest of Meybo and LUXBMX!

Right here you can throw a Meybo HSX Carbon Pro XXL Race Bike into your cart and by the next weekend be shredding the track on the same rig that you can see in world cup finals piloted by the likes of GB's Ross Cullen. We can't promise you'll be as fast as him, but you can experience the level of performance that this carbon HSX Meybo frame offers.

Based on the 26.5 year colours, this matte black/teal HSX frame is understated, yet dynamically capable of winning races while throwing a huge grin on your face. At just on 8kg, if you've never experienced this combination of light weight and stiffness, you're in for a big treat! This 22 inch frame will perfectly suit anyone 178cm and taller, with plenty of room up front and a long wheelbase to keep it stable on the type of tracks you're likely to be racing on.

The HSX carbon frame design exudes stiffness, making it extremely responsive, while the low weight contributes to the overall experience of a high performance base. Bolted up to this chassis are SD's newest Sniper SD-X Pro hubs laced into their carbon rims. The cockpit is all oversized SD-X gear, with a CNC'd Pike stem and five degree swept 31.8mm bars.

We've build plenty of these HSX builds since their release several years ago and without exception, we proselytise about the fixed dropout design incorporating a chain tensioner. Changing gearing or fixing a flat just became as simple and quick as tightening your headset. We love this system and we love how easy overall these Meybo frames are to build and work on. Quality through and through.

This bike is built and ready to ship, or pick up in store. Get yourself on the identical frame that propels riders like Josh Jolly and Saya Sakakibara to the world championships and Olympic gold medals.

Features
  • The frame the pros race. The HSX carbon chassis is the same frame seen in world cup finals under riders like Ross Cullen, Josh Jolly and Saya Sakakibara.
  • 22" top tube, XXL fit. Suits anyone 178cm and taller, with plenty of room up front and a long wheelbase that stays stable.
  • 7.8 kg without pedals. Carbon frame, carbon fork and SD-X M58 V2 carbon rims: light and very stiff, so the bike is extremely responsive.
  • Fixed dropouts with chain tensioner. Changing gearing or fixing a flat is about as simple as tightening your headset, with no wheel alignment to chase.
  • Oversized SD-X cockpit and hubs. A CNC'd Pike 58mm stem, 31.8mm five degree swept bars, and Sniper Evo Pro hubs laced into carbon rims.

Specifications
  • Size: 20" wheels, 22" top tube, suits riders 178cm and taller
  • Frame: Meybo 2026.5 Carbon HSX Pro XL frame and fork kit
  • Top tube: 22"
  • Fork: SD Pro Tapered 1.5 V2 carbon, 20 inch, 20mm
  • Headset: SD tapered, 1.5 to 1-1/8
  • Stem: SD-X Pike oversized 31.8mm Pro CNC, 58mm
  • Bars: SD-X Five oversize race bar, 8 inch rise, 31.8mm, five degree sweep
  • Grips: Meybo ODI Ruffian V2.1 lock-on
  • Brakes: SD Salvo flat mount disc brake kit with SD Wave rotor
  • Cranks: SD B-85, matt black, 175mm
  • Bottom bracket: SD BB386, 24mm spindle
  • Chainring: SD-X CNC 7075, 4 hole 104, 50T, with alloy chainring bolts
  • Chain: KMC Z1 eHX Race
  • Pedals: Not supplied
  • Front hub: SD-X Sniper Evo Pro 20mm, 36 hole
  • Rear hub: SD-X Sniper Evo Pro 15mm, 36 hole
  • Rear cog: SD-X Sniper Evo alloy, black, 18T
  • Spokes: Spectre T302 SB Sandvik 14G, black
  • Rims: SD-X M58 V2 carbon race, front and rear
  • Tyres: Tioga Powerblock 20 x 1.75
  • Seat: SD Revolt
  • Seat post: 27.2mm
  • Seat clamp: Meybo integrated
  • Gearing: 50 x 18, 55.34"
  • Weight: 7.8 kg (without pedals)
  • Colour: Matte black and teal, 26.5 colours
  • Note: Pedals are not supplied.

Assembly information

Your race bike ships mostly assembled in the box. Finishing it takes most people 10 to 20 minutes with basic tools, and the video above walks through every step.

  • Fit the handlebars and line them up with the front wheel
  • Fit the front wheel, pedals and seat post
  • Spin the rear wheel and check the rotor runs clear of the calliper
  • Check the brake and tyre pressure before the first ride

Disc brakes: keep your fingers off the rotor and pads, because oil from your skin contaminates the braking surface and takes the bite away. If the rotor rubs, loosen the two calliper bolts, squeeze the lever, then tighten them again with the lever held on. Bed the brake in with a few firm stops before you race it.

Tools: Allen key set and a 15mm spanner for the pedals. Check your axle hardware, since race bikes vary between bolt-on nuts and a thru-axle.

Rather have it done? Ask us about extra assembly before you order, or any local bike shop can finish the build for a small fee.

Meybo HSX Carbon Pro XXL Race Bike

Brand: Meybo SKU:

$7,999.99 AUD

Or 4 payments of $1,999.99 AUD with

Colour - Matte Black/Teal/Grey

Top Tube Length - 22

BMX race bike sizing

Race frames are sized by class, and the class you ride is set by rider height rather than age.

SizeRider heightTop tube
Micro (18" wheels)Under 120cm16.25"
Mini (20" wheels)110 to 140cm17 to 18"
Junior120 to 150cm18.25 to 18.75"
Expert130 to 170cm19.5 to 19.75"
Expert XL145 to 170cm20 to 20.75"
Pro150 to 175cm20.25 to 20.75"
Pro XL165 to 180cm21 to 21.25"
Pro XXL170 to 185cm and up21.5 to 21.85"
Pro XXXL175cm and up22"
Pro XXXXL180cm and up22.5"
Cruiser (24" wheels)175cm and up21.5" and up

Heights overlap between classes on purpose. Where you land in two, a growing rider is usually better on the larger, and a rider who wants the bike to turn faster on the smaller. Some brands label the Pro size Pro L, with the same fit.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

  • Between two sizes and still growing? Take the larger size.
  • Racing gates and wanting the bike to turn faster? Take the smaller size.
  • Top tube is the number that actually changes the fit, so compare it against the bike they ride now.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide

BMX race bike sizing

Race frames are sized by class, and the class you ride is set by rider height rather than age.

SizeRider heightTop tube
Micro (18" wheels)Under 120cm16.25"
Mini (20" wheels)110 to 140cm17 to 18"
Junior120 to 150cm18.25 to 18.75"
Expert130 to 170cm19.5 to 19.75"
Expert XL145 to 170cm20 to 20.75"
Pro150 to 175cm20.25 to 20.75"
Pro XL165 to 180cm21 to 21.25"
Pro XXL170 to 185cm and up21.5 to 21.85"
Pro XXXL175cm and up22"
Pro XXXXL180cm and up22.5"
Cruiser (24" wheels)175cm and up21.5" and up

Heights overlap between classes on purpose. Where you land in two, a growing rider is usually better on the larger, and a rider who wants the bike to turn faster on the smaller. Some brands label the Pro size Pro L, with the same fit.

How to measure

Stand your rider against a wall in the shoes they ride in, heels flat, and mark the top of their head. Measure from the floor to the mark.

  • Between two sizes and still growing? Take the larger size.
  • Racing gates and wanting the bike to turn faster? Take the smaller size.
  • Top tube is the number that actually changes the fit, so compare it against the bike they ride now.

Not sure? Send us their height and we will tell you what we would put them on.

Read the full buying guide
