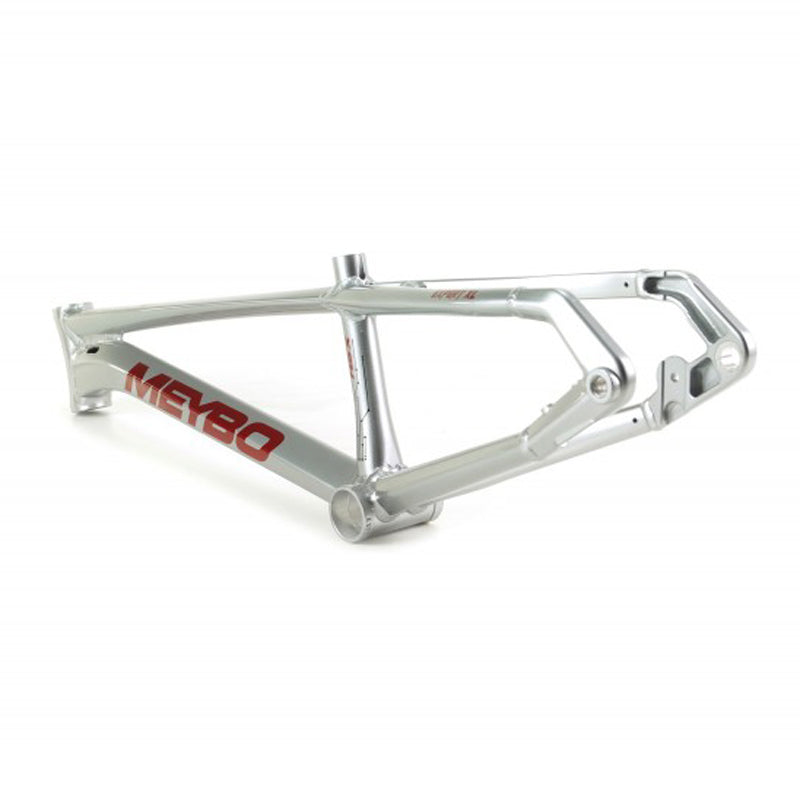

A silver aluminium frame on a white background, featuring the Meybo 2024 HSX Expert XL Frame.
A blue Meybo 2024 HSX Expert XL Frame with the word meybo on it, featuring an aluminium frame.
An image of a Meybo 2024 HSX Expert XL Frame with an aluminium frame.

Meybo 2024 HSX Expert XL Frame

Sale price$1,299.99 AUD

Or 4 payments of $324.99 AUD with

Pay in 4 interest-free payments

Select Option

View All
A black aluminium bike frame with the word Meybo on it, featuring the Meybo 2024 HSX Expert XL Frame design.

Meybo 2024 HSX Expert XL Frame / Black/Silver / 20.7TT

Sale price$1,299.99 AUD

kab8595

Sold Out

An aluminium frame with the Meybo 2024 HSX Expert XL Frame on it.

Meybo 2024 HSX Expert XL Frame / Grey/Red/Black / 20.7TT

Sale price$1,299.99 AUD

kab8596

Sold Out

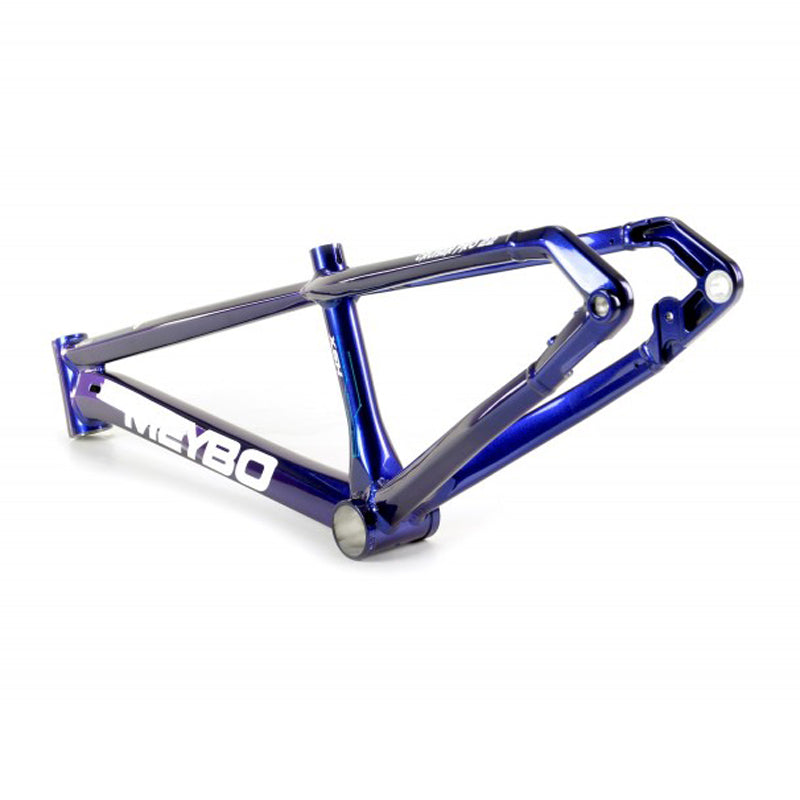

A blue Meybo 2024 HSX Expert XL Frame with the word meybo on it, featuring an aluminium frame.

Meybo 2024 HSX Expert XL Frame / Navy/White/Cyan / 20.7TT

Sale price$1,299.99 AUD

kab8597

Sold Out

Description

This frame is the aluminium version of the extremely popular Meybo carbon HSX that mimics the geometry and specifications of its more expensive sibling, with only a very small weight penalty. So small that when built, the difference would be negligible.

Sitting around half the price of the carbon frame, the Meybo HSX alloy frame doesn't sacrifice in the way of features. Manufactured from 6061 T-6 multiple butted hydroformed tubing and utilising the same fixed dropout system and flat mount disc caliper set up, it brings to the gate the same simplistic design that has seen the HSX series become popular on the UCI circuit. And not just favoured buy the Dutch, riders all over the world appreciate the ease at which gearing changes can happen.

We love these Meybo frames for their simple clean graphics that state perfectly their no nonsense approach to winning. Touches like full internal cable (hose) routing makes building these frames up child's play. Plus it looks so clean! Make no mistake though, the HSX range has all the attributes of dialed geometry, stiffness and proven on the track performance.

This aluminium HSX frame isn't the poor cousin of the carbon frame, it's an astute choice for the racer that will likely put the savings towards other key performance components such as carbon fibre rims and Onyx hubs to build a top shelf BMX race bike capable of competing at the highest level of BMX.

Frame Specs

Model  Meybo HSX Expert XL
Frame Material  6061 T-6 multiple butted hydroformed tubing
Top Tube Length  20.7 Inch
Chainstay Length  13.58 Inch
Bottom Bracket Height  Not specified by manufacturer
Head Angle  73.5 Degree
Seat Angle  71 Degree
Head Tube Type  1-1/8th Inch Integrated
Wheel Type  451mm (20 x 1-1/8 or 20 x 1-3/8th tyres)
Bottom Bracket Type  BB86
Seat Tube Diameter  25.4mm
Seat Clamp Diameter  28.6mm
Brake Type  Disc - Flat Mount
Dropout type  Fixed - 15mm Thru-bolt
