Highlights

  • External slack adjustment
  • Female axle, 14mm and 3/8
  • Lighter than a solid axle
  • 9T driver, LHD or RHD

Description

The Odyssey Clutch Freecoaster Hub is based off the traditional coaster hub design, but throws away all of the problematic elements and only keeps the parts that work. Odyssey beefed up the axle, the bearings and the mechanism itself so riders can finally go backwards without spending all of their time fixing the hub. Includes a plastic hub guard and external slack adjustment. The Clutch hub includes a female axle with a 14mm non-drive side axle bolt and 3/8" drive side bolt with built-in 14mm adapter. This configuration is lighter and stronger than a 14mm solid male axle. The 3/8" drive side bolt provides room for an ultra-long-lasting bearing system in the driver - one of the weakest points on traditional hubs. The 14mm non-drive side bolt is incredibly strong and allows for a larger bore in the axle. Team tested and proven. Patents Pending. Worth noting, Gary Young (who rides everything) conveniently adjusts his slack on the fly depending on if he is riding street or park, without having to take his wheel off. Available with 9T driver and LHD or RHD. Also available as a complete wheel laced to a Hazard Lite rim.

A traditional clutch-based coaster hub design that eliminates all of the problematic elements on ordinary hubs and only keeps the parts that work. A new, super-strong axle, bearing configuration, and drag mechanism design stops the need for constant repairs. Equipped with external slack adjustment (can be adjusted without removing the rear wheel), and a plastic hub guard. Patents pending. Shipping now worldwide.

About the Brand

Odyssey BMX is dedicated to quality and innovation. Odyssey has been a major player in the BMX industry for a long time now and has produced some of the most iconic and groundbreaking parts in the sport's history.

Features

  • External slack adjustment. A 2.5mm hex key through an access hole in the hub shell changes the slack, with no need to take the wheel out.
  • Female axle, 14mm and 3/8. The oversized 4130 chromoly female axle takes a 14mm non drive side bolt and a 3/8 inch drive side bolt with a built in 14mm adapter.
  • Lighter than a solid axle. Odyssey say the female axle setup is lighter and stronger than a 14mm solid male axle, and it leaves room for a longer lasting driver bearing.
  • 9T driver, LHD or RHD. Available with a 9 tooth driver in left or right hand drive, so it suits either way of riding.
  • Plastic hub guard included. The guard is in the box and optional to run, on a 36 hole 2014-T6 aluminium shell at 640g.

Specifications

  • Fits: 36 hole rims, dropouts taking a 14mm non drive side bolt and 3/8 inch drive side bolt
  • Material: 2014-T6 aluminium shell
  • Driver: 9T, left or right hand drive
  • Hole count: 36
  • Axle: Oversized 4130 chromoly female axle, 14mm non drive side bolt, 3/8 inch drive side bolt with built in 14mm adapter
  • Included: Plastic hub guard
  • Weight: 640g
  • Note: Slack adjusts with a 2.5mm hex key through a hub shell access hole, no wheel removal required.

Spoke calculator

Display

Pick the part it is laced to and we will give you the lengths to buy.

This hub

Looking up its measurements.

Check or change its figures

Flange diameter/PCD (pitch circle diameter) spoke hole centre to the opposite hole centre. The drive side is the driver side, left or right hand drive alike, and is usually the bigger flange

Flange position

Laced to which rim?

Or type its figures

Spoke lengths to buy

Drive side —mm
Non-drive side —mm

Pick the rim and your lengths will appear here.

Open the full spoke calculator for offset rims, other cross patterns and measuring help.

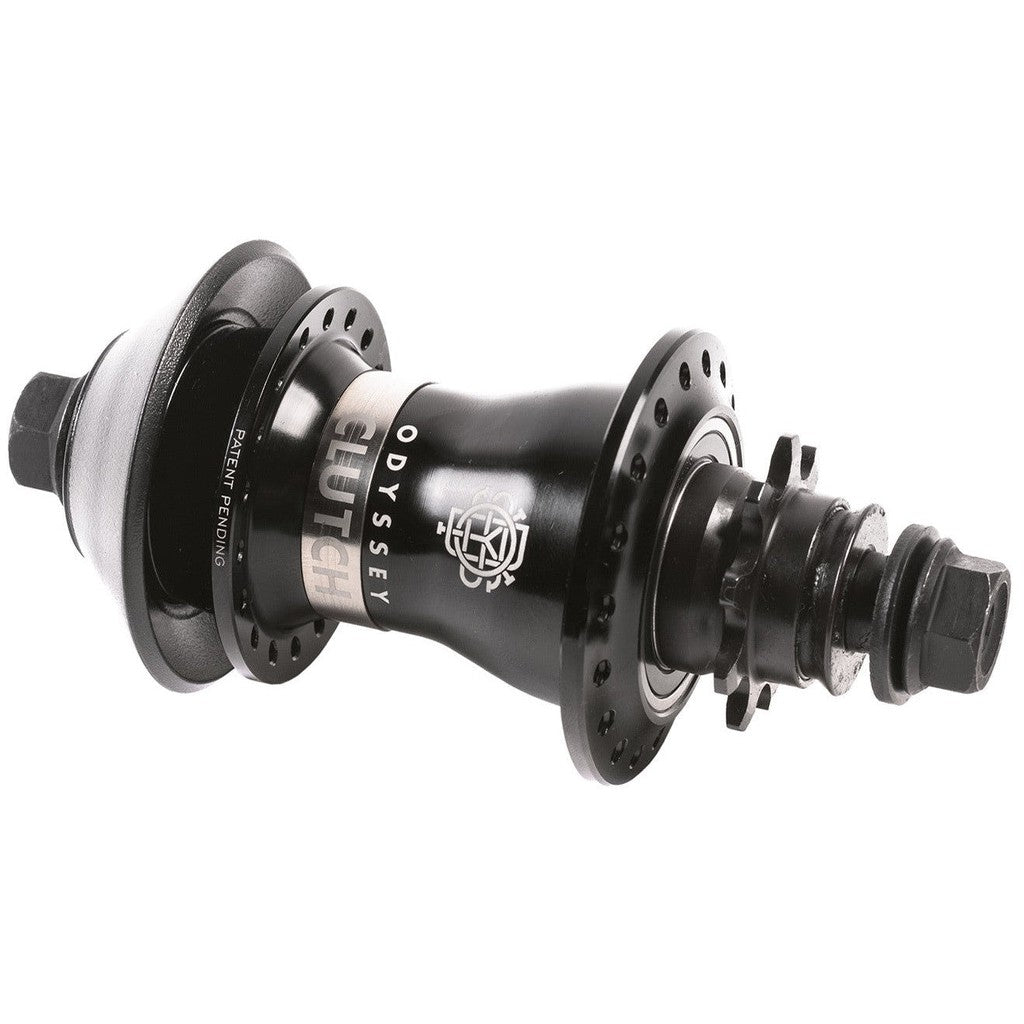

Odyssey Clutch Freecoaster Hub

Brand: Odyssey SKU: Click to copy the SKU and show the pick location

Sale priceFrom

$210.99 AUD

Regular price$239.99 AUD

Or 4 payments of $52.74 AUD with

Option - RHD

Size - 9T

Colour - Black


Odyssey Clutch Freecoaster Hub - RHD / 9T / Black

Discount 12%

Instead of $239.99

$210.99 AUD
