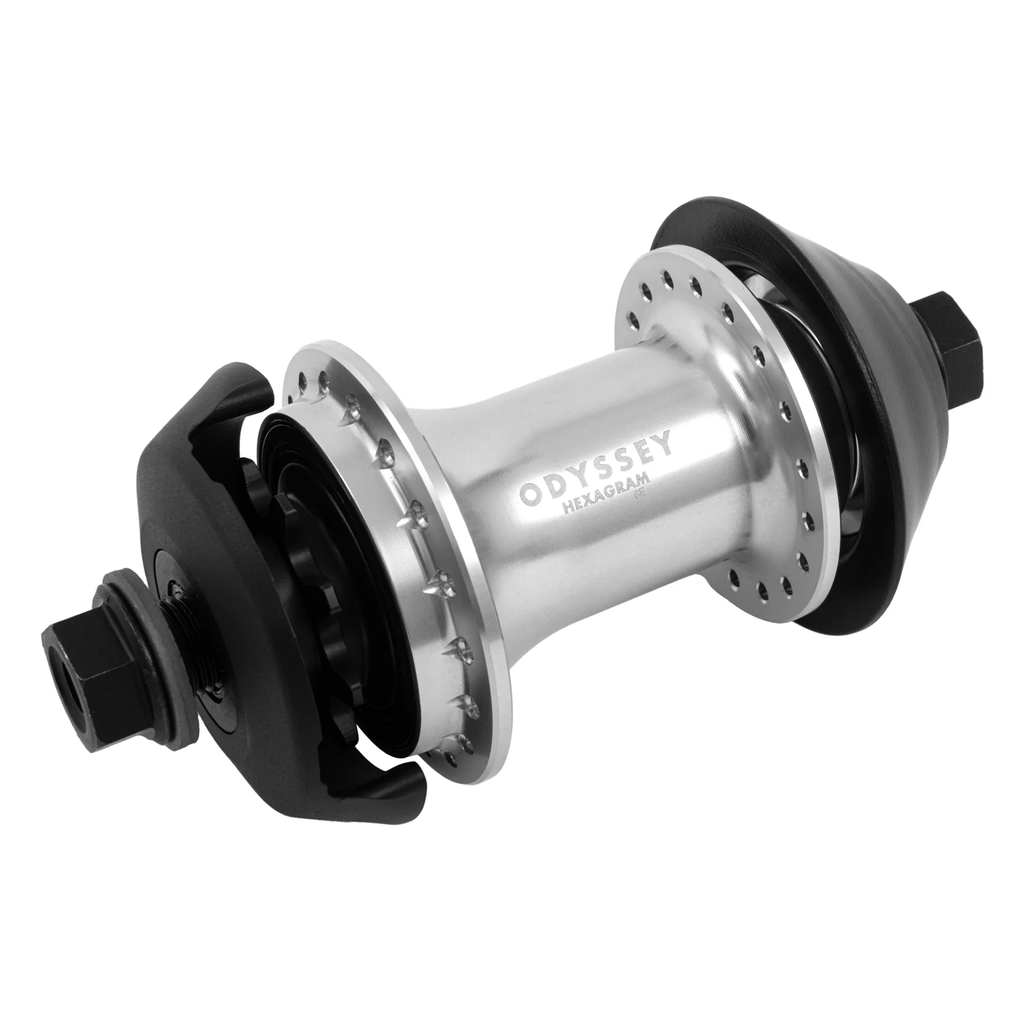

The Odyssey Hexagram Rear Cassette Hub in silver is shown against a white background, featuring black bolts, spoke holes, plastic hub guards on both sides, a switchable RHD/LHD design, and precision 6-pawl engagement.

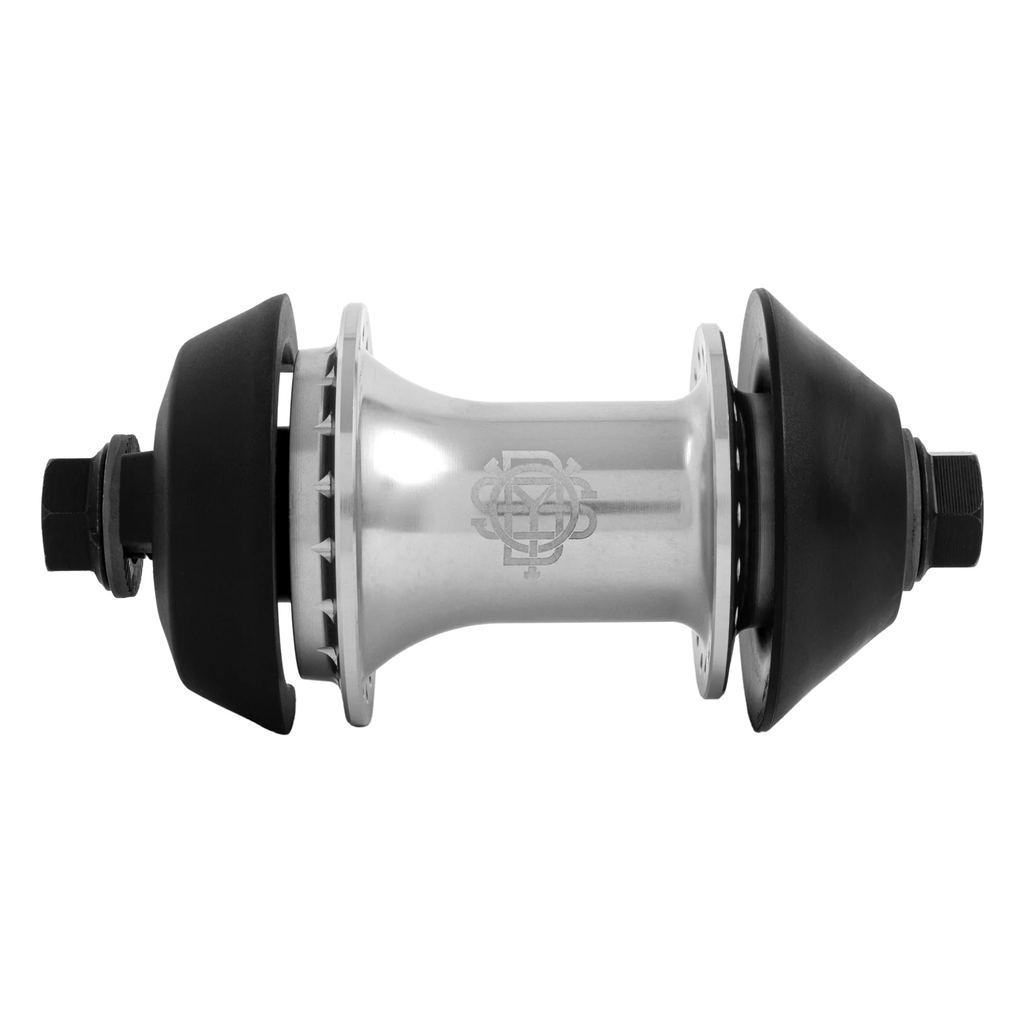

The Odyssey Hexagram Rear Cassette Hub, featuring a silver body and black cones on each end, is shown from the side against a white background.

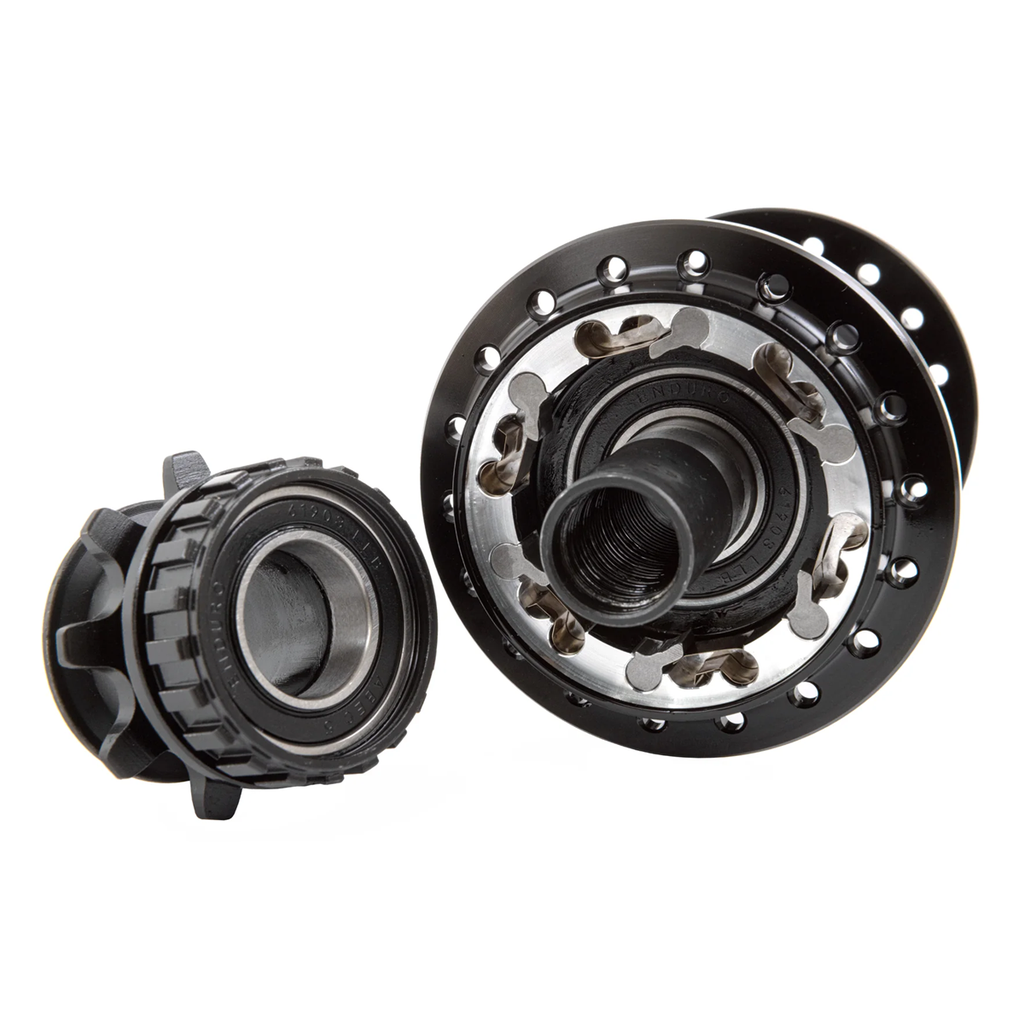

Close-up view of two black Odyssey Hexagram Rear Cassette Hub components with visible ball bearings and spoke holes, set against a white background. One features a switchable RHD/LHD hub design with 6-pawl engagement for enhanced performance and versatility.

Description

Trust Odyssey to bring out the goods! These new hubs look epic! The drive side can be switched so you can run it how you like.

The Hexagram is an all-new, lightweight freestyle cassette hub featuring faster, alternating 6-pawl engagement that is RHD/LHD switchable and comes with plastic drive and non-drive side guards.

About the Brand

Odyssey BMX is dedicated to quality and innovation. Odyssey has been a major player in the BMX industry for a long time now and has produced some of the most iconic and groundbreaking parts in the sport's history.

Features

Alternating 6 pawl engagement. Six pawls engage three at a time, picking up faster than a traditional three pawl design when you crank down.
Switchable RHD or LHD. The pawls and springs sit in the hub shell, so the drive side swaps to whichever way you ride.
All new 9T driver. A 9 tooth driver with a sealed cartridge bearing and precision needle roller assembly, plus a simplified service procedure.
Guards for both sides. Plastic drive and non-drive side guards are included, with a slim non-drive collar available separately for a cleaner look.
6903 hub shell bearings. A common size most bike shops have on hand, and they knock out and press in easily when service time comes.

Specifications

Material: 7075-T6 aluminium hub shell
Bearings: Hub shell non-drive: 6903 sealed. Driver: sealed precision caged needle roller
Engagement: 6 pawls with alternating 3 pawl engagement
Driver: 9T, RHD/LHD switchable
Hole count: 36
Axle: Chromoly inbound axle with 4130 chromoly 14mm bolts
Axle size: 17mm
Included: PC guards for the drive and non-drive side
Weight: 510 grams with guards, 471 grams without
Note: Wheel building info: drive side effective flange diameter 55mm, non-drive side 48mm. Drive side flange to centre 28mm, non-drive side 26mm.
