Onyx BMX 100/8mm Bolt-on Helix Front Hub / Black Ano / 28H

Onyx BMX 100/8mm Bolt-on Helix Front Hub / Black Ano / 36H

Onyx BMX 100/8mm Bolt-on Helix Front Hub / Clear Ano / 28H

Onyx BMX 100/8mm Bolt-on Helix Front Hub / Matte Black Ano / 28H

Highlights

Hybrid ceramic bearings
Machined shell cut-outs
10mm stepped alloy axle
28 or 36 hole

Description

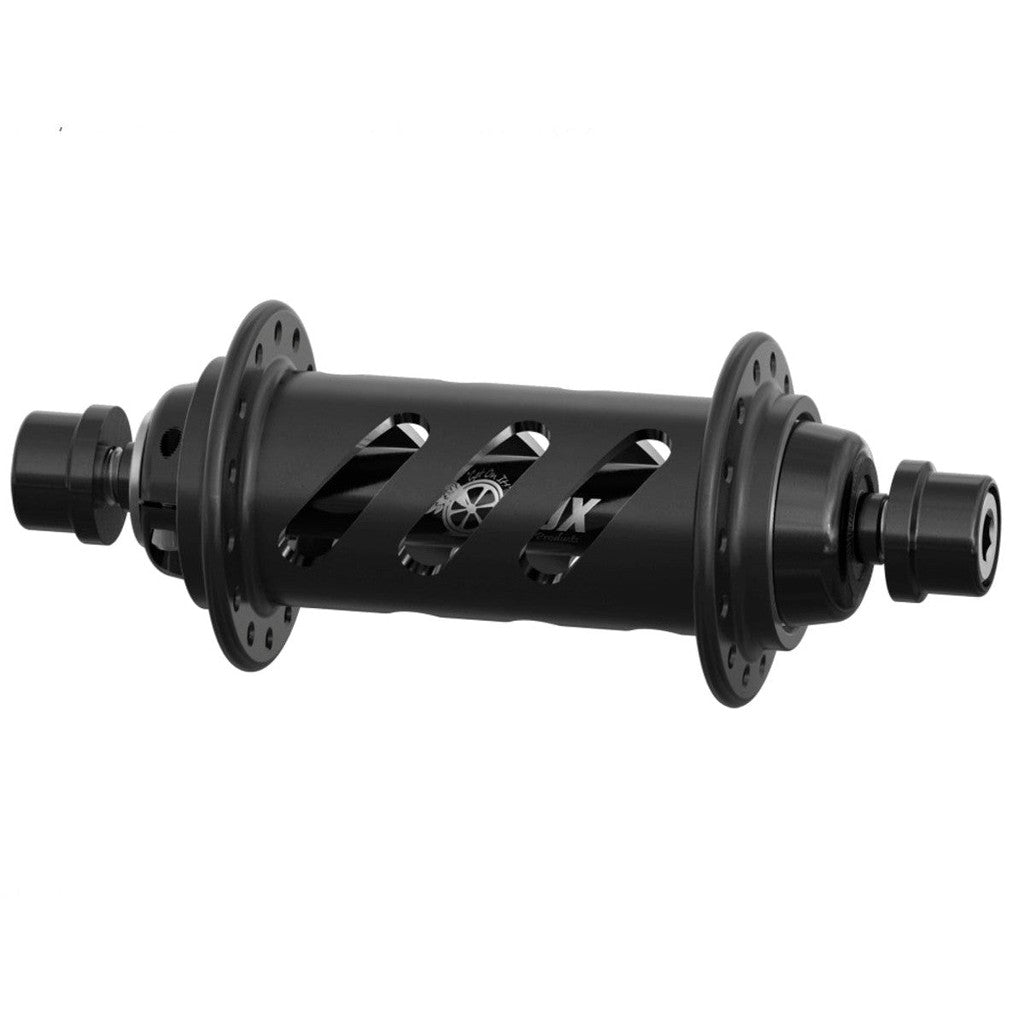

The Onyx Helix front hub is arguably the highest quality hub on the planet.
Unique cut-outs in the hub shell are not only aesthetically pleasing but save weight without sacrificing strength. Making the Onyx Helix front hub the number one choice of the pros.

Features

Hybrid ceramic bearings. Hybrid ceramic bearings keep the front wheel rolling freely, which is why this hub is a pro favourite.
Machined shell cut-outs. The cut-outs in the shell save weight without sacrificing strength, and they look good doing it.
10mm stepped alloy axle. A stepped 7075 aluminium axle steps down to 8mm bolt-on, with titanium BTR bolts included.
28 or 36 hole. Pick the drilling that matches your rim, in a mini CNC machined shell at 165 grams.
Torque to 12Nm. Do not go past 12NM on the axle bolts: tightening them further will void the warranty.

Specifications

Fits: 100mm front spacing, 8mm bolt-on
Material: Mini CNC machined 7075 aluminium body
Bearings: Hybrid ceramic
Hole count: 28h or 36h
Axle: 10mm stepped 7075 aluminium axle, 8mm with titanium BTR bolts
Weight: 165g
Note: Tightening the axle bolts more than 12NM will void the warranty.

Spoke calculator

Display

Pick the part it is laced to and we will give you the lengths to buy.

This hub

Looking up its measurements.

Check or change its figures

Hub spacing locknut to locknut, 100 front or 110 rear on most BMX mm Same both sides front hubs, or matching flanges

Flange diameter spoke hole centre to the opposite hole centre. The drive side is the driver side, left or right hand drive alike, and is usually the bigger flange

Drive side mm Non-drive side mm

Flange position

Flange to locknut Centre to flange

Drive side mm Non-drive side mm

Laced to which rim?

Find your rim

Or type its figures

ERD effective rim diameter, from the spec sheet mm
