Description

Profile have stepped up to gate and produced an aluminium crank set that look like they would be bomb proof. This three piece crank set comes with a 30mm aluminium spindle that just screams stiffness. The arms and spindle are fully CNC'd, a reductive process utilised to produce the strongest components across a range of applications like automotive racing.

The cranks, spindle and bottom bracket shell of the frame are under enormous stresses at a pro level, with gate after gate producing high maximal forces. Sure your forks and chainstay take the hits when you case a jump, but your drivetrain cops repeated stresses. Think about how many gates and sprints you do in a year? It could be in the hundreds, or thousands!

The Profile Elite AL Crank Set will take the repeated stresses that you dish out and give you the confidence to charge to the bottom of the hill at max wattage.

About the Brand

For over 35 years, Profile Racing parts have been the top choice for all types of BMX riding. Profile Racing is the single largest, most capable and most sophisticated manufacturer of high-end BMX bicycle components in the United States.

Features

  • 30mm aluminium spindle. An oversized 30mm aluminium axle runs the length of the crankset, which is where the stiffness comes from.
  • Fully CNC machined. Arms and spindle are cut from solid, the same reductive process used for automotive racing components.

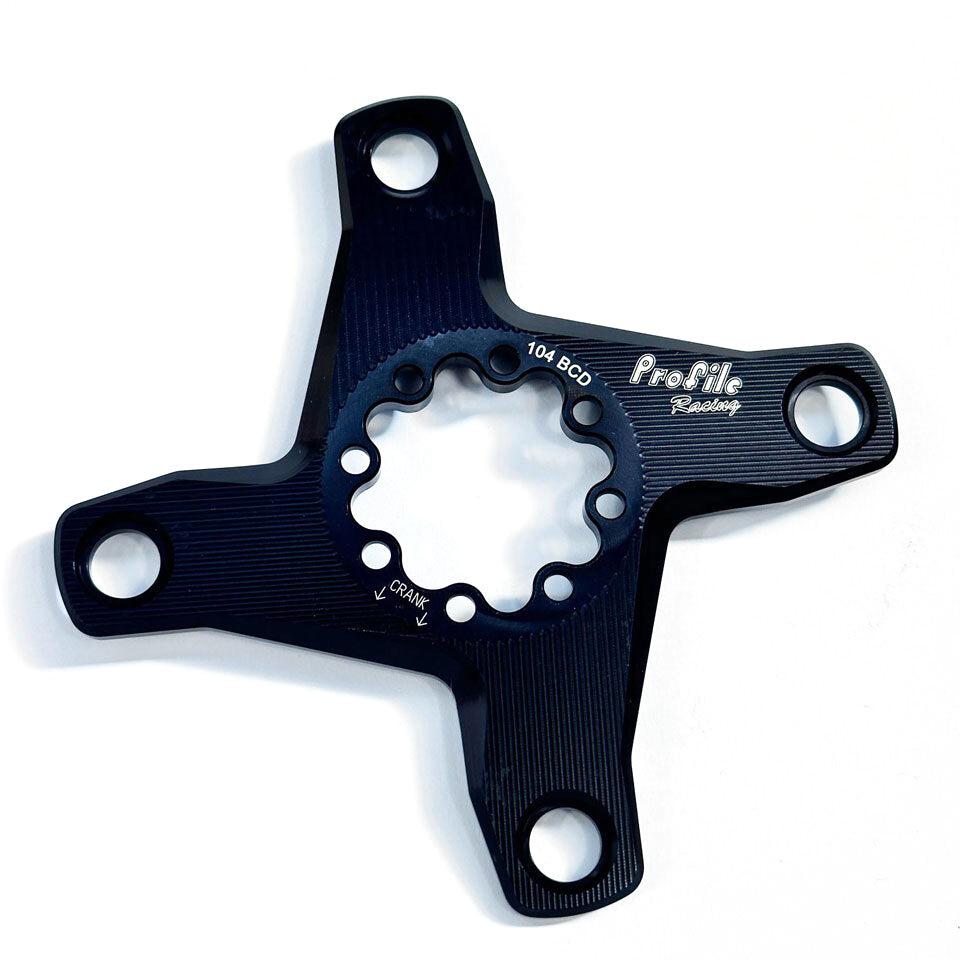

  • 104PCD four bolt spider. The Profile Elite AL spider in black is included, so a standard four bolt race chainring bolts straight up.
  • 173mm Q factor. Sets your feet 173mm apart with a 45mm chain line, worth checking against the frame and sprocket you run.
  • Everything in the box. Both arms, the spider, the 30mm aluminium axle, two crank and pedal washers and eight spider bolts.

Specifications

  • Spindle: 30mm aluminium
  • Bolt pattern: 4 bolt 104PCD
  • Material: CNC aluminium arms and spindle
  • Included: Left and right crank arms, Profile Elite AL spider 4 bolt 104PCD 30mm in black, 30mm aluminium axle, 2 crank/pedal washers, 8 spider bolts
  • Note: Q factor 173mm, chain line 45mm. Three piece crankset.

Profile Elite AL Crank Set

Brand: Profile Racing SKU: Click to copy the SKU and show the pick location

Sale price$1,099.99 AUD

Or 4 payments of $274.99 AUD with

Colour - Silver

Crank Length - 175mm


$1,099.99 AUD

Price match request

Profile Elite AL Crank Set - Silver / 175mm

$12.99 flat-rate shipping Australia-wide

Express from $21.99

Free in-store pickup - Brisbane

Availability

175mm165mm170mm
Black
Silver

In stock at LUXBMX With supplier Preorder Sold out
