Description

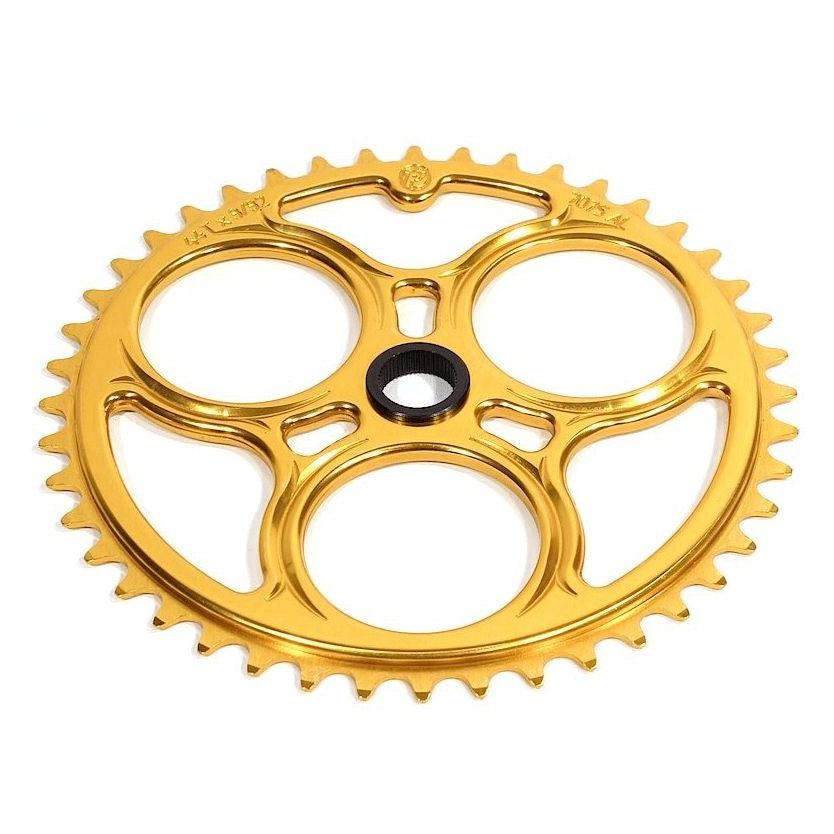

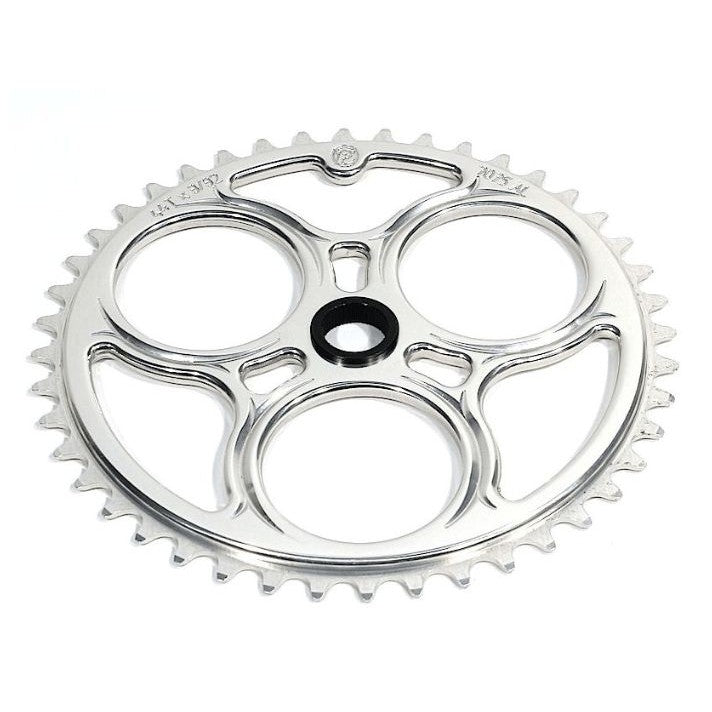

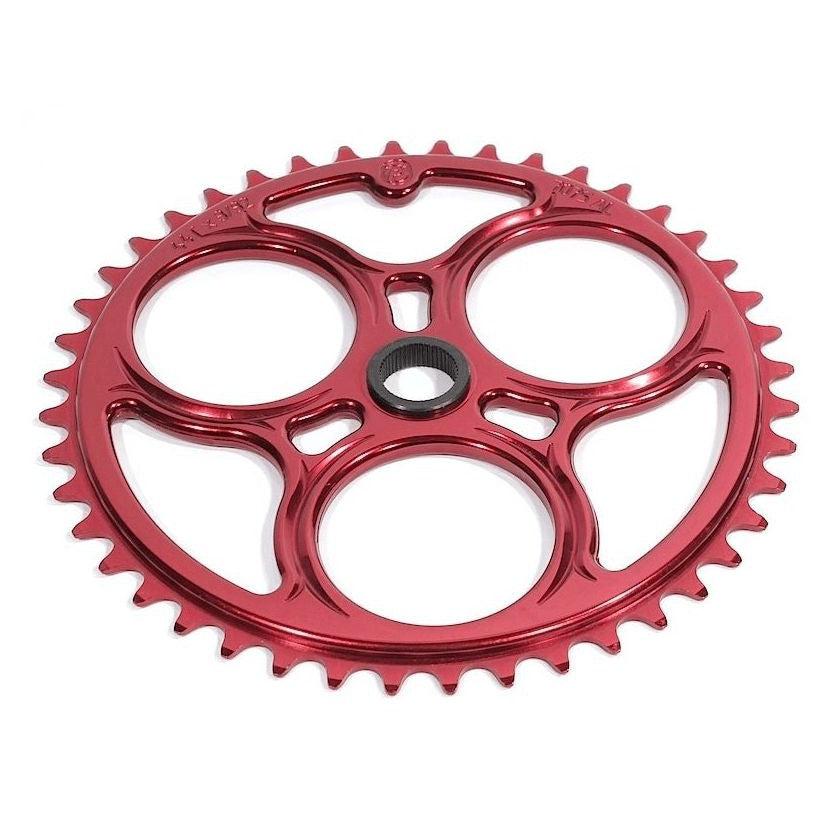

The Profile Elite Spline Drive Sprocket is a true work of art from Profile. These USA made spline drive sprockets are designed for 19mm 48 spline cranks. No chain ring bolt needed, these are such a nice looking sprocket, available in an array of colours and sizes...

About the Brand

For over 35 years, Profile Racing parts have been the top choice for all types of BMX riding. Profile Racing is the single largest, most capable and most sophisticated manufacturer of high-end BMX bicycle components in the United States.

Features

19mm 48 spline axles only. This is a spline drive sprocket made for 19mm splined crank axles, so it will not fit 22mm or 24mm spindles.
No sprocket bolt needed. A hardened CrMo steel insert matches the 48 splines on your crank axle for direct power transfer, and the insert is supplied.
3/32 inch tooth width. Cut to suit most BMX race chains, so it drops straight into a standard race drivetrain.
36t through to 45t. Ten sizes in single tooth steps let you fine tune your gearing without jumping several teeth at a time.
CNC machined 7075, USA made. Machined from 7075 aluminium in the USA, with a 36t at 140g and the biggest 45t still only 172g.

Specifications

Spindle: 19mm, 48 spline
Teeth: 36t, 37t, 38t, 39t, 40t, 41t, 42t, 43t, 44t, 45t
Chain size: 3/32"
Material: 7075 aluminium, CNC machined in the USA
Included: 19mm splined steel insert
Weight: 36t 140g (4.9oz), 40t 150g (5.25oz), 45t 172g (6.05oz)
Colour: Silver, Black, Red, Blue, Gold
Note: Due to Profile's anodising process, colours can be slightly mismatched between parts.
