Description

This is Profile's Euro external bottom bracket, the outboard style where the bearings sit outside the shell in threaded cups. It covers Euro threaded shells in 68mm, 73mm, 83mm and 100mm widths, and comes in a 19mm or 22mm axle size so you can match it to your cranks.

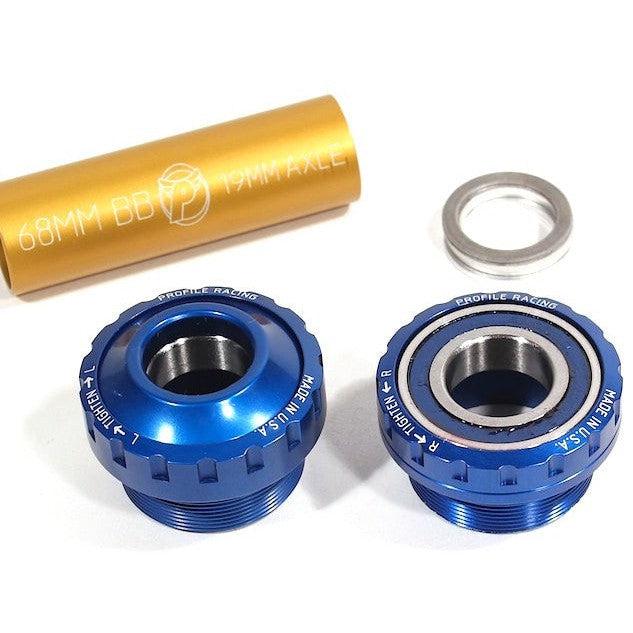

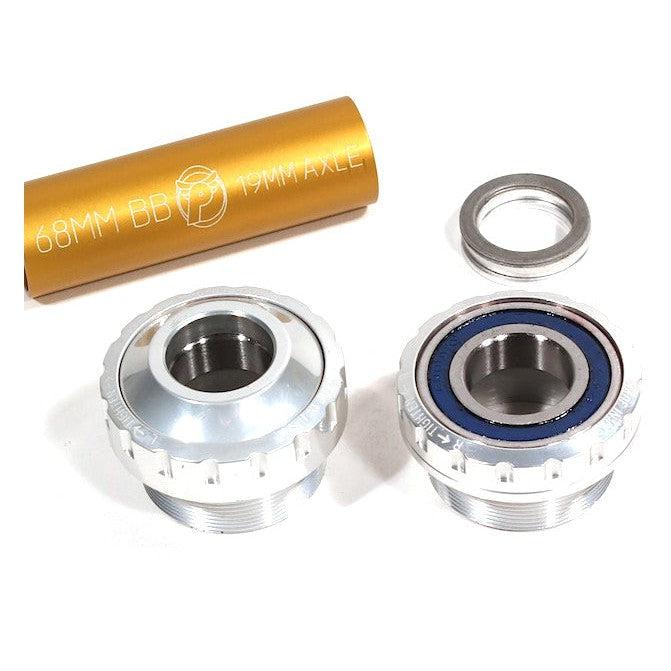

Everything needed to fit it is in the box: left and right hand threaded cups, two bearings, a tube spacer, a cone spacer and aluminium and steel spacers. It installs with a Park BBT-9 tool and weighs 148g.

About the Brand

For over 35 years, Profile Racing parts have been the top choice for all types of BMX riding. Profile Racing is the single largest, most capable and most sophisticated manufacturer of high-end BMX bicycle components in the United States.

Features

Covers four shell widths. Suits 68mm, 73mm, 83mm and 100mm bottom bracket shells, so one part number sorts most Euro threaded frames.
19mm or 22mm axle. Pick the size that matches your cranks and the spindle drops straight through.
Full fitting kit included. Threaded cups for both sides, two bearings, tube spacer, cone spacer and aluminium and steel spacers all come with it.
Installs with a BBT-9. Fitting and removal is done with the standard Park BBT-9 tool, so no special press is needed.
148g on the scales. Light enough that moving to an outboard setup costs you very little weight.

Specifications

Fits: Euro threaded bottom bracket shells
Width: 68mm, 73mm, 83mm and 100mm
Spindle size: 19mm or 22mm
Included: LH and RH threaded cups, 2 bearings, tube spacer, cone spacer, aluminium and steel spacers
Weight: 148g
Colour: Silver, black, red, blue, gold, green and purple (19mm only)
Note: Installs with a Park BBT-9 tool. Due to Profile's anodising process, colours can be slightly mismatched.

Profile Outboard Euro Bottom Bracket

Name: Profile Outboard Euro Bottom Bracket
Brand: Profile Racing
SKU: 25BBROB22BLK
Price: 138.99 AUD
Availability: InStock
Rating: 5.0 (2 reviews)
